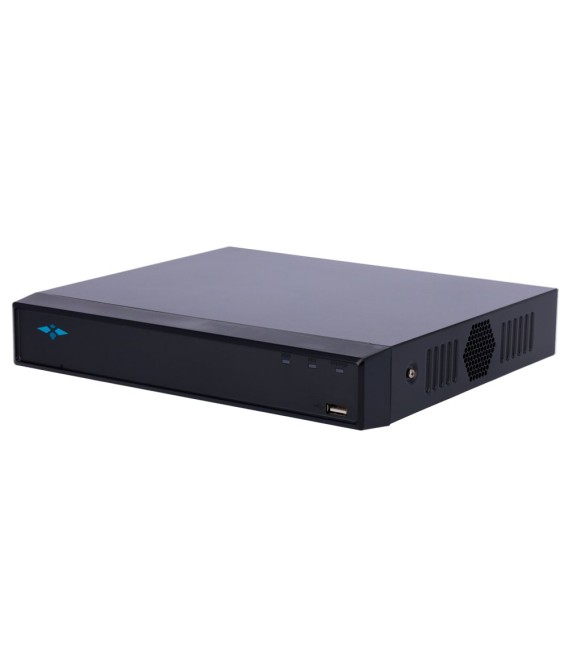

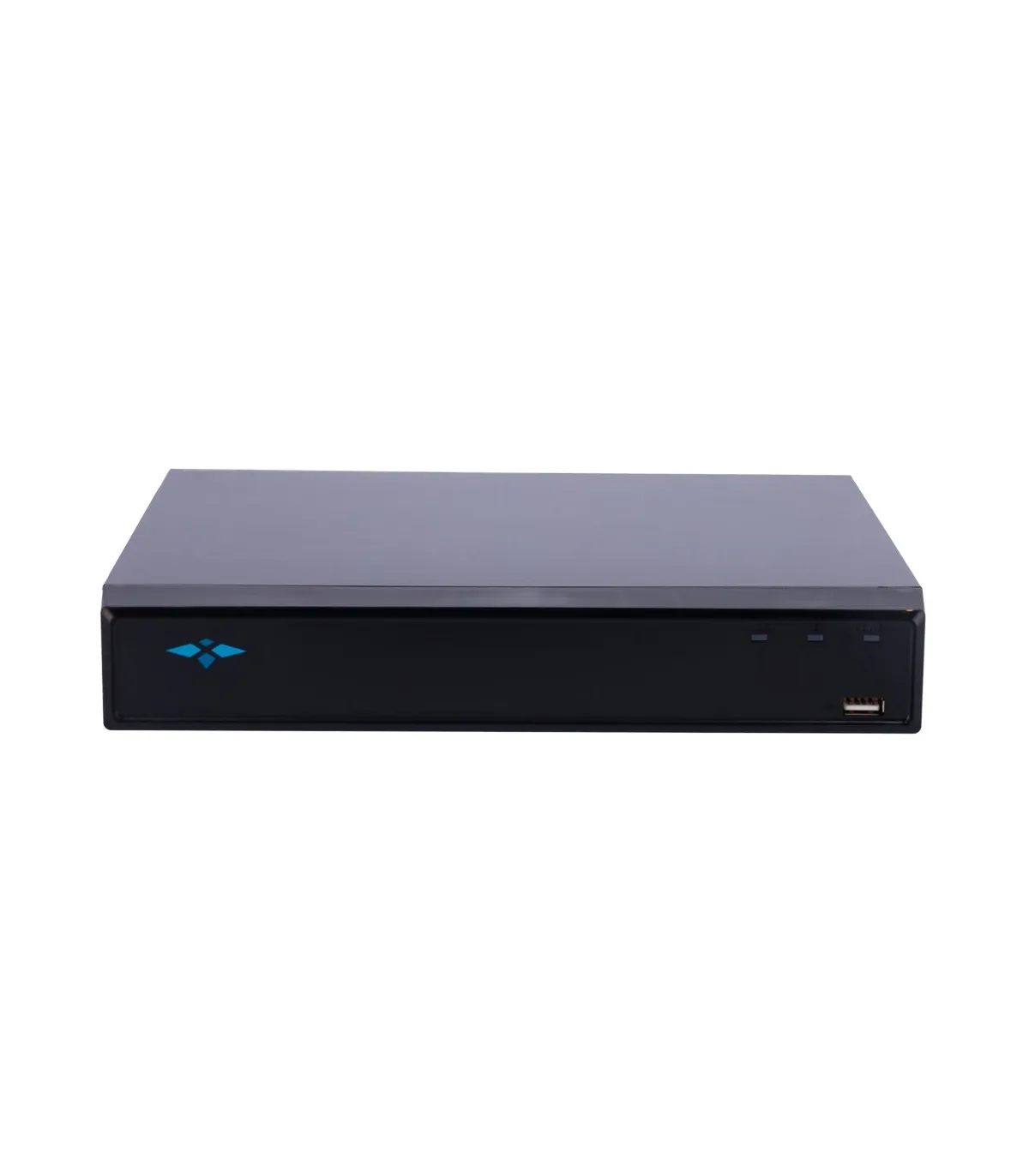

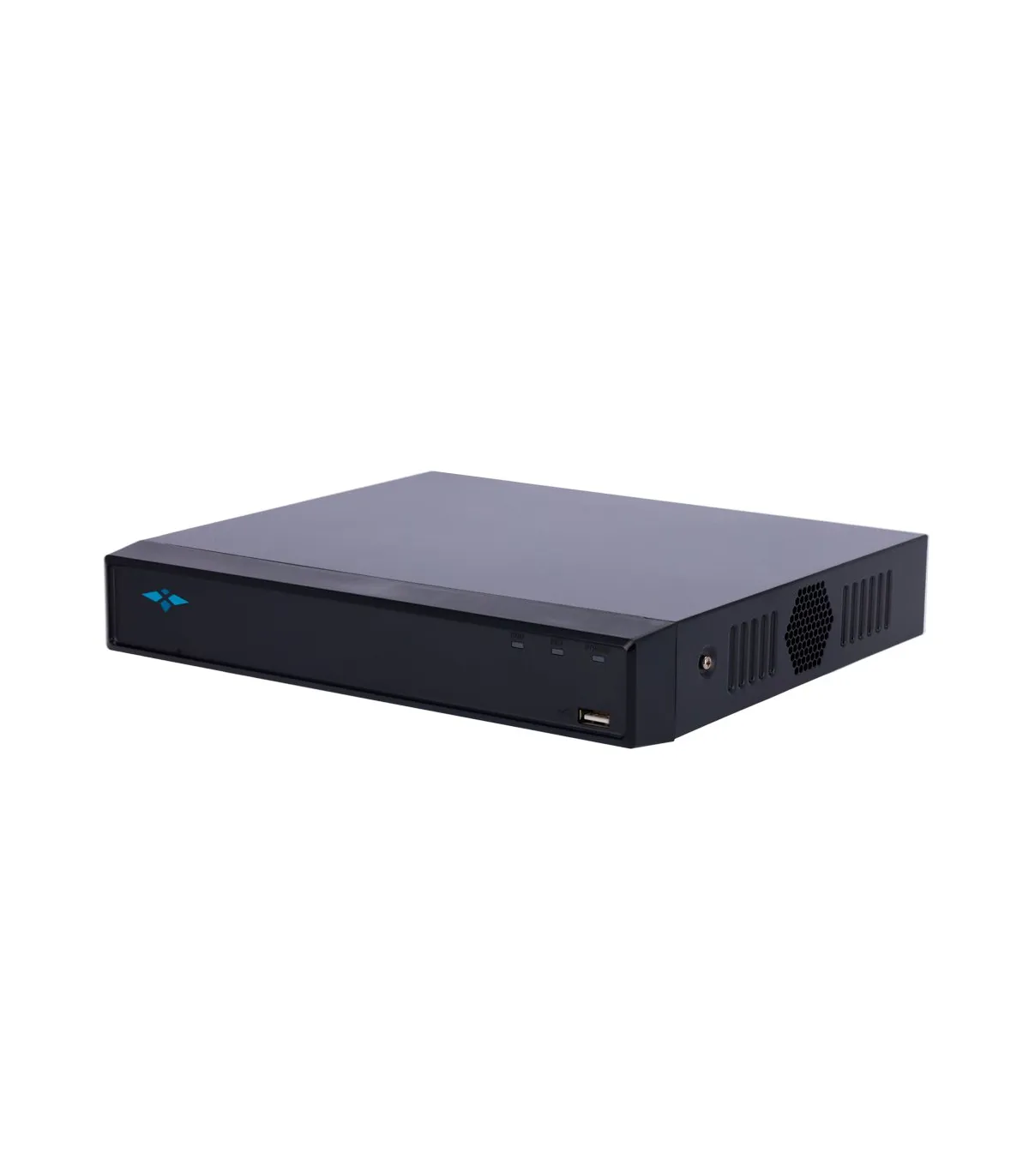

X-Security AI IP Recorder XS-NVR2104-S3P
Brand: X-SECURITY
- X-Security AI IP Recorder
- 4 CH IP video | 4 CH PoE
- Maximum recording resolution 12 Mpx
- Bandwidth 80 Mbps
- Full HD HDMI and VGA output
X-Security AI XS-NVR2104-S3P IP Recorder
- X-Security
- NVR Recorder for IP cameras
- 4 CH
- 4CH PoE
- Supported bandwidth 80 Mbps
- Maximum resolution 12 Mpx
- Smart H.265/H.265/Smart H.264/H.264 Compression
- VGA and HDMI FullHD output
- Perimeter protection support
- SMD Plus
- Audio
- 1 HDD
- 2 USB ports
- RJ45 10/100 Base T
- WEB, CMS (DSS/PSS), Smartphone, and NVR interface
- ONVIF compatible
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN Port up to 4 channels |
| PoE Channels | 4 PoE Channels, 10/100 Mbps |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Two-way Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265 / H.265 / Smart H.264 / H.264 |
| Decoding Capacity | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Total Bandwidth | 80 Mbps record |
| Recording Resolution | 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1 |
| ONVIF | Profile T/S/G |
| AI Functions | Perimeter protection / SMD Plus |
| Perimeter AI Performance per Camera (Number of Channels) | 4 |
| SMD Plus per Camera | 4-channel SMD Plus (AI per camera), secondary filtering for humans and motor vehicles |
| Internal Storage | 1 HDD SATA 3.5" up to 16 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) / 1 RJ45 10/100M (Ethernet) |
| Remote Access | Browser, Mobile phone application, or PSS software |
| Power | DC 48/53 V, 1.25/1.13 A |
| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 1.75 Kg (without HDD) |
Content
- X-SECURITY NVR Recorder
- Mouse
- Ethernet Cable
- AC/DC Adapter 12 V / 1.5 A
- Instruction Manual
- CD with manual and software
