- Hikvision
- PRO Series IP Motorized Camera
- Maximum Resolution 8 Megapixel
- Lens 5.9~147.5 mm (25X) | Audio | Alarms
- IR 200 m | Powered by DarkFighter | IP66, IK10
- AcuSense | Siren and Strobe Light | Hi-PoE

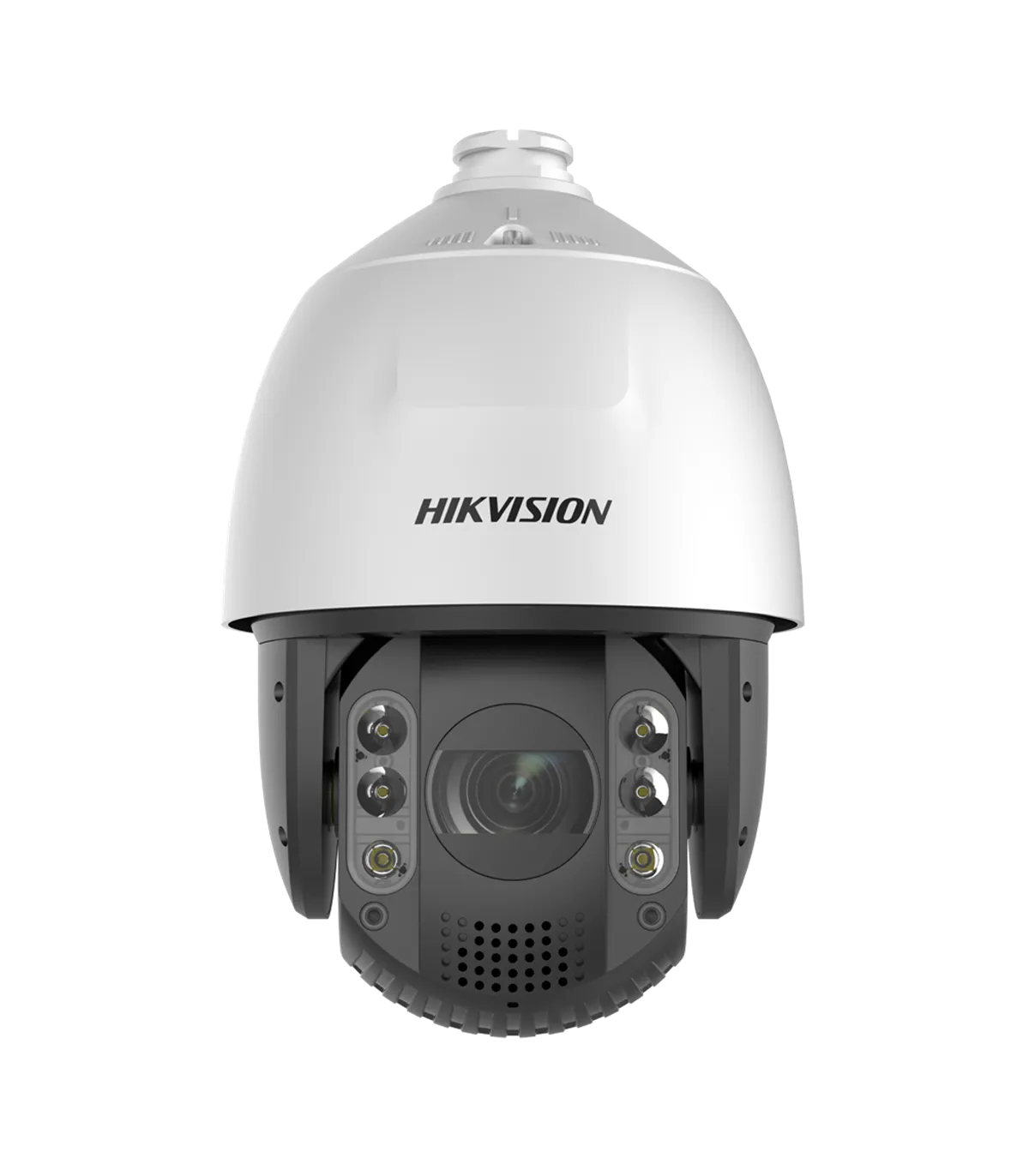

Description & Key Features: DS-2DE7A825IW-AEB(T5)
The DS-2DE7A825IW-AEB(T5) is a high-performance IP PTZ camera designed for ultra-low light conditions, making it ideal for outdoor surveillance in various environments. This device is particularly effective for security monitoring in large areas such as parking lots, warehouses, and public spaces. With its advanced features, including a 25X optical zoom and AcuSense technology, it ensures precise detection and tracking of objects and individuals, enhancing overall security.
- Hikvision
- PRO Series
- Ultra Low Light PTZ IP Camera Powered by DarkFighter
- Media speed 160º/second
- Optical zoom 25X
- 1/1.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Motorized varifocal lens 5.9~147.5 mm
- IR range 200 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture, up to 5 faces simultaneously
- IR CUT
- WDR (120 dB)
- 3D-DNR
- MicroSD card slot up to 256 GB
- Alarms
- Audio
- Integrated deterrent light and siren
- Hi-PoE
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- IP66 waterproof
- IK10 vandal-proof
- 6000 V surge protection
- Wall mount DS-1602ZJ included
Specifications: DS-2DE7A825IW-AEB(T5)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Bitrate | 32 kbps ~ 16384 kbps |
| Minimum Illumination | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.5, AGC ON) Black and white: 0.001 Lux @ (F1.5, AGC ON) / 0 lux with IR LEDs range 200 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized varifocal 5.9~147.5 mm (Optical zoom 25X) |
| Field of View (FOV) | 50.8~2.6º (H), 29.4~1.5º (V), 57.4~3º (D) |
| DORI | 2046.9 m (D), 812.3 m (O), 409.4 m (R), 204.7 m (I) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1~1/30.000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Auto-Tracking | Yes |
| Video Analytics | VCA: Line Crossing | Area Intrusion | Audio Exception |
| Advanced Features | AcuSense with false alarm filter for vehicles and people applied to: Line Crossing, Area Intrusion, Entry Area, and Exit Area. Face Capture. Automatic selection of the best photo. Capable of capturing up to 5 faces simultaneously. * AcuSense and face capture cannot be enabled at the same time. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° (auto flip) |
| Manual Speed | Horizontal: 0.1~160 °/s, Vertical: 0.1~120 °/s |
| Preset Speed | Horizontal: 240°/s, Vertical: 200°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated speaker |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
| Alarms | 2 inputs / 1 relay |
| Deterrent Alarm | Integrated siren and flash light in the camera |
| PTZ Control | Via network access |
| Remote Access | Web browser, Hik-Connect Smartphone App, PC software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V / 42 W max. / Hi-PoE |
| Operating Temperature | -30º C ~ +65º C |
| Protection Grade | IP66 waterproof / IK10 vandal-proof / 6000 V surge protection |
| Material | ADC12 |
| Dimensions (without mount) | Ø 220 mm x 363.3 mm (H) |
| Weight (without mount) | 5000 g |
Package Contents
- Hikvision motorized dome IP camera
- Installation materials
- Installation template
- Wall mount DS-1602ZJ included
Use Case
The DS-2DE7A825IW-AEB(T5) is ideally suited for deployment in a variety of settings, including commercial properties, educational institutions, and public areas. For instance, a shopping mall can benefit from its 360° pan and 160° tilt capabilities, allowing for comprehensive coverage of the premises. The camera's 25X optical zoom enables security personnel to closely monitor activities from a distance, ensuring that any suspicious behavior is captured in high detail. Additionally, the AcuSense technology minimizes false alarms by accurately distinguishing between vehicles and pedestrians, enhancing the efficiency of security operations. With its remote monitoring capabilities via web and mobile applications, security teams can respond promptly to incidents, even when off-site. The camera's robust design, featuring IP66 waterproof and IK10 vandal-proof ratings, ensures reliable performance in various environmental conditions, making it a versatile choice for any security installation.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 200 m
- Audio
- 1 Entrada / 1 Salida / Altavoz
- SD Slot
- Ranura MicroSD hasta 256 GB
- Wi-Fi
- No dispone
- IP Rating
- IP66
- IK Rating
- IK10
- Series
- PRO
- POE
- Hi-PoE
- Lens
- 5.9 ~ 147.5 mm Motorizada
- Compatible models
- DS-1667ZJ,DS-1667ZJ,DS-1663ZJ,DS-1663ZJ,DS-1662ZJ,DS-1662ZJ,DS-1661ZJ,DS-1661ZJ,DS-1660ZJ,DS-1660ZJ,DS-1619ZJ,DS-1619ZJ,DS-1604ZJ-BOX-POLE,DS-1604ZJ-BOX-POLE,DS-1604ZJ-BOX-CORNER,DS-1604ZJ-BOX-CORNER,DS-1604ZJ-BOX,DS-1604ZJ-BOX,DS-1604ZJ,DS-1604ZJ
Specific References
- EAN13
- 6931847127107
