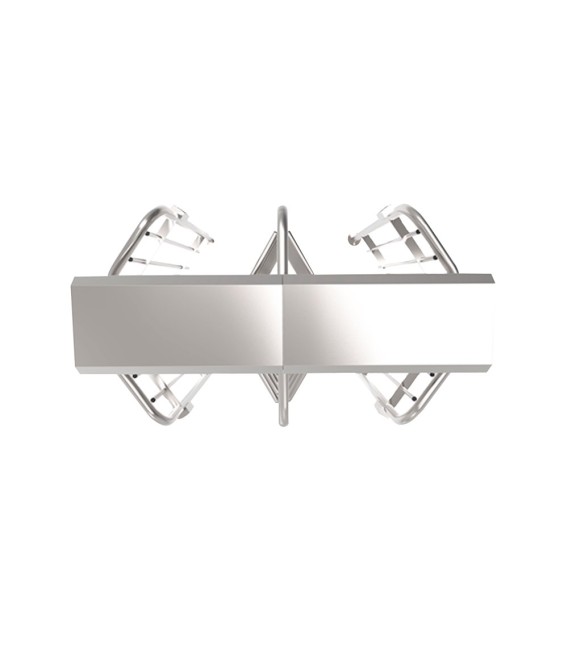

ZK-FHT2300D-316 Bidirectional Access Turnstile
- ZKTeco
- Two-way bidirectional turnstile
- Semi-automatic rotating arm movement
- 580 mm passage width on each side
- LED indicator
- Mechanical system for adjusting actuation force
- Emergency mode
- Main turnstile configuration plate (opening times, counter, relay inputs)
- Made of anti-corrosive SUS316 steel
- Configuration modes: one or two directions with Access Control, free passage in one or two directions
- Compatible with Plug & Play third-party access control systems
- Universal covers for card readers
Technical Specifications
| Brand | ZKTeco |
| Model | FHT-FHT2300D-316 |
| Controller | Turnstile control plate compatible with any Access Control system |
| LED Indicator | Turnstile status LED indicator |
| Arm Movement | Mechanical arm rotation (user-pushed) |
| Emergency Mode | Arm unlock for emergency in case of power loss |
| Safety | Nine-arm trio on each side / Anti-tailgating security Mechanical system for adjusting actuation force |
| Compatibility | Integrable with any Plug & Play third-party Access Control / Universal covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and mechanically configured Access Control in the opposite direction |
| Material | Anti-corrosive SUS316 steel |
| Passing Speed | 20-25 people/minute |
| Power Supply | AC 110/220 V |
| Operating Temp. | -28º C ~ +60º C |
| Line Dimensions | 580 mm |
| Passage Dimensions | 580 (W) x 990 (D) mm |
| Dimensions | 2220 (H) x 1395 (W) x 2018 (D) mm |
| Weight | 272 kg |
| Protection | Indoor / Outdoor (IP54) |
Content
- ZKTeco Turnstile
- Mounting material
- Usage instructions
- Safety keys
