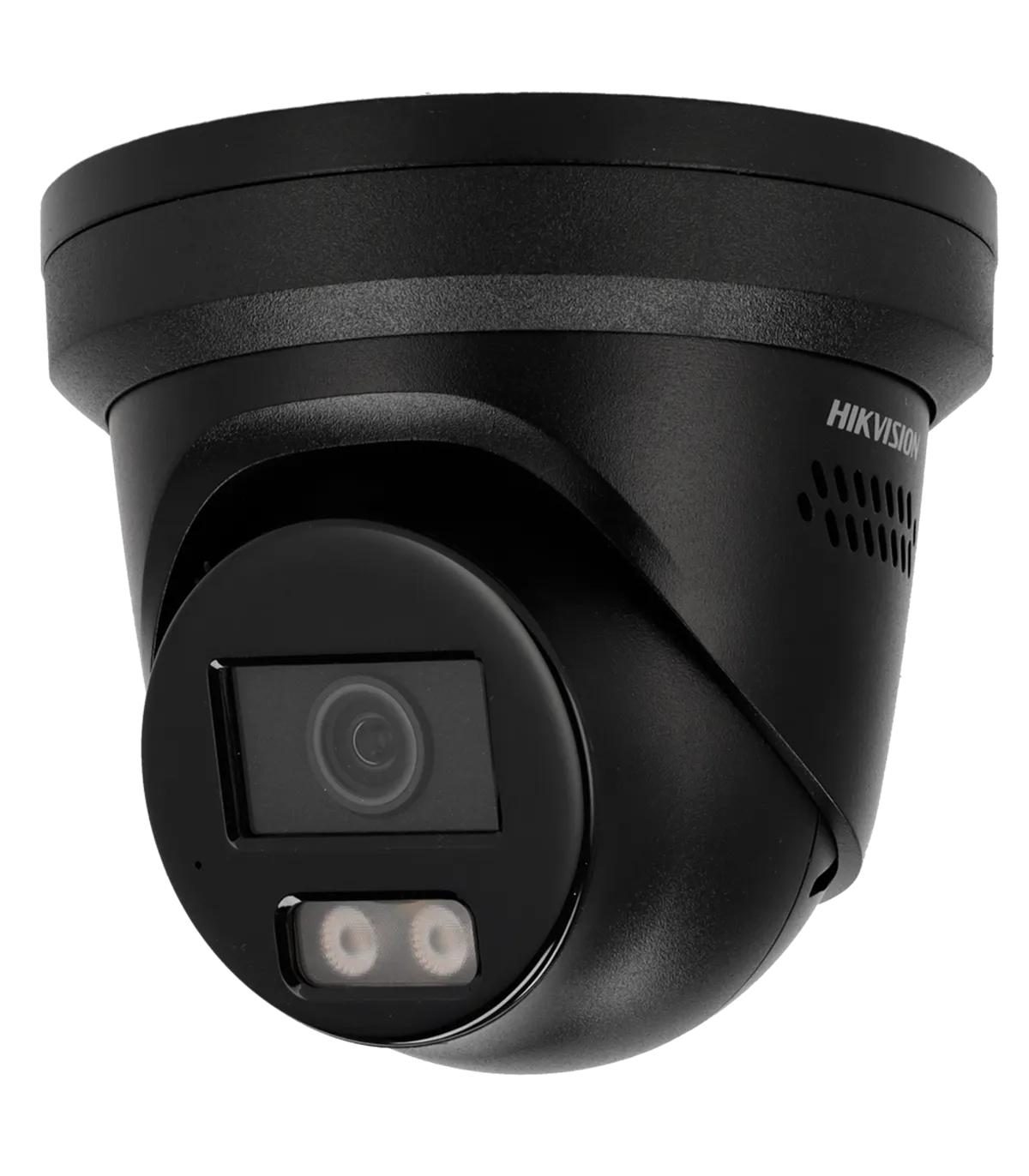

The DS-2CD2347G2H-LISU/SL(2.8)/eF//BLK is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both residential and commercial applications, this device offers exceptional image quality and advanced features for effective security monitoring. With its 4 Megapixel resolution and ColorVu technology, it provides clear color images even in low-light conditions, making it suitable for 24/7 surveillance. The camera's hybrid light capability ensures visibility up to 30 meters, enhancing security in various environments.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111.1°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: Color Image 24 Hours |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 750 mA / 9 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 820 g |
| Color | Black |
The DS-2CD2347G2H-LISU/SL(2.8)/eF//BLK is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entry points to provide remote monitoring capabilities, ensuring that store owners can keep an eye on their premises from anywhere. The hybrid light feature allows for clear visibility even in complete darkness, enhancing security during nighttime hours. Additionally, the AcuSense technology minimizes false alarms by accurately distinguishing between human and vehicle movements, making it ideal for busy locations. With its IP67 waterproof rating, the camera is also suitable for outdoor installations, ensuring durability against harsh weather conditions. Overall, this camera offers a comprehensive solution for effective surveillance, combining advanced features with user-friendly operation.
