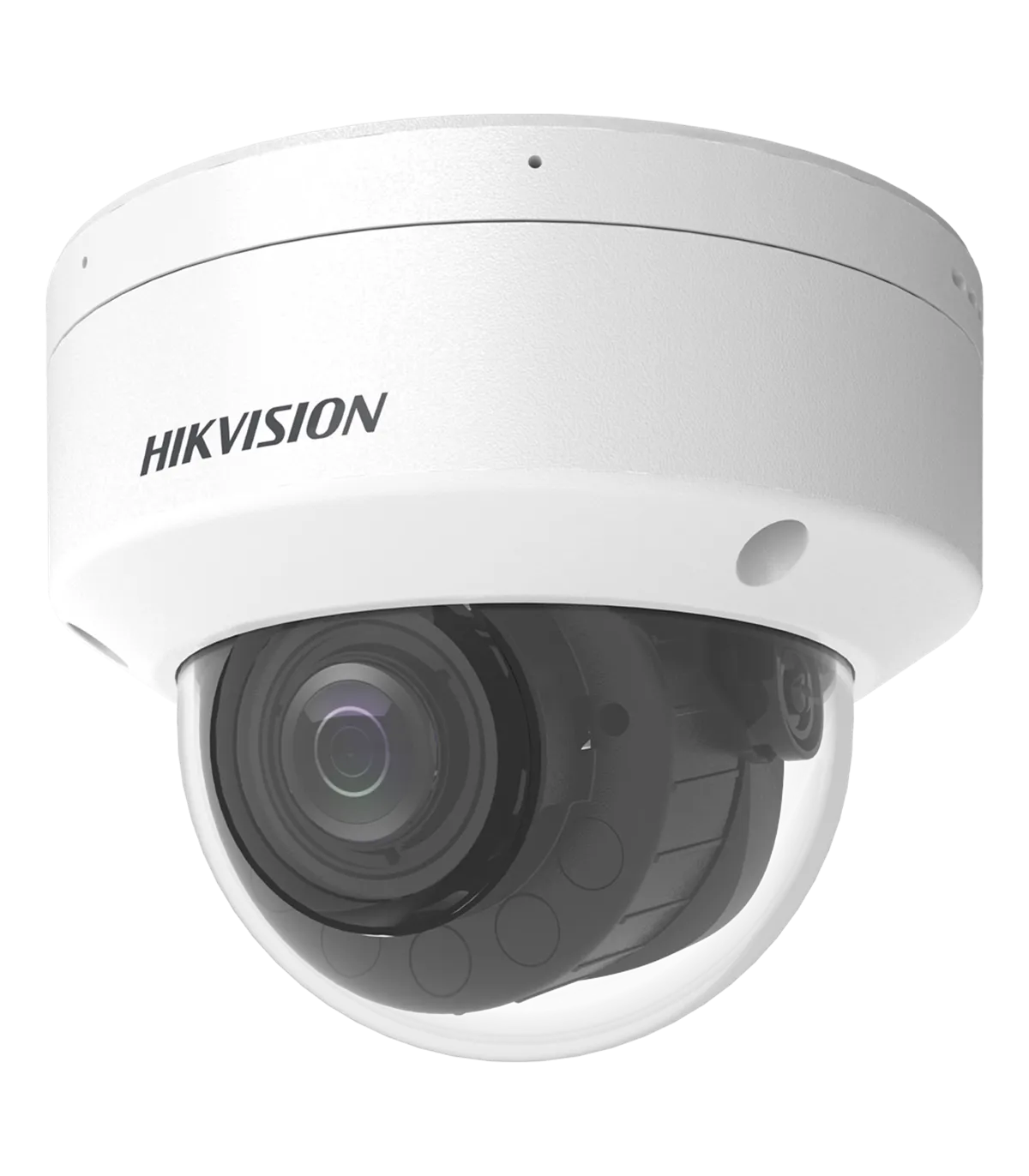

The DS-2CD2763G2-LIZS2U/SL is a high-performance IP dome camera designed for advanced surveillance applications. With its 6 Megapixel resolution and varifocal motorized lens, this camera is ideal for both indoor and outdoor environments, providing exceptional image quality and flexibility. Its hybrid light technology ensures visibility in complete darkness, making it suitable for 24/7 monitoring in various settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.3~35°, V: 53.9~19.7°, D: 122.9~40.1° |
| DORI | 75.3~201 m (D), 29.9~79.8 m (O), 15.1~40.2 m (R), 7.5~20.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid light: IR and white light IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated deterrent white light |
| Audio | 1 input / 1 output Dual microphone in integrated array |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1350 mA / 16.2 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 121.5 (Ø) x 95.7 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 1531 g |
The DS-2CD2763G2-LIZS2U/SL is perfectly suited for deployment in commercial and residential settings where security is paramount. For instance, in a retail environment, this high-resolution camera can be strategically placed at entry and exit points to monitor customer activity and deter theft. The hybrid light technology allows for clear imaging even in low-light conditions, ensuring that critical moments are captured. Additionally, the motion detection capabilities, enhanced by AcuSense technology, minimize false alarms, making it easier for security personnel to focus on genuine threats. With its remote access features, users can monitor their premises in real-time via a smartphone app or web interface, providing peace of mind whether they are on-site or away. The camera's robust construction, rated IP67 and IK10, ensures durability against harsh weather and vandalism, making it an ideal choice for outdoor surveillance.
