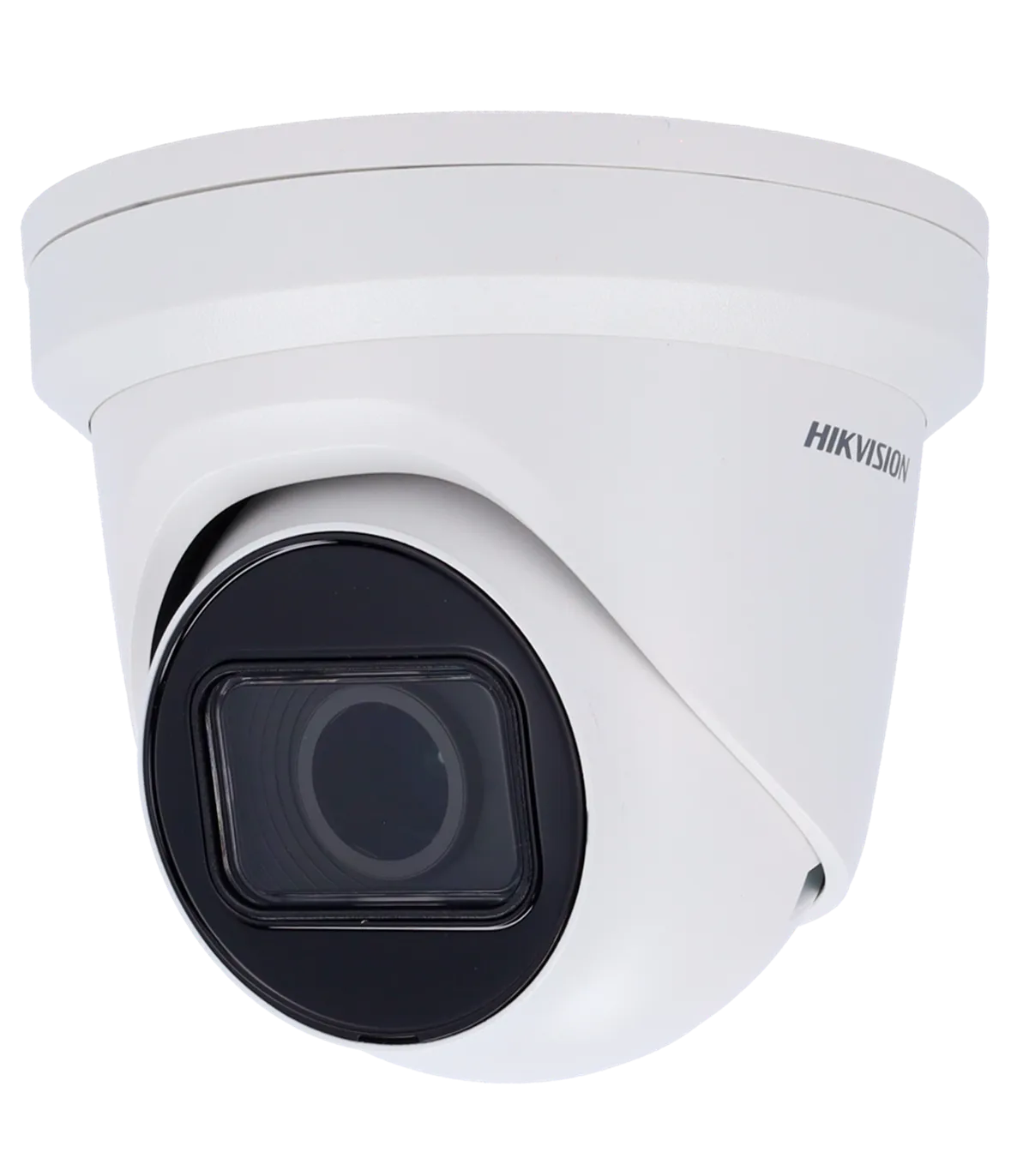

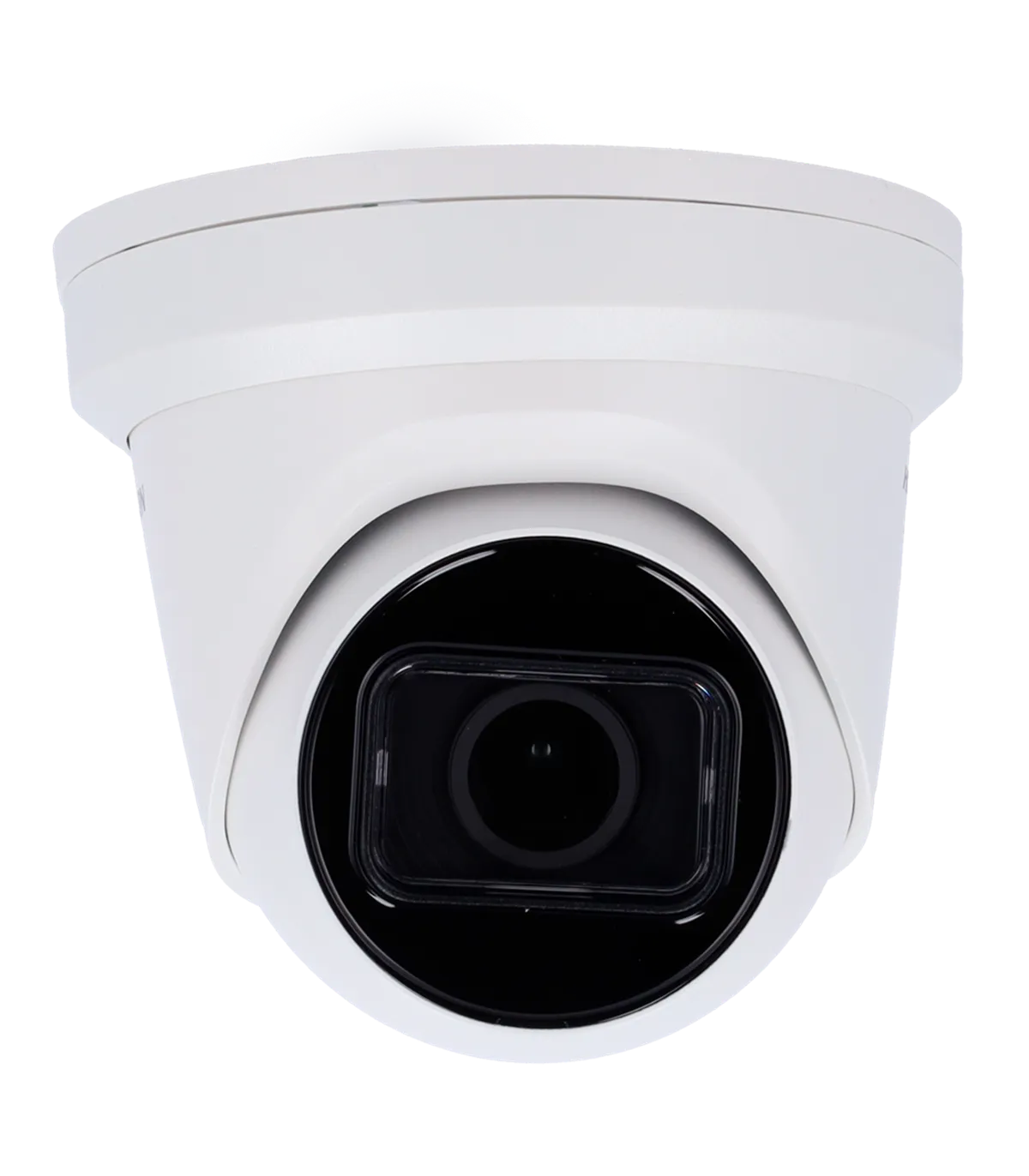

The DS-2CD2H43G2-IZS(2.8-12mm) is a high-performance IP turret camera designed for comprehensive surveillance in various environments. With its advanced 4 Megapixel resolution and motorized varifocal lens, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device features smart detection capabilities such as AcuSense technology, which minimizes false alarms by accurately distinguishing between humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 95.8~29.2°, V: 50.6~16.4°, D: 114.6~33.4° |
| DORI | 64~200 m (D), 25.4~79.4 m (O), 12.8~40 m (R), 6.4~20 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |

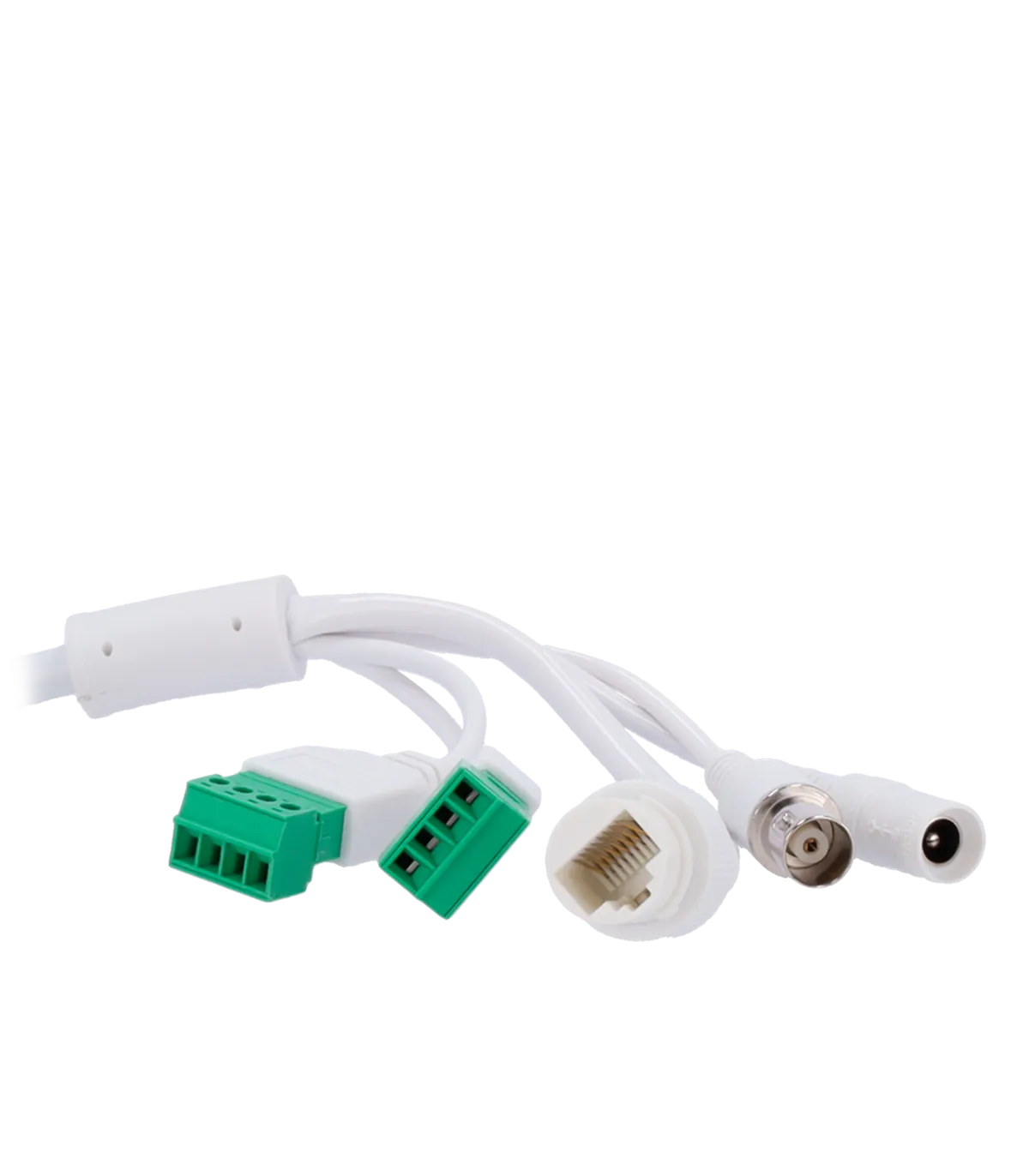

| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 920 mA / 11 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 126 mm (H) |

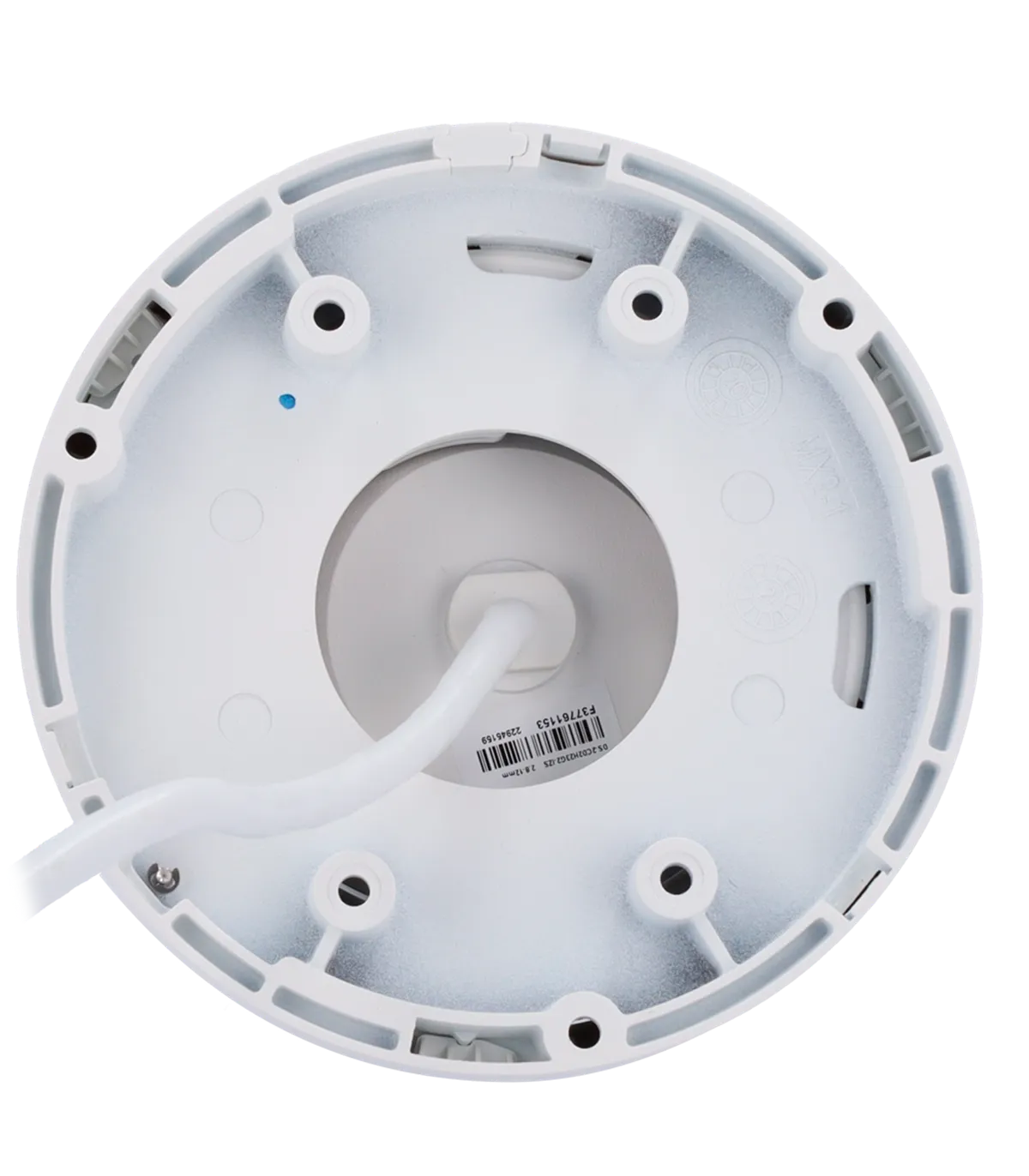

| Base Dimensions | Ø base 138.3 mm / Ø screw spacing 96 mm / 4 screws |
| Weight | 830 g |
The DS-2CD2H43G2-IZS(2.8-12mm) is an excellent choice for a variety of surveillance applications, such as monitoring retail stores, parking lots, and residential areas. In a retail environment, the camera can be strategically placed to cover entrances and aisles, providing remote monitoring capabilities for store managers. With its high-resolution imaging and night vision features, it ensures that every detail is captured, even in low-light conditions. The smart detection features allow for real-time alerts, reducing the need for constant human oversight. Additionally, the camera's weatherproof design makes it suitable for outdoor installations, ensuring durability against harsh weather conditions. This versatility makes the DS-2CD2H43G2-IZS(2.8-12mm) a reliable solution for enhancing security in various settings.
Data sheet
