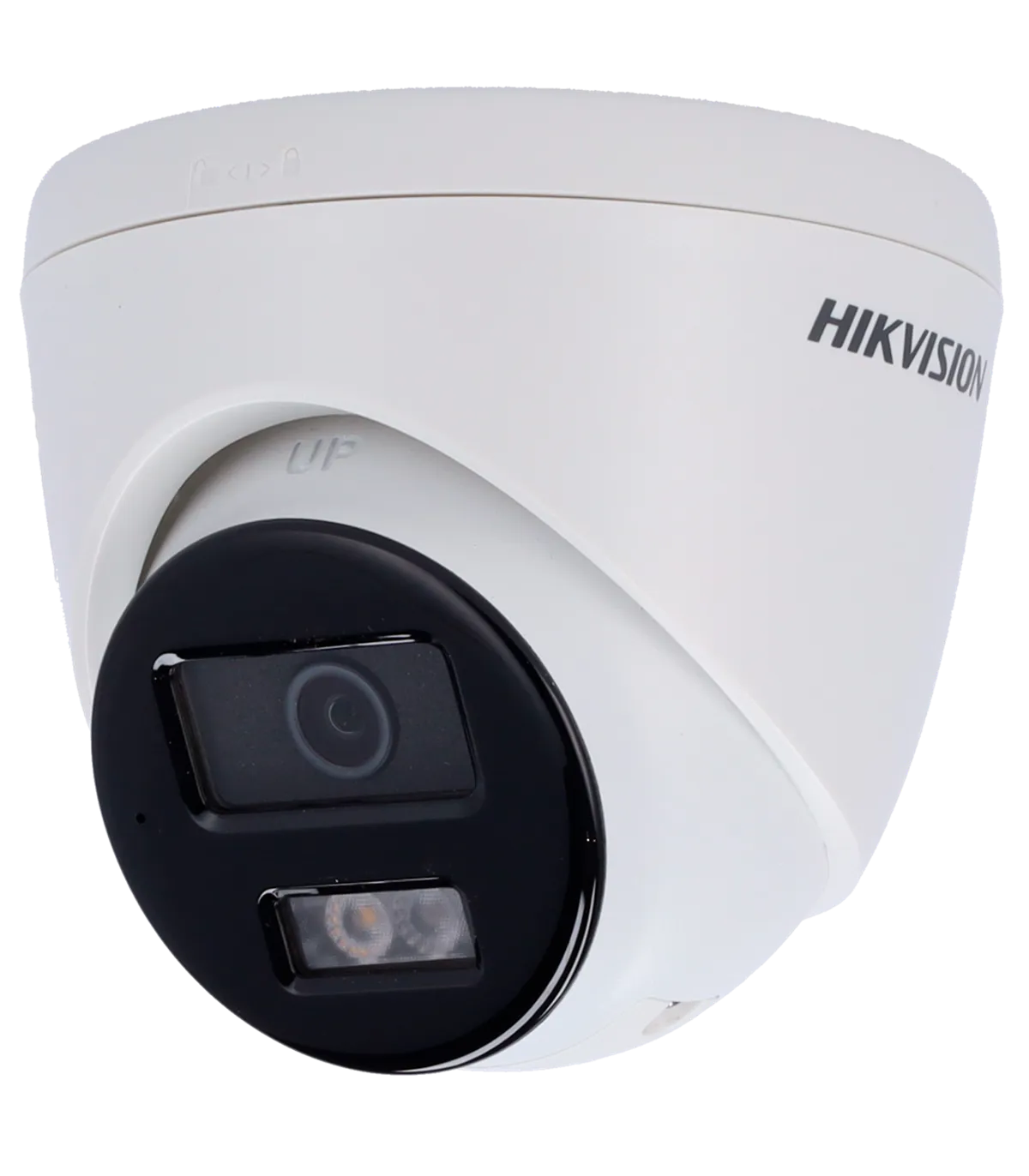

The DS-2CD1383G2-LIUF/SL(2.8mm) is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera features an 8 Megapixel resolution, ensuring crystal-clear image quality. With its hybrid light technology, it provides exceptional visibility in low-light conditions, making it suitable for 24/7 monitoring. The device is equipped with advanced features such as motion detection and WDR (Wide Dynamic Range), enhancing its capability to capture detailed images in challenging lighting scenarios.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 113°, V: 62°, D: 134° |
| DORI | 79 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Flash in the camera |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 102.7 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 385 g |
The DS-2CD1383G2-LIUF/SL(2.8mm) is an excellent choice for various surveillance applications, including retail stores, parking lots, and residential areas. In a retail environment, the camera can be strategically placed to monitor entrances and aisles, providing remote monitoring capabilities through its web interface and smartphone app. The hybrid light feature ensures that the camera captures clear images even in low-light conditions, enhancing security during nighttime operations. Additionally, the integrated microphone and speaker allow for two-way audio communication, enabling store owners to interact with customers or deter potential theft. With its motion detection technology, the camera can send alerts to the owner's smartphone, ensuring prompt responses to any suspicious activity. The IP67 rating guarantees durability against harsh weather conditions, making it suitable for outdoor installations. Overall, this camera provides a comprehensive solution for enhancing security and monitoring in various settings.
