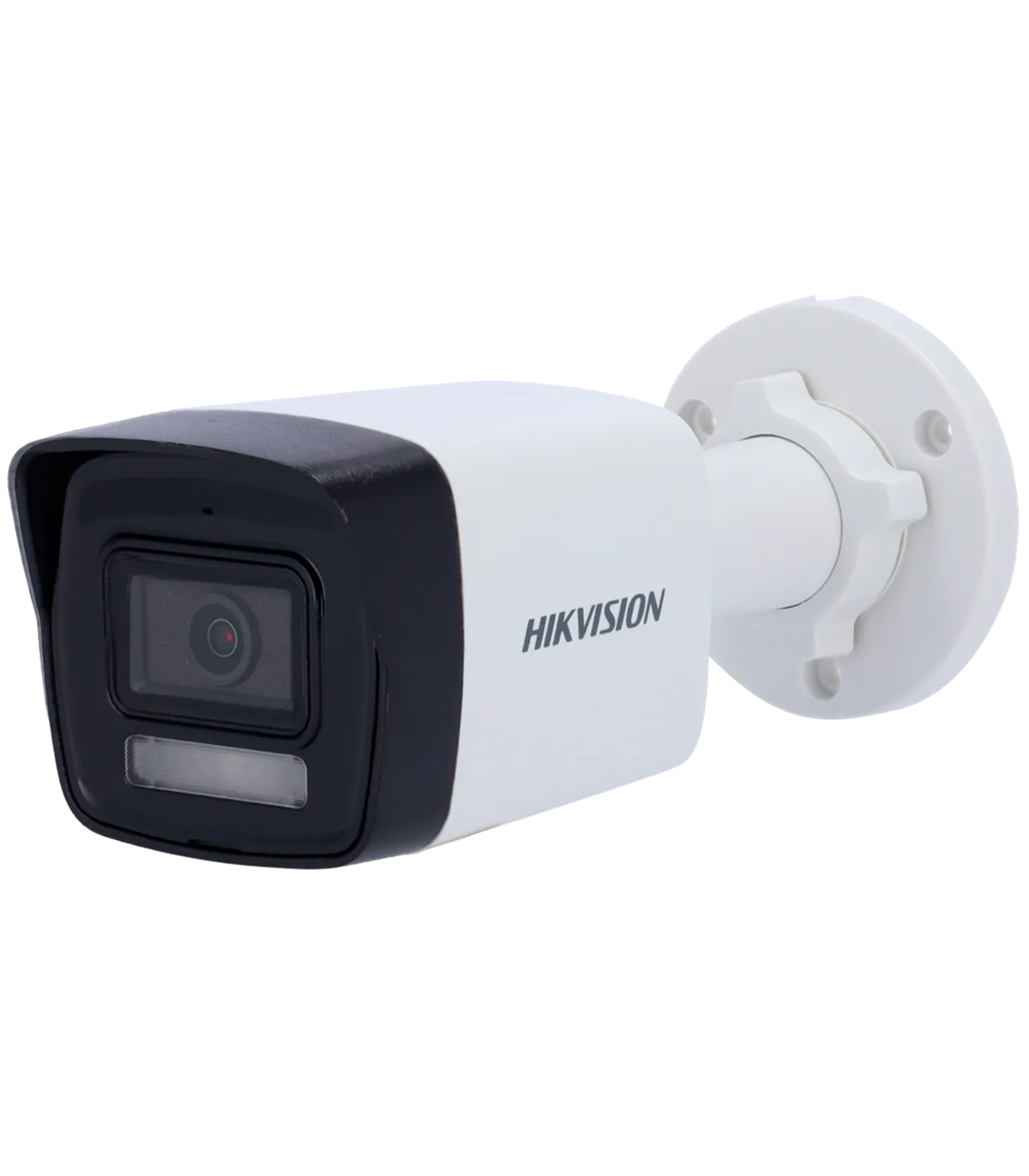

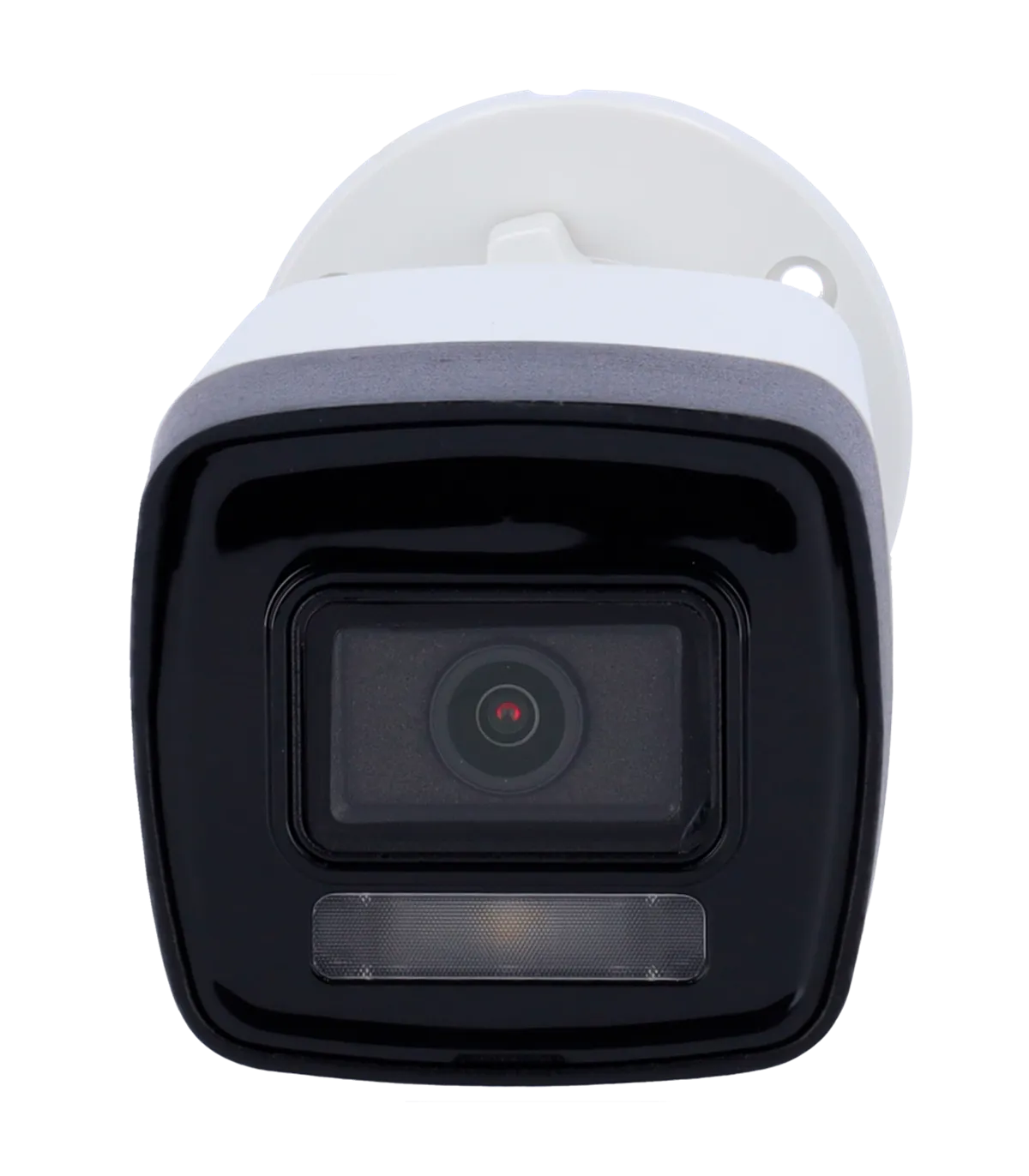

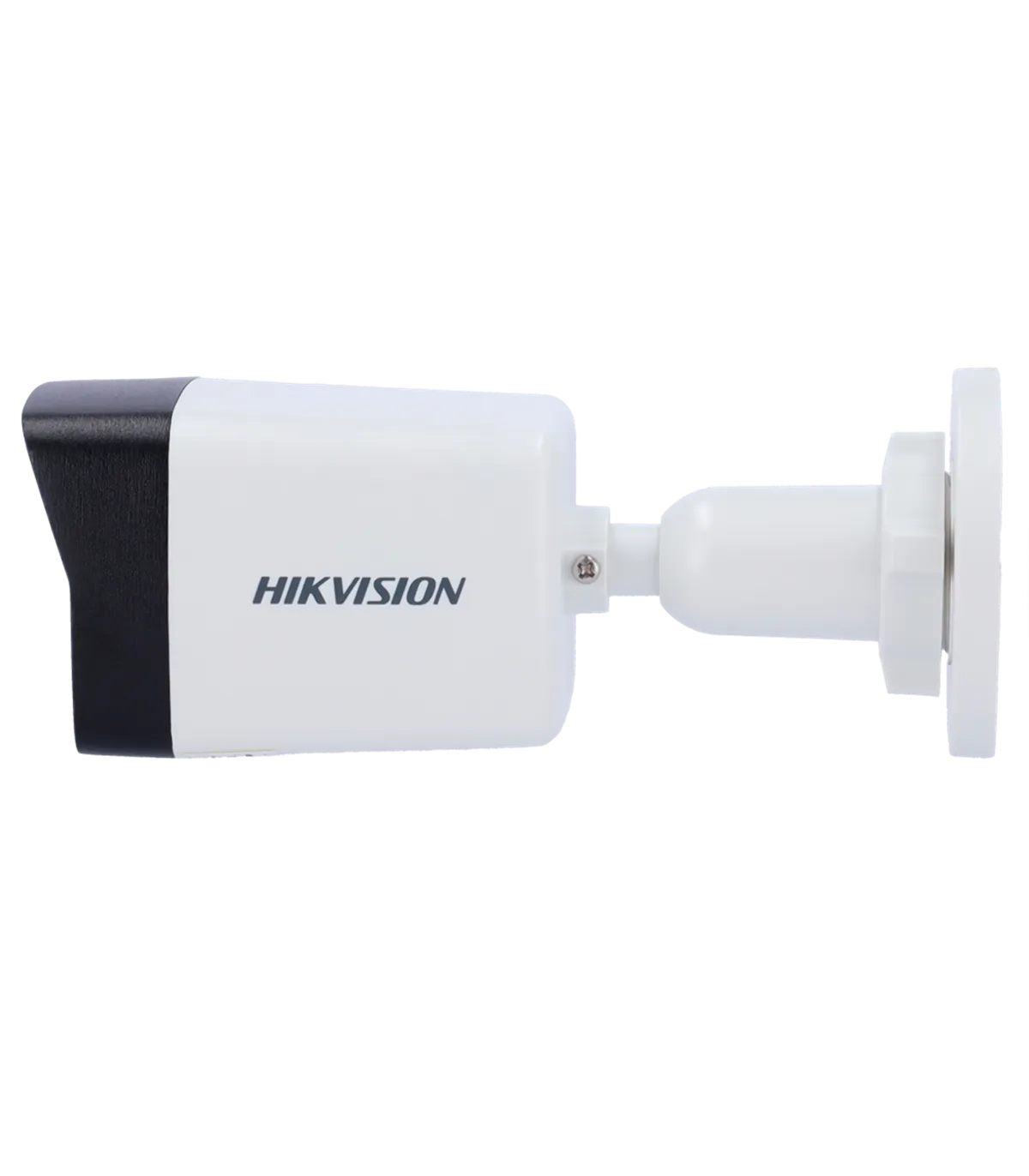

The DS-2CD1043G2-LIU(4mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 4 Megapixel resolution, this camera delivers clear and detailed images, making it ideal for both indoor and outdoor applications. The device features a hybrid light system that combines infrared and white light, ensuring visibility even in complete darkness. Its robust IP67 waterproof rating guarantees durability against harsh weather conditions, making it suitable for outdoor installations.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 78°, V: 42°, D: 93° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 400 mA / 5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

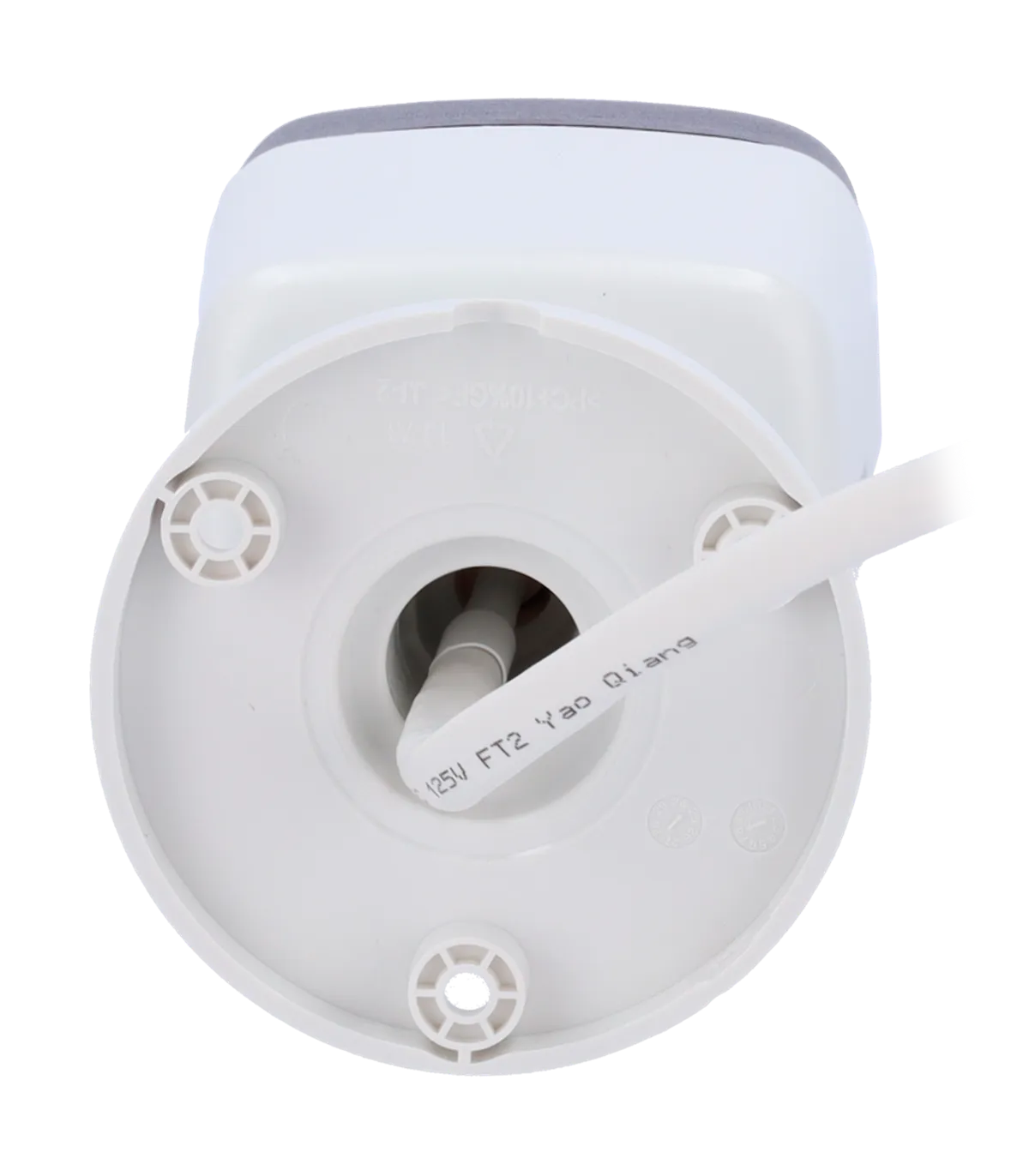

| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 270 g |
The DS-2CD1043G2-LIU(4mm) is an excellent choice for both residential and commercial surveillance needs. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and enhance security. With its high-resolution imaging and motion detection capabilities, store owners can receive alerts for suspicious activities in real-time. The hybrid light technology ensures that the camera captures clear images even in low-light conditions, making it ideal for nighttime monitoring. Additionally, the camera's remote access features allow users to view live feeds from their smartphones or computers, providing peace of mind when away from the premises. This camera's IP67 waterproof rating also ensures reliable performance in various weather conditions, making it a versatile solution for outdoor surveillance.
Data sheet
