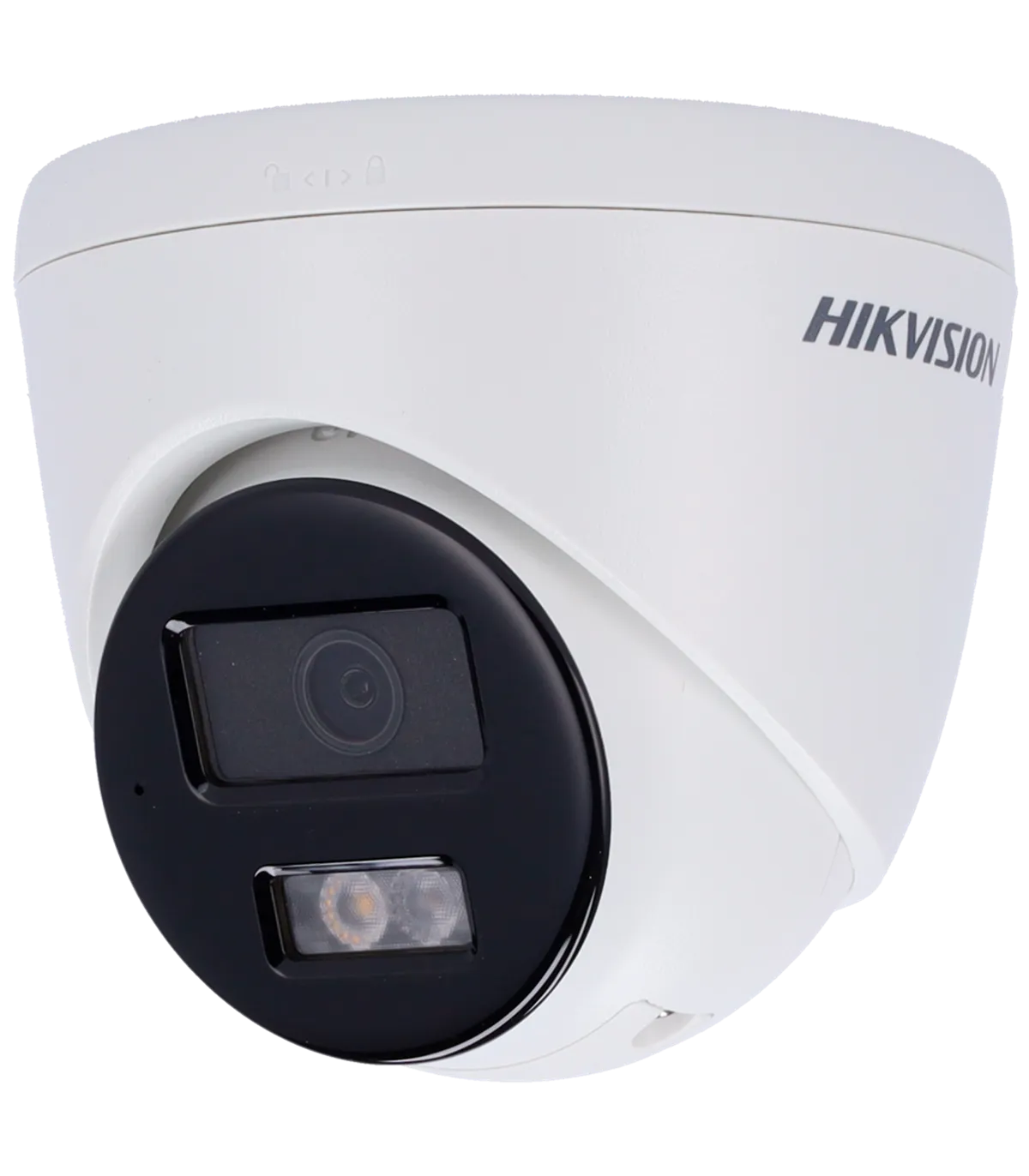

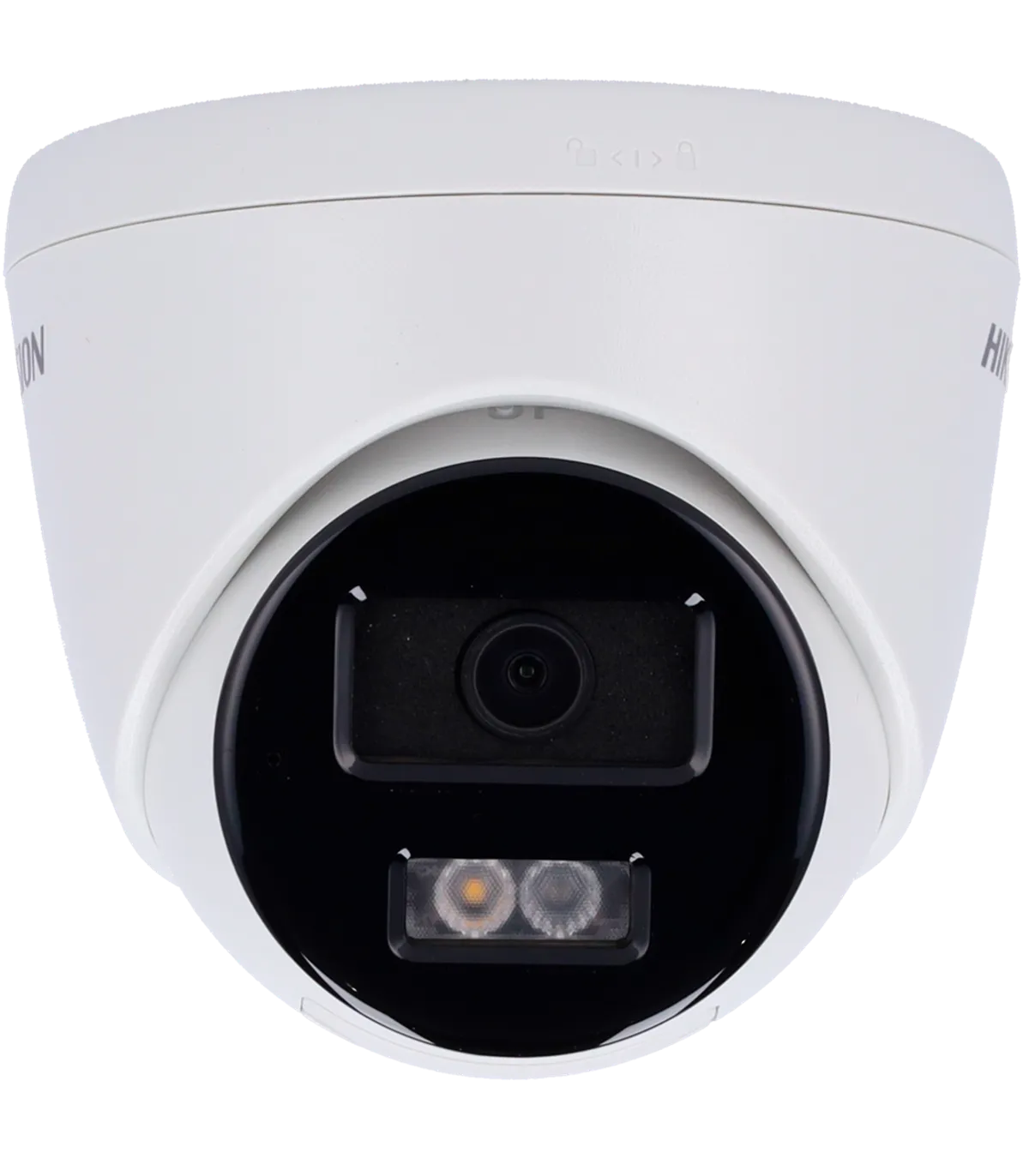

The DS-2CD1383G2-LIU(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 8 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, ensuring clear and detailed images even in low-light conditions. The device supports H.265+ compression for efficient video storage and transmission, making it a perfect choice for modern security systems. Its IP67 waterproof rating ensures durability in harsh weather, while the integrated microphone enhances audio monitoring capabilities.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840X2160) |
| Main Stream Rate | 12.5 fps (3840X2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 113°, V: 62°, D: 134° |
| DORI | 79 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR up to 30 m |
| Supplementary Lighting | Hybrid Light: IR up to 30 m White Light up to 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 410 mA / 5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 93 mm (H) |

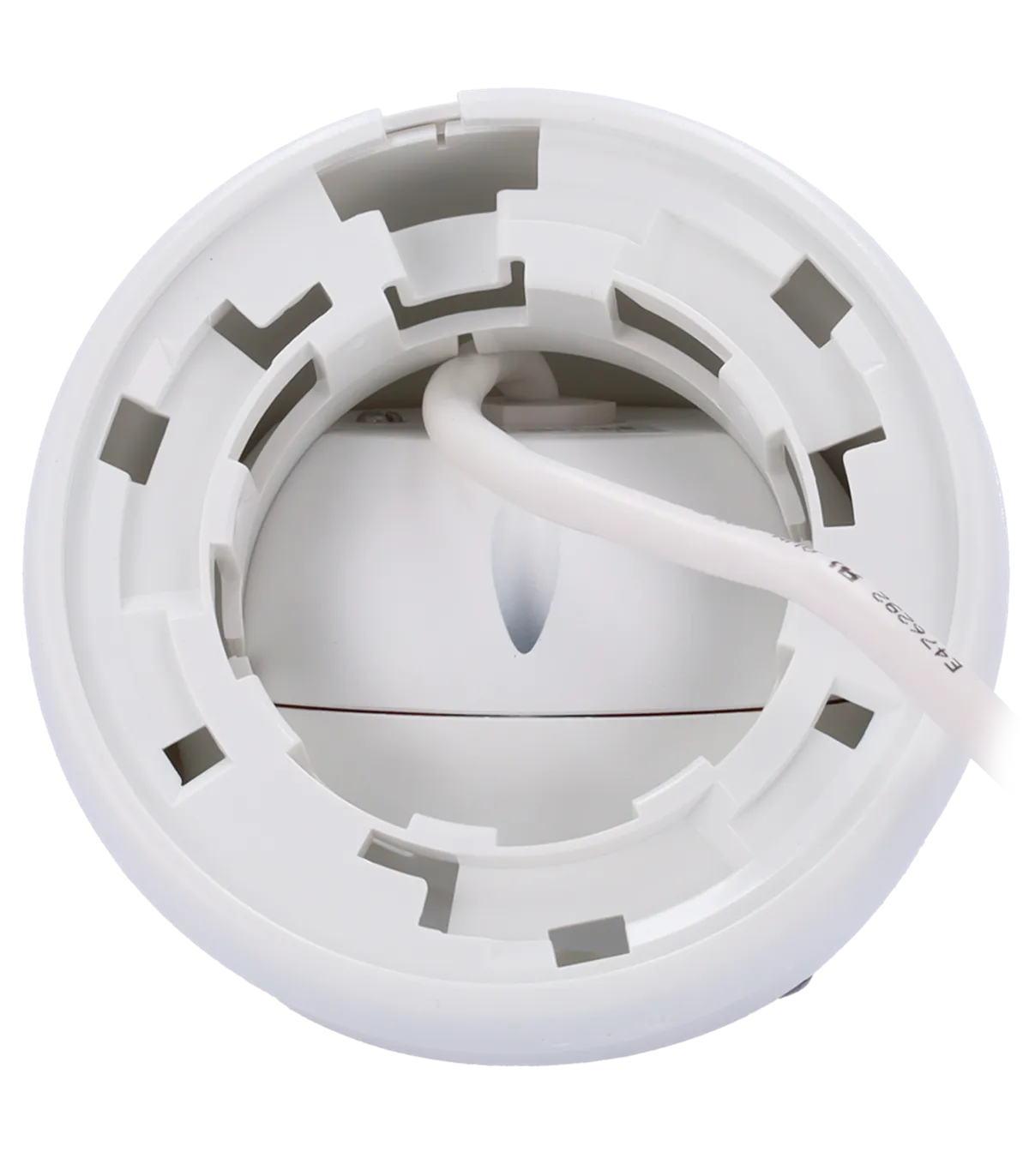

| Base Dimensions | Ø base 110 mm / Ø screw spacing 85 mm / 3 screws |
| Weight | 385 g |
The DS-2CD1383G2-LIU(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. Its high-resolution imaging ensures that every detail is captured, providing peace of mind for users. The camera's remote monitoring capabilities allow users to access live feeds from anywhere, enhancing security management. With features like motion detection and hybrid lighting, it adapts seamlessly to different lighting conditions, ensuring reliable performance day and night. The IP67 rating guarantees durability against harsh weather, making it a robust choice for outdoor installations. Additionally, its ONVIF compatibility ensures easy integration with existing security systems, providing flexibility for installers and end users alike.
