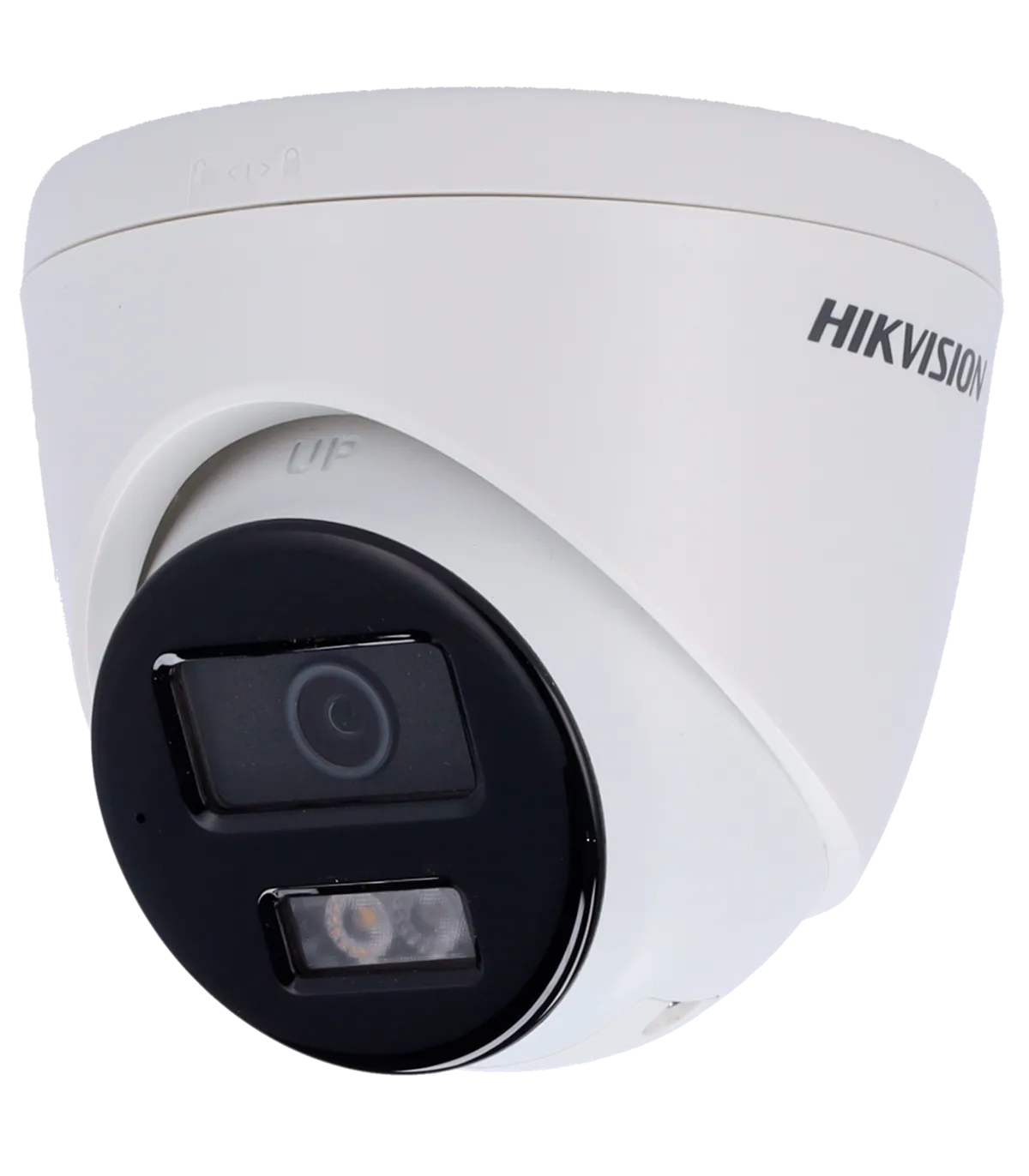

The DS-2CD1343G2-LIUF/SL(4mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 4 Megapixel resolution, this camera delivers clear and detailed images, making it ideal for both indoor and outdoor applications. The device features a hybrid light system that includes both IR and white light, ensuring visibility even in complete darkness up to 30 meters. Its robust design and IP67 waterproof rating make it suitable for challenging weather conditions, providing reliable security monitoring.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 78°, V: 42°, D: 93° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 102.7 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1343G2-LIUF/SL(4mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and motion detection capabilities, store owners can receive alerts for suspicious activities in real-time. The integrated microphone and speaker allow for two-way audio communication, enhancing security measures. Additionally, the hybrid light system ensures visibility during nighttime, making it a versatile solution for 24/7 surveillance. The camera's remote access features enable users to monitor their premises from anywhere, providing peace of mind and enhancing overall security.
