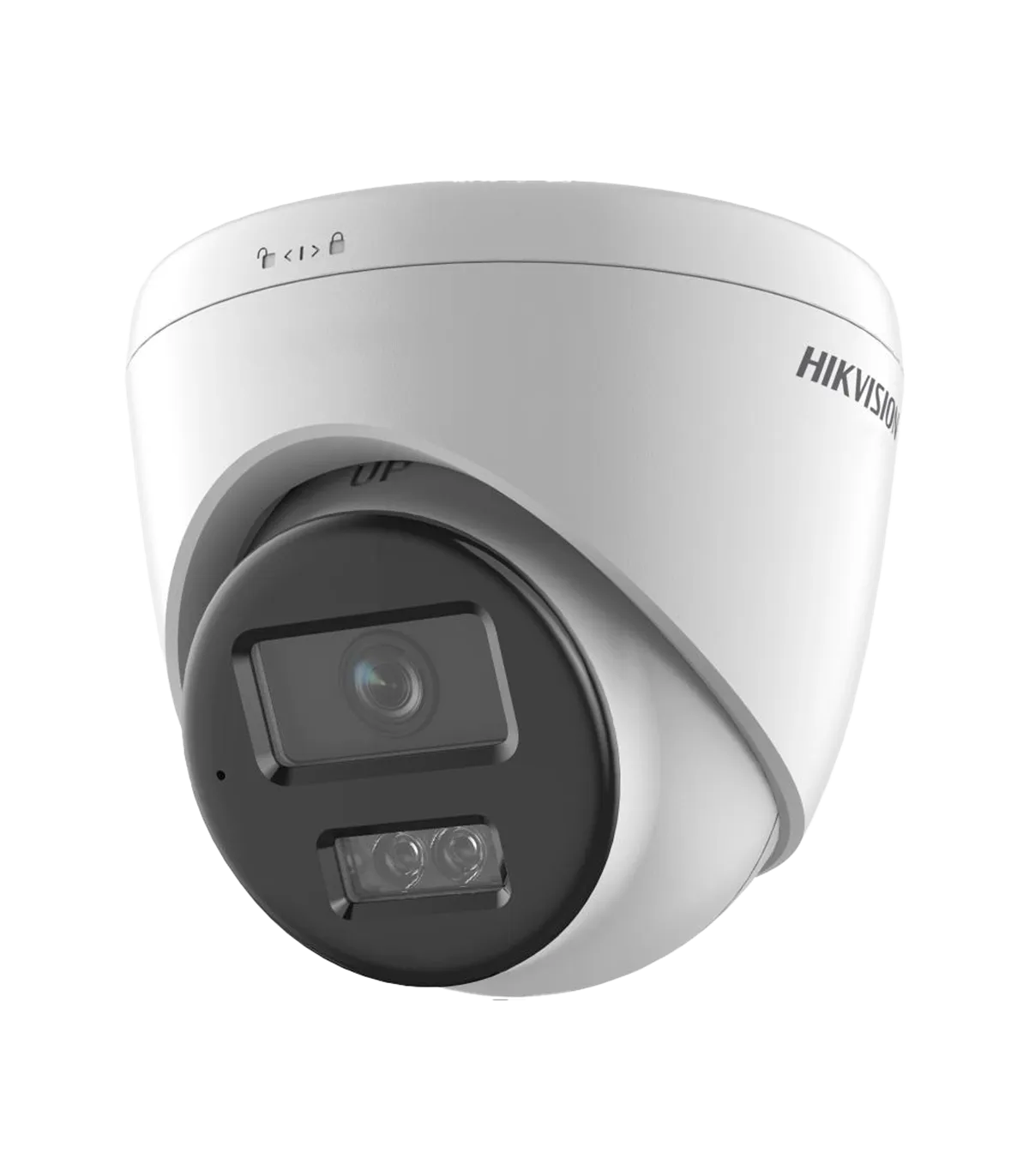

The DS-2CD1363G2-LIU(2.8mm) is a high-performance IP turret camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 6 Megapixel resolution, making it suitable for monitoring large areas. With features such as motion detection and remote access, it provides comprehensive security solutions for residential and commercial properties.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR up to 30 m |
| Supplementary Lighting | Hybrid Light: IR up to 30 m White Light up to 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 410 mA / 5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 89.2 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1363G2-LIU(2.8mm) is an excellent choice for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry and exit points to monitor customer flow and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it ensures that every detail is captured, even in low-light conditions. The remote monitoring feature allows store managers to keep an eye on their premises from anywhere, enhancing security and operational efficiency. Additionally, the camera's IP67 waterproof rating makes it suitable for outdoor installations, ensuring reliable performance in various weather conditions. By utilizing the DS-2CD1363G2-LIU(2.8mm), businesses can achieve a robust security posture while benefiting from the ease of integration with existing systems through its ONVIF compatibility.
Data sheet
