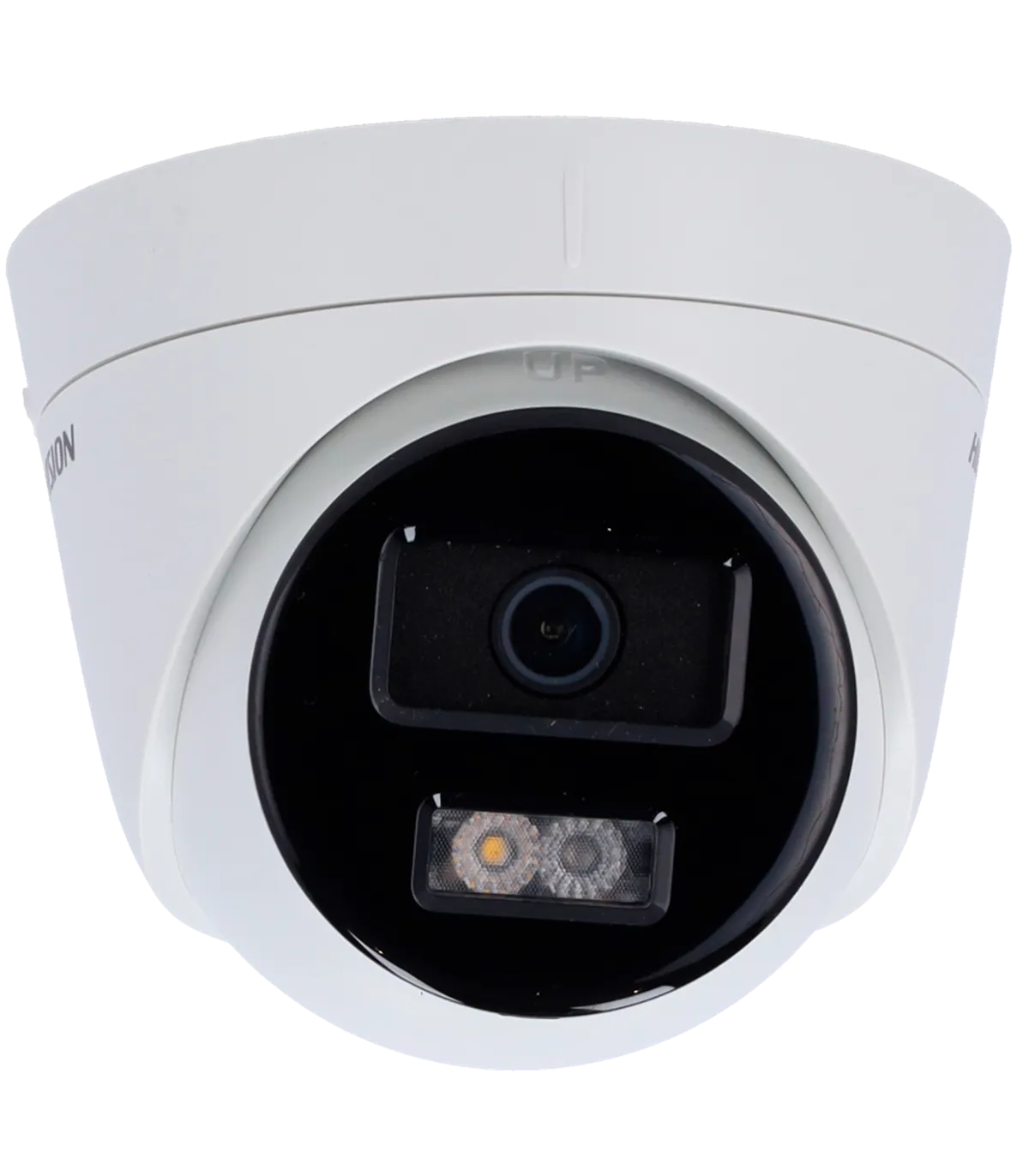

The DS-2CD1341G2-LIU(2.8mm) is a high-performance IP turret camera designed for versatile surveillance applications. With its 4 Megapixel resolution, this camera delivers exceptional image clarity, making it ideal for both indoor and outdoor environments. Its hybrid light technology ensures visibility even in complete darkness, providing a reliable security solution for various settings, including retail stores, offices, and residential areas.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 123° |
| DORI | 53 m (D), 21 m (O), 10 m (R), 5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.2, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 20 m White Light Range 20 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 420 mA / 5 W max. PoE IEEE802.3af, Class 3, 6.5 W max. |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +45º C |
| Dimensions | Ø 110 x 89.2 mm (H) |

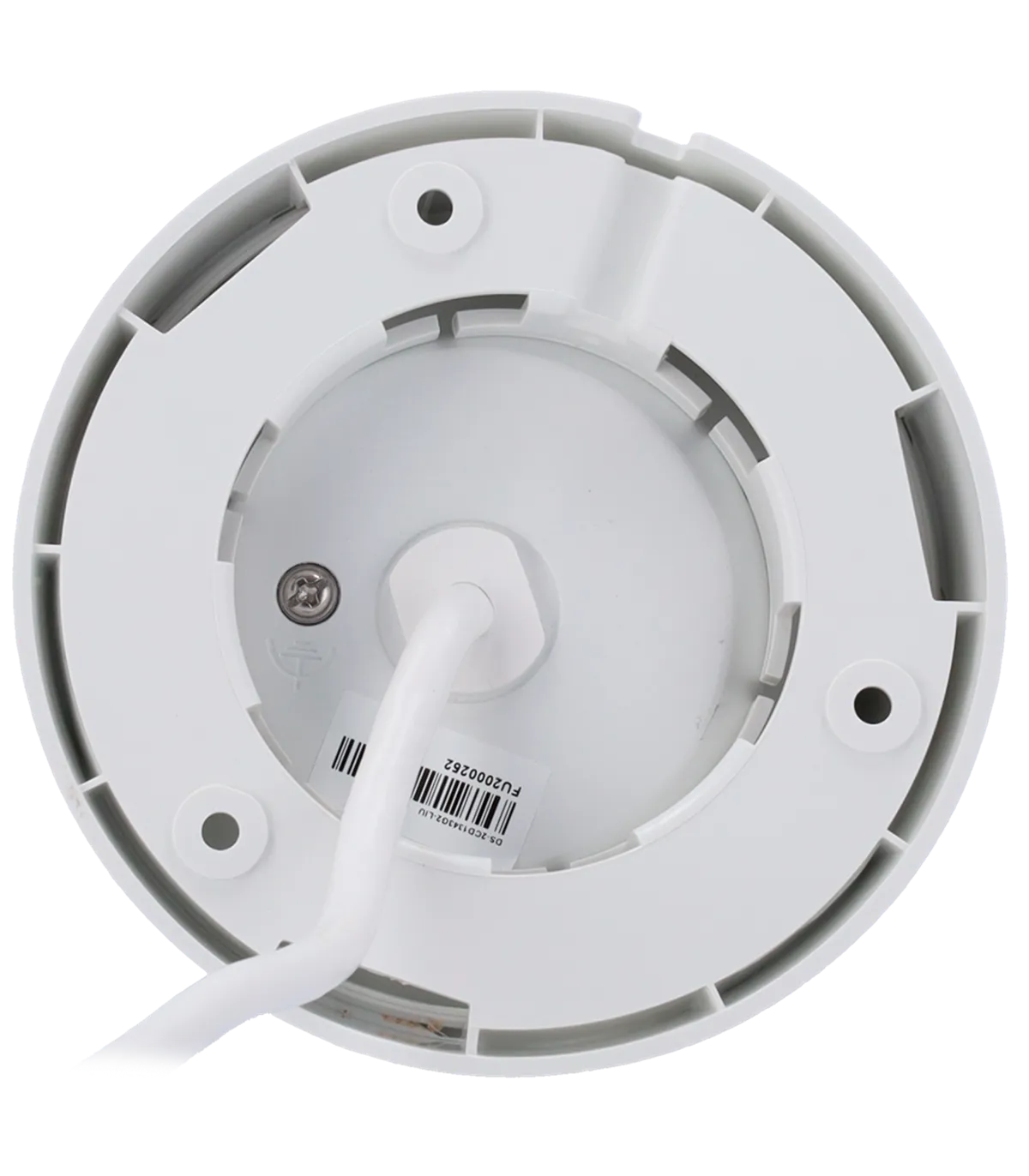

| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 345 g |
The DS-2CD1341G2-LIU(2.8mm) is an excellent choice for a variety of surveillance scenarios. For instance, in a retail environment, this camera can be strategically placed at entrances and checkout areas to enhance security monitoring. With its 4 Megapixel resolution and hybrid light technology, it ensures clear images day and night, allowing for effective remote monitoring via the Hik-Connect app. The integrated microphone adds an extra layer of security by enabling audio capture, which can be crucial for incident verification. Additionally, the camera's motion detection capabilities, including human and vehicle classification, help reduce false alarms, making it a reliable option for busy locations. Its IP67 waterproof rating ensures durability in various weather conditions, making it suitable for both indoor and outdoor installations.
