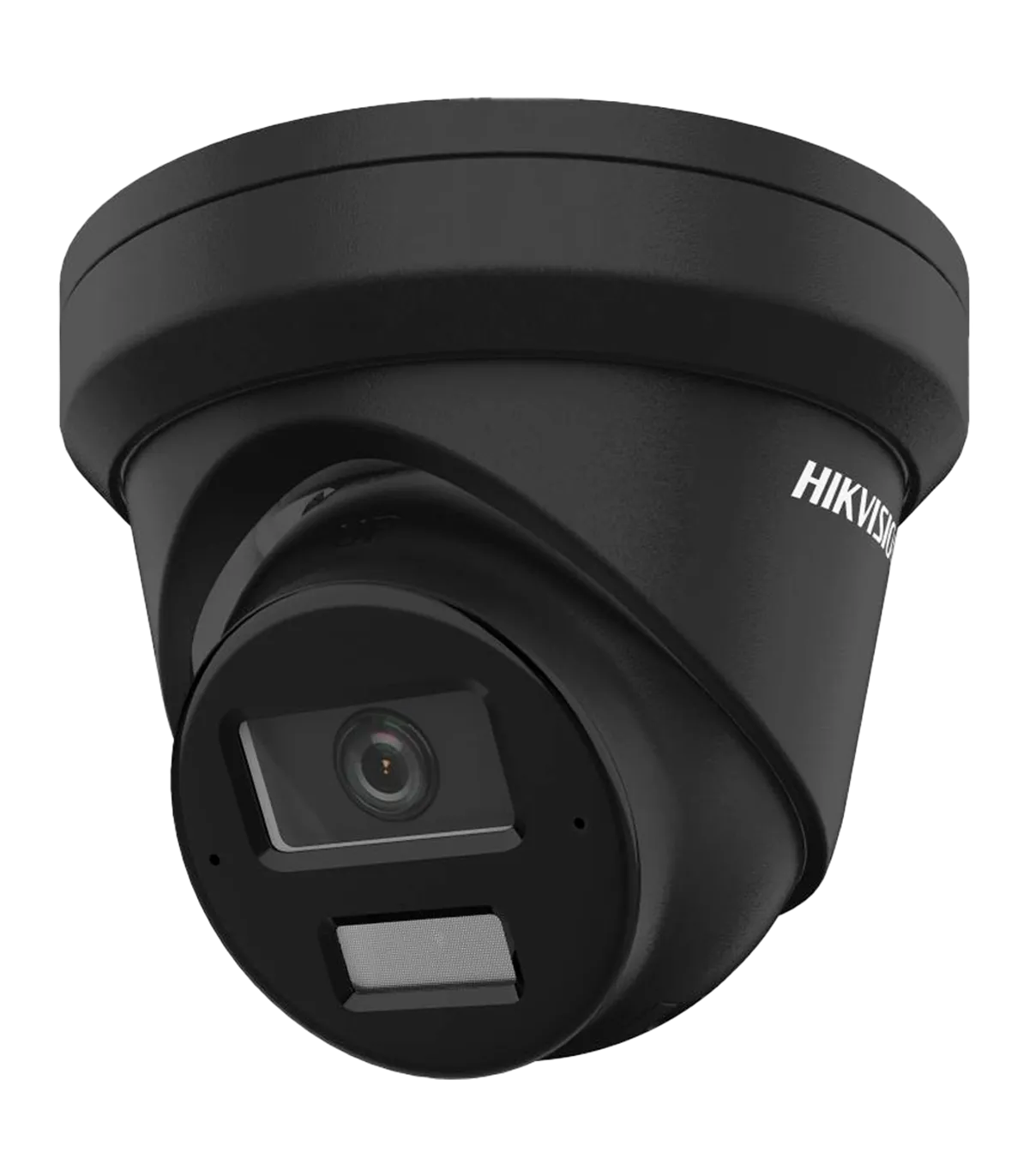

The DS-2CD2343G2-LI2U(2.8mm)(BLACK) is a high-performance IP turret camera designed for effective surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing exceptional image quality with its 4 Megapixel resolution and advanced features such as motion detection and dual microphone audio capabilities. Its robust design ensures reliable performance in challenging conditions, making it a perfect choice for security professionals seeking a reliable video surveillance solution.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 122° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI |
| Power Supply | DC 12 V / 580 mA / 7 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |
| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
| Color | Black |
The DS-2CD2343G2-LI2U(2.8mm)(BLACK) is ideally suited for deployment in retail environments, parking lots, and residential areas where comprehensive surveillance is essential. With its 4 Megapixel resolution, users can capture detailed images, ensuring that every critical moment is recorded. The camera's motion detection capabilities, enhanced by AcuSense technology, allow for precise identification of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy areas where unnecessary alerts can disrupt operations. Additionally, the IP67 waterproof rating ensures that the camera remains operational in various weather conditions, making it a reliable choice for outdoor installations. The integrated dual microphone provides clear audio, enhancing the overall surveillance experience. Furthermore, the camera's compatibility with remote monitoring applications allows users to access live feeds and recorded footage from anywhere, ensuring peace of mind and effective security management.
