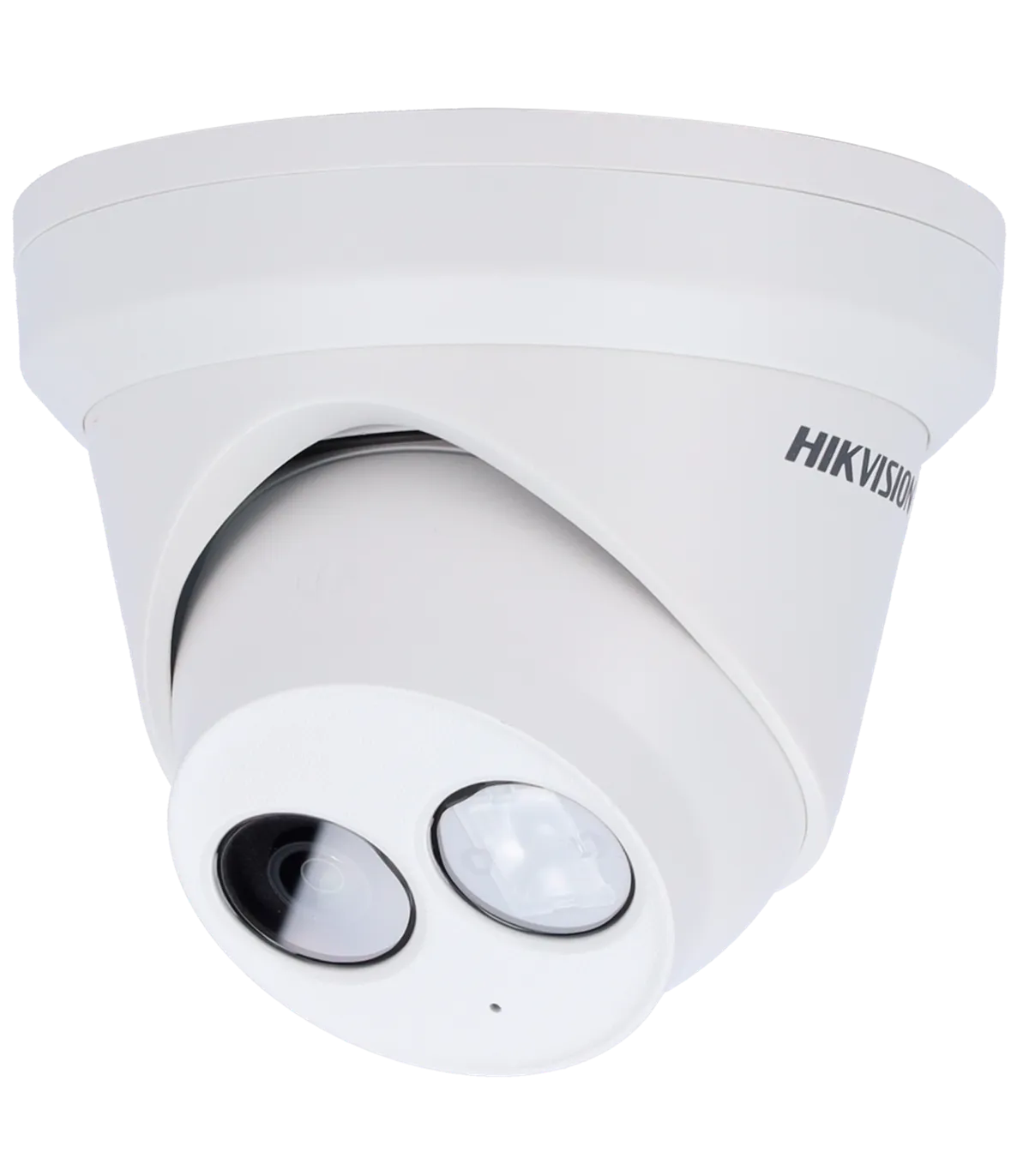

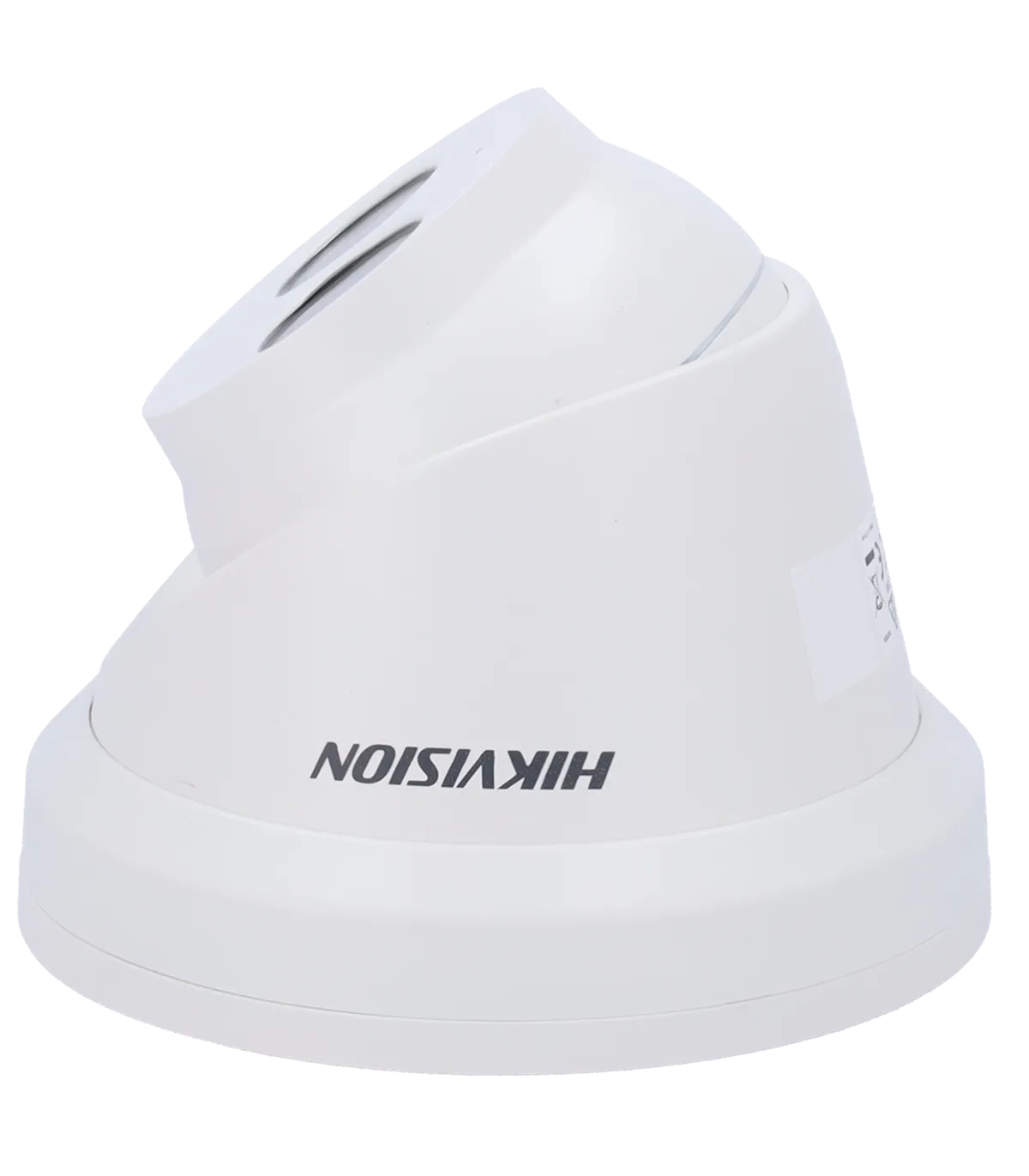

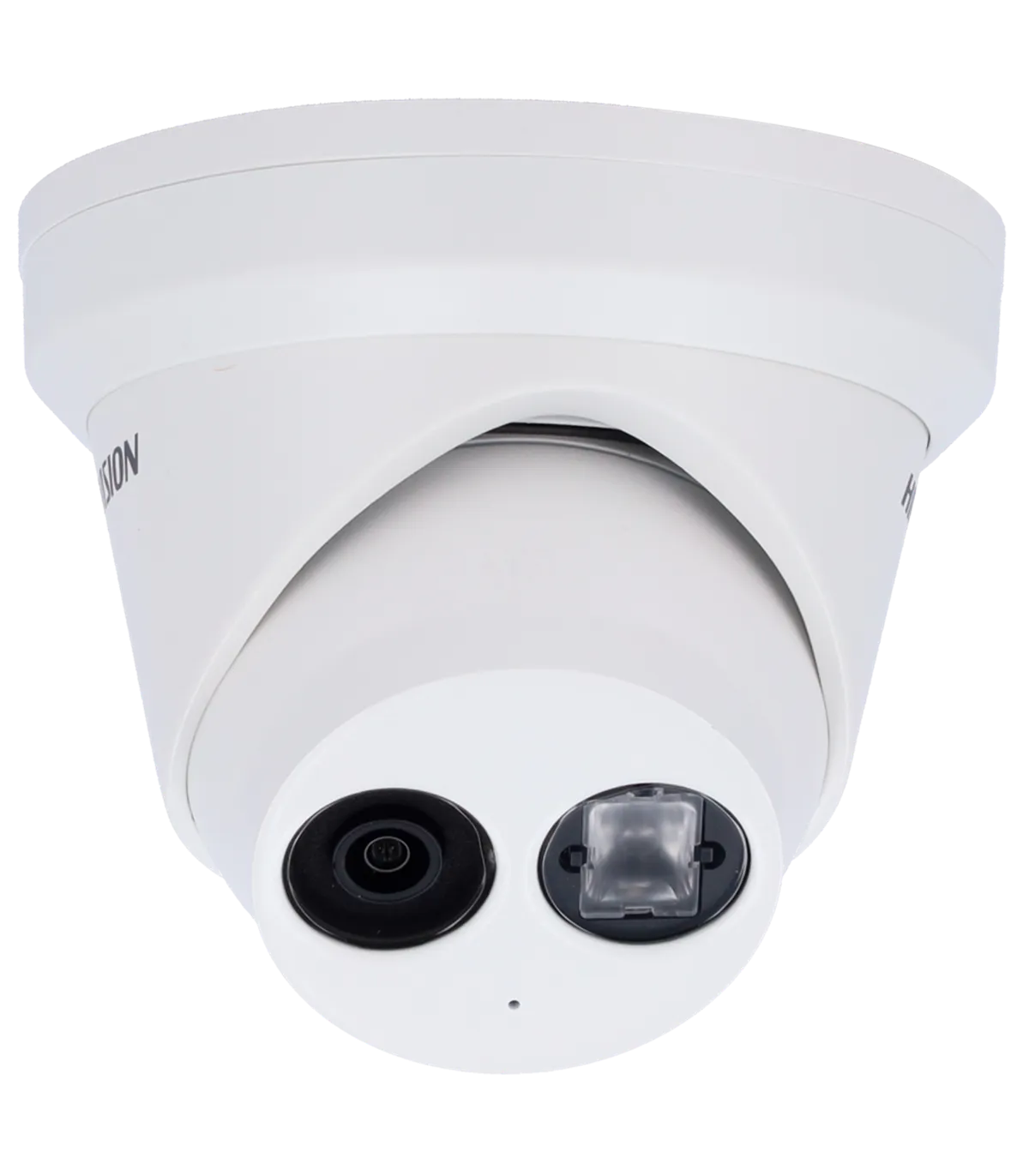

The DS-2CD2363G2-IU(2.8mm) is a high-performance IP turret camera designed for comprehensive surveillance in various environments. With its advanced 6 Megapixel resolution and 30m IR range, this camera excels in low-light conditions, making it ideal for both indoor and outdoor applications. The device features AcuSense technology for enhanced motion detection, significantly reducing false alarms triggered by non-human entities. Its robust design, rated IP67 for weather resistance, ensures reliable operation in challenging conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800), 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 107°, V: 57°, D: 128° |
| DORI | 73 m (D), 29 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Rating | Weatherproof IP67 |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 95.9 mm (H) |

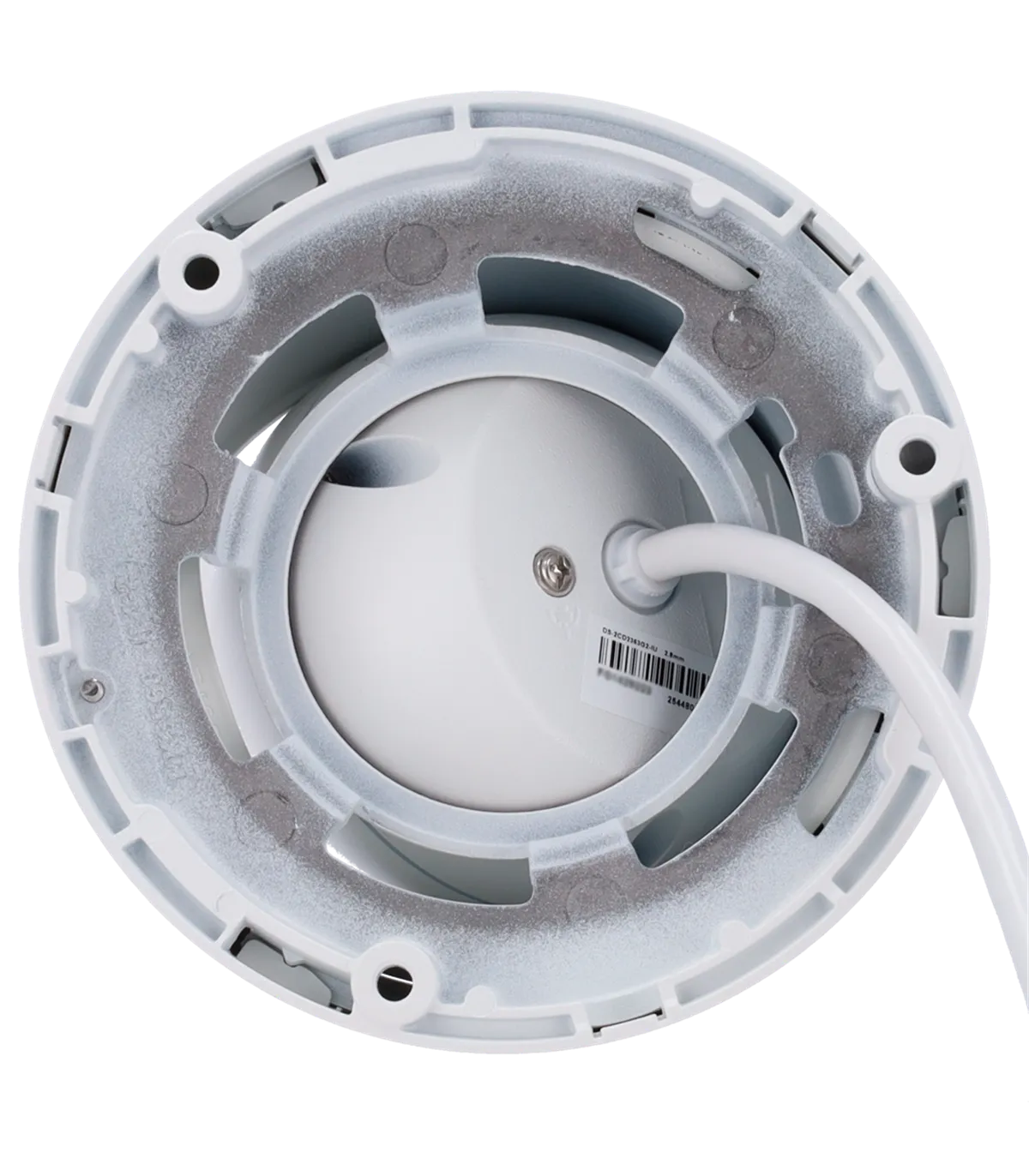

| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 600 g |
The DS-2CD2363G2-IU(2.8mm) is ideally suited for deployment in retail environments, parking lots, and residential areas where enhanced security is paramount. For instance, a retail store can utilize this camera to monitor entrances and exits, leveraging its 6 Megapixel resolution for clear identification of individuals. The AcuSense technology allows for precise detection of human movement while filtering out irrelevant motion, such as passing cars or animals, thus minimizing false alarms. Additionally, the camera's remote monitoring capabilities enable store managers to keep an eye on operations from anywhere via a smartphone app. With its IP67 weatherproof rating, the camera can withstand harsh outdoor conditions, ensuring reliable performance year-round. Furthermore, the integrated microphone enhances situational awareness by capturing audio alongside video, providing a comprehensive security solution.
Data sheet
