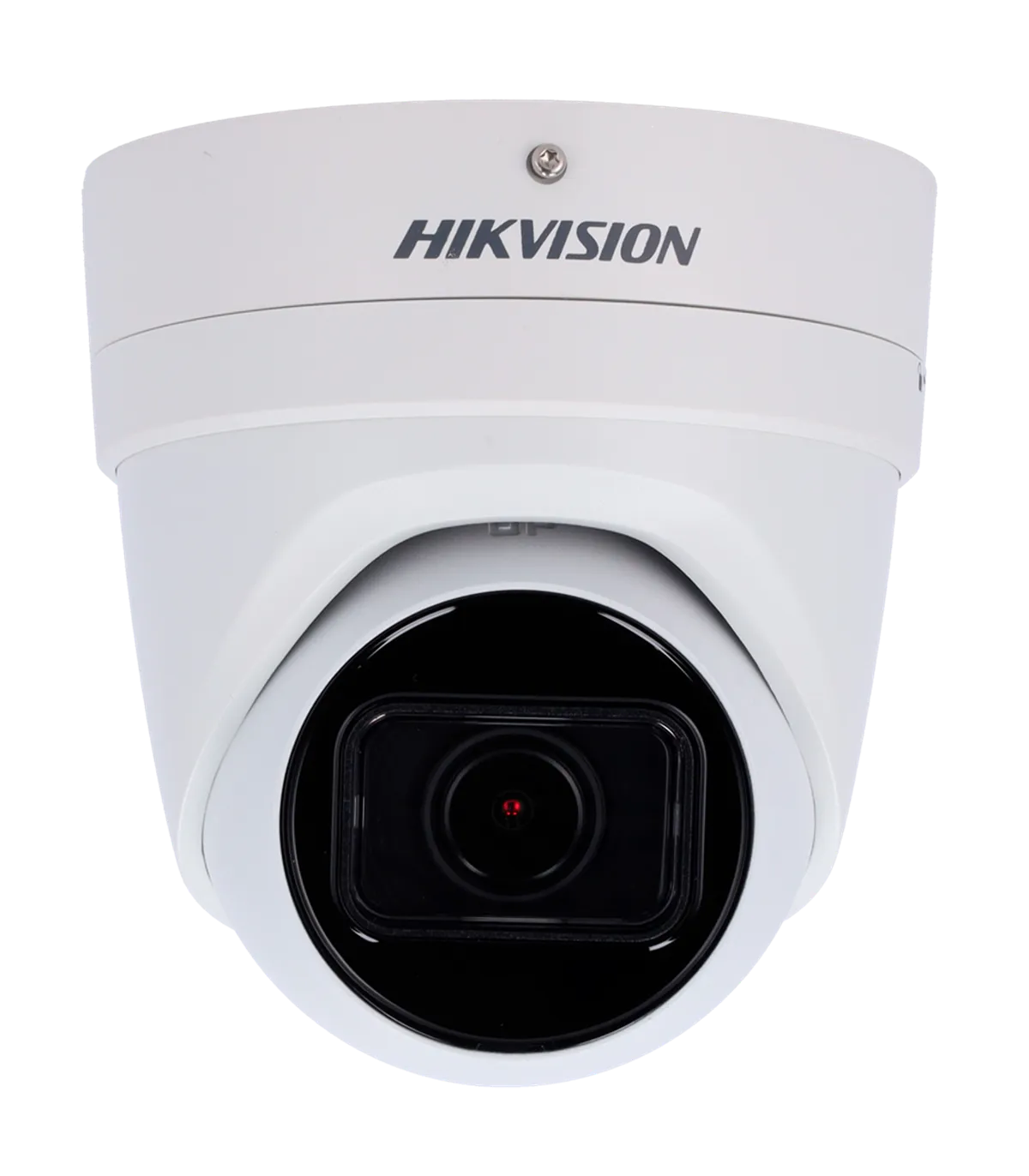

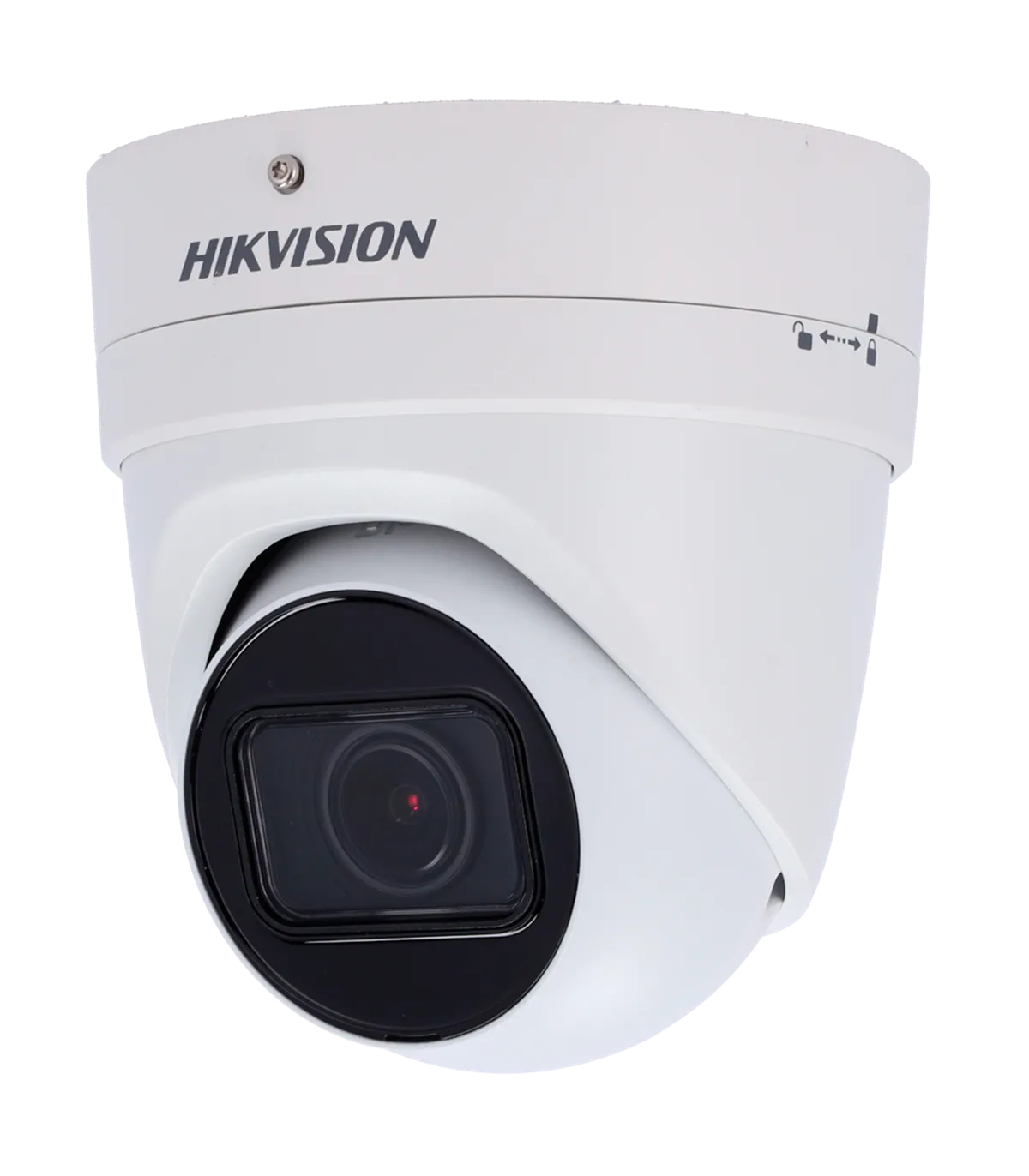

The DS-2CD2H86G2-IZS(2.8-12mm)(C) is a high-performance IP turret camera designed for advanced surveillance applications. With its 8 Megapixel resolution and low light capabilities powered by DarkFighter technology, this camera excels in various lighting conditions, making it ideal for both indoor and outdoor environments. The device features a motorized varifocal lens (2.8~12 mm) that allows for flexible field of view adjustments, ensuring optimal coverage for security needs. Additionally, its AcuSense technology significantly reduces false alarms, enhancing the reliability of motion detection.
| Brand | HIKVISION |
| Series | AcuSense |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 108~46°, V: 58~26°, D: 127.4~52° |
| DORI | 86~214 m (D), 34.1~84.9 m (O), 17.2~42.8 m (R), 8.6~21.4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 920 mA / 11.04 W max. / PoE IEEE802.3af |
| Protection Rating | IP66 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 135.8 mm x 145.5 mm (H) |

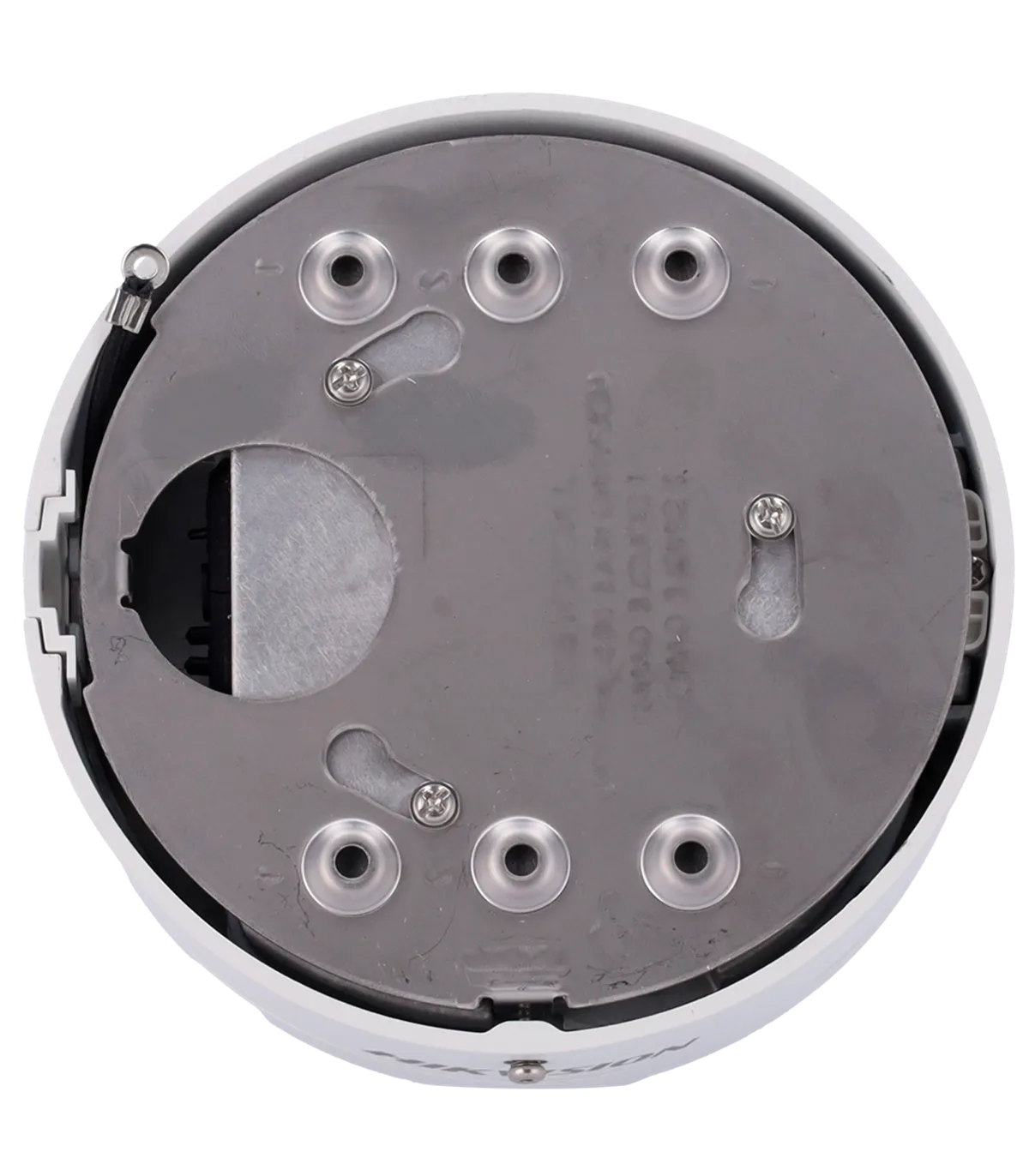

| Base Dimensions | Ø base 135.8 mm / Ø screw hole 96 mm / 4 screws |
| Weight | 1160 g |
The DS-2CD2H86G2-IZS(2.8-12mm)(C) is ideally suited for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entry points to provide remote monitoring capabilities, allowing store managers to oversee customer interactions and prevent theft. The motorized varifocal lens enables installers to adjust the field of view according to specific security needs, ensuring comprehensive coverage. Furthermore, the AcuSense technology minimizes false alarms triggered by non-threatening movements, such as passing shoppers, enhancing the overall security system's efficiency. With its robust IP66 waterproof and IK10 vandal-proof ratings, the camera is built to withstand harsh environmental conditions, making it a reliable choice for outdoor installations. Additionally, the ability to store footage on a MicroSD card up to 512 GB provides flexibility in data management, allowing users to access recorded footage conveniently.
