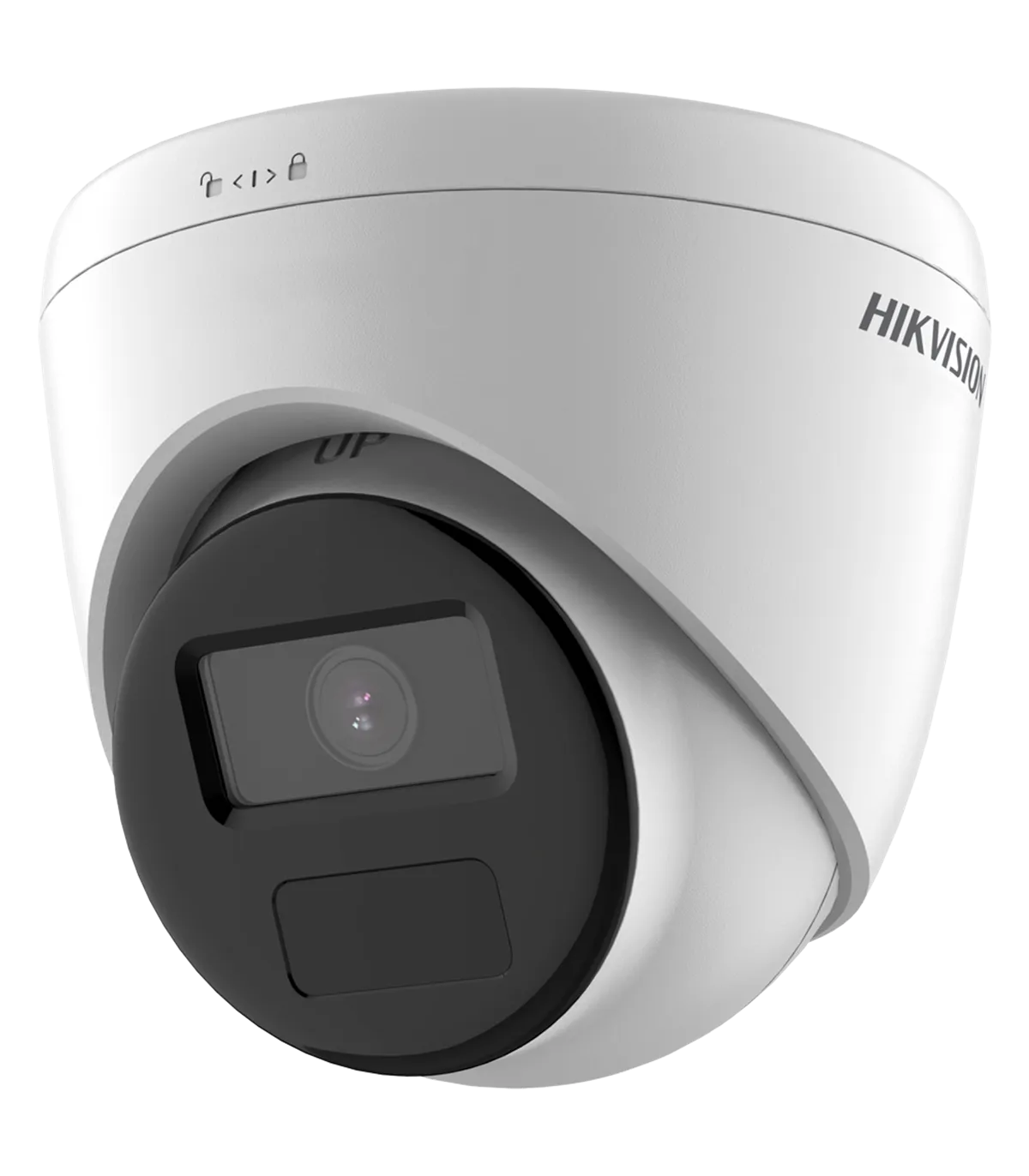

The DS-2CD1321G0-I(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor installations, providing clear images even in low-light conditions. Its IR range of 20 meters ensures reliable night vision, making it suitable for 24/7 monitoring. The camera supports H.265+ compression, optimizing bandwidth and storage usage, which is essential for modern security systems.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 94°, V: 51°, D: 112° |
| DORI | 48 m (D), 19 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.2, AGC ON) 0 Lux with IR range 20 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, Mirror Effect |
| Motion Detection | Yes |
| Network Interface | RJ45 Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ISAPI, SDK |
| Power Supply | DC 12 V / 400 mA / 4.8 W max. |
| Protection Rating | IP67 Waterproof |
| Material | Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 109.9 mm x 103.6 mm (H) |
| Base Dimensions | Ø base 109.9 mm / Ø screw holes 85 mm / 3 screws |
| Weight | 300 g |
The DS-2CD1321G0-I(2.8mm) is perfectly suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and deter theft. With its remote monitoring capabilities via the Hik-Connect app, store owners can keep an eye on their premises from anywhere, ensuring peace of mind. The camera's IP67 waterproof rating allows for reliable outdoor use, even in harsh weather conditions. Additionally, the DWDR feature enhances image quality in challenging lighting situations, making it easier to identify individuals. The plug-and-play installation simplifies setup, allowing installers to quickly deploy the camera without extensive configuration. Overall, the DS-2CD1321G0-I(2.8mm) provides a robust solution for effective surveillance, combining high-resolution imaging with advanced features for optimal security.
