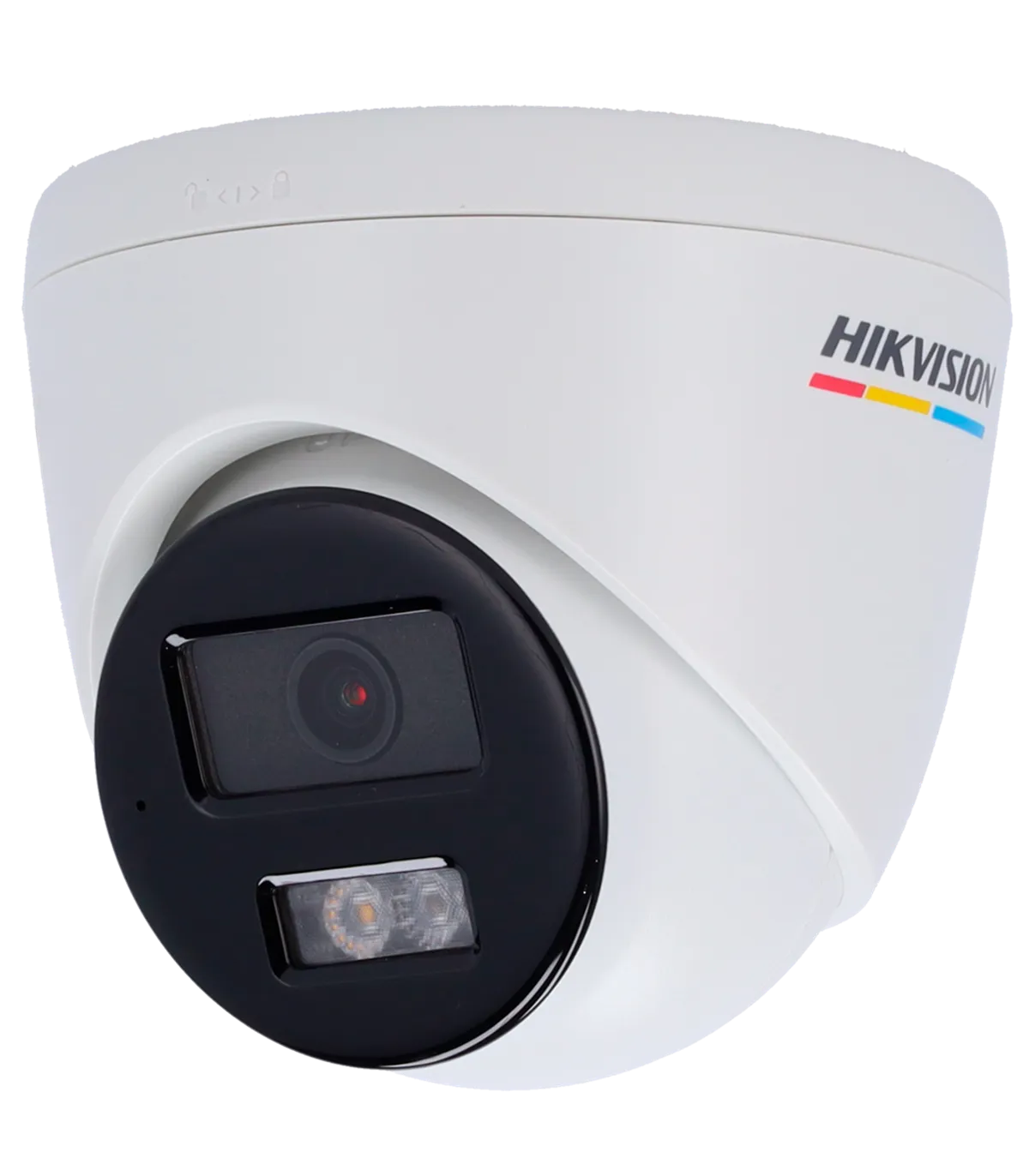

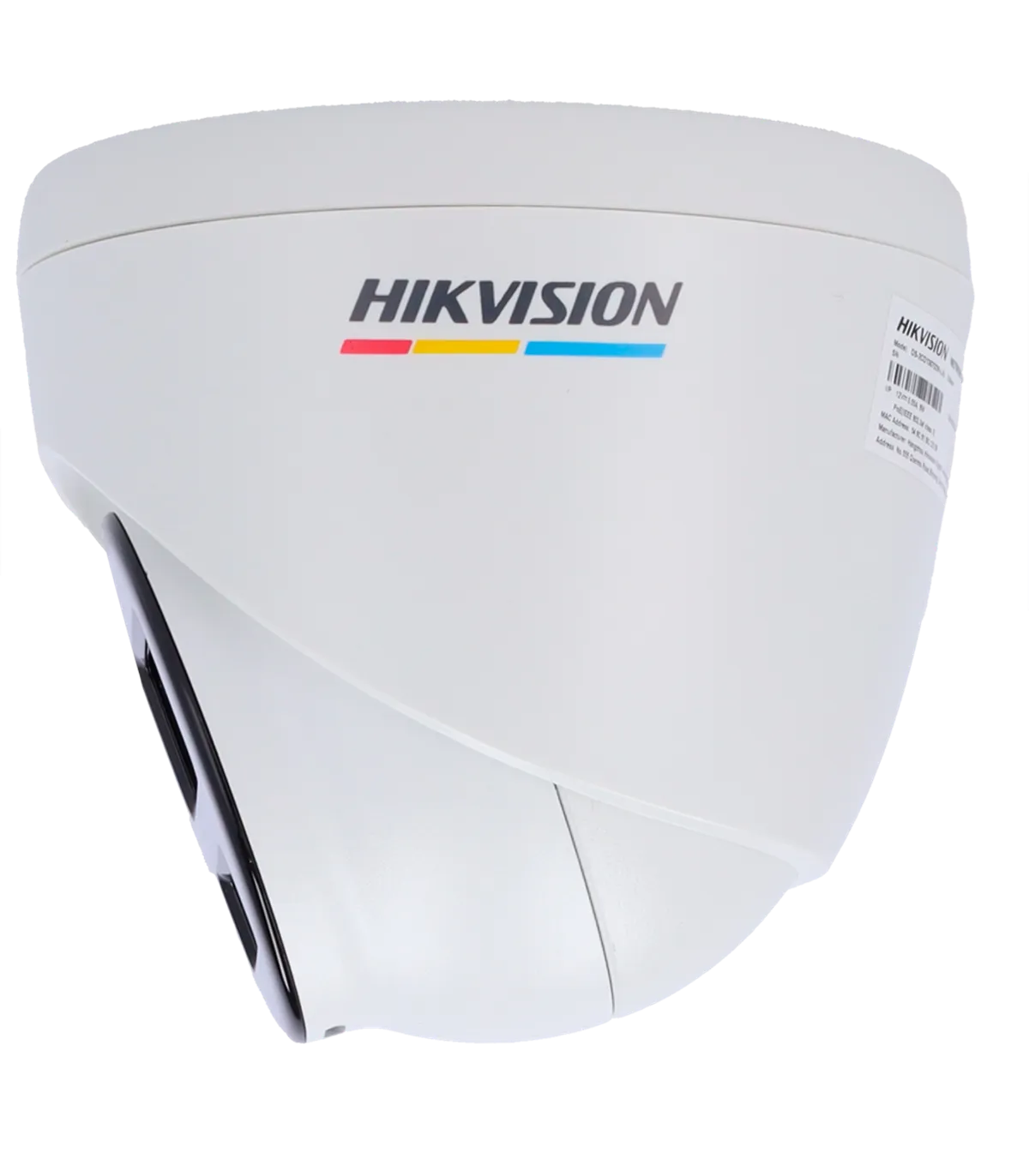

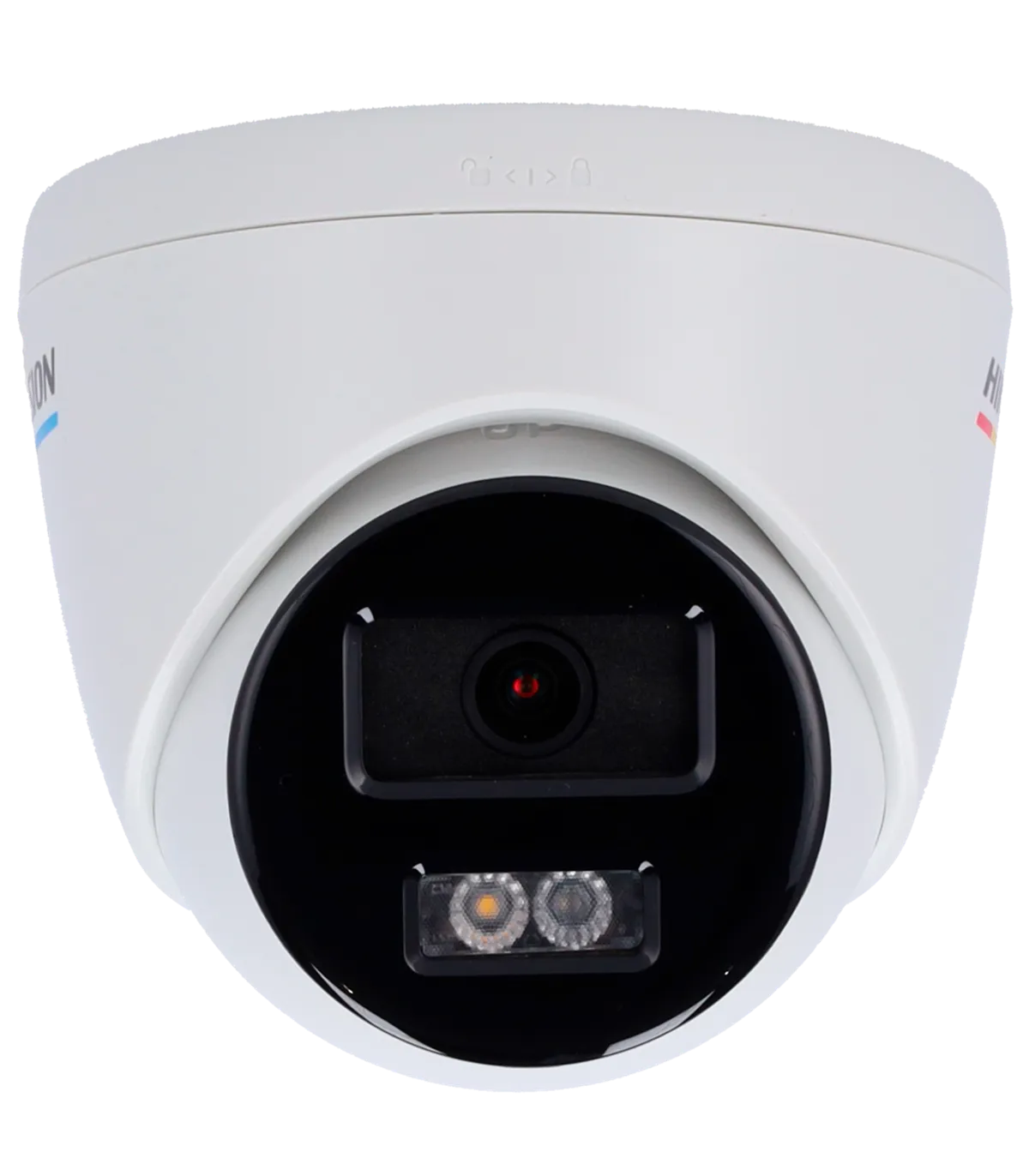

The DS-2CD1367G2H-LIU(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its advanced features, this camera is ideal for both indoor and outdoor applications, providing exceptional image quality and reliable performance. The device is equipped with a 6 Megapixel sensor, ensuring clear and detailed video footage. Its hybrid light capability, combining IR and white light, allows for effective monitoring even in complete darkness, making it a versatile choice for security needs.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR Range 30 m White Light Range 30 m |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | Not available |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 550 mA / 6.6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 102.7 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø screw holes 85 mm / 3 screws |
| Weight | 415 g |
The DS-2CD1367G2H-LIU(2.8mm) is perfectly suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this high-resolution camera can be strategically placed at entrances and checkout areas to monitor customer activity and deter theft. The motion detection feature, enhanced by its ability to classify humans and vehicles, ensures that security personnel are alerted to any suspicious behavior in real-time. Additionally, the IP67 waterproof rating allows for outdoor installation, making it ideal for monitoring parking lots or building perimeters. With its remote access capabilities via web browsers and smartphone apps, users can easily monitor live feeds from anywhere, enhancing overall security management. The integration of a hybrid light system ensures visibility in low-light conditions, providing comprehensive surveillance coverage at all times.
