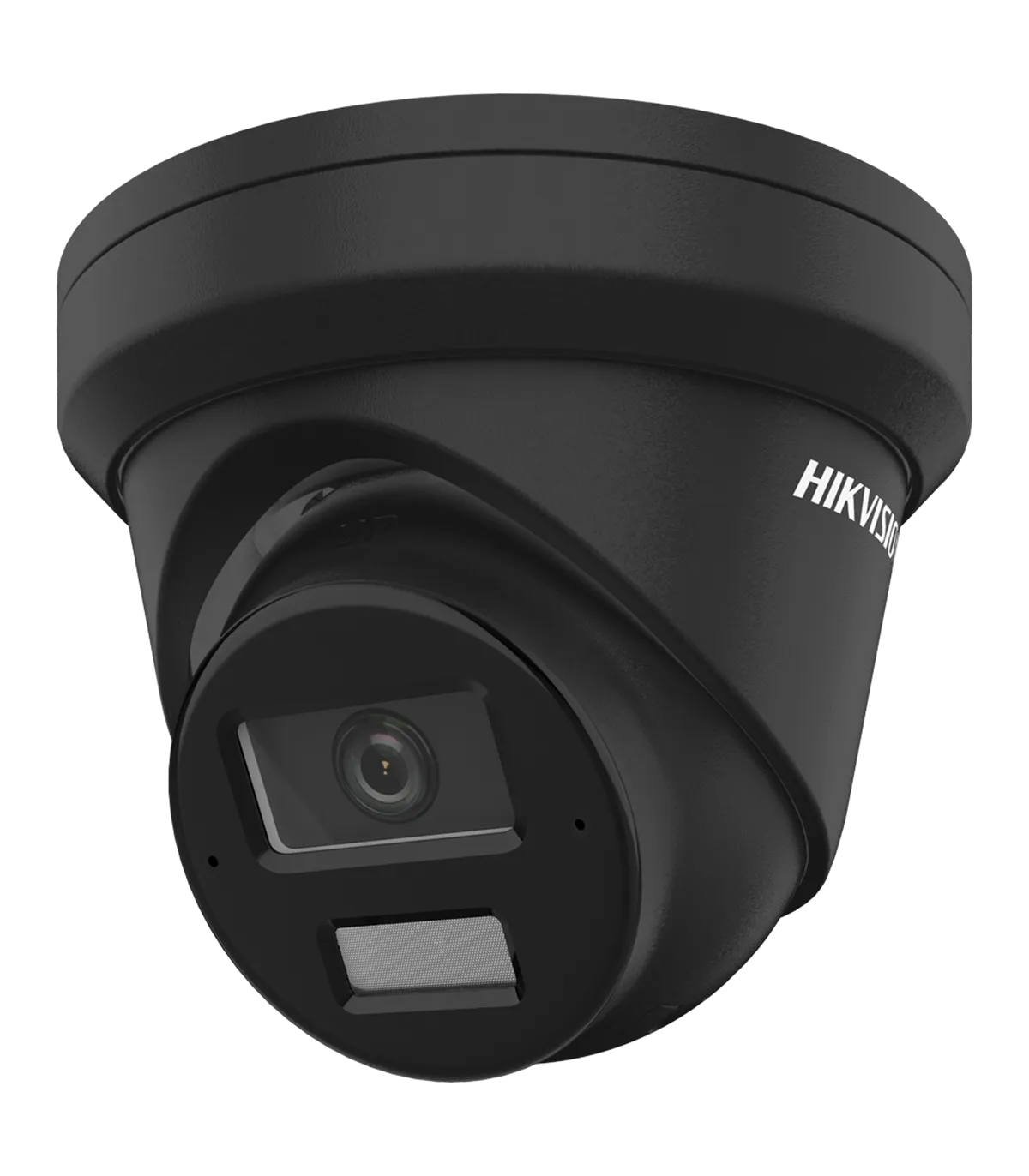

The DS-2CD2363G2-LI2U(2.8mm)(BLACK) is a high-performance IP turret camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this device offers exceptional image quality with its 6 Megapixel resolution and advanced features such as motion detection and dual microphone audio capabilities. The camera's hybrid light technology ensures clear visibility in low-light conditions, making it suitable for various security needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |
| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
| Color | Black |
The DS-2CD2363G2-LI2U(2.8mm)(BLACK) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, security personnel can receive real-time alerts for suspicious activities. The hybrid light technology ensures that the camera captures clear images even in low-light conditions, enhancing overall security. Additionally, the camera's remote monitoring features allow users to access live feeds via smartphones or web browsers, providing peace of mind. The integration of AcuSense technology further reduces false alarms, ensuring that security teams can focus on genuine threats. Overall, this camera is a reliable choice for enhancing security in various settings.
