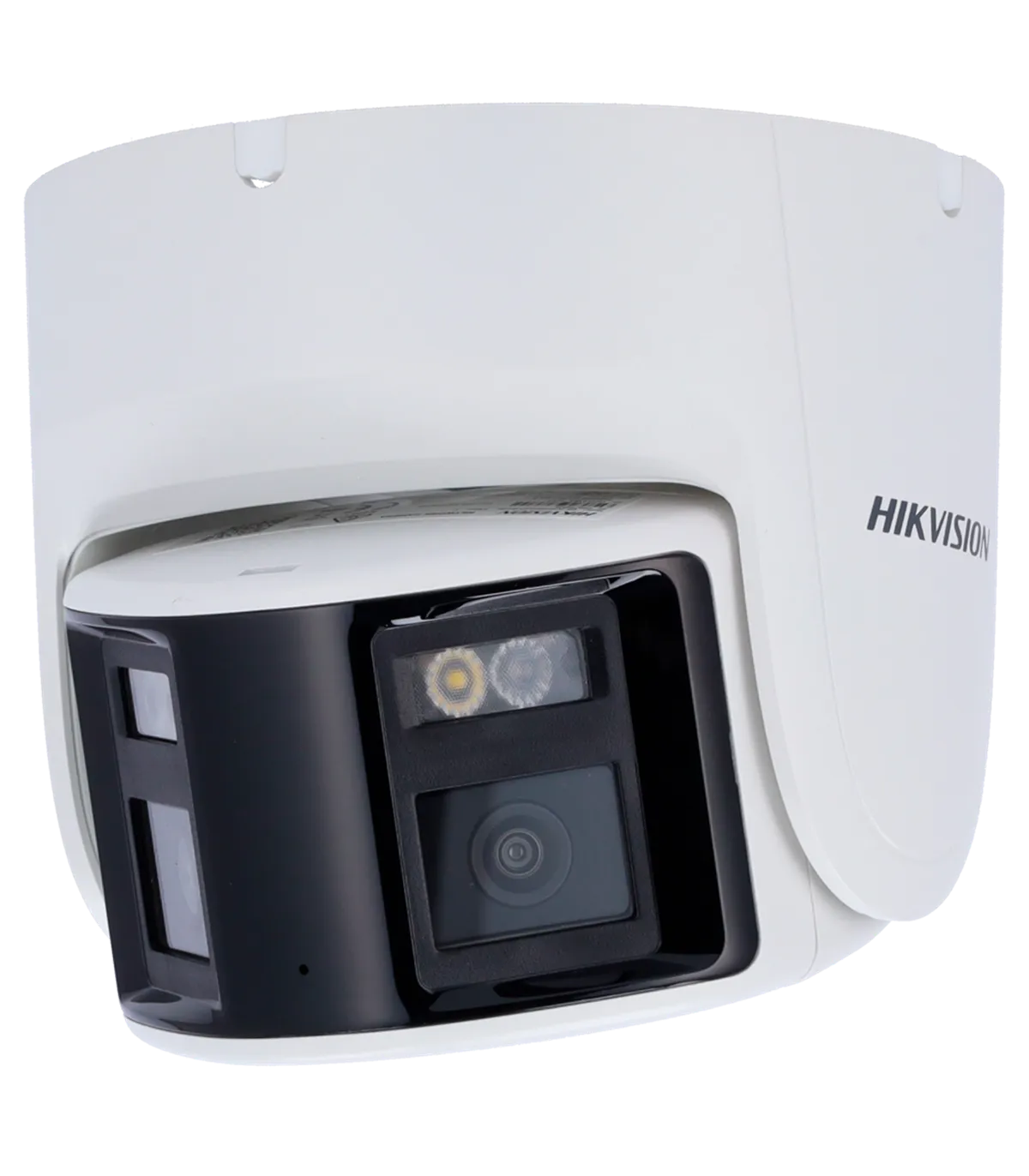

The DS-2CD2347G2P-LSU/SL(2.8mm)(C) is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera features a 180-degree panoramic view and is equipped with ColorVu technology for 24-hour color imaging. With its advanced motion detection capabilities and AcuSense technology, it effectively reduces false alarms while ensuring reliable monitoring of critical areas.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 2 x 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (3040x1368) |
| Main Stream Rate | 25 fps (3040x1368) |
| Extra Stream Rate | 25 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 180°, V: 81° |
| DORI | 38 m (D), 15 m (O), 7.5 m (R), 3.5 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Alarms | 1 input / 1 relay |
| Deterrent Alarm | Integrated siren and strobe flash in the camera |
| Audio | 1 input / 1 output Integrated microphone or speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 140 mm x 145.6 mm (H) |
| Base Dimensions | Ø base 140 mm / Ø between screws 96 mm / 4 screws |
| Weight | 920 g |
The DS-2CD2347G2P-LSU/SL(2.8mm)(C) is particularly well-suited for deployment in retail environments, where comprehensive surveillance is essential for loss prevention and customer safety. Installers can easily set up this plug-and-play camera, utilizing its remote monitoring capabilities via the Hik-Connect app. The camera's 180-degree panoramic view ensures that wide areas are covered, minimizing blind spots. With features like AcuSense technology, the camera intelligently differentiates between human and vehicle movements, significantly reducing false alarms. This is especially beneficial in busy retail settings where unnecessary alerts can disrupt operations. Additionally, the integrated audio features allow for two-way communication, enhancing security measures. The camera's robust IP67 waterproof rating ensures reliable performance in various weather conditions, making it an ideal choice for outdoor installations. Overall, the DS-2CD2347G2P-LSU/SL(2.8mm)(C) provides a comprehensive solution for effective surveillance and security management.
