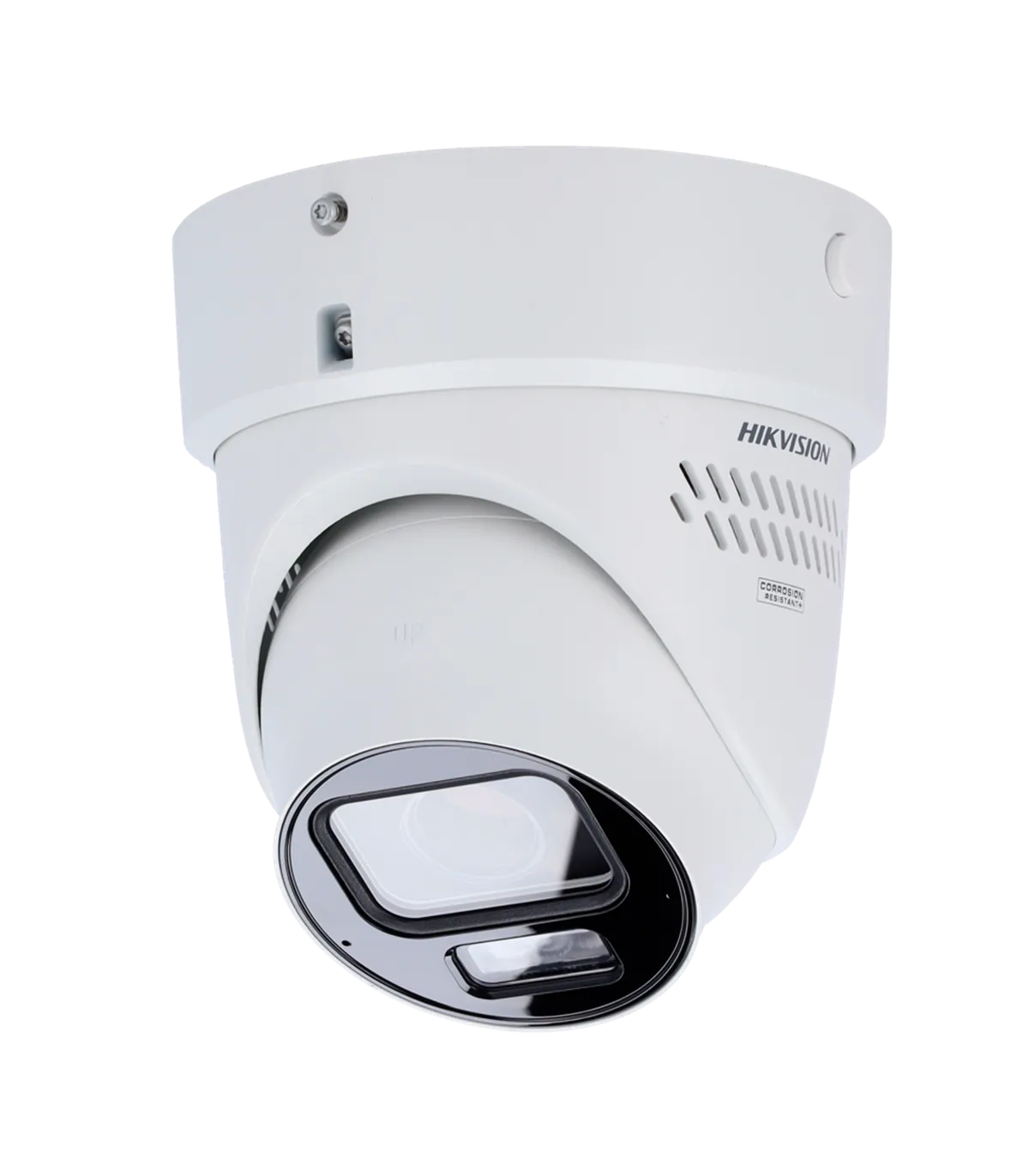

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including commercial security and residential monitoring, thanks to its advanced sensor technology and wide aperture lenses that capture more light for enhanced clarity and detail without the need for additional lighting. It features HikAI-ISP, an intelligent image processor that optimizes visual quality by reducing noise and improving sharpness in challenging conditions.
In terms of intelligence, AcuSense 3.0 allows for precise detection of humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized varifocal lens 2.8~12 mm |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | WIDE: 61.5 m (D), 24.4 m (O), 12.3 m (R), 6.2 m (I) TELE: 151.7 m (D), 60.2 m (O), 30.3 m (R), 15.1 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) 0 lux with illuminator |
| ColorVu 3.0 | Color image 24/7 with HikAI-ISP, F1.2, and 1/1.8" sensor AI noise reduction offers the advantage of greater static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and White Light up to 40 m |
| Day/Night | Auto / Manual / Programmable |
| Audio | 1 Input / 1 Output |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| EIS (Image Stabilizer) | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently enter the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 Input / 1 Output (max. 24 VDC/24 VAC, 1 A) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1.4 A / 16.8 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof NEMA 4X (Corrosion protection) |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 143.5 mm (Ø) x 142.7 mm (H) |
| Base Dimensions | Ø base 143.5 mm / Ø between screws 85 mm / 4 screws |
| Weight | 1265 g |
In a typical deployment scenario, the DS-2CD2H47G3-LIZS2UY/SL(2.8-12mm) camera can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images even at night, ensuring that all activities are captured in detail. The motion detection capabilities, combined with AcuSense 3.0, allow for accurate identification of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy shopping areas where foot traffic is high. Additionally, the camera's remote access capabilities enable store managers to monitor their premises from anywhere using a smartphone app, providing peace of mind. The robust design, featuring IP67 and IK10 ratings, ensures that the camera withstands harsh weather conditions and potential vandalism, making it a reliable choice for outdoor installations. Overall, the DS-2CD2H47G3-LIZS2UY/SL(2.8-12mm) camera is an excellent solution for businesses looking to enhance their security infrastructure.
