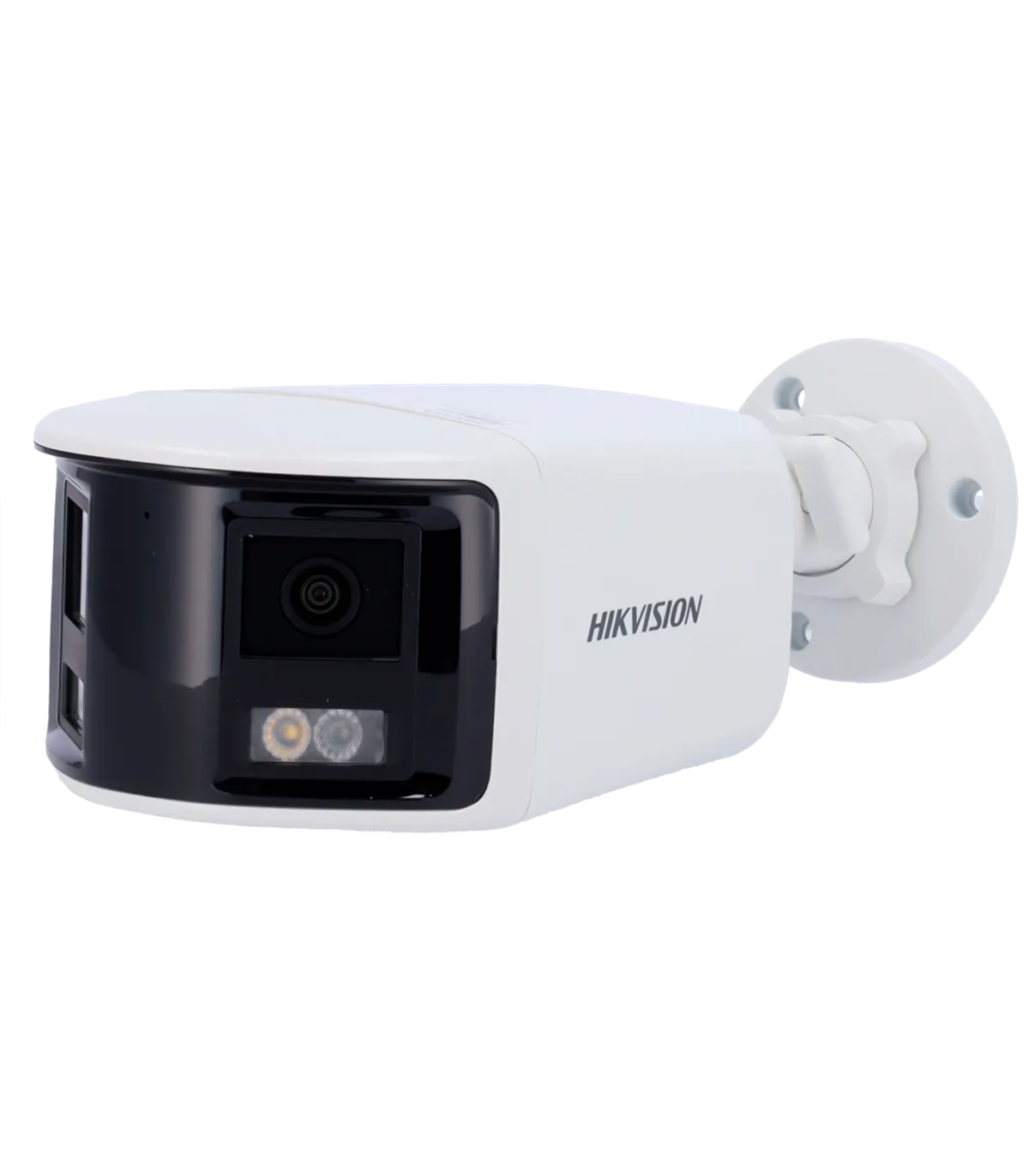

The DS-2CD1T63G2P-LIUF/SL is a high-performance IP bullet camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera offers a wide 180-degree panoramic view, making it perfect for monitoring large areas such as parking lots, retail spaces, and public venues. With its advanced features, including motion detection and hybrid illumination, it ensures clear visibility even in low-light conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3632x1632) |
| Main Stream Rate | 20 fps (3632x1632) |
| Extra Stream Rate | 20 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Dual Lens 2.8 mm |
| Field of View (FOV) | H: 180°, V: 77° |
| DORI | 42 m (D), 16 m (O), 8 m (R), 4 m (I) |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 830 mA / 10 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 103.6 mm (W) x 76 mm (H) x 234.5 mm (D) |
| Weight | 835 g |
The DS-2CD1T63G2P-LIUF/SL camera is ideally suited for deployment in various settings, such as retail stores, parking lots, and public spaces. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring enhanced security and remote monitoring capabilities. The camera's 180-degree panoramic view allows for comprehensive coverage, reducing blind spots and enhancing overall surveillance effectiveness. Additionally, the integrated microphone and speaker facilitate two-way audio communication, which can be crucial for customer service or security alerts. The hybrid illumination feature ensures that the camera captures clear images even in complete darkness, making it a reliable choice for 24/7 surveillance. Furthermore, the motion detection capabilities with human and vehicle classification help in minimizing false alarms, providing peace of mind to users. Overall, this camera is a robust solution for anyone looking to enhance their security infrastructure.
