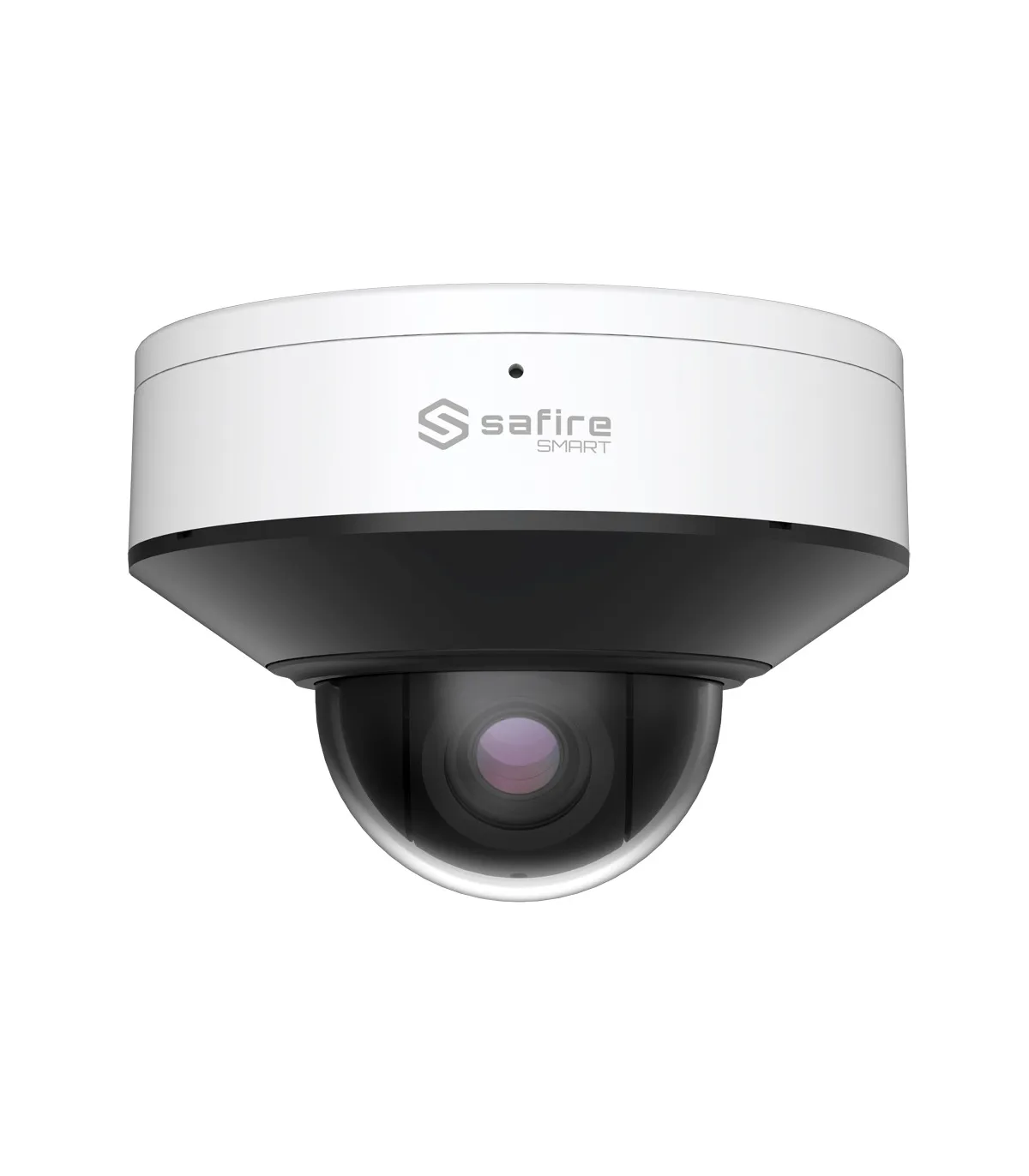

MiniPTZ IP Camera I1 Artificial Intelligence SF-IPSD1003ITA-4I1

MiniPTZ IP Camera I1 Artificial Intelligence SF-IPSD1003ITA-4I1

Safire Smart
MiniPTZ IP Camera I1 Artificial Intelligence
Resolution 4 Megapixel (2560x1440) | WDR 120 dB
3X optical zoom | IR 30m
Autotracking, human and vehicle | Alarms
IP67, IK10 | PoE+ (IEEE802.3at)

MiniPTZ IP I1 Artificial Intelligence Camera SF-IPSD1003ITA-4I1

Safire Smart
I1 range with Advanced Artificial Intelligence
IP PTZ Camera
1/2.7" Progressive Scan CMOS
4 Megapixel (2560x1440)
3X optical zoom
Lens 2.7-8.1 mm
0 Lux
IR range 30 m
WDR 120 dB
H.265+ / H.264+ compression
3DNR
Artificial Intelligence for classification of human and vehicle
Intelligent autotracking, human and vehicle tracking
Facial recognition with capture of up to 17 faces at a time
Audio
Alarm
WEB interface, CMS, Smartphone and NVR
ONVIF compatible
PoE+ (IEEE802.3at)
Waterproof IP67
Vandal-proof IK10
Installation on ceiling, wall or pole

Technical specifications

Brand	Safire Smart
Range	I1 with Advanced Artificial Intelligence
Image Sensor	1/2.7“ Progressive Scan CMOS
Resolution	4 Megapixel (2560x1440)
Main Stream	2560×1440,1920×1080,1280×960,1280×720
Sub stream	704x576, 640x480, 352x288
Third Stream	1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288
Video Bit rate	64Kbps ~ 8Mbps
Minimum illumination	Color: 0.02 Lux @(F1.2, AGC ON), 0 Lux with IR
IR LED	30m (850nm)
Compression	H.265+/ H.265 / H.264+/ H.264
Optical Zoom	3X
Digital Zoom	8X
Lens	2.1 - 8.1 mm
FOV	H: 113.6º - 44.3º / V: 59.6º - 24.9º / D: 137.4º - 50.8º
DORI	W: 54 m (D), 24 m (W), 11 m (R), 5 m (I) T: 162 m (D), 64 m (W), 32 m (R), 16 m (L)
Electronic shutter	1/1s~1/10,000s
Day / Night	Removable ICR mechanical filter
Improvements image	BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI
WDR	120 dB
Functions Advanced	Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, double line crossing, entry region, exit region. Facial recognition with face capture of up to 17 faces at a time.
Intelligent Autotracking	Intelligent Human and Vehicle Tracking
Pan/Tilt Range	Horizontal: 0°~355º, Vertical: 15°~90° (Auto flip at 90º)
Manual speed	Horizontal: 0.5° ~ 80° /s, Vertical: 0.5° ~80° /s
Speed between Presets	Horizontal: 80° /s, Vertical: 80° /s
Preset positions	99 Preset, 8 Tours, 4 Patrols
Internal storage	MicroSD Card, Max 256 GB
Audio	Microphone / 1 Input / 1 Output
Audio compression	G.711 A/U
Audio bit rate	64 Kbps
Alarms	1 Input / 1 Relay
PTZ Control	Through network access
Network interface	Ethernet 10 / 100M BaseT
Remote Access	Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software
Interoperability	ONVIF, PSIA, CGI
Power	DC 12 V / 2A, PoE+ IEEE802.3at
Temp. operation	-40º C ~ +65º C
Protection degree	IP67 and IK10 / Surge 6000V
Dimensions (without support)	75 (H) x 116 (Ø) mm
Weight (without support)	463 g

Safire Smart IP PTZ Camera I1
Installation material
Ceiling installation support
Quick installation guide
