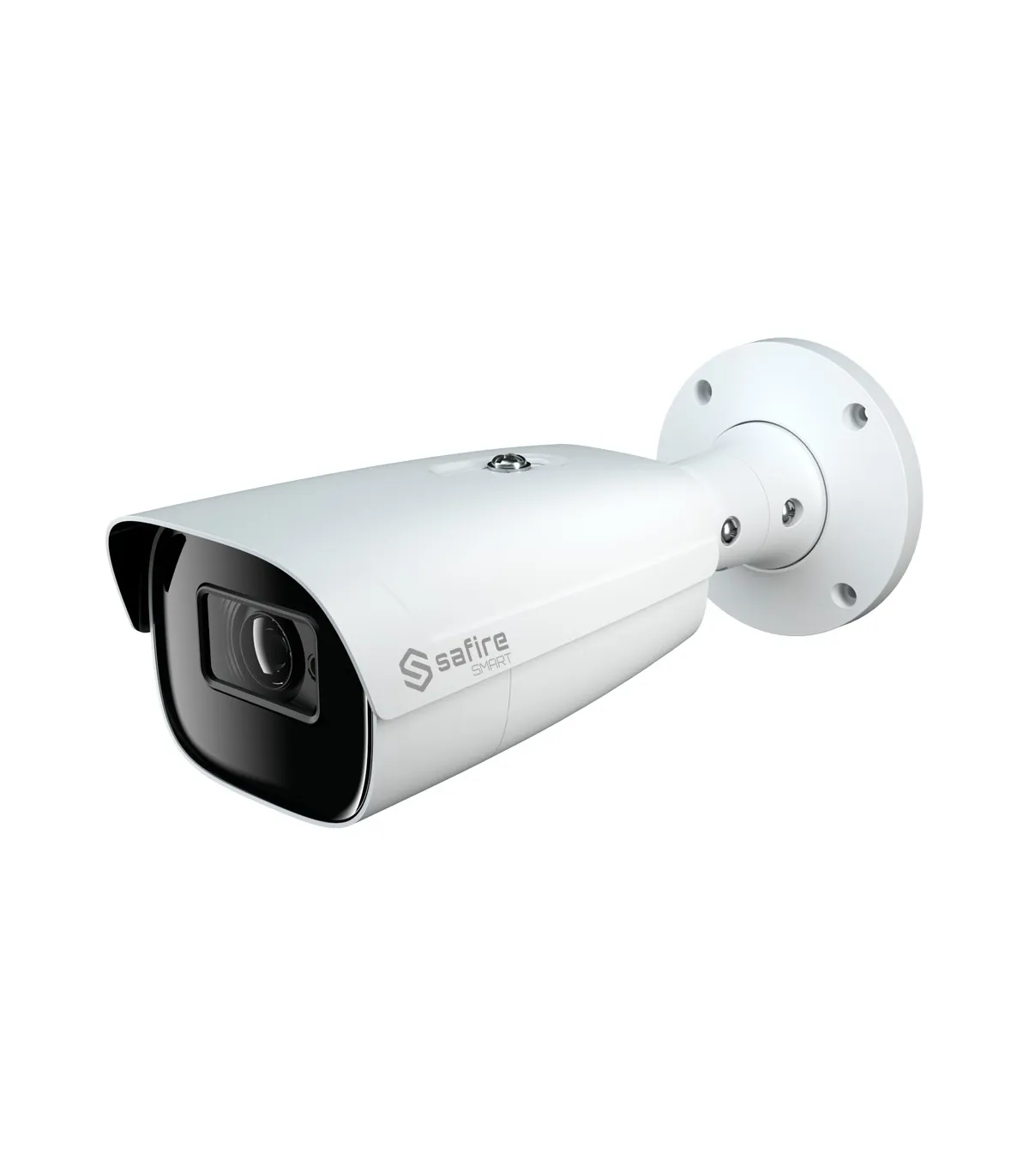

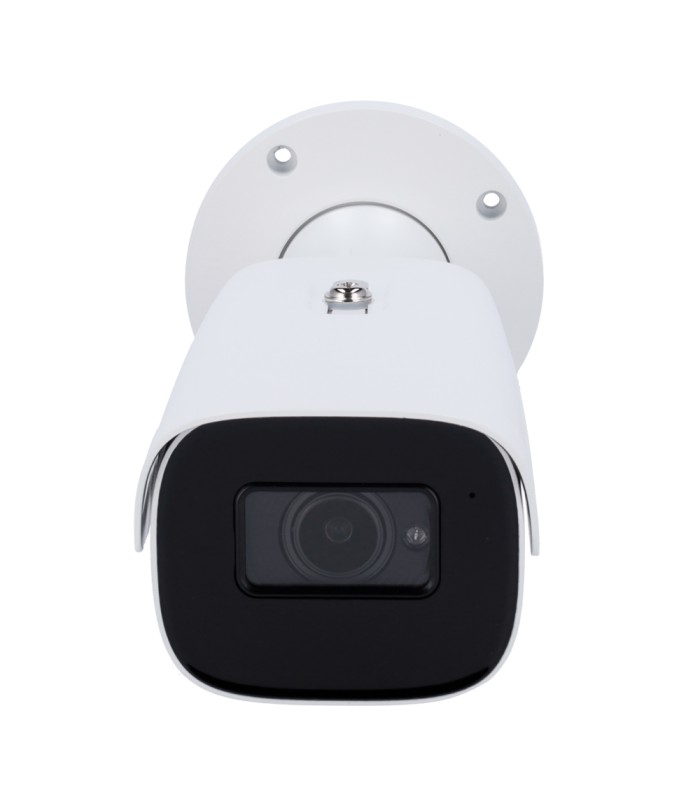

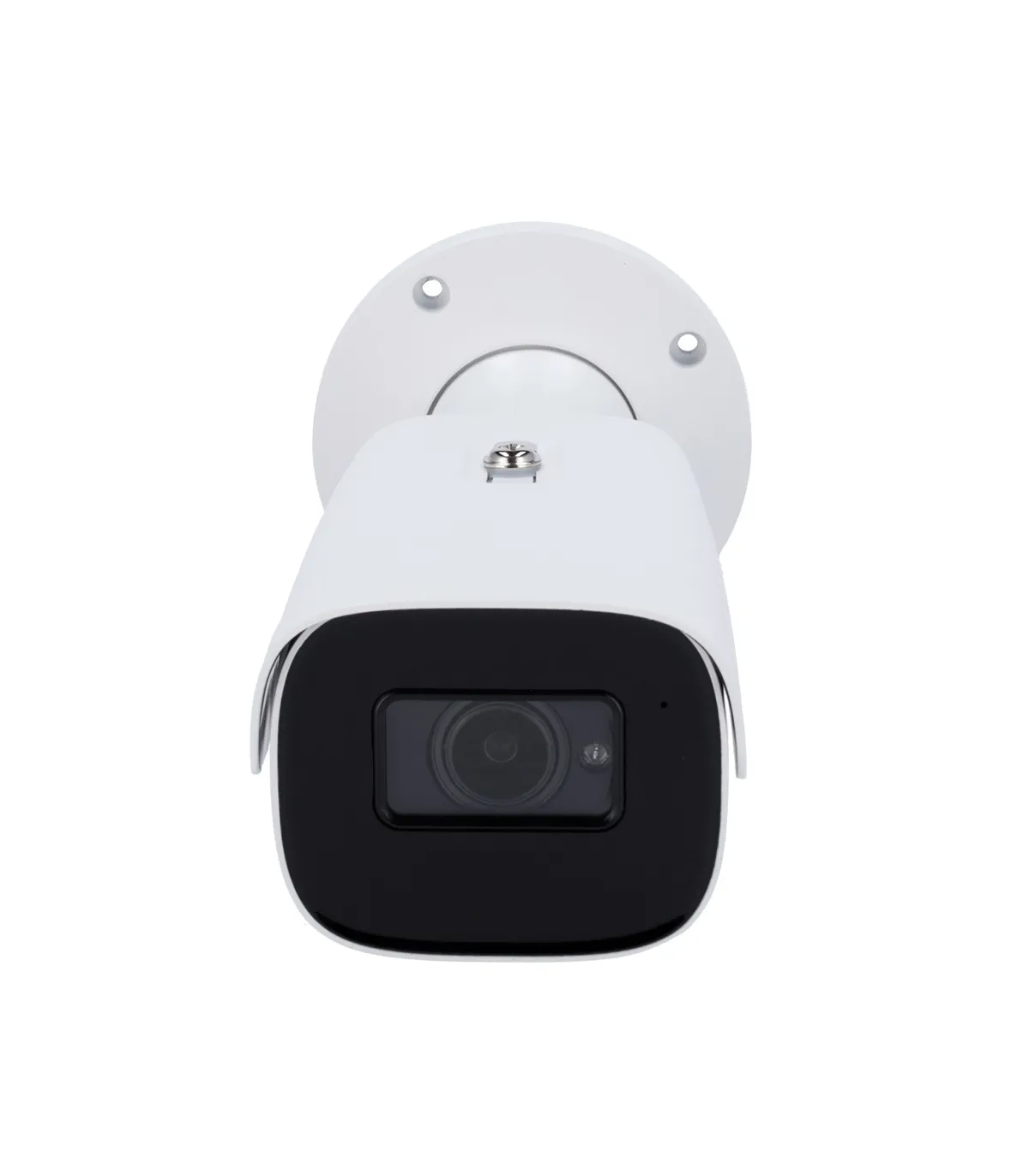

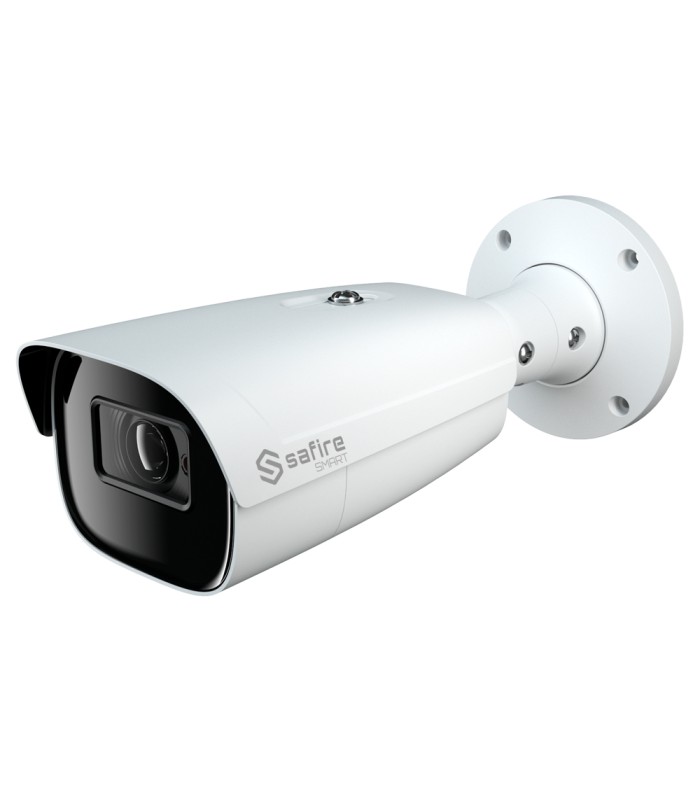

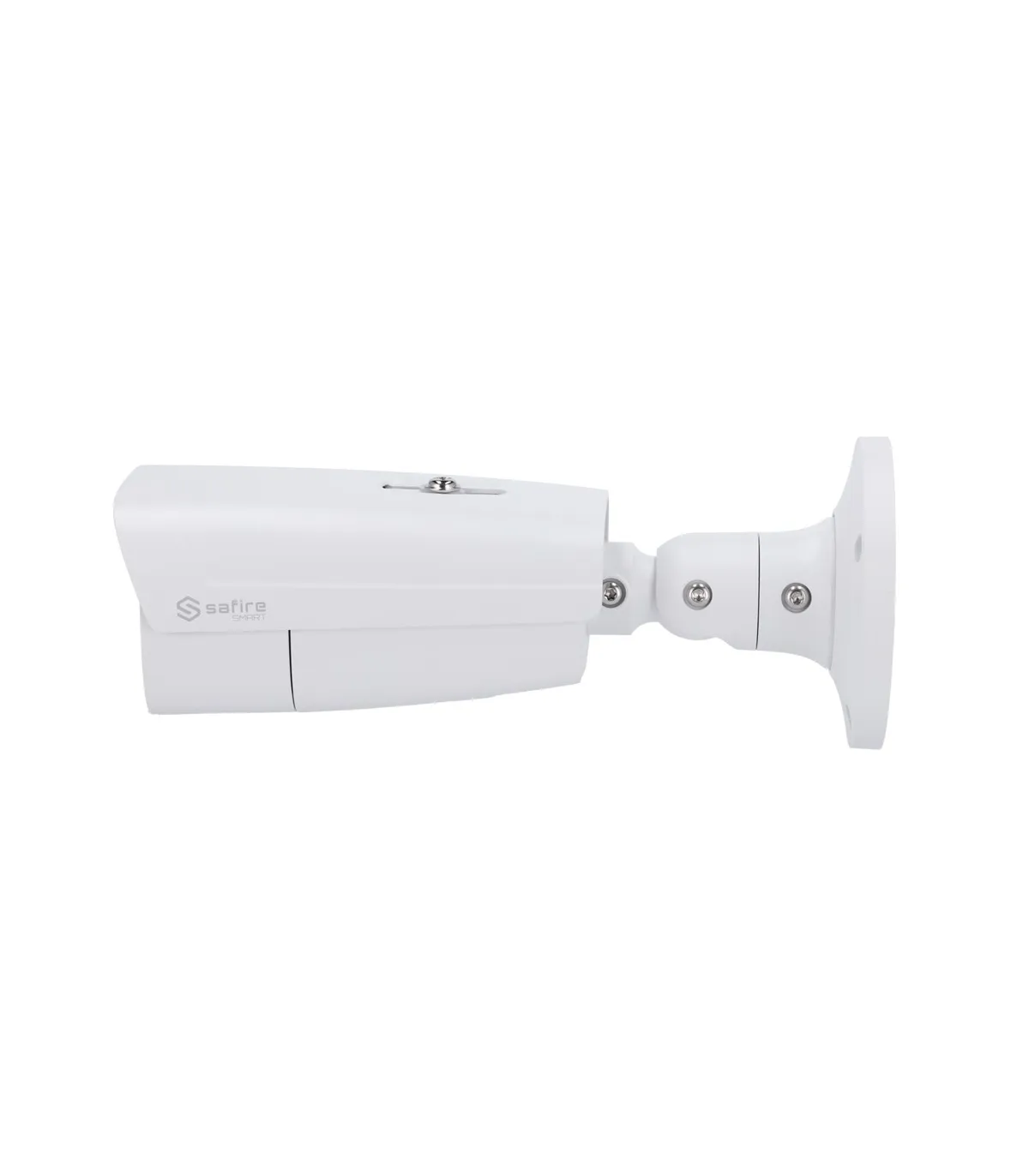

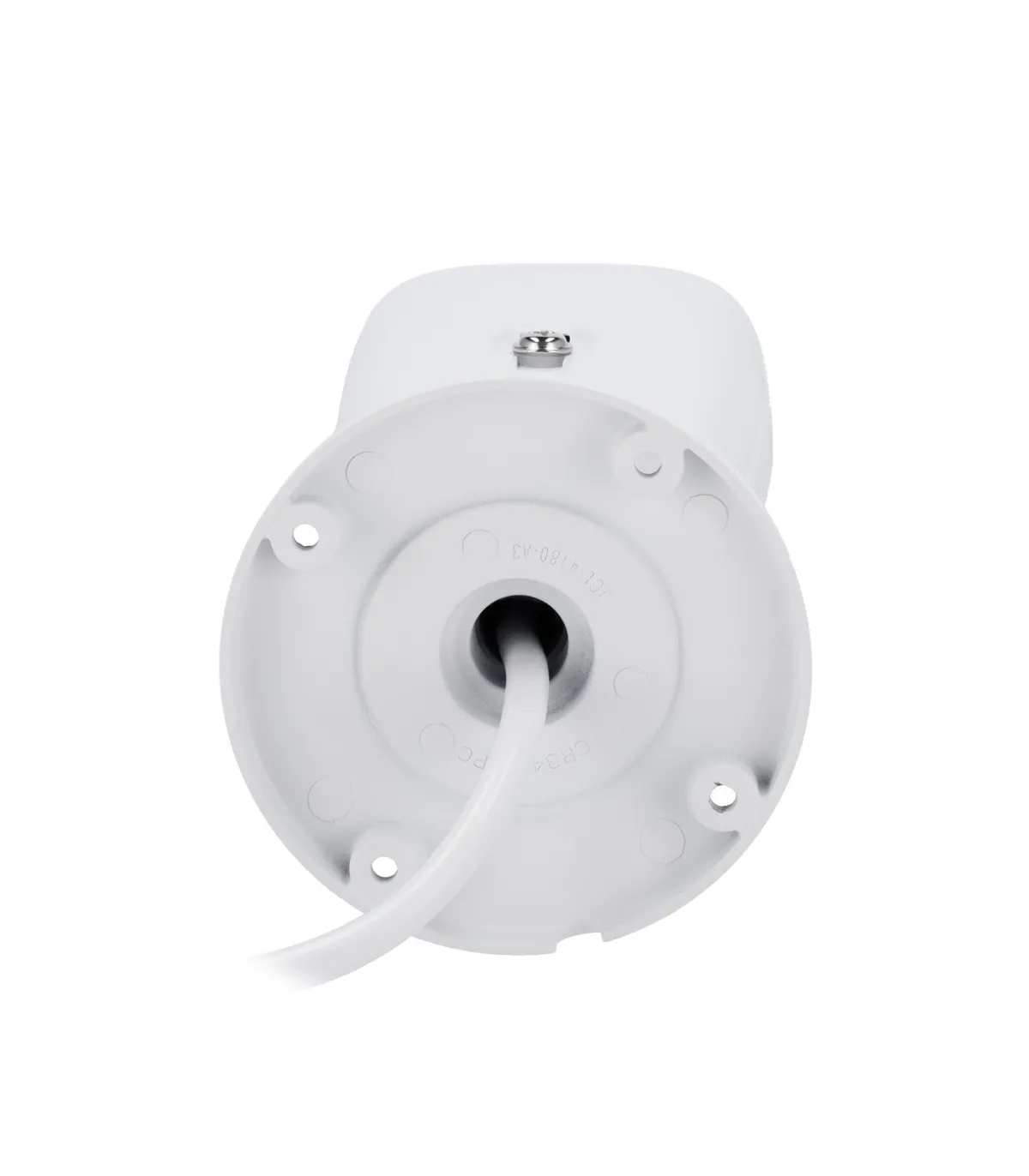

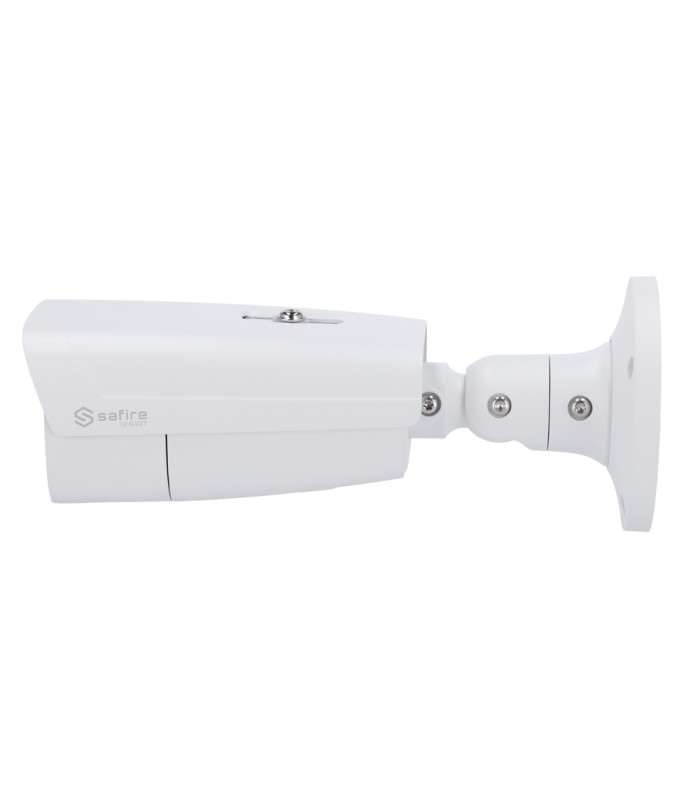

IP Bullet Camera LPR range SF-IPB585ZA-4LPR-0832
Brand: SAFIRE SMART
- Safire Smart
- IP Bullet Camera LPR range
- Resolution 4 Megapixel (2592x1520)
- Motorized Lens 8-32 mm | Audio | IR 100m
- License plate recognition / List management
- IP67 waterproof | PoE (IEEE802.3af) |Alarm
IP Bullet Camera LPR range SF-IPB585ZA-4LPR-0832
- Safire Smart
- LPR range with License Plate Recognition
- IP Bullet Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2592x1520)
- Motorized lens 8-32 mm
- 0 Lux
- IR range 100 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Audio
- Alarms
- License plate recognition up to 120Km/h
- Management of allowed and not allowed list with up to 10,000 license plates
- Detection of vehicles without license plates
- Detection of brand, color, type, model, year of production
- Wiegand
- Alarm

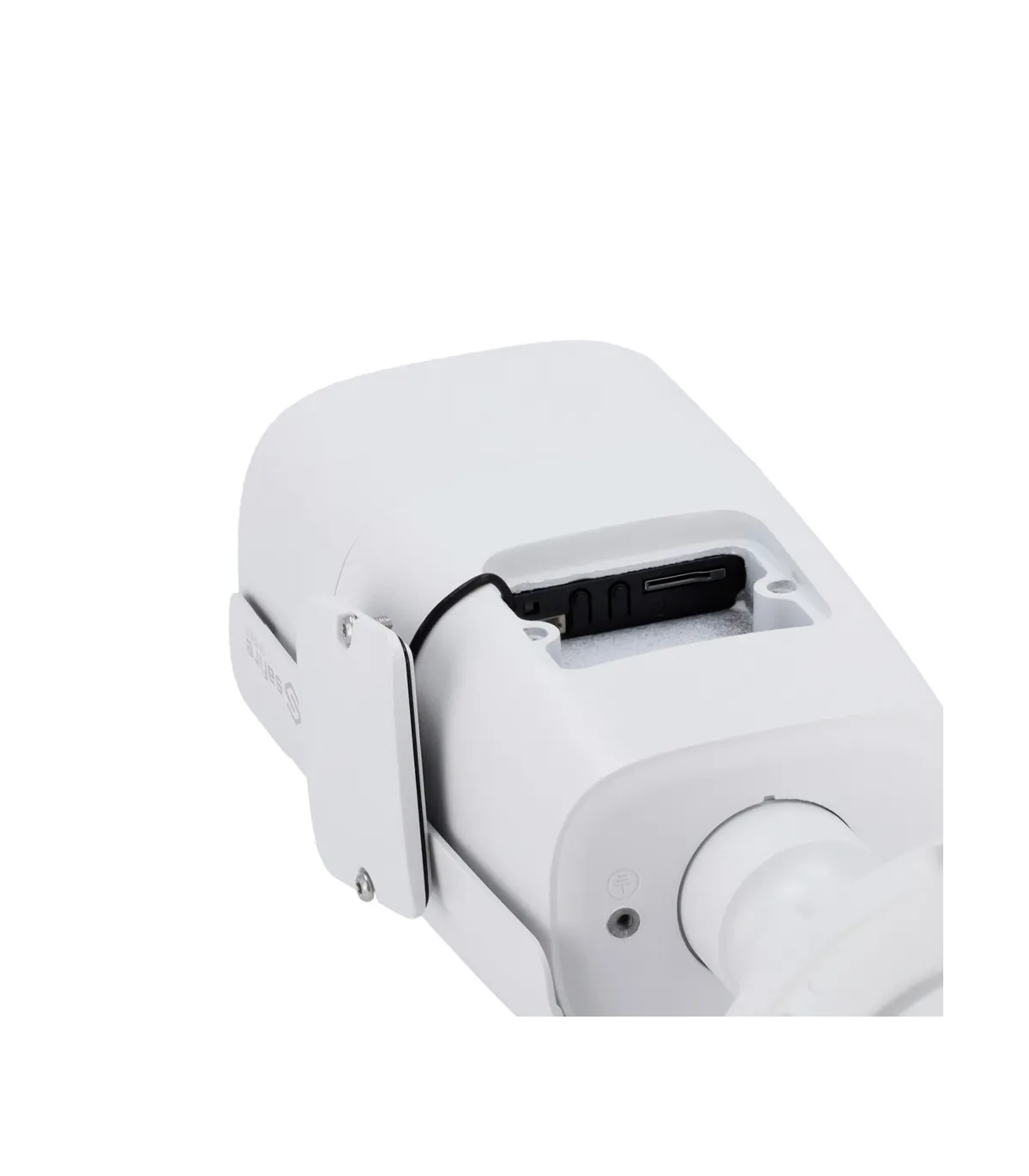

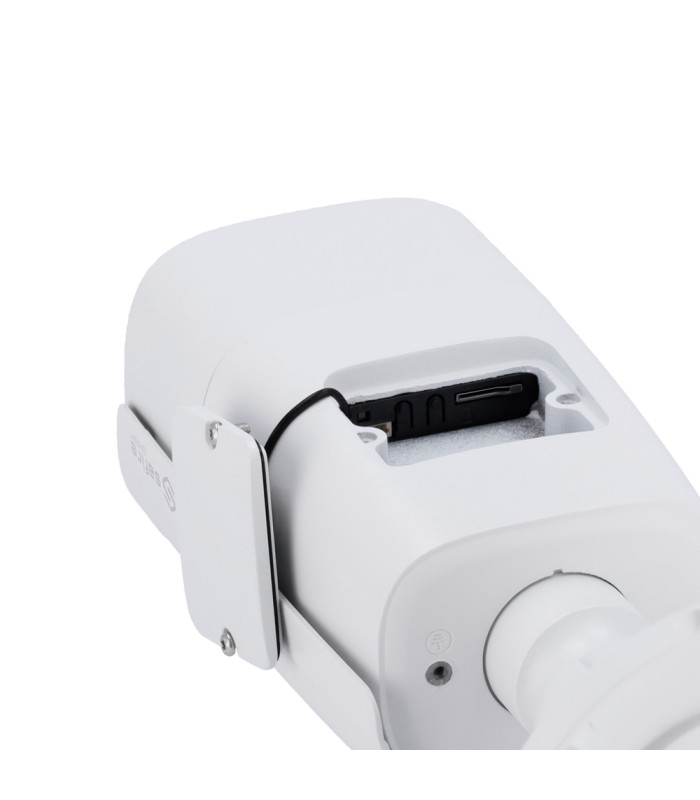

- MicroSD Card
- Audio
- Output CVBS
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | LPR |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2592x1520) |
| Minimum illumination | Color: 0.0007 Lux @(F1.3, AGC ON), 0 Lux with IR Color: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 100 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optical | Motorized 8 ~ 32 mm |
| Angle of view (FOV) | H: 41-15.5°, V: 23-9.5°, D: 46.5-18° |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| License Plate Detection Features | Original image capture (4Mpx) and license plate Database of up to 10,000 license plates with list of allowed and not allowed Detection range up to 120Km/h Detection distance recommendation: 7 - 30 m |
| Types of vehicle detection | Vehicles with and without license plate Direction of traffic Tolerance for the lack of a character on the license plate Extraction of characteristics: Brand, model, year of manufacture, color, license plate color, type of vehicle |
| Audio | 1 Input / 1 Output |
| Audio compression | G711A / U |
| Alarms | 1 Input / 1 Output |
| Wiegand | Yes (26 bit) |
| Network interface | Ethernet 10 / 100M BaseT |
| Storage internal | MicroSD card up to 256GB |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / mA / 9 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 88.7 (H) x 100.2 (W) x 278.3 (D) mm |
| Weight | 1000 g |
Contents
- Safire Smart LPR IP Bullet Camera
- Installation material
- Quick installation guide
