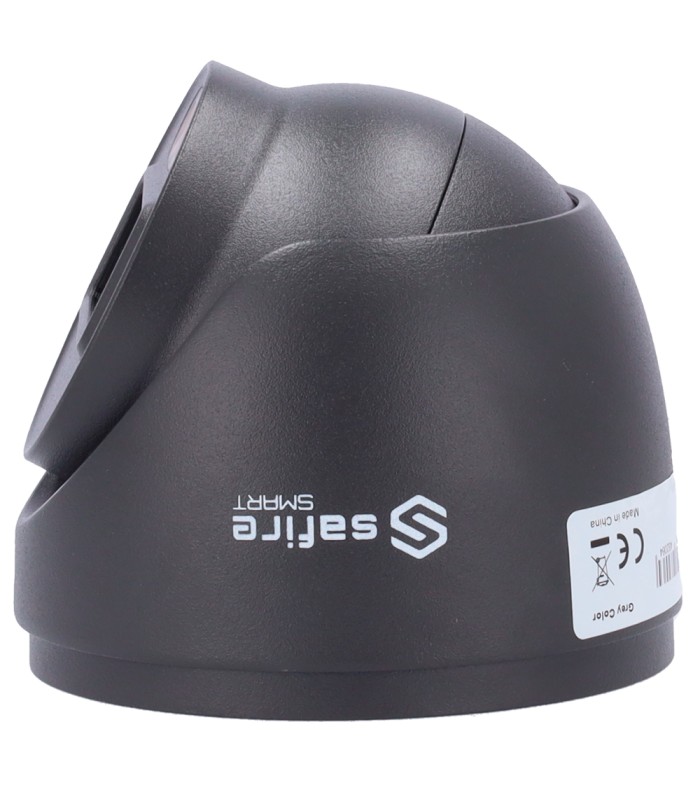

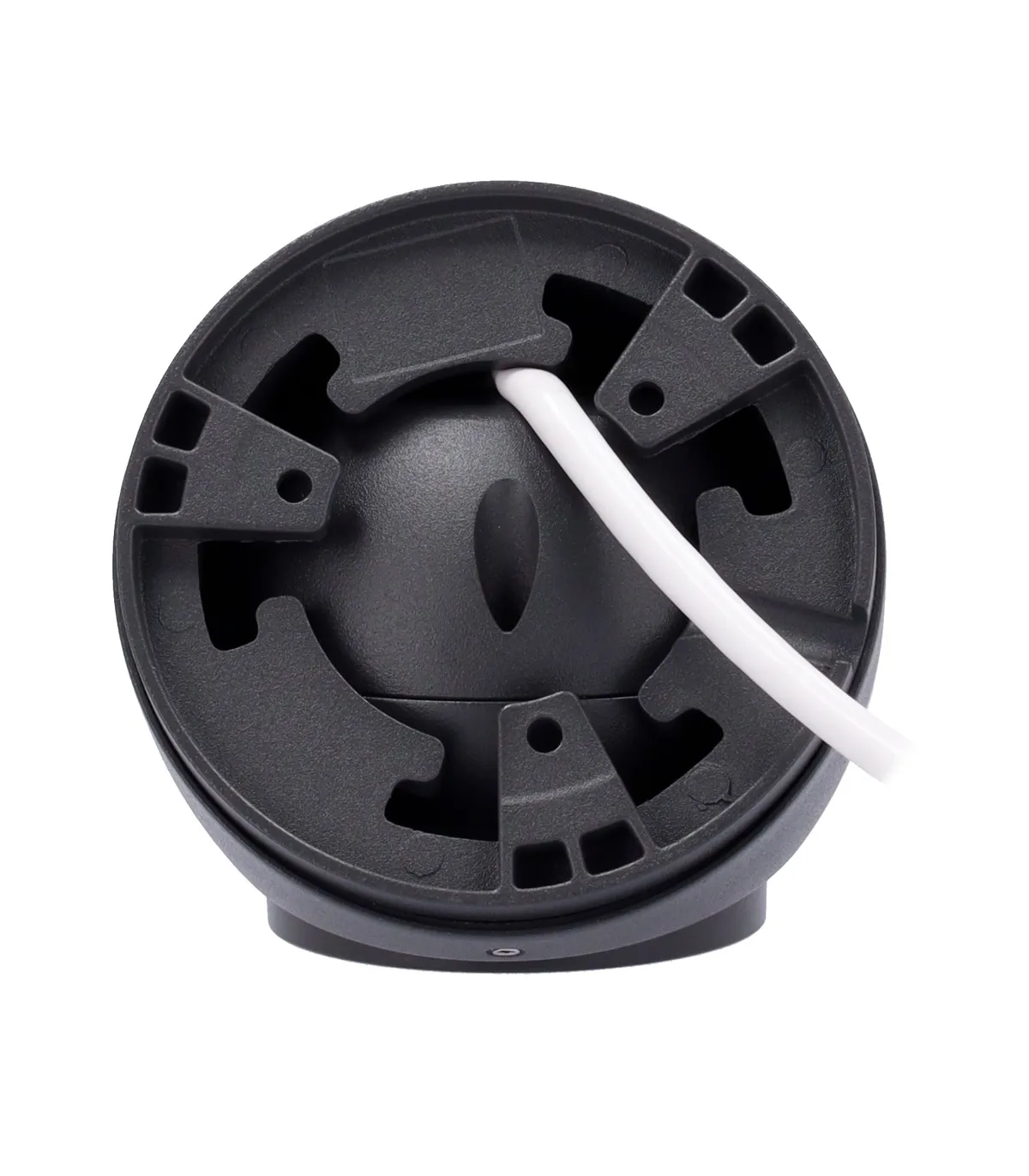

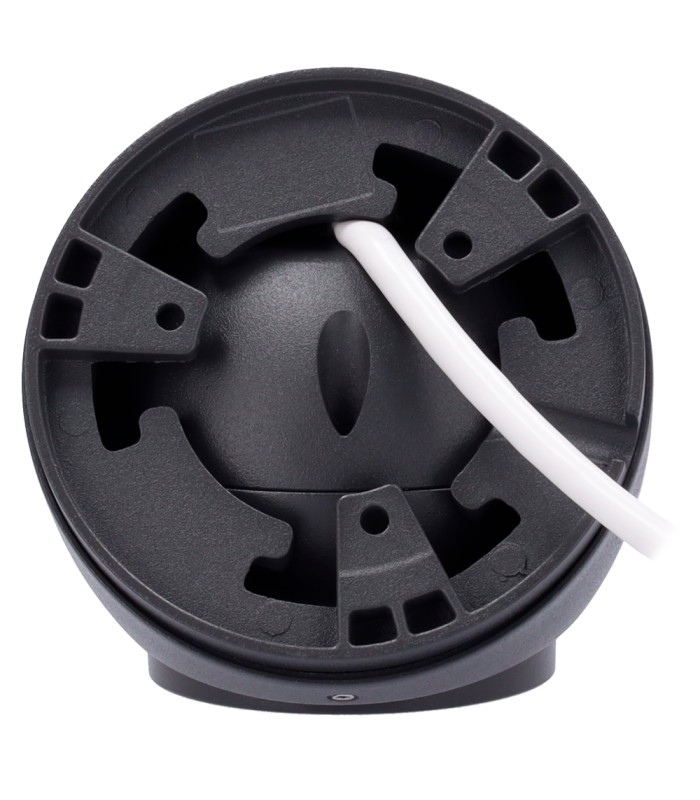

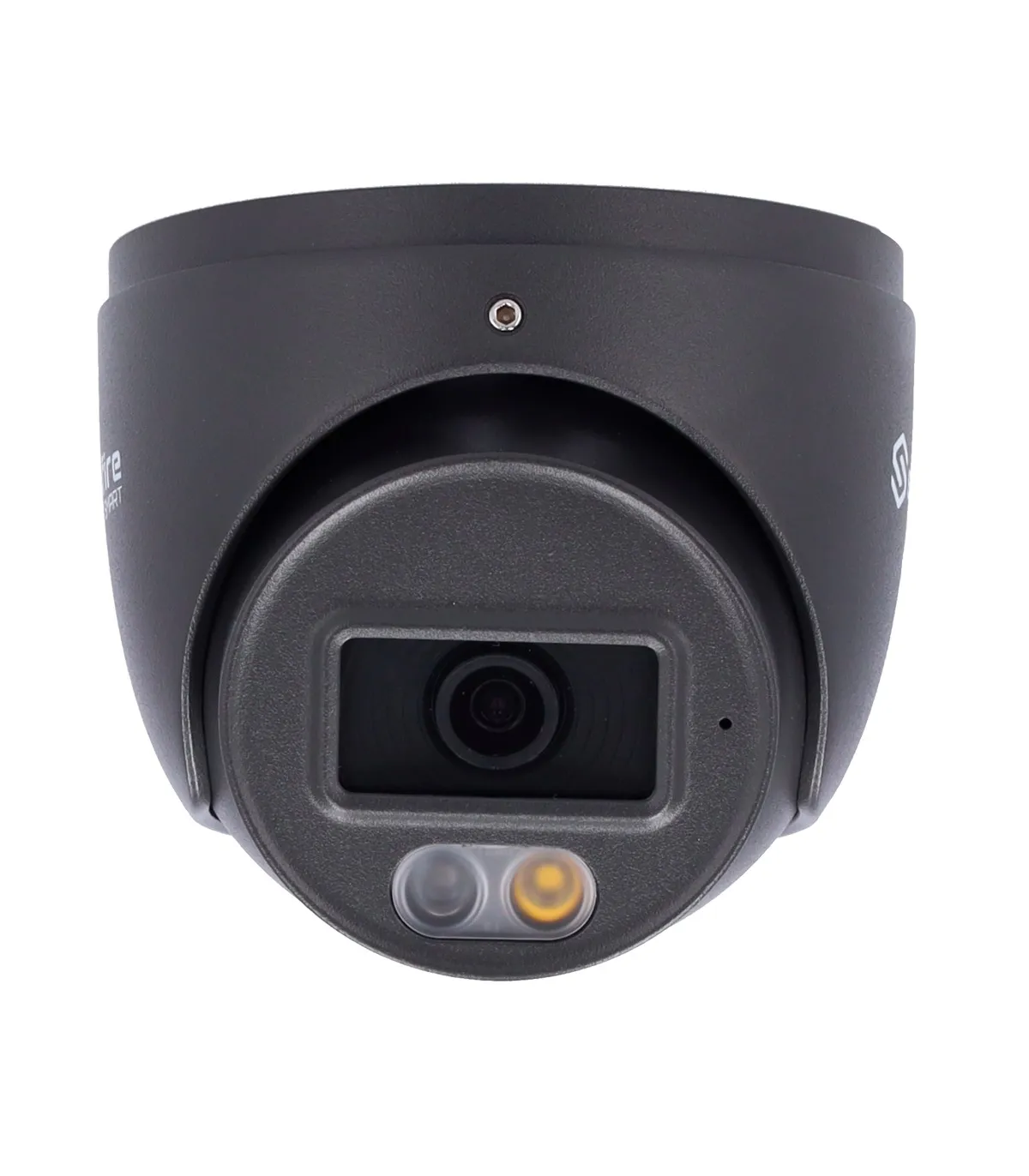

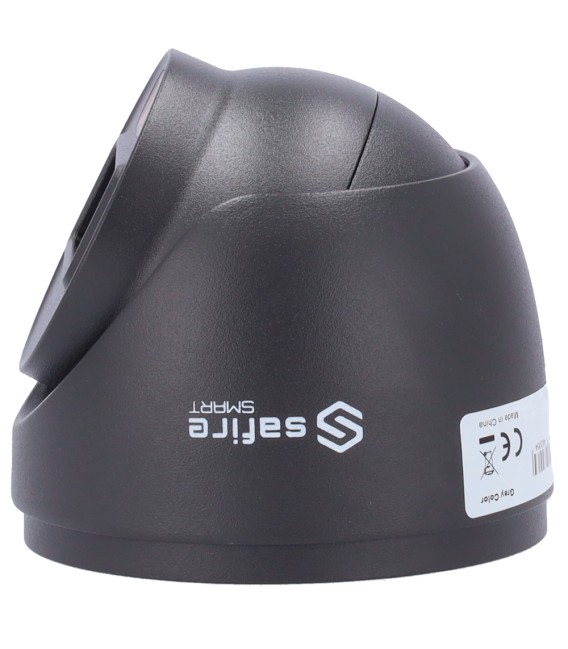

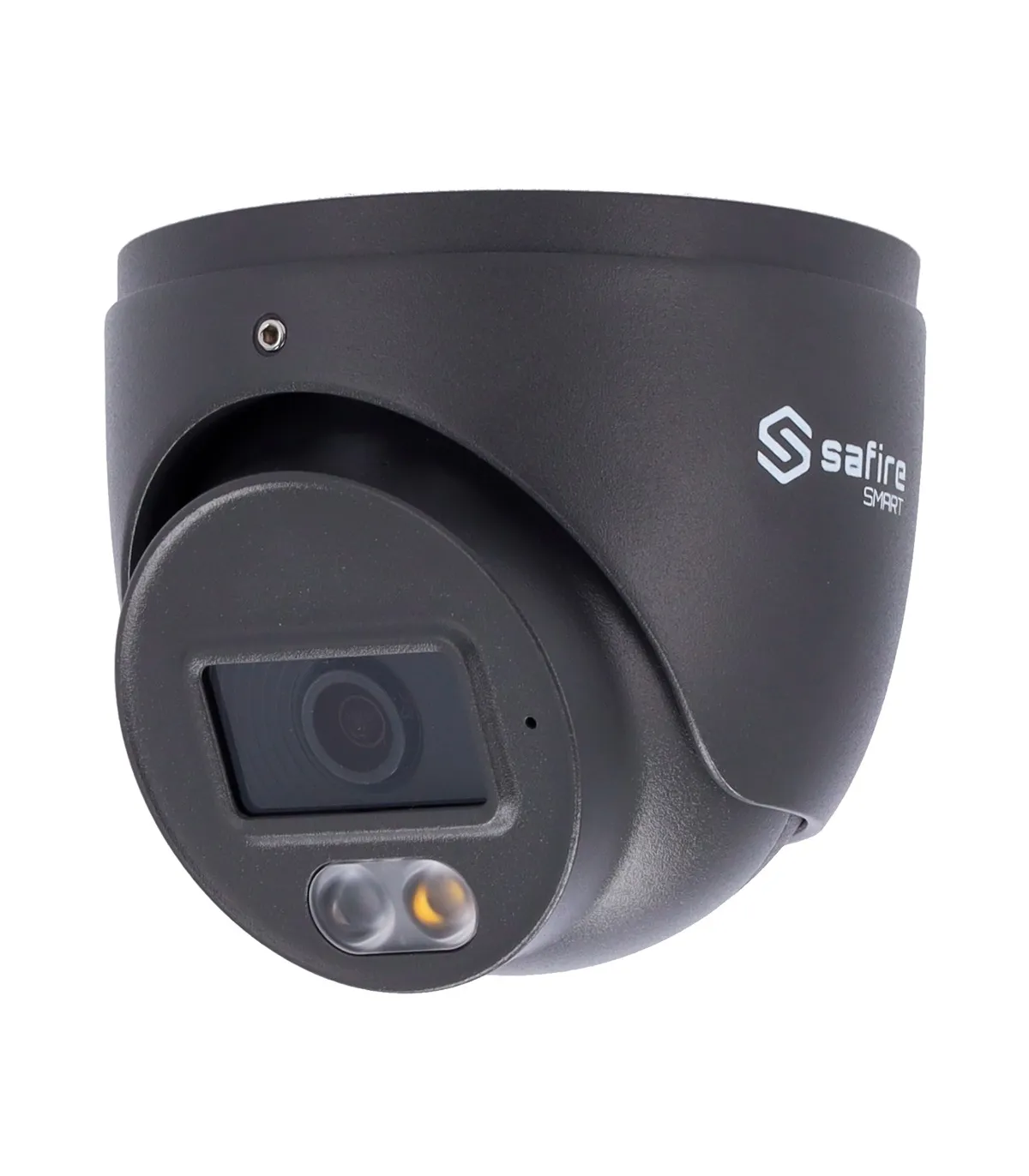

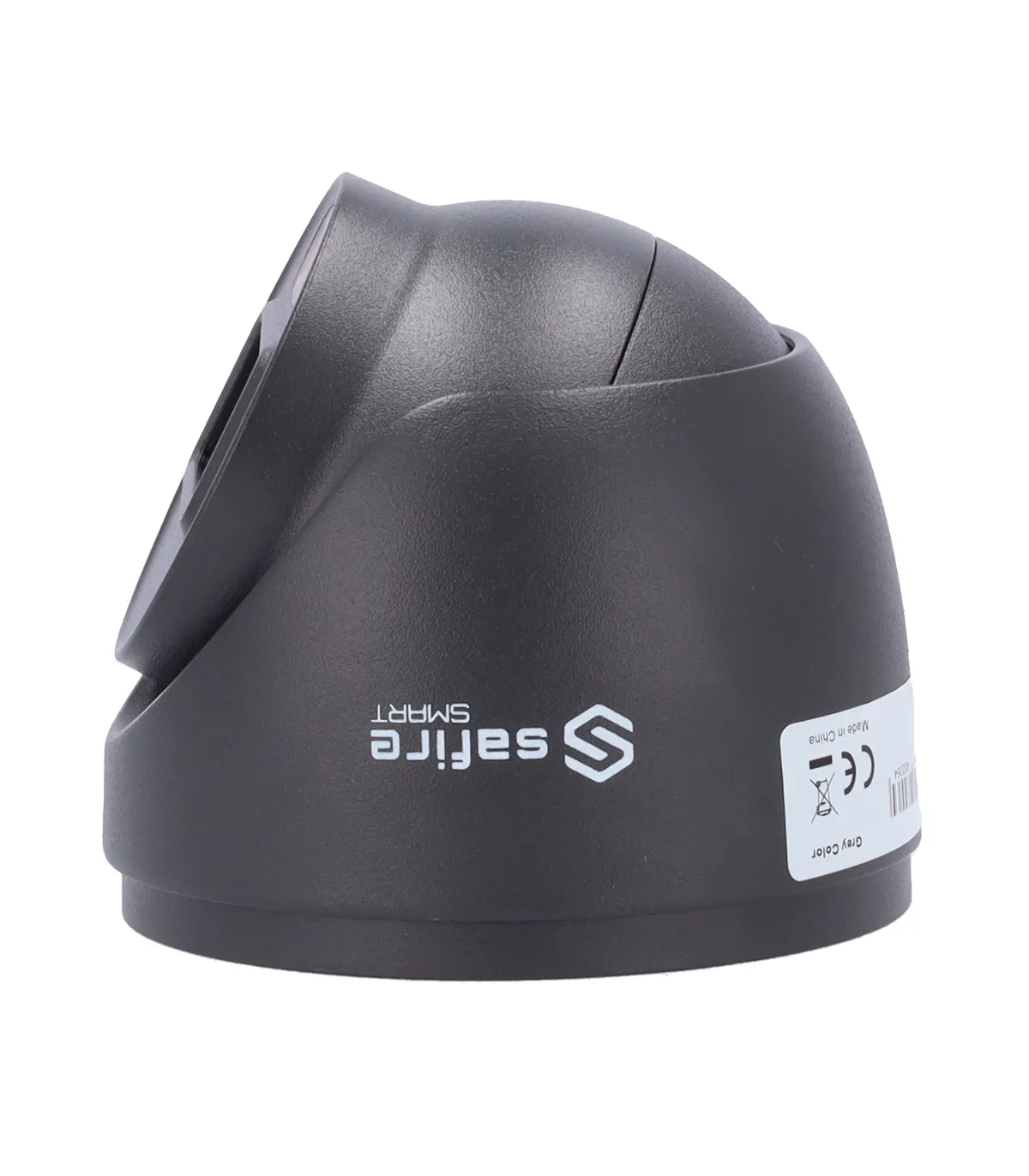

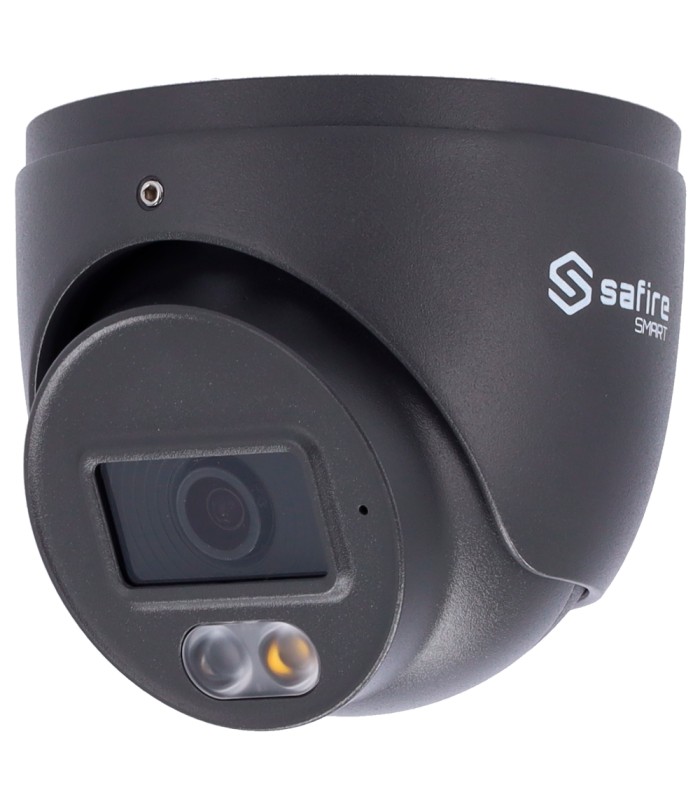

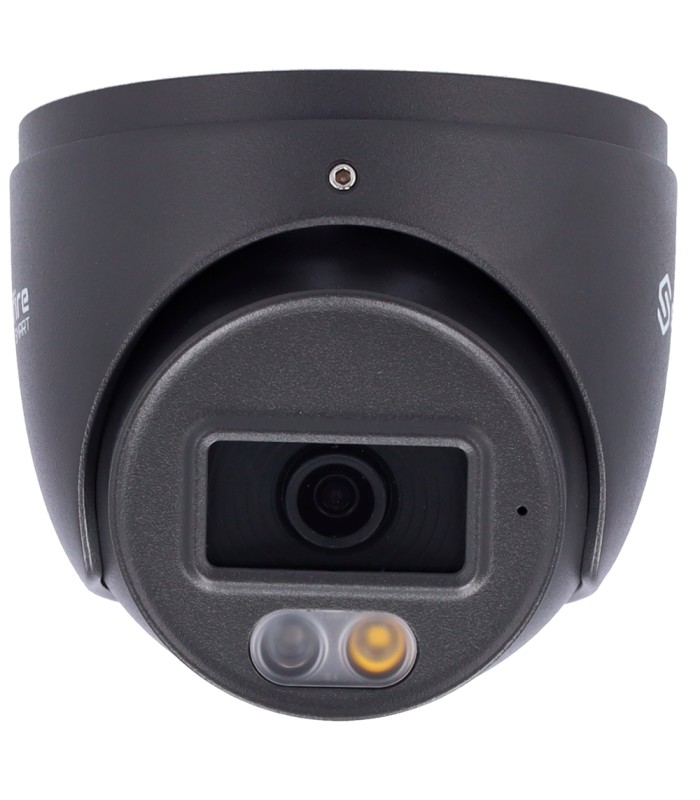

Turret IP Camera range B1 SF-IPT010A-4B1-DL-GREY
Brand: SAFIRE SMART
- Safire Smart
- Turret IP camera range B1
- Resolution 4 Megapixel (2566x1440)
- Lens 2.8 mm | Advanced motion detection
- Dual light: IR + White range 20 m | Microphone
- IP67 waterproofing | PoE (IEEE802.3af)
Turret IP camera B1 range SF-IPT010A-4B1-DL-GREY
- Safire Smart
- B1 range
- Turret IP camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Lens 2.8 mm
- 0 Lux
- Dual light: IR and white light range 20 m
- H.265+ / H.264+ compression
- DWDR
- 3DNR
- Built-in microphone
- Smart Motion Detection: Human motion detection filtering false alarms
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
- Grey color
Technical specifications
| Brand | Safire Smart |
| Range | B1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | Color: 0.009 Lux @(F2.2, AGC ON), 0 Lux with lighting activated |
| Lighting range | Dual lighting: IR up to 20m White LED up to 20m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/3~1/100,000 s |
| Rate Main Stream | 25 FPS (4Mpx, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265 / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Viewing angle (FOV) | H: 98°, V: 53°, D: 116° |
| DORI | 56 m (D), 22 m (W), 11 m (R), 5 m (L) |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking, ROI |
| Advanced Motion Detection | Smart Motion Detection: Motion Detection human-based filtering out any other object in the scene |
| Smart Functions | Area intrusion, Line crossing, abandoned object, removed object, Video exceptions (scene change, video loss, ...) |
| Audio | Integrated microphone |
| Audio Compression | G711A / U |

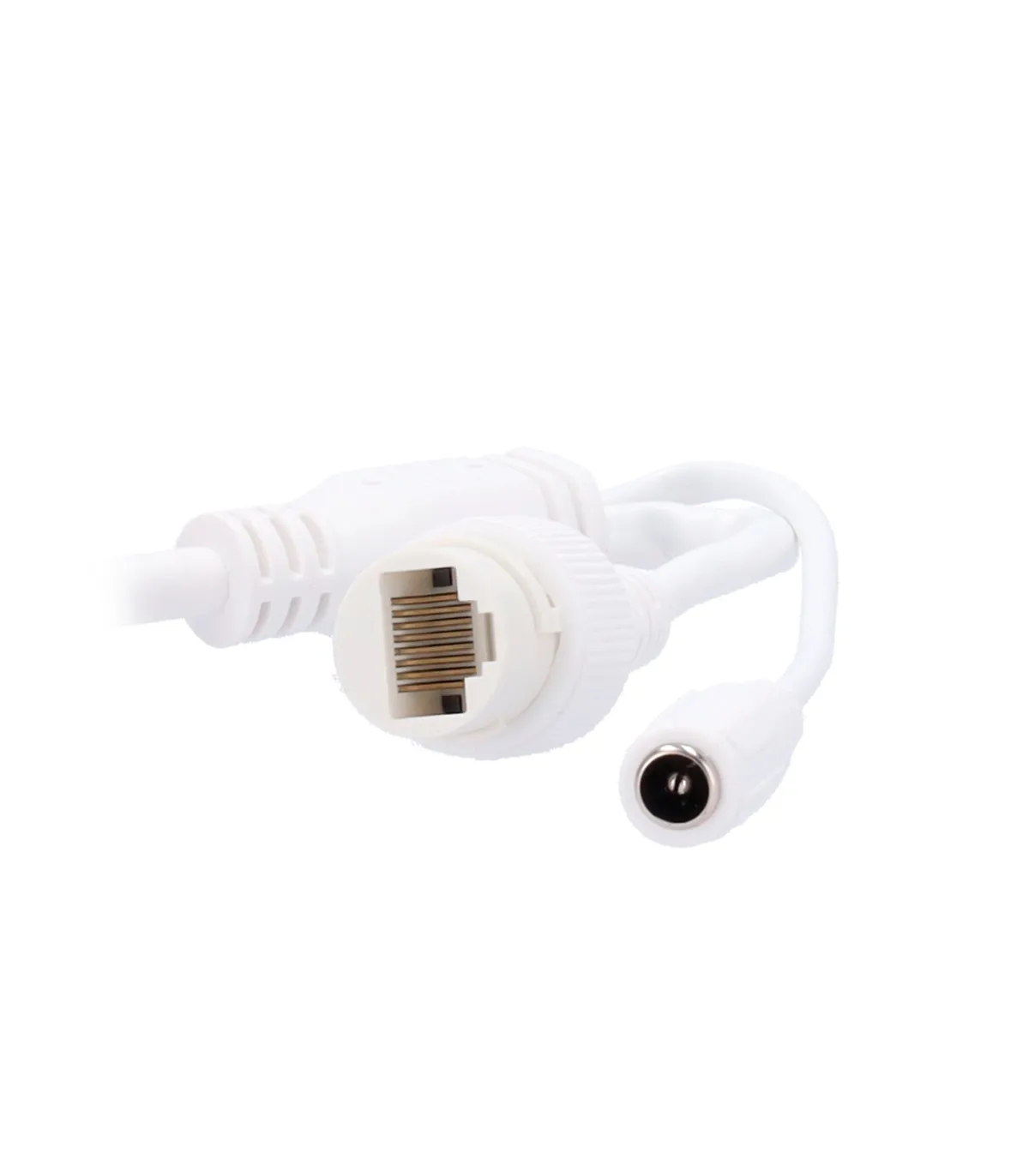

| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | Not available |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart PC Software VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / 292 mA / 5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Plastic |
| Temp. operation | -20º C ~ +55º C |
| Dimensions | 94.8 (ø) x 82.8 (H) mm |
| Weight | 280 g |
Contents
- Safire Smart B1 IP Turret Camera

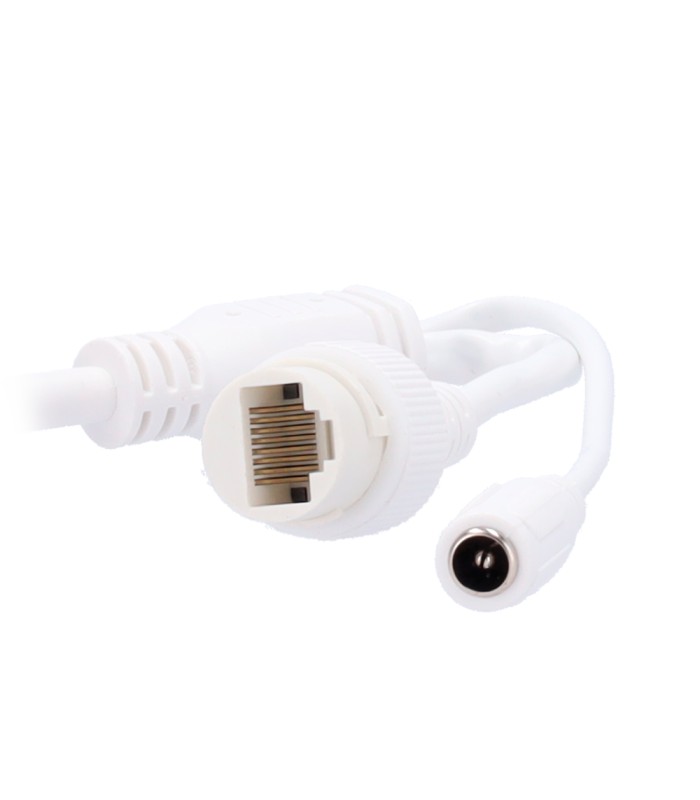

- Installation material
- Quick installation guide
