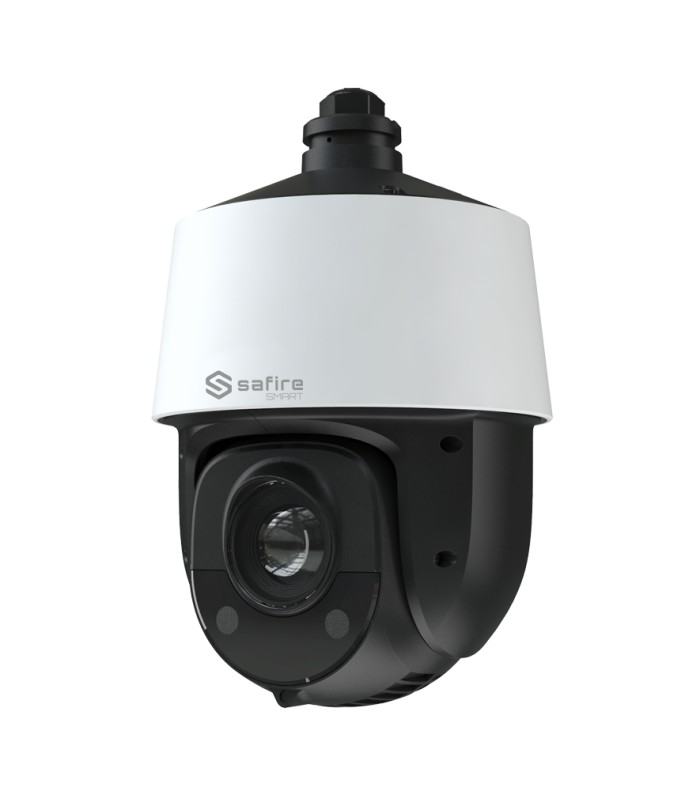

E1 range IP PTZ camera Artificial Intelligence SF-IPSD4025ITA-4E1
Brand: SAFIRE SMART
- Safire Smart
- E1 range IP PTZ camera Artificial Intelligence
- Resolution 4 Megapixel (2560x1440)
- 25X optical zoom | IR 160m
- Autotracking, human and vehicle | Alarms
- IP66 waterproofing | PoE+ (IEEE802.3at)
E1 range IP PTZ camera with Artificial Intelligence SF-IPSD4025ITA-4E1
- Safire Smart
- E1 range with Artificial Intelligence
- IP PTZ camera
- 1/2.7" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 25X optical zoom
- Lens 4.8-120 mm
- 0 Lux
- IR range 160 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Artificial intelligence for human and vehicle classification
- Autotracking smart, human and vehicle tracking
- Audio
- Alarm
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP66
- Support included
Technical specifications
| Brand | Safire Smart |
| Range | E1 with Artificial Intelligence |
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Main Stream | 2560×1440,1920×1080,1280×960,1280×720 |
| Sub stream | 704x576, 640x480, 352x288 |
| Third Stream | 1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288 |
| Video Bit rate | 64Kbps ~ 8Mbps |
| Minimum illumination | Color: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR LED | 160m (850nm) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optical Zoom | 25X |
| Digital Zoom | 16X |
| Lens | 4.8 - 120 mm |
| FOV | H: 55º - 2.4º / V: 33º - 1.4º / D: 61.5º - 2.8º |
| DORI | W: 96 m (D), 38 m (W), 19 m (R), 10 m (I) T: 2200 m (D), 873 m (W), 440 m (R), 220 m (I) |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Mechanical ICR filter removable |
| Image Enhancements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI |
| Advanced Features | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, exit region. Face detection with face capture of up to 15 faces at a time. |
| Intelligent Autotracking | Intelligent Human and Vehicle Tracking |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -10°~90° auto flip |
| Manual speed | Horizontal: 0.1° ~ 200° /s, Vertical: 0.1° ~200° /s |
| Speed between Presets | Horizontal: 240° /s, Vertical: 240° /s |
| Preset positions | 360 Preset, 8 Tours, 4 Patrols |
| Internal storage | MicroSD Card, Max 256 GB |
| Audio | 1 Input / 1 Output |
| Audio compression | G.711 A/U |
| Audio bit rate | 64 Kbps |
| Alarms | 1 Input / 1 Relay |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 3A, PoE IEEE802.3at |
| Temp. operation | -40º C ~ +60º C |
| Protection degree | IP66 / Surge 6000V |
| Dimensions (without support) | 268 mm (H) x 173(Ø) mm |
| Weight (without support) | 2100 g |
Contents
- Safire Smart IP PTZ Camera E1
- Installation material
- Wall bracket
- Quick installation guide
