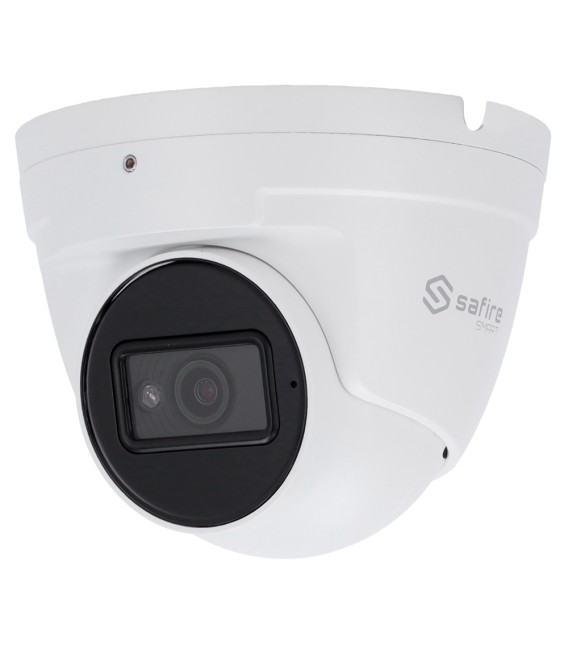

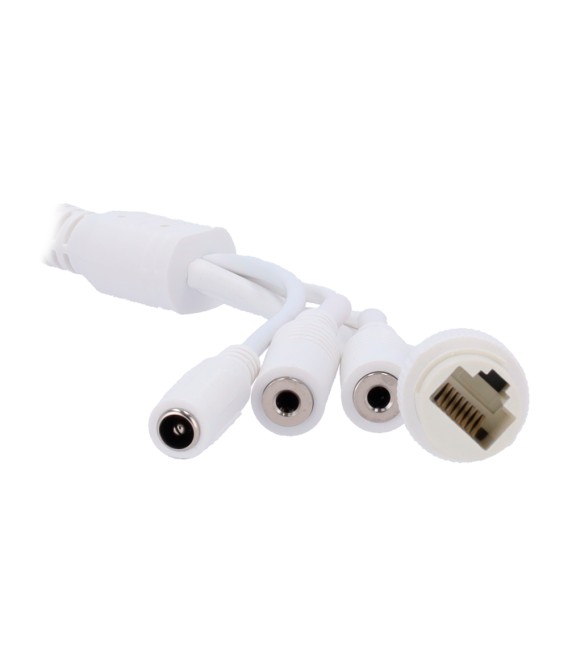

IP Dome Camera range I2 AI Advanced SF-IPT020A-6I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I2 AI range IP Dome Camera
- Resolution 6 Megapixel (3296×1856)
- 2.8 mm lens | Audio | IR 30m | MIC
- Advanced AI: Video Metadata and Detection. Facial
- IP67 waterproofing | PoE (IEEE802.3af)
I2 Advanced AI range IP Dome Camera SF-IPT020A-6I1
- Safire Smart
- I2 range with Advanced Artificial Intelligence
- IP Turret Camera
- 1/2.8" Progressive Scan CMOS
- 6 Megapixel (3296×1856)
- 2.8 mm lens
- 0 Lux
- IR range 30 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Capture Facial
- Video metadata
- Counting of humans, vehicles and non-motorized vehicles
- WEB interface, CMS, Smartphone and NVR
- MicroSD card up to 256GB
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Specifications techniques
| Brand | Safire Smart |
| Range | I2 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3296×1856) |
| Minimum Illumination | Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Range IR | 30 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 30 FPS (6Mpx, 5Mpx, 4Mpx, 1080P) |
| Extra Rate Stream | 30 FPS (720P, D1, CIF, VGA, 480x240) |
| Third Stream Rate | 30 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 104°, V: 54.5°, D: 130° |
| DORI | 71 m (D), 28 m (W), 14 m (R), 7 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Function mirror, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence: Classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Facial detection and face capture Counting of people, vehicles and non-motorized vehicles Video metadata (feature extraction): - Human: up to 13 characteristics (clothing color, hat, backpack, ...) - Vehicle: up to 5 characteristics (color, type, make, model and direction) - Non-motorized vehicle: Up to 1 characteristics Other intelligent events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | Integrated microphone, 1 Input |
| Audio compression | G711A / U |

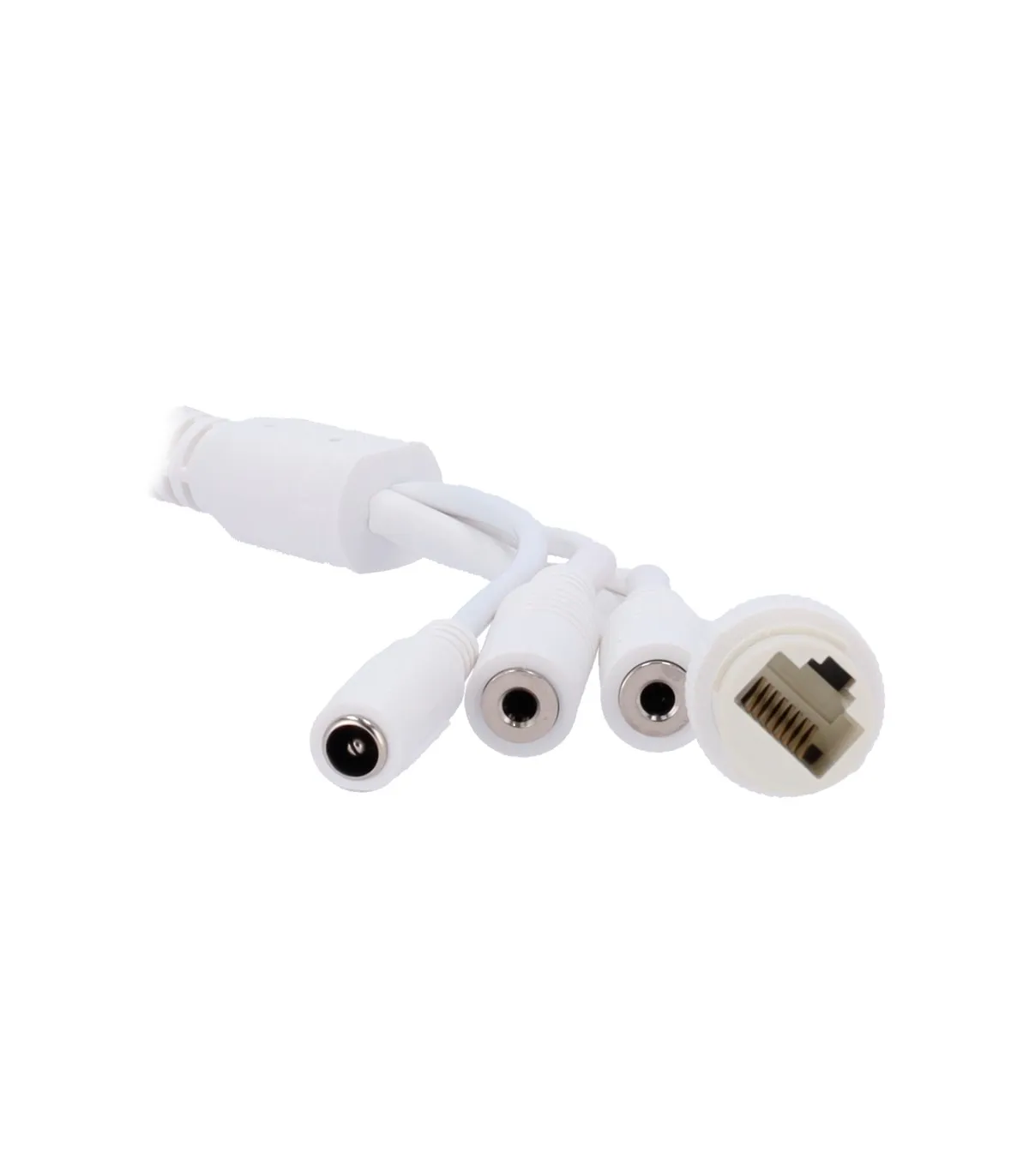

| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | MicroSD card up to 256GB |
| EIS (Electronic Image Stabilizer) | Yes |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 7W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, Vandal-resistant IK10 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 94.6 (Ø) × 82.8 (H) mm |
| Weight | 460 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
