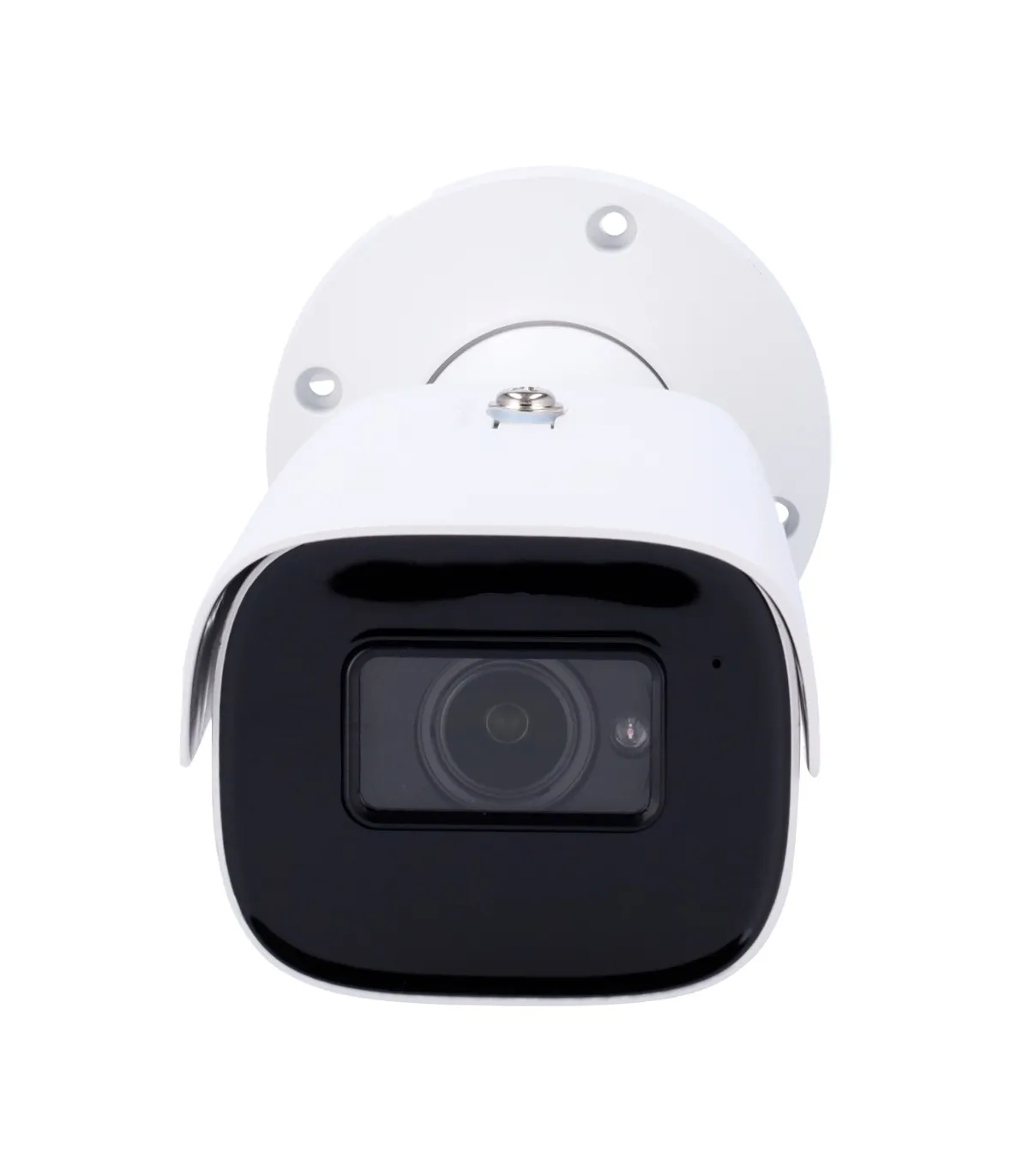

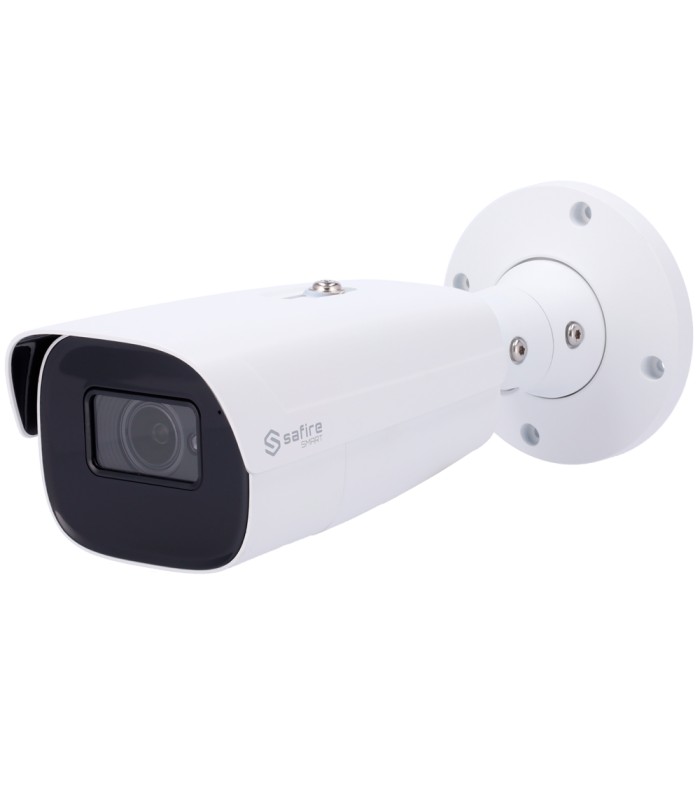

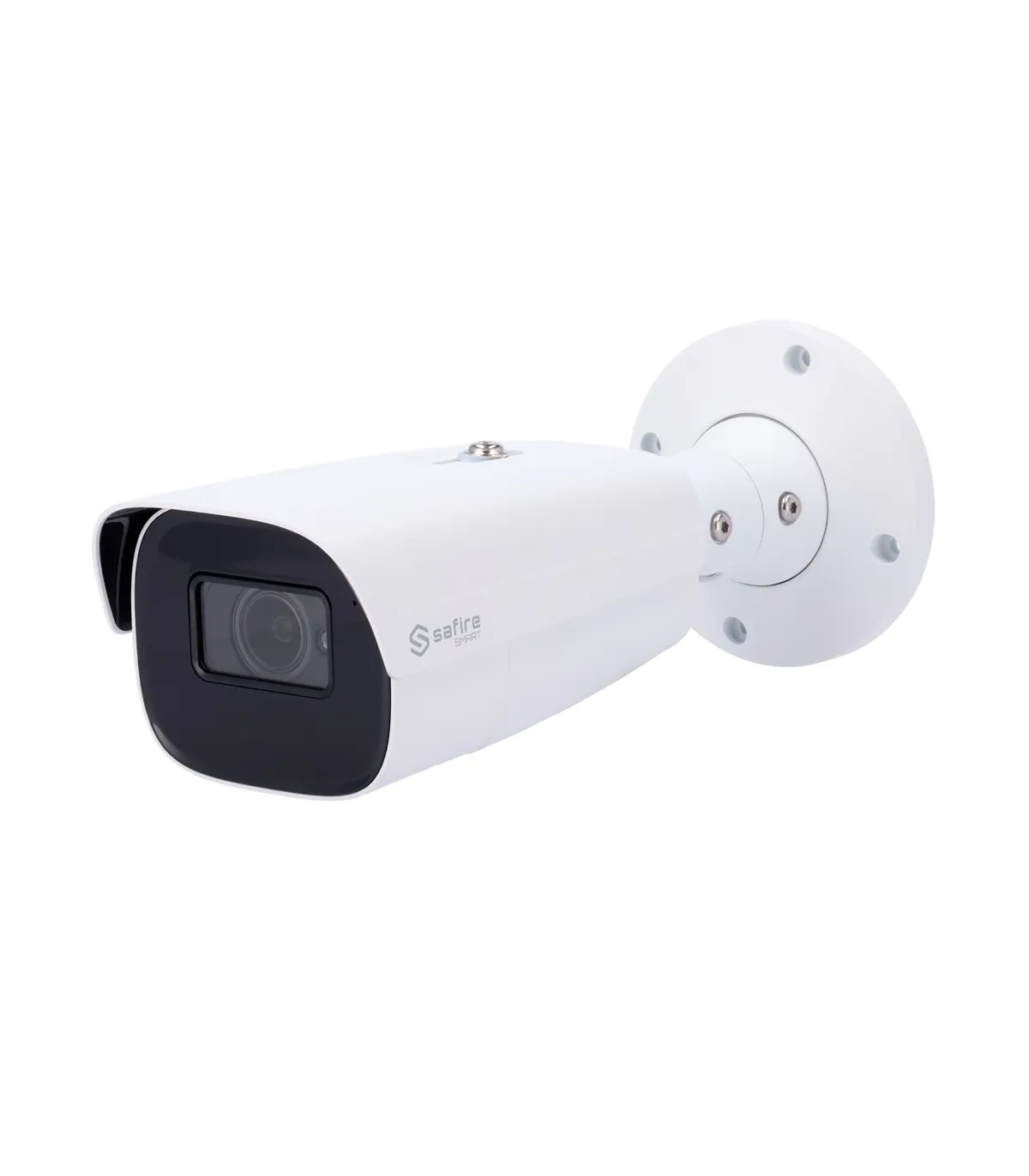

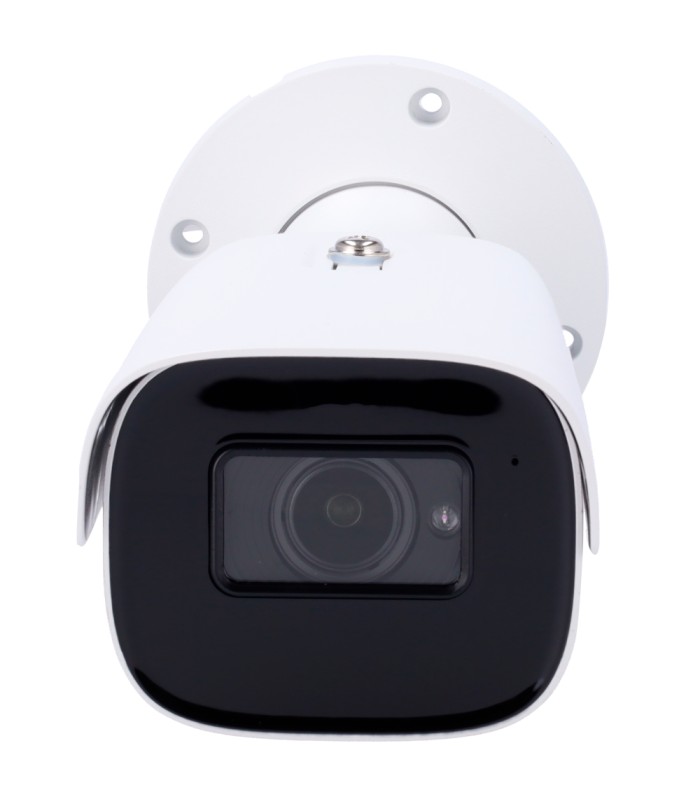

IP Bullet Camera range I1 AI Advanced SF-IPB585ZA-6I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Bullet Camera
- Resolution 6 Megapixel (3296×856)
- Motorized Lens 2.8-12 mm | Audio | IR 70m
- Advanced AI: Perimeter, Facial, Counting, Metadata
- IP67 waterproofing | PoE (IEEE802.3af) |Alarm
Advanced I1 AI range IP Bullet Camera SF-IPB585ZA-6I1
- Safire Smart
- I1 range with Advanced Artificial Intelligence
- IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 6Mpx (3296×856)
- Motorized lens 2.8-12 mm
- 0 Lux
- IR range 70 m
- H.265+ / H.264+ Compression
- WDR 120dB
- 3DNR
- Integrated Microphone
- Audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-vehicle detection motorized
- Face Capture
- Video metadata
- Counting of humans, vehicles and non-motorized vehicles
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3296×856 ) |
| Minimum Illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 70 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P) |
| Extra Stream Rate | 30 FPS (720P, D1, VGA, CIF, 480x240) |
| Third Stream Rate | 30 FPS (720P, D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | Motorized 2.8 ~ 12 mm |
| Angle of view (FOV) | H: 109-37°, V: 58-21°, D: 132-44° |
| DORI | W: 66 m (D), 27 m (W), 13 m (R), 7 m (I) T: 204 m (D), 82 m (W), 41 m (R), 20 m (L) |
| Image Enhancements | WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Functions | Advanced artificial intelligence based on classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Face Detection and Face Capture Person, Vehicle and Non-Motorized Vehicle Counting Extraction of features: - Human: up to 13 features - Vehicle: up to 5 features - Non-motorized vehicle: Up to 1 features Other smart events: object abandoned, object removed |
| Exceptions | Scene change, blur detection and abnormal color detection |

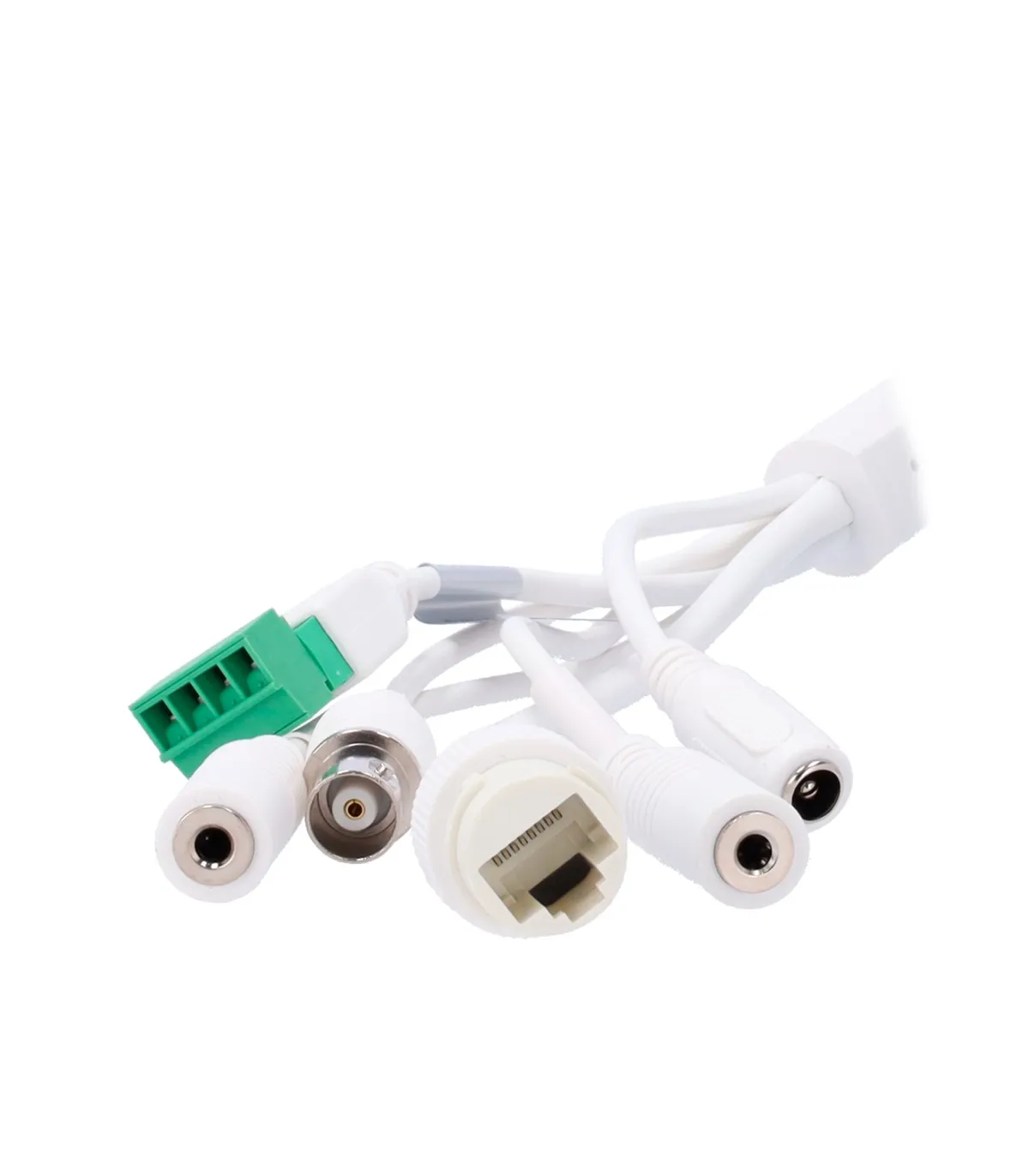

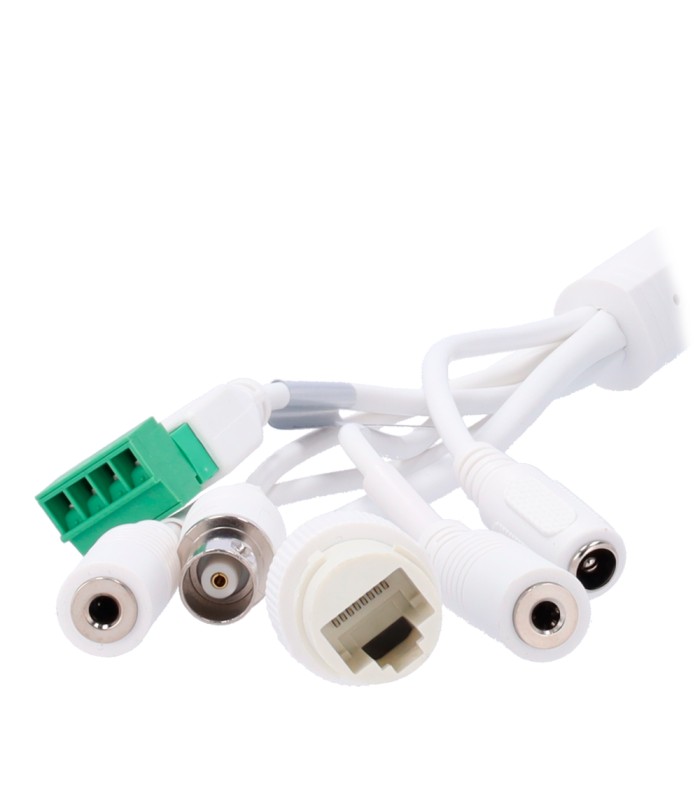

| Audio | 1 Input / 1 Output / Integrated Microphone |
| Audio compression | G711A / U |
| Alarms | 1 Input / 1 Relay |
| Network interface | Ethernet 10 / 100M BaseT |

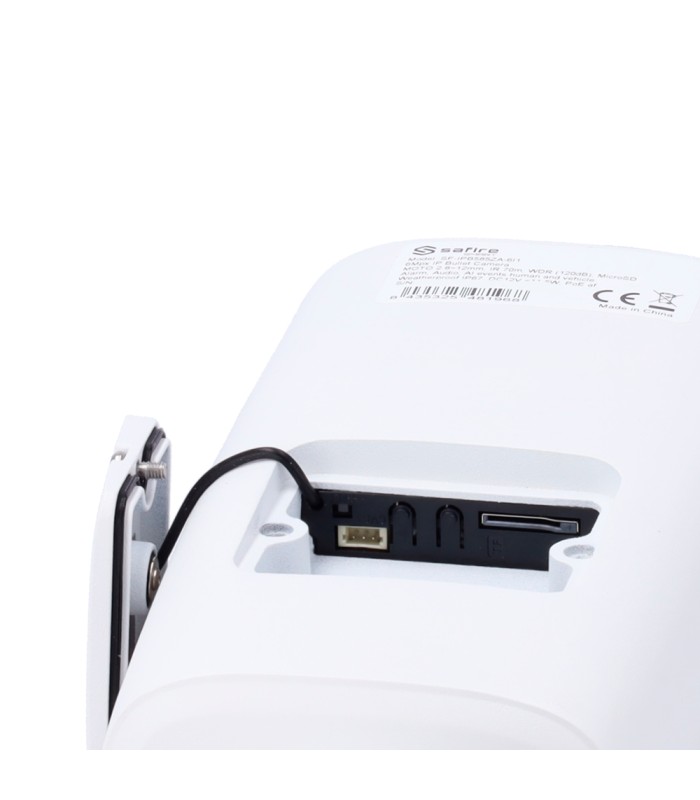

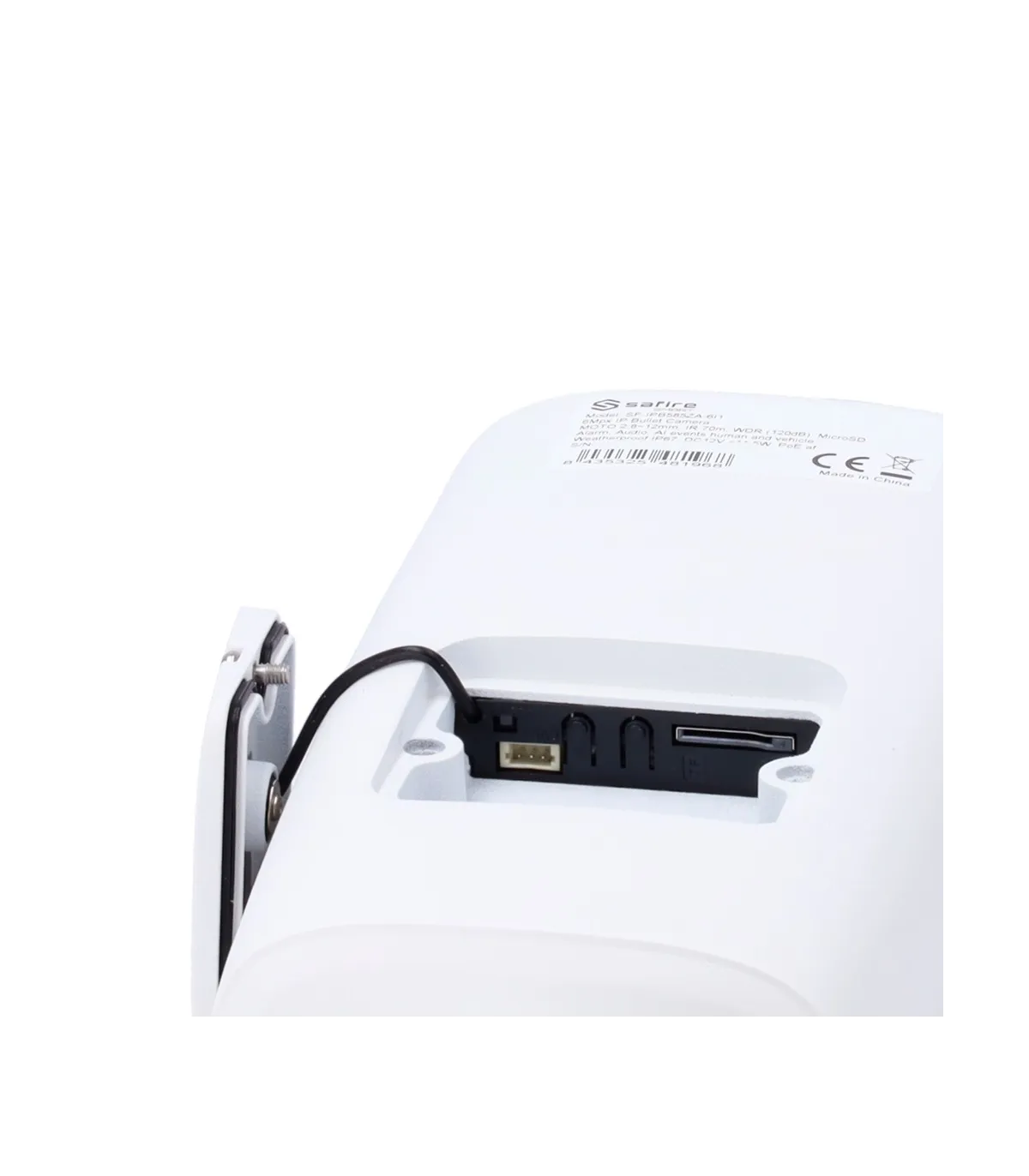

| Internal storage | MicroSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, P2P |
| Power | DC 12 V / 11.5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 88.7 (H) x 100.2 (W) x 278.3 (D) mm |
| Weight | 1040 g |
Contents
- Safire Smart I1 IP Bullet Camera
- Installation material
- Quick installation guide
