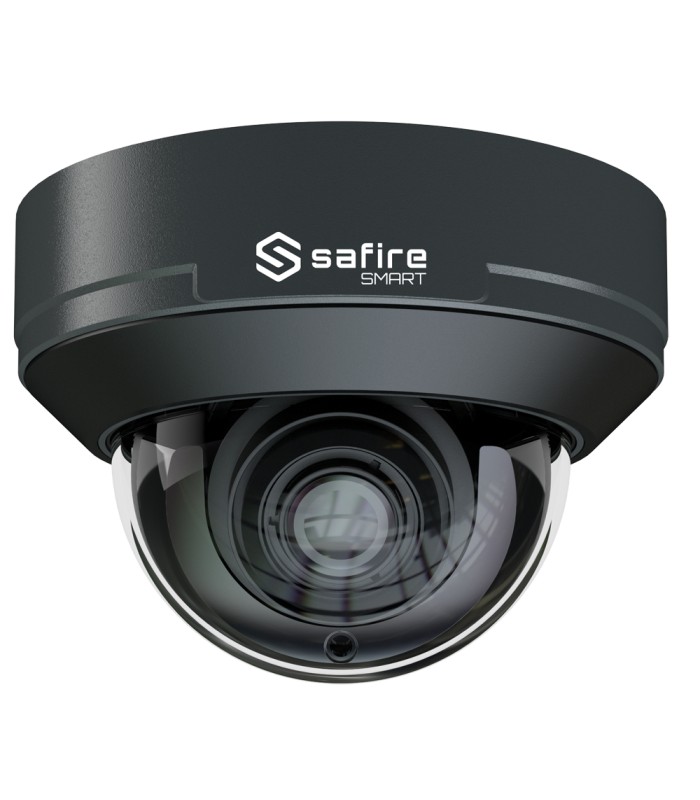

IP Dome Camera range E1 Artificial Intelligence SF-IPD540ZA-4E1-GREY
Brand: SAFIRE SMART
- Safire Smart
- E1 range IP Dome Camera Artificial Intelligence
- Resolution 4 Megapixel (2566x1440)
- Motorized Lens 2.8~12mm | Microphone | IR 50m
- AI: Human and Vehicle Rating
- IP67 and IK10 Waterproof | PoE (IEEE802.3af)
E1 range IP Dome Camera Artificial Intelligence SF-IPD540ZA-4E1-GREY
- Safire Smart
- E1 range
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized Lens 2.8~12mm
- 0 Lux
- IR range 50 m
- H.265 / H.264 Compression
- WDR
- 3DNR
- Built-in microphone
- Audio
- Artificial Intelligence: Human and vehicle classification
- WEB interface, CMS, Smartphone and NVR
- Compatible with ONVIF
- PoE (IEEE802.3af)
- 3 Axis
- Waterproof IP67
- Anti-vandal IK10
- Grey color
Technical specifications
| Maximum resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 50 m |
| Day/night | Mechanical ICR filter removable |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Third Rate Stream | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265 / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | Motorized 2.8~12 mm |
| Viewing angle (FOV) | H: 92-31°, V: 48-17.2°, D: 112-35.6° |
| DORI | W: 64 m (D), 25 m (W), 13 m (R), 6 m (L) T: 188 m (R), 75 m (W), 38 m (R), 19 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Intelligent Functions | Artificial Intelligence based classification of human and vehicle on: Intrusion in area, Crossing of line, region of input, output region Other smart events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | Built-in microphone, 1 Input |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Storage internal | MicroSD card up to 256GB |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 666 mA / 7.5 W max. / PoE IEEE802.3af |
| 3 Axis | Yes |
| Protection degree | Waterproof IP67, Anti-vandal IK10 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 141 (Ø) x 100.2 (H) mm |
| Weight | 876 g |
Contents
- Safire Smart E1 IP Dome Camera
- Installation material
- Quick installation guide
