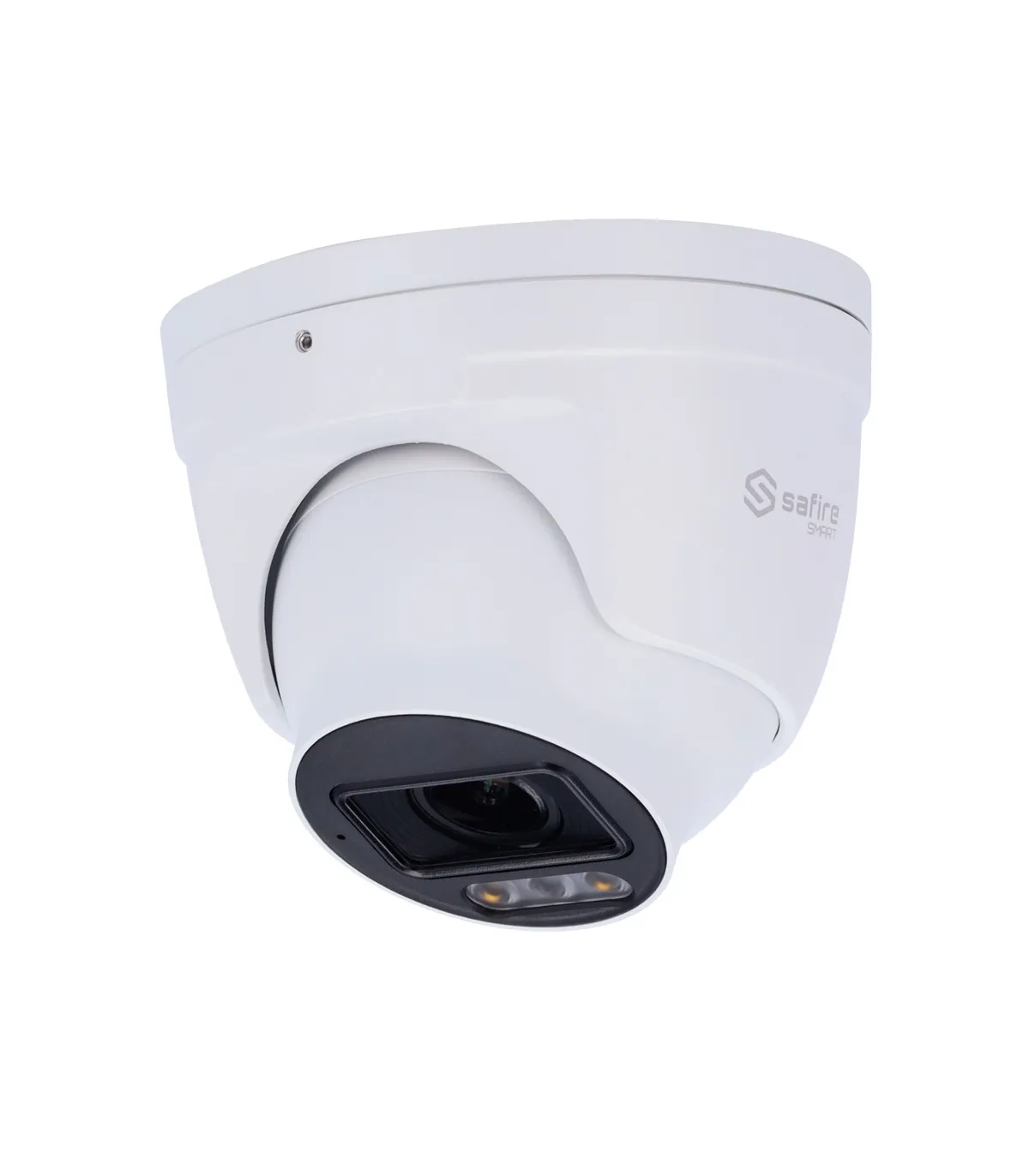

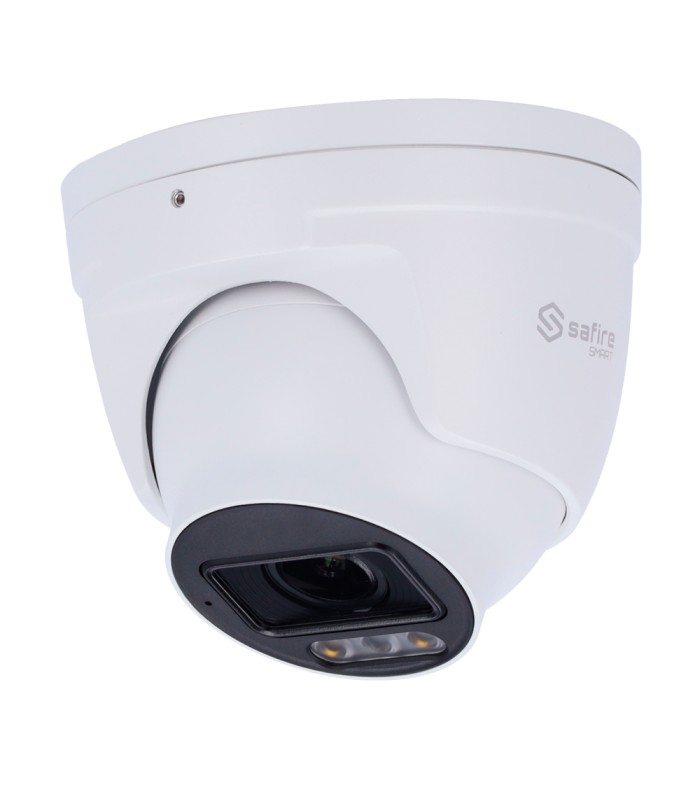

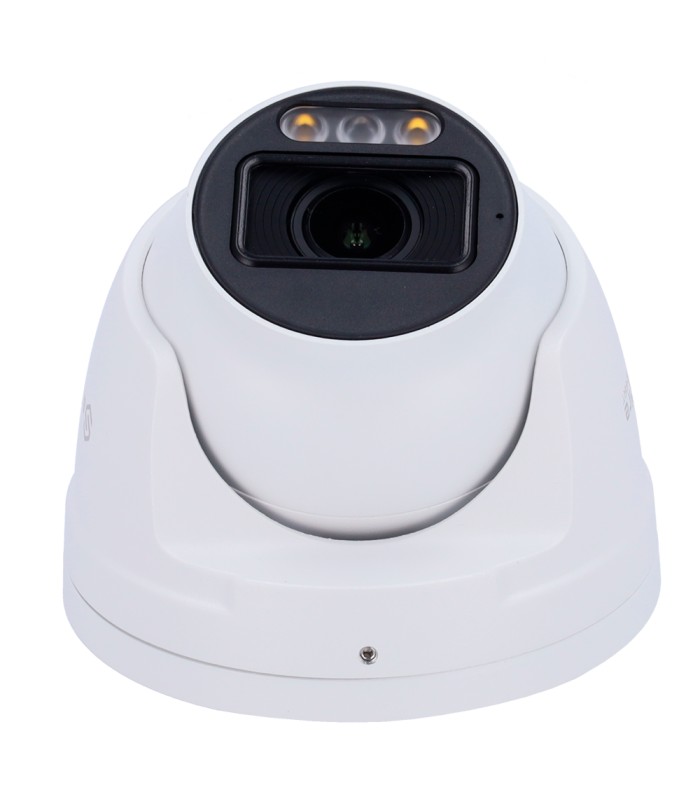

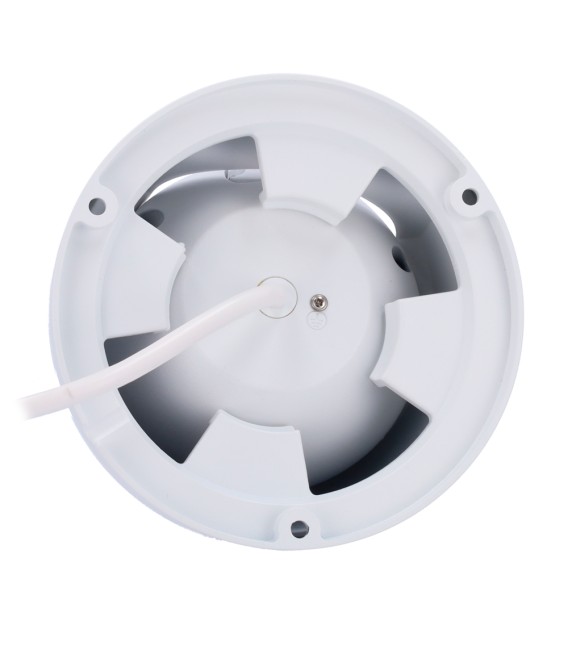

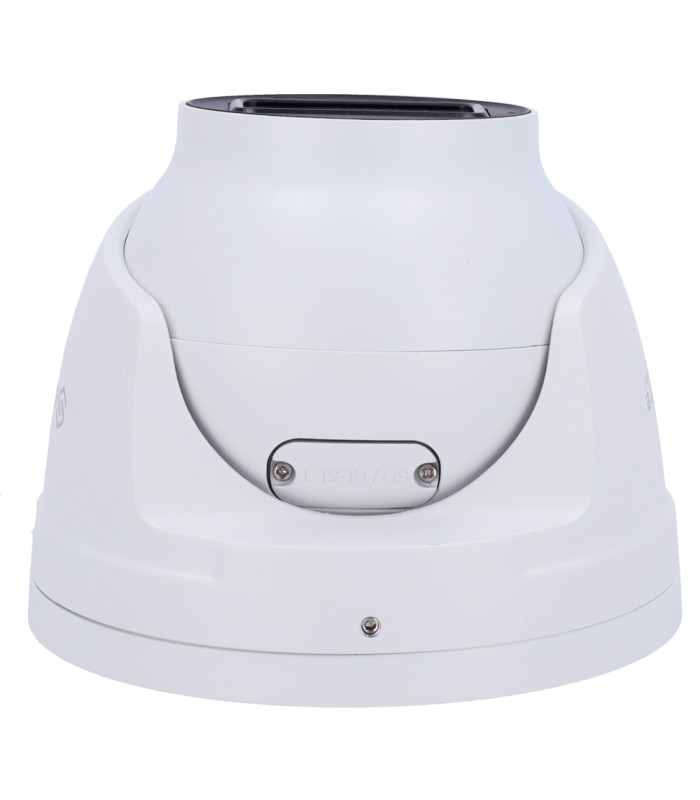

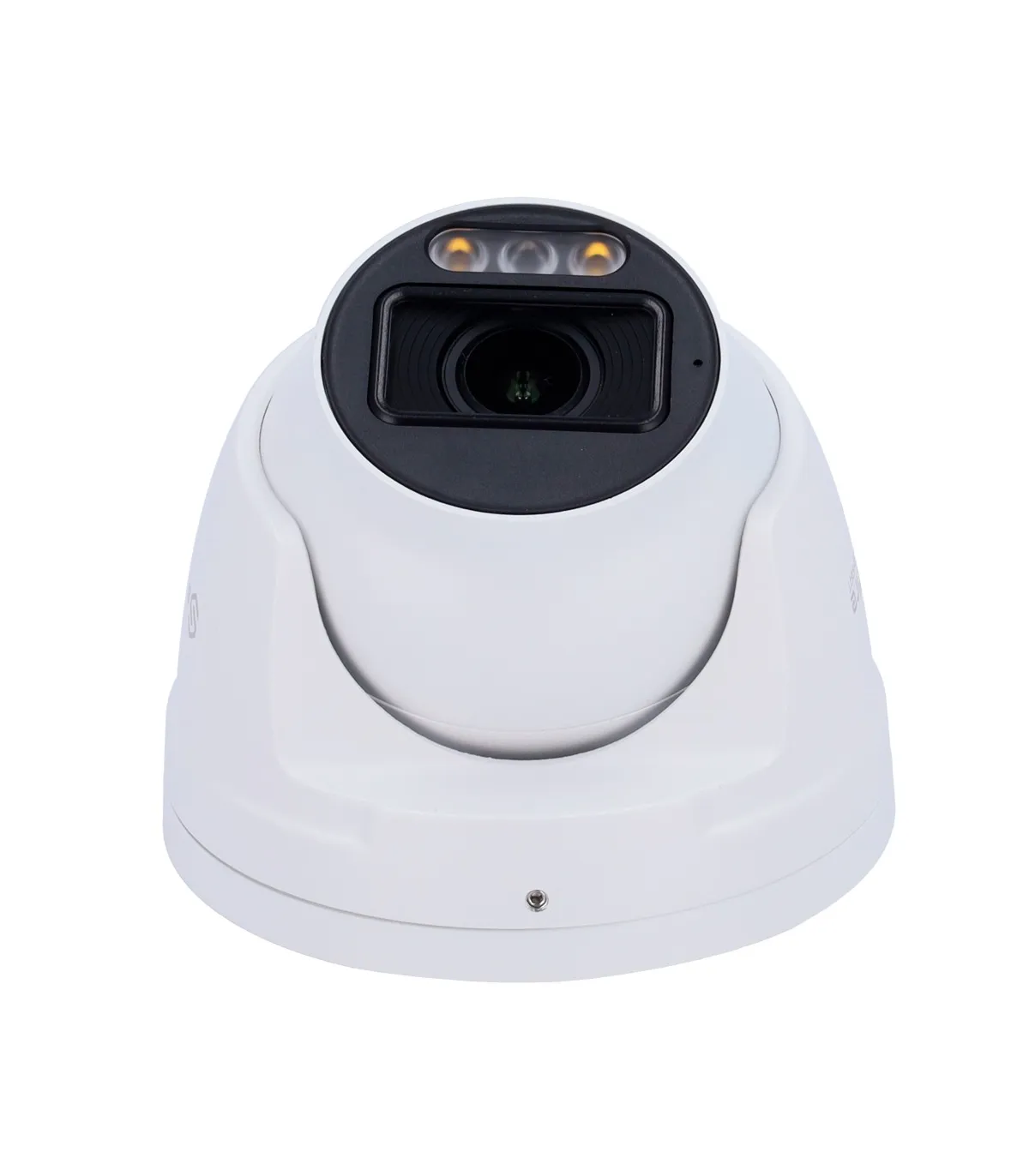

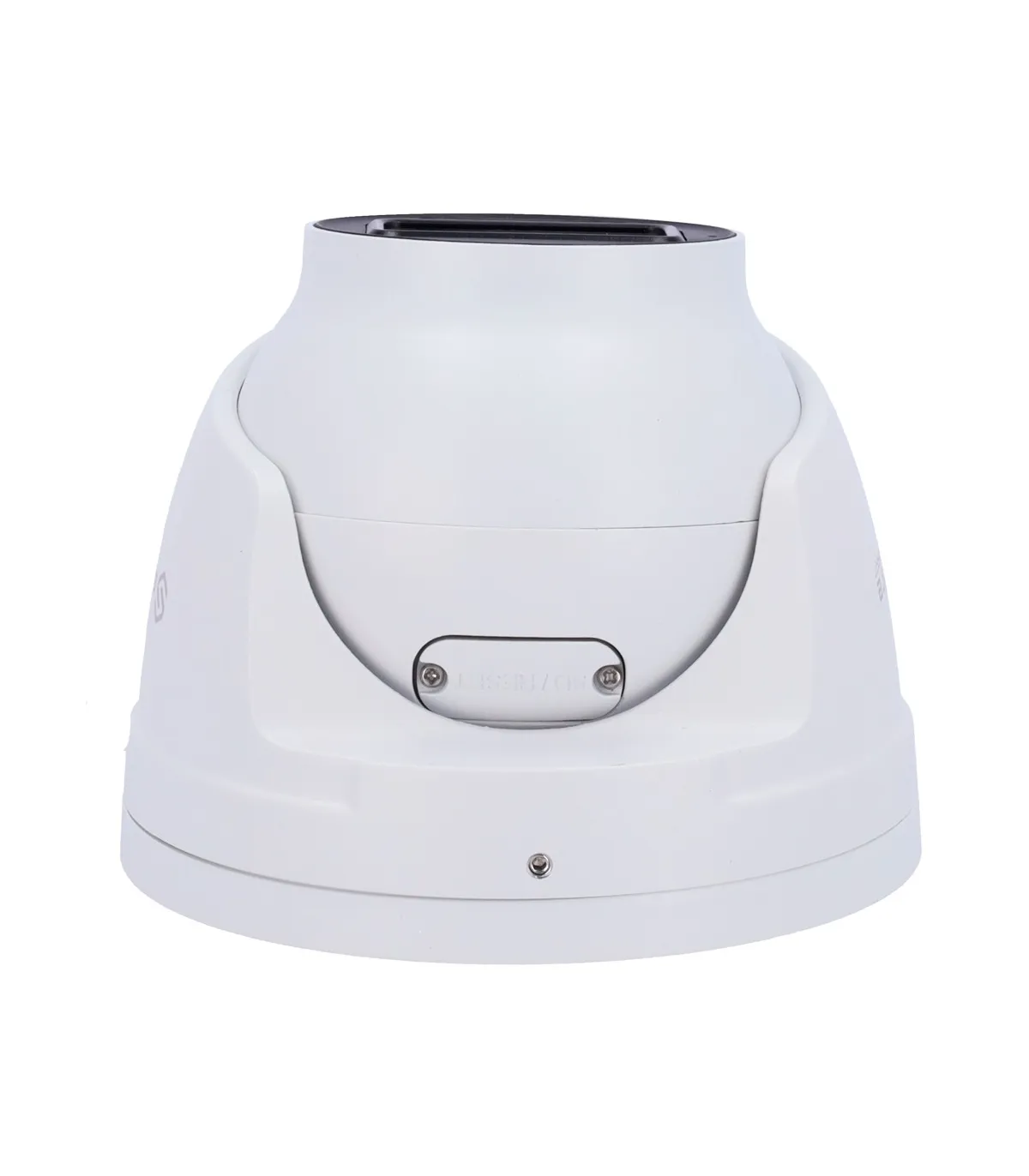

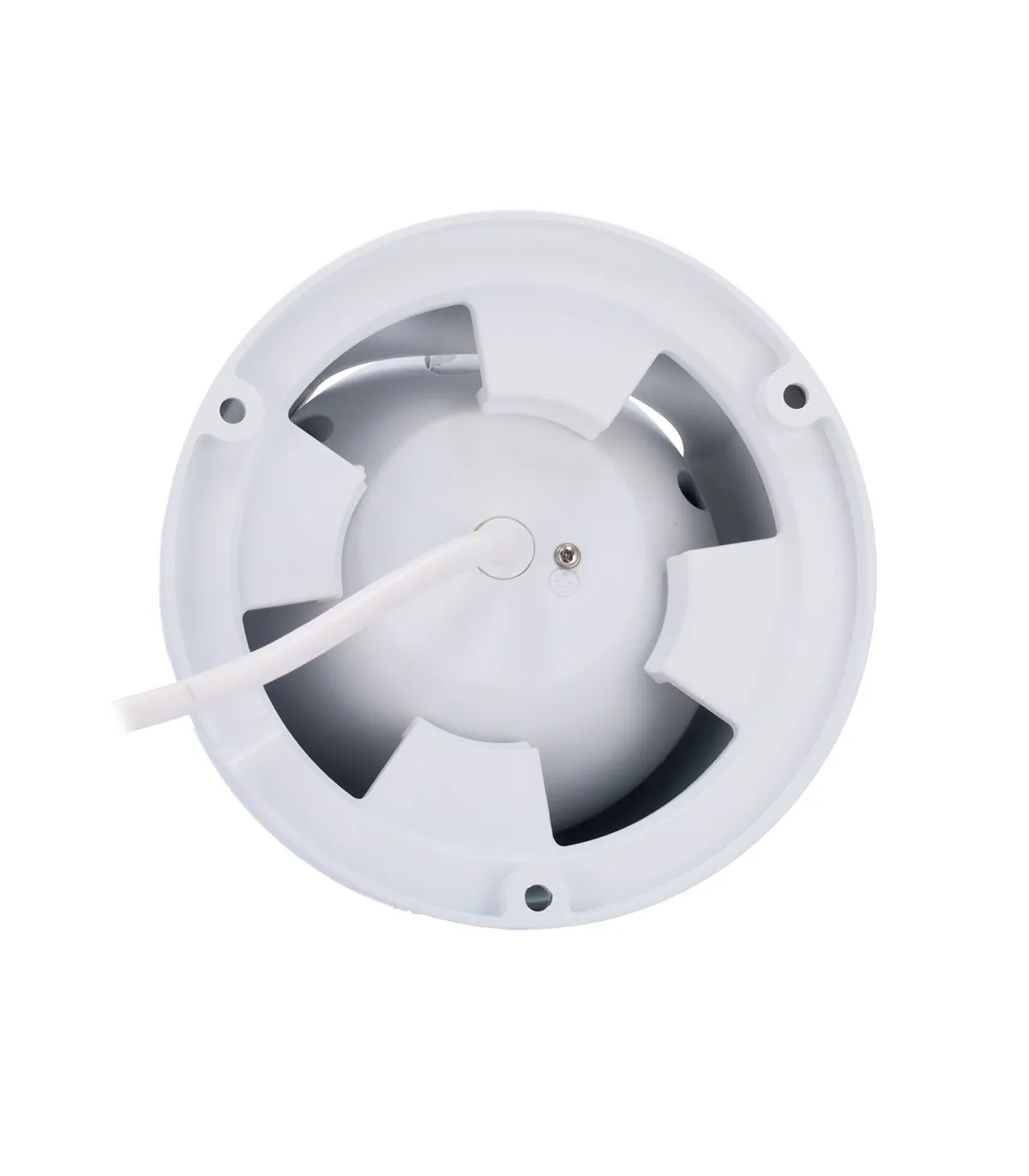

Turret IP Camera range E1 Artificial Intelligence SF-IPT511ZA-6E1-DL
Brand: SAFIRE SMART
- Safire Smart
- Turret IP Camera range E1 Artificial Intelligence
- Resolution 6 Megapixel (3200×1800) | Audio IN
- 2.8~12mm Motorized Lens | IR and White Light 50m
- AI: Human and Vehicle Rating
- IP67 Waterproof | PoE (IEEE802.3af)
Turret IP Camera E1 range Artificial Intelligence SF-IPT511ZA-6E1-DL
- Safire Smart
- E1 range with Artificial Intelligence
- Turret IP Camera
- 1/2.5" Progressive Scan CMOS
- 6 Megapixel (3200×1800)
- Motorized Varifocal Lens 2.8~12 mm
- 0 Lux
- Dual IR Light and White Light range 50 m
- Compression H.265+ / H.265 / H.264+ / H.264
- WDR
- 3DNR
- Audio IN
- Integrated Microphone
- MicroSD Card
- Artificial Intelligence: Human and Vehicle Classification
- WEB Interface, CMS, Smartphone and NVR
- ONVIF Compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | E1 |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3200×1800) |
| Minimum Illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR and White Light Range | IR: 40 m White Light: 50 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 20 FPS (6Mpx) 30 FPS (4Mpx, 1080P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 2.8 ~ 12mm |
| Angle of view (FOV) | H: 108-36°, V: 57-20°, D: 129-42° |
| DORI | 66-204 m (R), 27-82 m (W), 13-41 m (R), 7-20 m (L) |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Functions Intelligent | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, exit region Other intelligent events: abandoned object, removed object, Video exceptions (scene change, video loss, ...) |
| Audio | 1 Input / Integrated Microphone |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | microSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 9.5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Φ111.6 × 99.6 mm |
| Weight | 660 g |
Contents
- Safire Smart E1 IP Bullet Camera
- Installation material
- Quick installation guide
