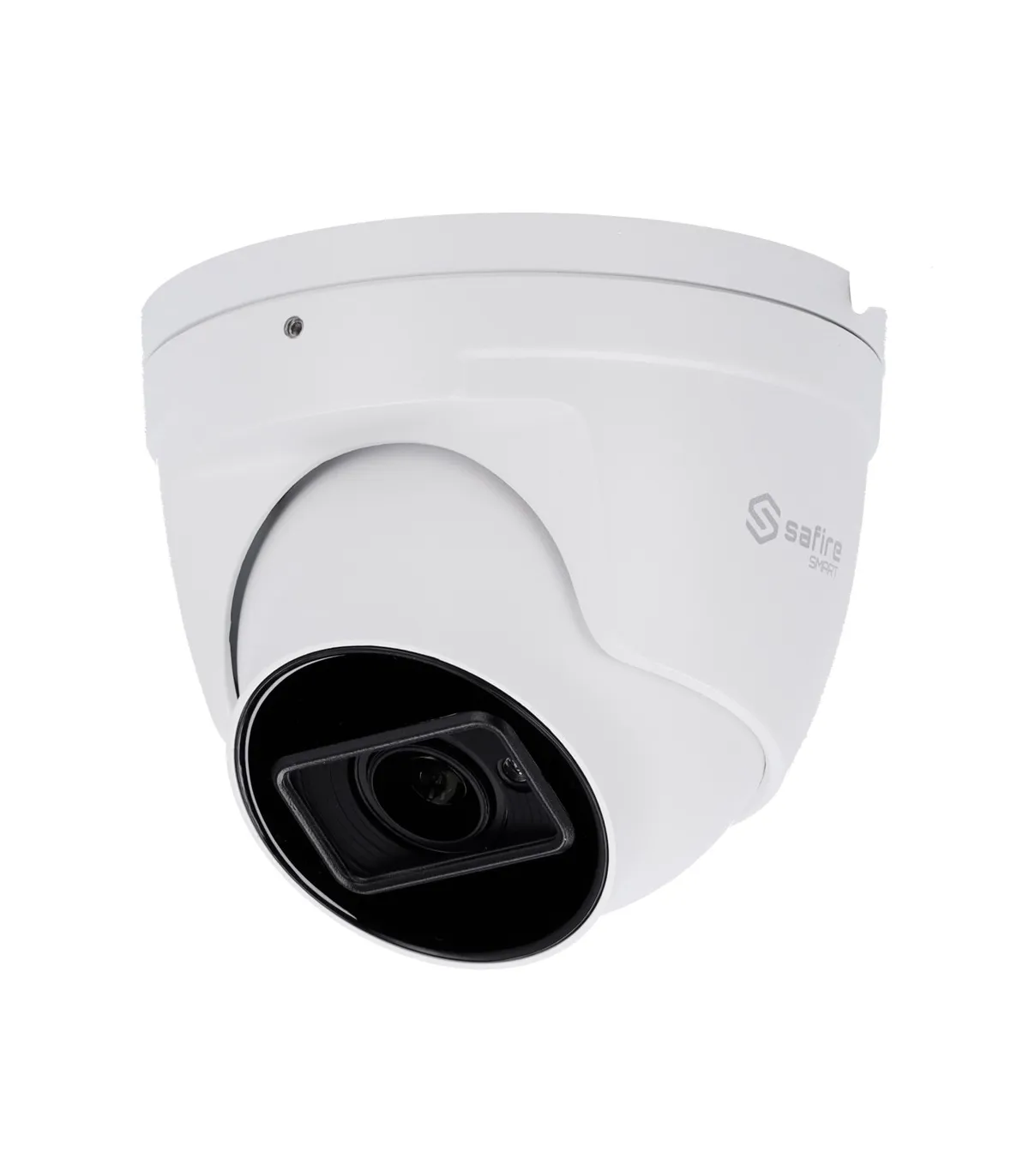

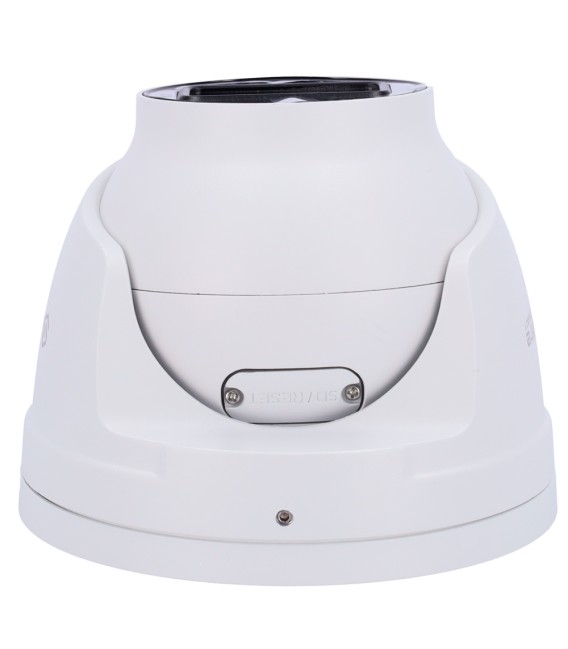

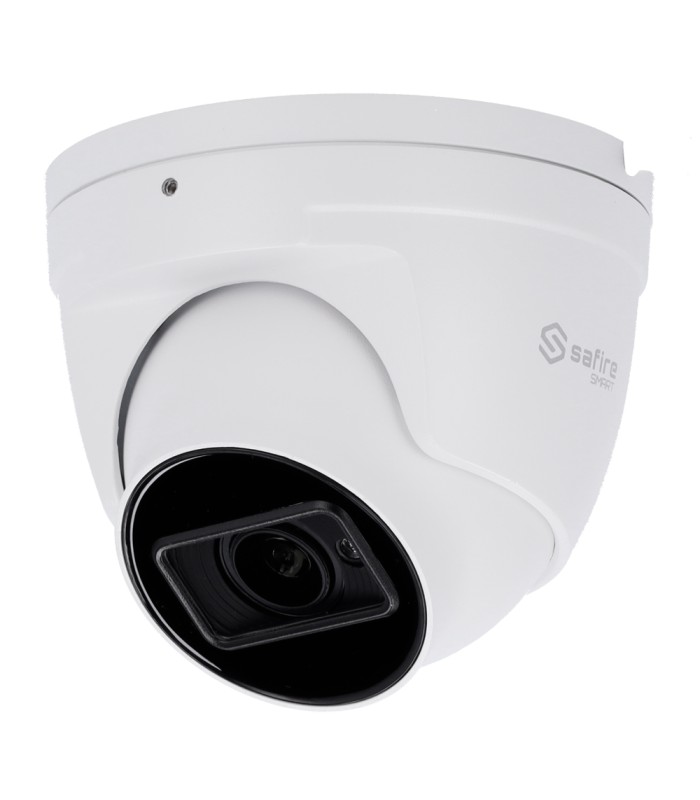

Turret IP Camera range I1 AI Advanced SF-IPT520ZA-4I1
Brand: SAFIRE SMART
- Safire Smart
- Turret IP Camera range I1 AI Advanced
- Resolution 4 Megapixel (2592x1520)
- Motorized Lens 2.8~12mm | Microphone | IR 50m
- Advanced AI: Perimeter, Facial, Counting, Metadata
- IP67 waterproofing | PoE (IEEE802.3af)
I1 Advanced AI Range IP Turret Camera SF-IPT520ZA-4I1
- Safire Smart
- I1 Range with Advanced Artificial Intelligence
- IP Turret Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2592x1520)
- Motorized lens 2.8~12 mm
- 0 Lux
- IR range 50 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Built-in microphone
- Audio
- Advanced Artificial Intelligence: Classification of human, vehicle and non-motorized vehicle
- Face detection and face capture
- Person and vehicle counting
- Human and vehicle feature extraction
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2592x1520) |
| Minimum illumination | Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 50 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Rate Stream | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Optics | Motorized lens 2.8~12 mm |
| Angle of view (FOV) | H: 100-28.9°, V: 54.5-16.7°, D: 104.8-33.1° |
| DORI | W: 59 m (D), 24 m (W), 12 m (R), 6 m (I) T: 206 m (D), 82 m (W), 41 m (R), 21 m (I) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Image Detection movement | Yes |
| Intelligent Functions | Advanced artificial intelligence based on classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Face Detection and Face Capture Counting people, vehicles and non-motorized vehicles Feature extraction: - Human: up to 13 features - Vehicle: up to 5 features - Non-motorized vehicle: Up to 1 features Other smart events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |

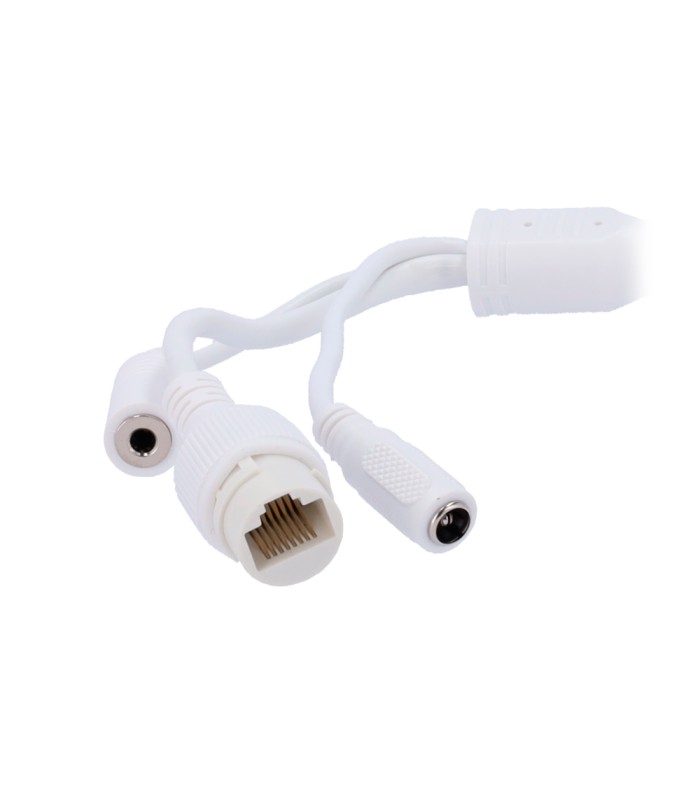

| Audio | Built-in microphone, 1 Input |
| Audio compression | G711A / U |
| Interface network | Ethernet 10 / 100M BaseT |
| Internal storage | microSD card up to 256GB |
| Access remote | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 792qwsaa mA / 9.5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 131 (Φ) x 99.60 (H) mm |
| Weight | 670 g |
Contents
- Safire Smart I1 IP Turret Camera
- Installation material
- Quick installation guide
