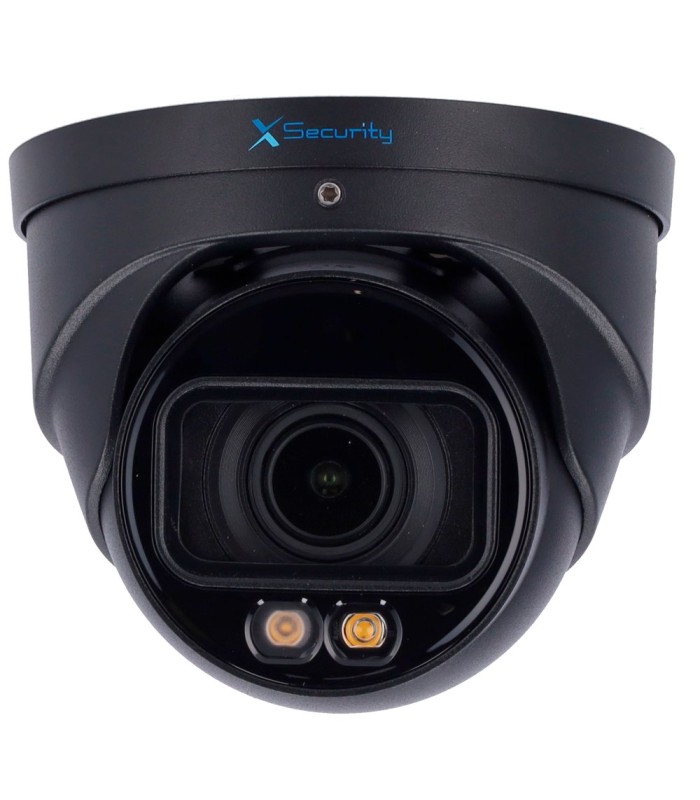

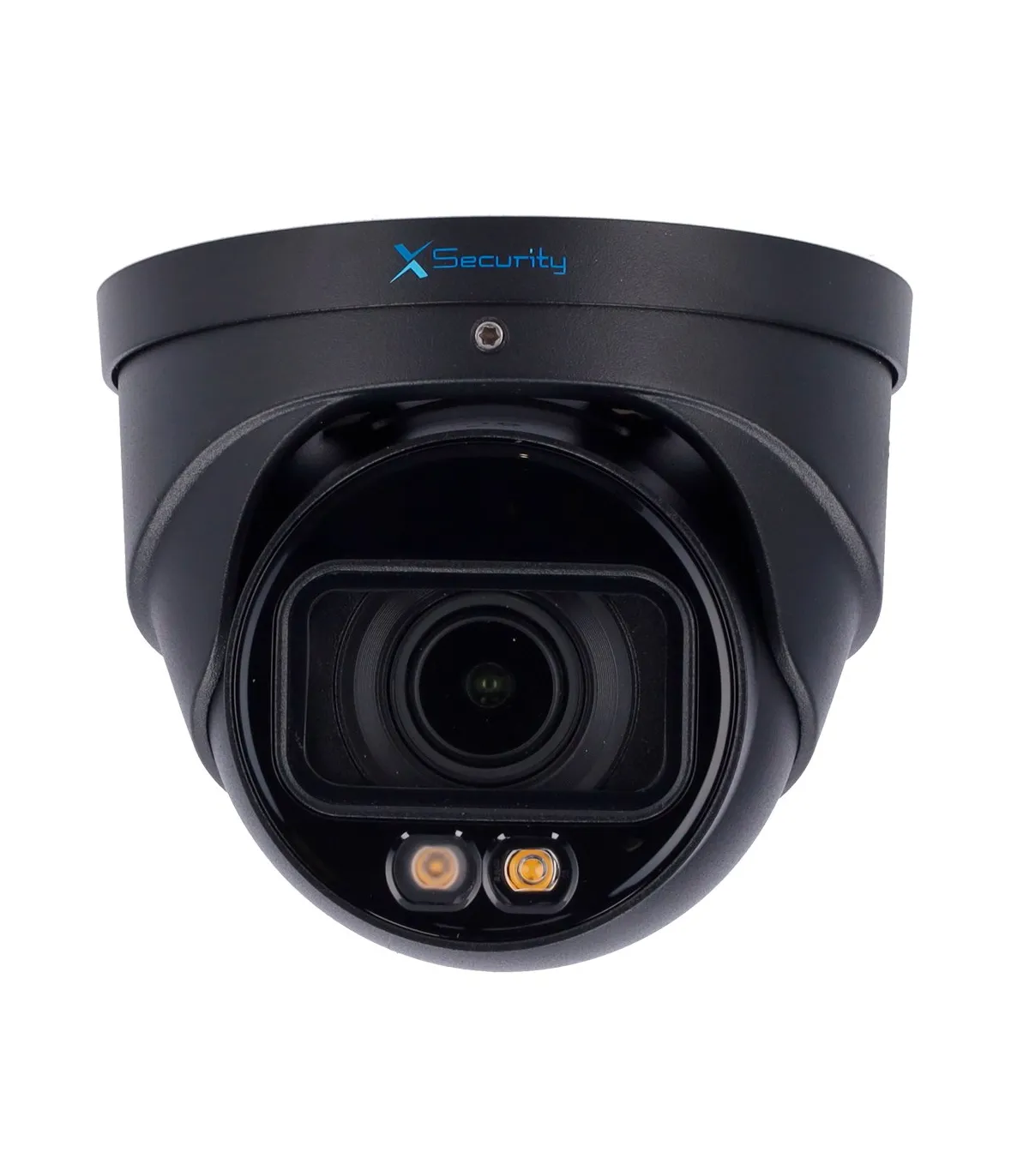

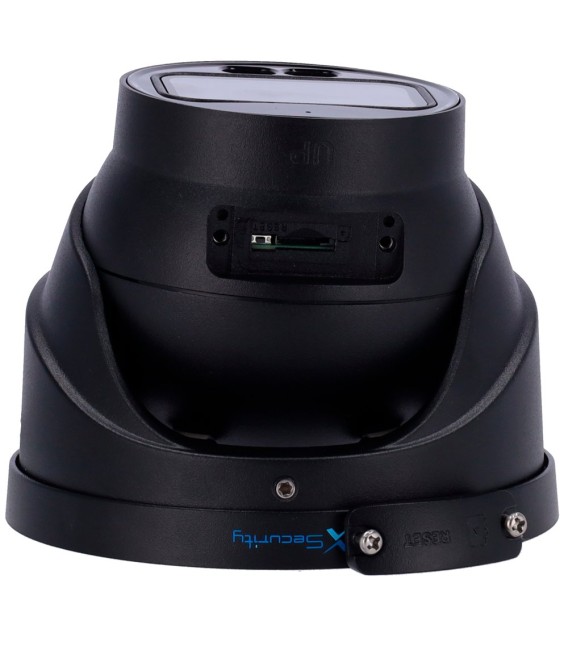

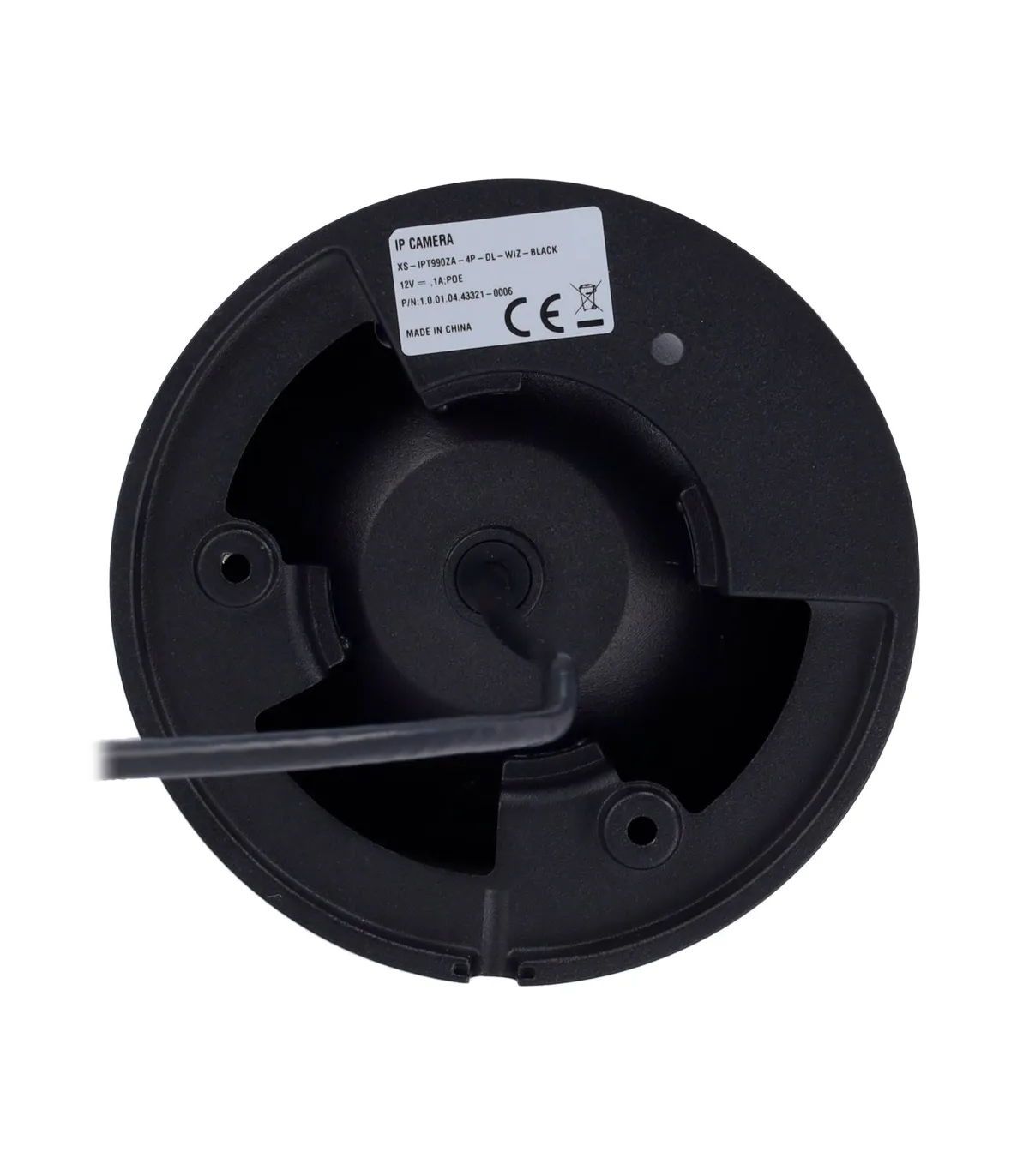

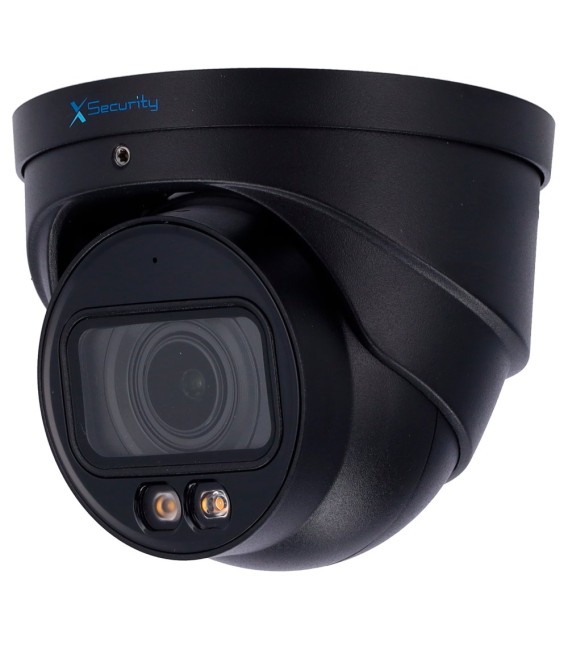

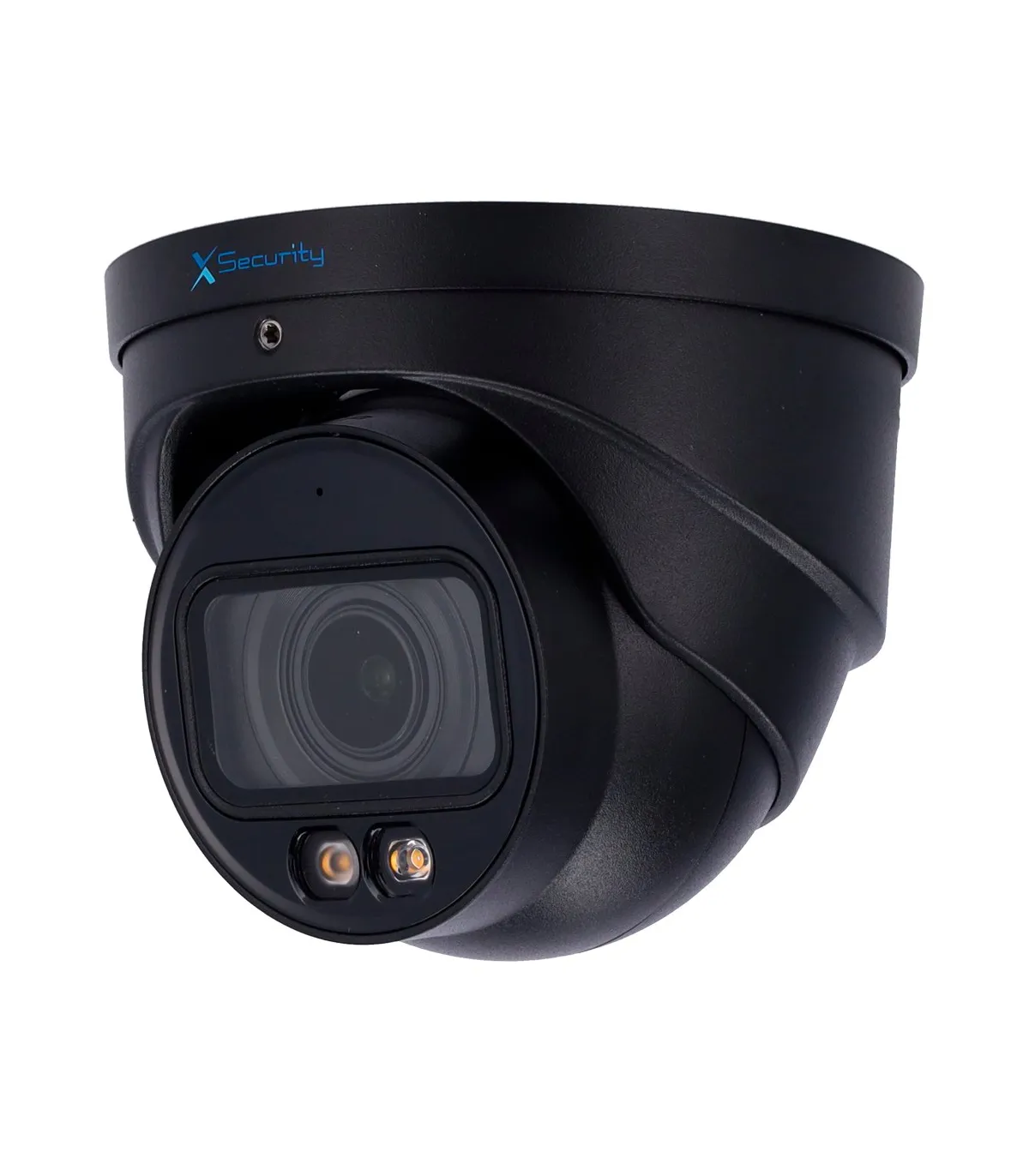

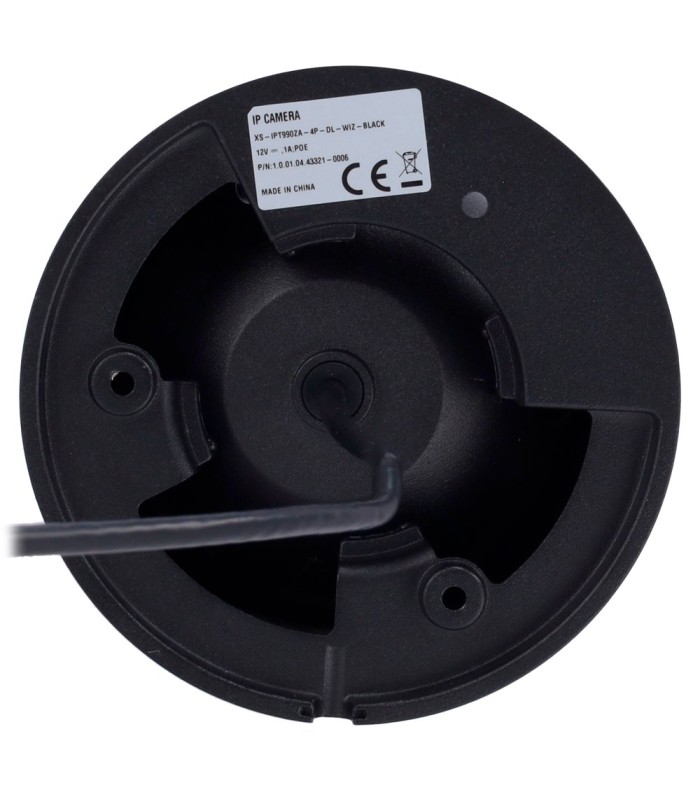

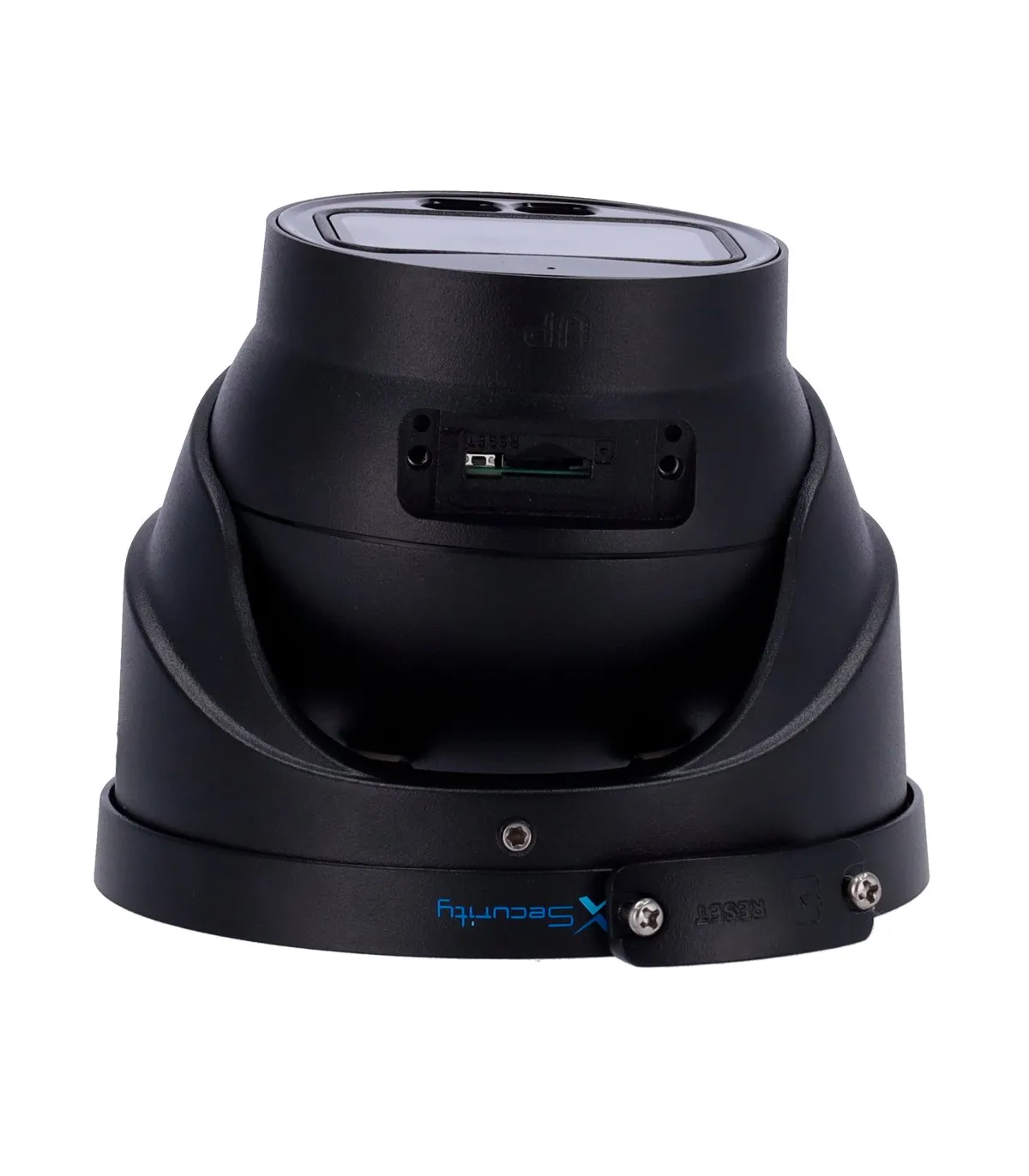

X-Security Turret IP Camera XS-IPT990ZA-4P-DL-WIZ-BLACK
Brand: X-SECURITY
- X-Security IP Turret Camera
- 4 Megapixel (2688x1520)
- Motorized Lens 2.7~13.5mm
- WDR 120dB | Dual Light (IR 40m and White Light 40m)
- WizSense, with human and vehicle classification
X-Security IP Turret Camera XS-IPT990ZA-4P-DL-WIZ-BLACK
- X-Security
- IP Turret Camera with Dual Light
- PRO Range
- 1/2.9" Progressive CMOS
- 4 Megapixel (2688×1520)
- Motorized lens 2.7~13.5mm
- 0.006 Lux
- Dual light: IR 40m & White Led 40m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- SMD Plus
- IVS WizSense: human and vehicle classification
- Smart search
- Built-in microphone
- Audio
- Alarms
- WDR 120dB
- IR CUT
- MicroSD up to 256GB
- PoE IEEE802.3af
- Waterproof IP67
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Image Sensor | 1/2.9” Progressive CMOS |
| Lens | Motorized 2.7~13.5mm (H: 97°-28°; V: 52°-16°; D: 117°-32°) |
| Main Stream Rate | 2688x1520@(1–20 fps) / 2560×1440@(1-25/30 fps) |
| Extra Stream Rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| DORI | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum Illumination | 0.006 lux@F1.0 (Color, 30 IRE) 0.0006 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Dual Light | Operating modes: Intelligent Mode (Default, IR activated and switches to white led in the presence of a target) IR Mode White Led Mode |
| IR Range | 40 m (IR) 40 m (White light) |
| Image Enhancements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Motion detection based on human and vehicle) |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |
| Smart Search | Using microSD card or X-Security NVR |
| Network Interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote Access | WEB interface, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR |
| Material | Metal |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 9.3W, PoE IEEE802.3af |
| Operating Temperature | -30º C ~ +60º C |
| Protection Rating | Waterproof IP67 |
| Dimensions | 122 (Φ) x 108.3 (H) mm |
| Weight | 690 g |
Content
- X-Security IP Camera
- Installation material
- User manual
- CD with software and instructions
