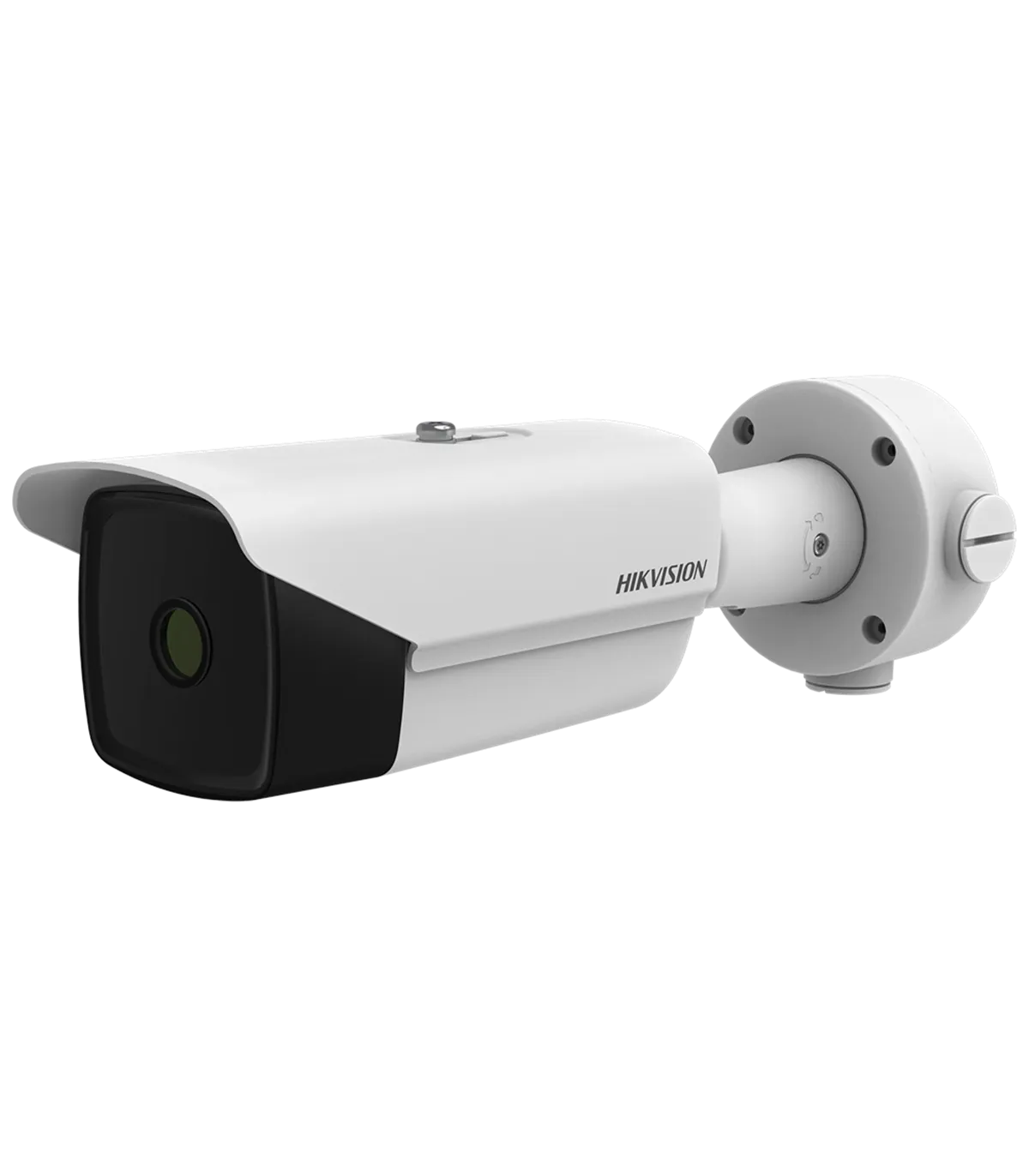

The DS-2TD2138-35/QY is a high-performance thermal bullet IP camera designed for advanced security applications. It is particularly suitable for environments requiring anti-corrosion features, making it ideal for outdoor installations. This camera offers exceptional thermal imaging capabilities, allowing for precise temperature measurement and effective fire detection in various settings.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 384x288 |
| Main Stream Rate | 25 fps (1280×720, 704×576, 640×512, 352x288) |
| Extra Stream Rate | 25 fps (704×576, 640×512, 352x288) |
| Third Stream Rate | 25 fps (1280×720, 704×576, 640×512, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 35 mm |
| DRI | Person: 1458 m (D), 365 m (R), 182 m (I) Vehicle: 4472 m (D), 1118 m (R), 559 m (I) |
| VCA Ranges | Person: 350 m Vehicle: 1050 m Temperature Measurement (Object 0.2x0.2m): 105 m Temperature Measurement (Object 1x1m): 525 m Fire Detection (Object 0.2x0.2m): 420 m |
| Field of View | Thermal: 7.5° (H), 5.6° (V) |
| Thermal Sensitivity | < 35 mK |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V, 130~220 mA, 5 W max. DC 12 V, 370~610 mA, 5 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof IK10 Vandal Resistant 6000 V Surge Protection Anti-corrosion |
| Dimensions | 115.2 mm (H) x 113.5 mm (W) x 351.3 mm (D) |
| Weight | 1770 g |
The DS-2TD2138-35/QY thermal camera is an excellent choice for industrial facilities, warehouses, and outdoor environments where anti-corrosion properties are essential. For instance, in a manufacturing plant, this camera can be strategically placed to monitor critical areas, providing remote monitoring capabilities through its web interface and smartphone app. The camera's ability to detect temperature variations makes it invaluable for preventive fire detection, ensuring safety and compliance with regulations. Additionally, its robust design, featuring IP67 and IK10 ratings, allows it to withstand harsh weather conditions and potential vandalism. With features like H.265 compression, users can benefit from reduced bandwidth usage while maintaining high-quality video streams. This camera not only enhances security but also contributes to operational efficiency by enabling real-time alerts and monitoring.
