| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Rate Main Stream | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Angle of view (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (W), 12 m (R), 6 m (L) |
| Minimum illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/night | ColorVu: 24-hour color image |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. |
| Internal storage | Not available |
| Audio | Built-in microphone |
| Audio type | Mono |
| Audio compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

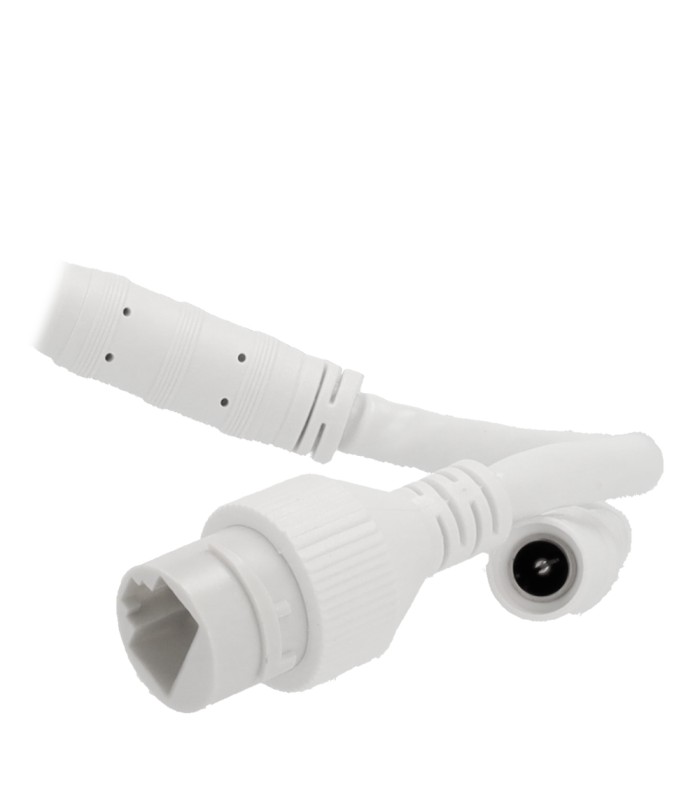

| Network interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 450 mA / 5.4 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Cover: Metal Body: Plastic Support: Plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 69.8 (W) x 67.9 (H) x 172.9 (Fo) mm |

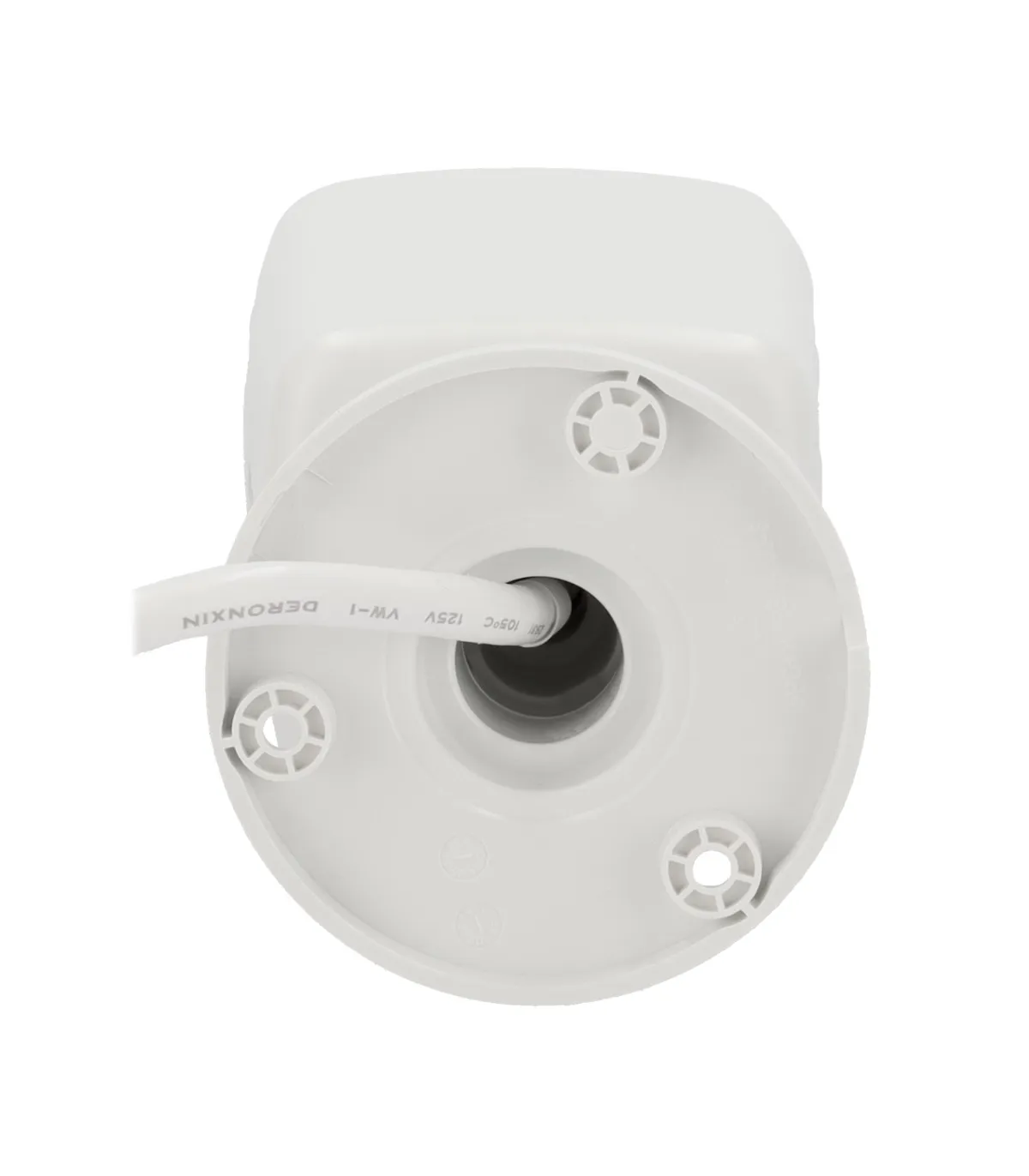

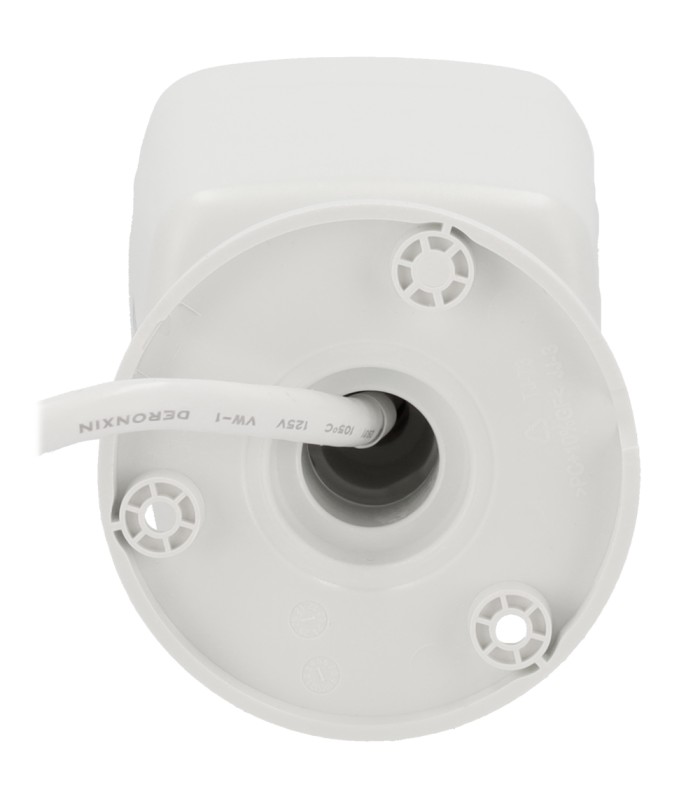

| Base dimensions | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 550 g |
