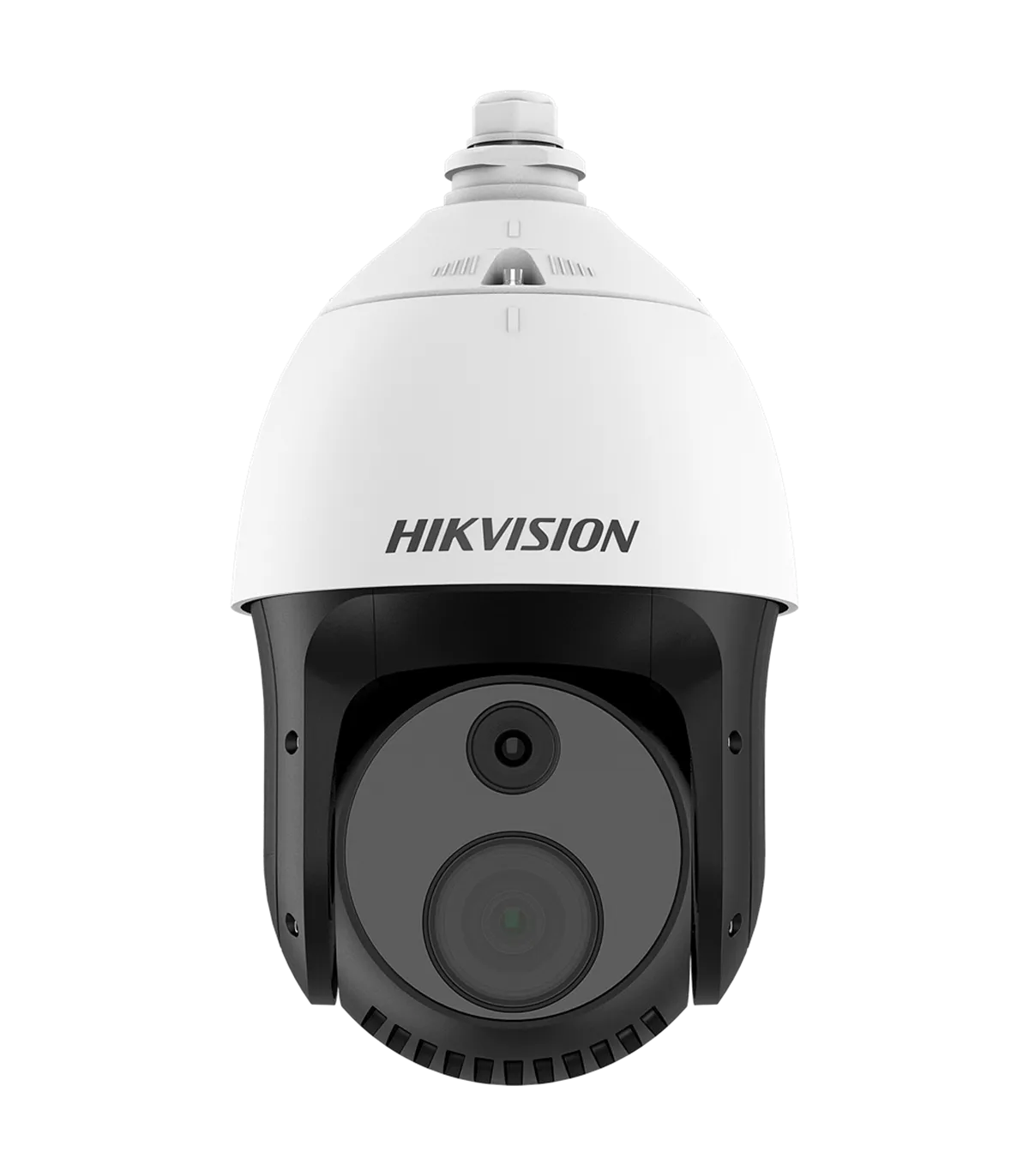

The DS-2TD4228T-7/S2 is a state-of-the-art dual IP thermal speed dome camera designed for advanced surveillance applications. It is ideal for environments requiring high-performance thermal imaging and optical capabilities, such as perimeter security, fire detection, and temperature monitoring. This device combines a thermal sensor with a high-resolution optical camera, making it suitable for both day and night operations.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.8” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280x720, 704x576, 640x512, 256x192) Optical: 25 fps (2688x1520, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | Thermal: 25 fps (704x576, 640x512, 256x192) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265+ / H.264+ / H.265 / H.264 / MJPEG |
| Video Output | Composite Video Output |
| Lens | 7 mm (Thermal) 4.8~153 mm (Optical), 32x Optical Zoom |
| Field of View | Thermal: 25° (H), 18.8° (V) Optical: 58.8~2.18° (H), 34.4~1.2° (V) |
| DORI | Person: 292 m (D), 73 m (R), 36 m (I) Vehicle: 894 m (D), 224 m (R), 112 m (I) |
| VCA Ranges | Person: 56 m Vehicle: 168 m Temperature Measurement (Object 0.5x0.5m): 58 m Temperature Measurement (Object 0.2x0.2m): 23 m Fire Detection (Object 2x2m): 583 m Fire Detection (Object 1x1m): 292 m |
| Minimum Illumination | Color: 0.05 Lux @ (F1.2, AGC ON) Black and White: 0.01 Lux @ (F1.2, AGC ON) |
| Night Illumination | IR LEDs Range 100 m |
| Thermal Sensitivity | < 35 mK |
| Thermal Measurement Range | -20 ~550 ºC / ± 2 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Fire Detection | Up to 10 detectable fire points |
| Image Enhancements | WDR (120 dB), 3D-DNR |
| ANR | Yes |
| Pan/Tilt Range | Horizontal: Continuous rotation 0~360°, Vertical: -5°~90° autoflip |
| Manual Speed | Horizontal: 0.1~200 °/s, Vertical: 0.1~105 °/s |
| Speed Between Presets | Horizontal: 240 °/s, Vertical: 200 °/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Smart Tracking | Yes Pan tracking, event tracking, and multi-scene tracking |
| Alarms | 7 inputs / 2 outputs |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI |
| Power Supply | AC 24 V, 30 W max. DC 36 V, 30 W max. DC 48 V, 30 W max. Hi-PoE |
| Operating Temperature | -40º C ~ +70º C |
| Protection Rating | IP66 Waterproof 6000 V Surge Protection |
| Dimensions | 305 mm (H) x 185 mm (W) x 163 mm (D) |
| Weight | 3.9 kg |
The DS-2TD4228T-7/S2 is particularly effective in large-scale industrial settings where both thermal imaging and optical surveillance are crucial for safety and security. For instance, in a manufacturing facility, this camera can be deployed to monitor equipment temperatures, ensuring they remain within safe operating limits. The smart tracking feature allows the camera to follow moving objects, such as personnel or vehicles, enhancing situational awareness. Additionally, the camera's ability to detect smoke and fire can provide early warnings, potentially preventing catastrophic incidents. With its IP66 waterproof rating, the camera is well-suited for outdoor installations, ensuring reliable performance in various weather conditions. This combination of features makes the DS-2TD4228T-7/S2 an invaluable tool for enhancing security and operational efficiency in critical environments.
