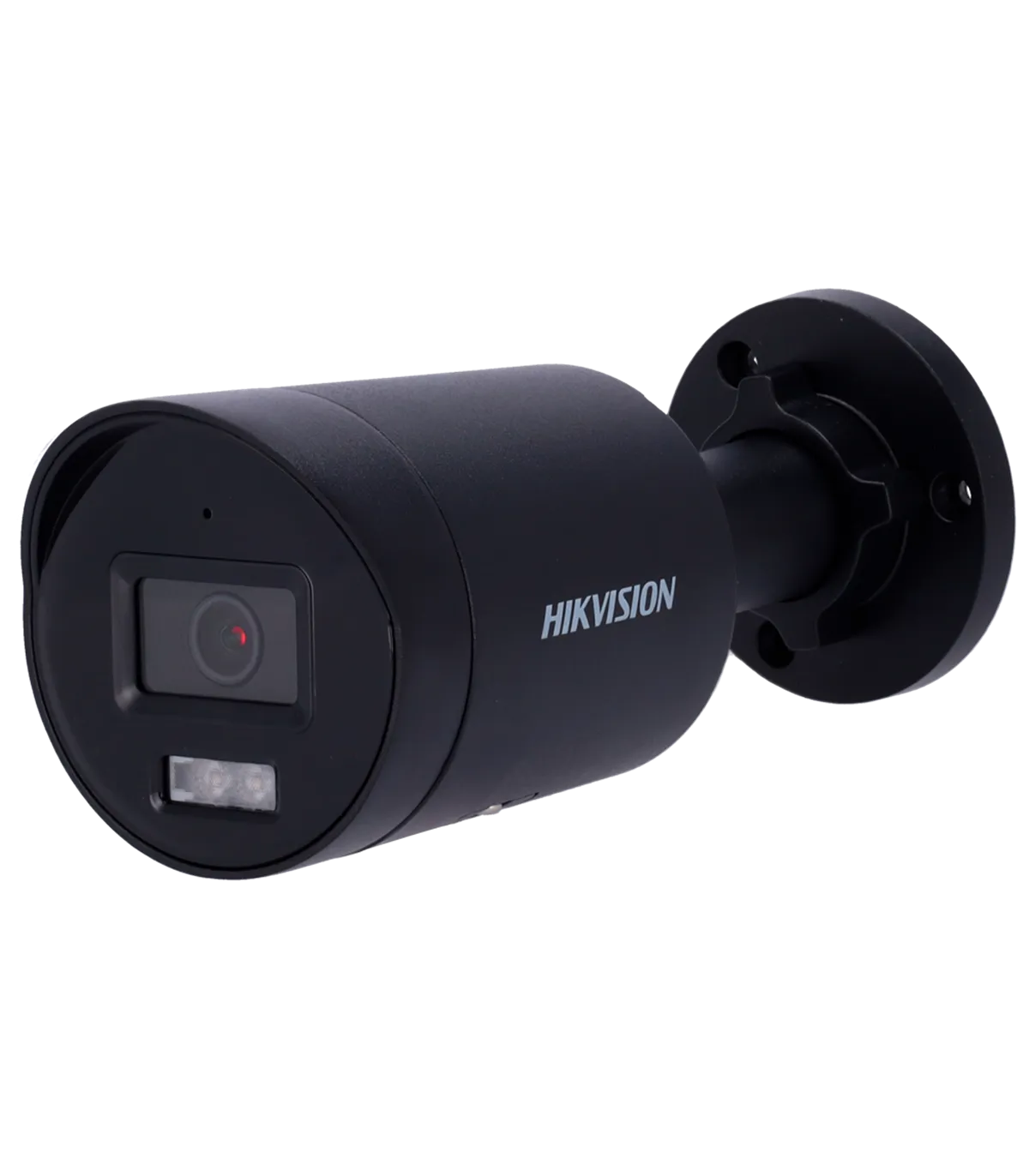

The DS-2CD2046G2H-IU(2.8mm)(eF)/BLACK is a high-performance IP bullet camera designed for low-light environments, powered by DarkFighter technology. This device is ideal for outdoor surveillance, providing clear images even in complete darkness with its 0 Lux capability and IR range of up to 40 meters. With a resolution of 4 Megapixels, it ensures detailed monitoring, making it suitable for various applications such as retail, parking lots, and residential areas.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1080x720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100.2°, V: 54.7°, D: 119.7° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 450 mA / 5.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 74.4 mm x 179.2 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 525 g |
| Color | Black |
The DS-2CD2046G2H-IU(2.8mm)(eF)/BLACK is perfectly suited for a variety of surveillance applications, particularly in environments where low-light performance is critical. For instance, in a retail setting, this camera can be strategically placed at entrances and exits to ensure comprehensive coverage. With its 4 Megapixel resolution, it captures detailed images that can help in identifying individuals and monitoring customer behavior. The IR capability allows for effective night surveillance, ensuring that security personnel can maintain vigilance even in complete darkness. Additionally, the AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, making it an ideal choice for busy areas. The camera's remote access features enable security teams to monitor live feeds from anywhere, enhancing overall security management. Furthermore, its IP67 waterproof rating ensures durability in outdoor installations, providing reliable performance in various weather conditions.
