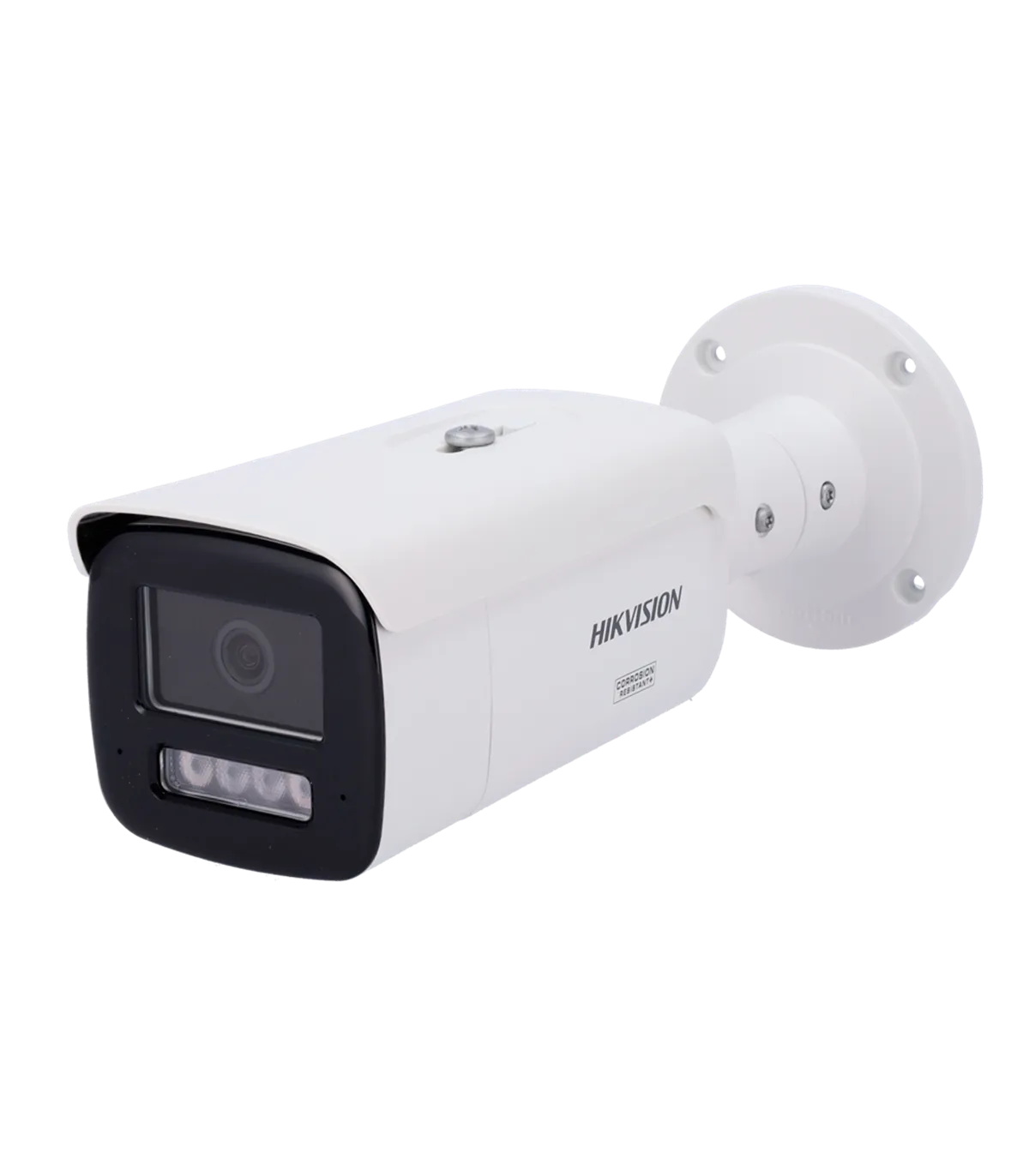

The DS-2CD2T43G2-2LIZ2UY is a high-performance IP bullet camera designed for outdoor surveillance. With its advanced 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, this camera is ideal for monitoring large areas with exceptional clarity. It features Hikvision's AcuSense technology, which significantly reduces false alarms by accurately detecting humans and vehicles. This makes it a perfect fit for both residential and commercial security applications, ensuring reliable and efficient surveillance.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream supported only under certain conditions |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options of 2.8/4 mm |
| Field of View (FOV) | 2.8 mm: H: 99.3°, V: 54.8°, D: 120.2° 4 mm: H: 80.0°, V: 44.1°, D: 94.0° |
| DORI | 2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Audio | Dual microphone in integrated array |
| Environmental Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af, class 3, 11.5 W max. |
| Protection Rating | IP67 waterproof NEMA 4X corrosion-resistant |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 88.7 mm (W) x 91.2 mm (H) x 287.2 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw holes 89 mm / 4 screws |
| Weight | 1165 g |
The DS-2CD2T43G2-2LIZ2UY is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and hybrid illumination capabilities, it ensures clear visibility even in low-light conditions. The motion detection feature, enhanced by AcuSense technology, allows for precise monitoring of customer movements while minimizing false alarms. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from anywhere, ensuring security is maintained at all times. The robust IP67 rating guarantees durability against harsh weather conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD2T43G2-2LIZ2UY offers a blend of advanced features that cater to both installers and end-users, enhancing security and operational efficiency.
