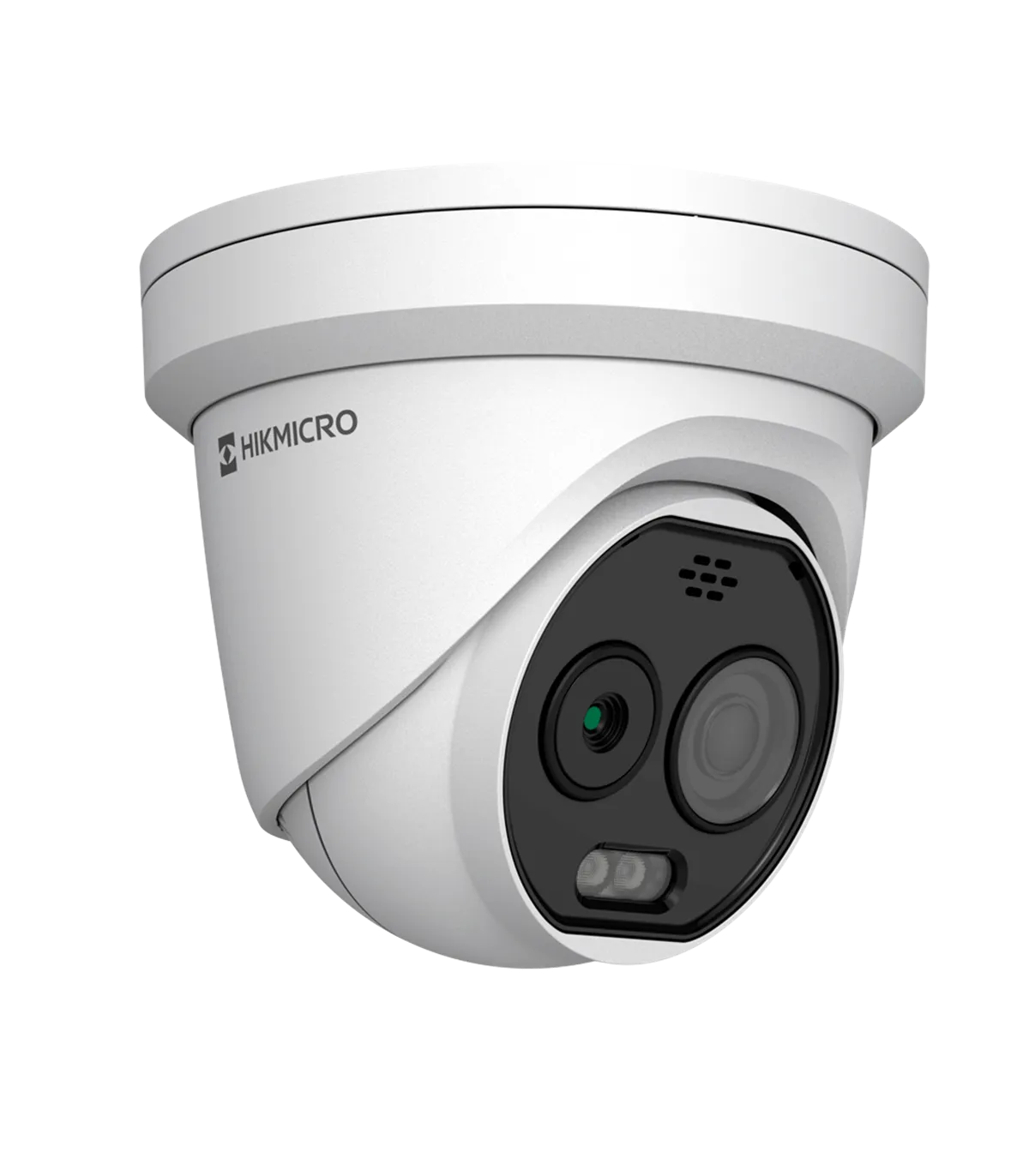

The HM-TD1228-2/G1/T3A is a cutting-edge dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments requiring precise temperature measurement and fire detection, making it ideal for industrial sites, warehouses, and critical infrastructure monitoring. With its robust features, including a 256x192 thermal sensor and a 5 Megapixel optical sensor, it provides comprehensive security solutions.
| Brand | Hikvision |
| Range | PRO Powered by GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Detector Pitch | 12 μm |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Spectral Range | 8~14 μm |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1944, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 2.1 mm (Thermal) / 2.2 mm (Visible) |
| Field of View | Thermal: 90° (H), 65.4° (V) Optical: 128.3° (H), 75.4° (V) |
| DORI | Person: 88 m (D), 22 m (R), 11 m (I) Vehicle: 268 m (D), 67 m (R), 34 m (I) |
| VCA Ranges | Person: 25.2m Vehicle: 63.0m Temperature Measurement (Object 0.2x0.2m): 7m Temperature Measurement (Object 1x1m): 35m Fire Detection (Object 0.5x0.5m): 13.2m Smoker Detection: 3.15m |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 2 relays |
| Deterrent Alarm | Integrated speaker and flash in the camera |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12 VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 0.85A to 1.42A, max. 12.8W PoE (802.3at, class 4): 42.5V to 57 V, 0.22A to 0.3A, max. 12.8W |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 waterproof, 6000 V surge protection |
| Dimensions | Ø 138.3mm x 121.6mm |
| Weight | 975.6g |
The HM-TD1228-2/G1/T3A is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, a manufacturing plant can utilize this camera to monitor temperature fluctuations in real-time, ensuring that machinery operates within safe limits. The camera's fire detection capabilities allow for immediate alerts, significantly reducing the risk of fire-related incidents. Additionally, the remote monitoring feature enables security personnel to access live feeds via a smartphone app, enhancing situational awareness. With its IP67 waterproof rating, the camera can withstand harsh weather conditions, making it suitable for outdoor installations. Furthermore, the integration of surge protection ensures reliable operation even in unstable electrical environments, providing peace of mind for users.
