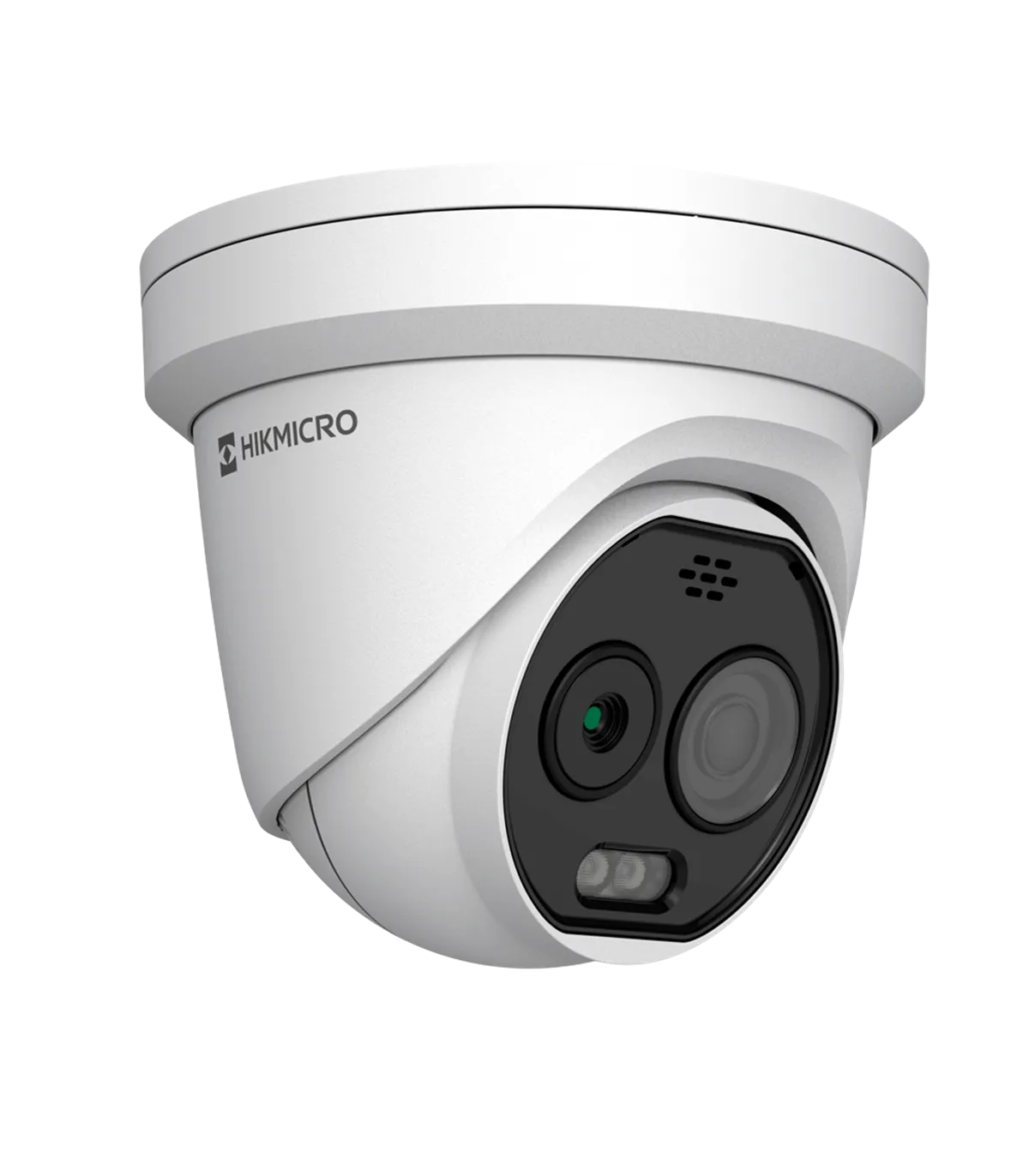

The HM-TD1228-3/G1/T3A is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments requiring precise temperature measurement and fire detection, making it ideal for industrial sites, warehouses, and outdoor perimeters. With its robust features, including a 5 Megapixel optical sensor and a thermal sensor with a sensitivity of ≤25mK, it ensures high-quality imaging and reliable performance in various lighting conditions.
| Brand | Hikvision |
| Range | PRO Powered by GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Detector Pitch | 12 μm |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Spectral Range | 8~14 μm |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1944, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.6mm (Thermal) / 4.3mm (Visible) |
| Field of View | Thermal: 50° (H), 37.3° (V) Optical: 84° (H), 43.1° (V) |
| DORI | Person: 150m (D), 38m (R), 19m (I) Vehicle: 460m (D), 112m (R), 56m (I) |
| VCA Ranges | Person: 36m Vehicle: 90m Temperature Measurement (Object 0.2x0.2m): 11.7m Temperature Measurement (Object 1x1m): 58.3m Fire Detection (Object 0.5x0.5m): 25.8m Smoker Detection: 5.4m |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 2 relays |
| Deterrent Alarm | Integrated speaker and flash in the camera |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12 VDC ± 25% PoE (802.3af, class 3) |
| Power Consumption | 12 VDC ± 25%: 0.5A, max. 6W PoE (802.3af, class 3): 42.5V to 57 V, 0.14A to 0.22A, max. 6.5W |
| Operating Temperature | -40º C ~ +65º C |
| Protection Rating | IP67 waterproof, 6000V surge protection |
| Dimensions | Ø 138.3mm x 123.1mm |
| Weight | 940g |
The HM-TD1228-3/G1/T3A is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, an installer can set up this dual IP thermal turret camera at the perimeter of a manufacturing plant to monitor for unauthorized access and detect potential fire hazards. With its advanced temperature measurement capabilities, the camera can trigger alarms if abnormal heat levels are detected, ensuring rapid response to potential threats. Additionally, the camera's remote monitoring features allow security personnel to access live feeds via a smartphone app or web interface, enhancing situational awareness. The integration of ONVIF compatibility ensures seamless interoperability with existing security systems, making it a versatile choice for comprehensive surveillance solutions. Overall, the HM-TD1228-3/G1/T3A provides a robust and reliable security solution, combining high-resolution imaging with intelligent analytics for effective monitoring.
