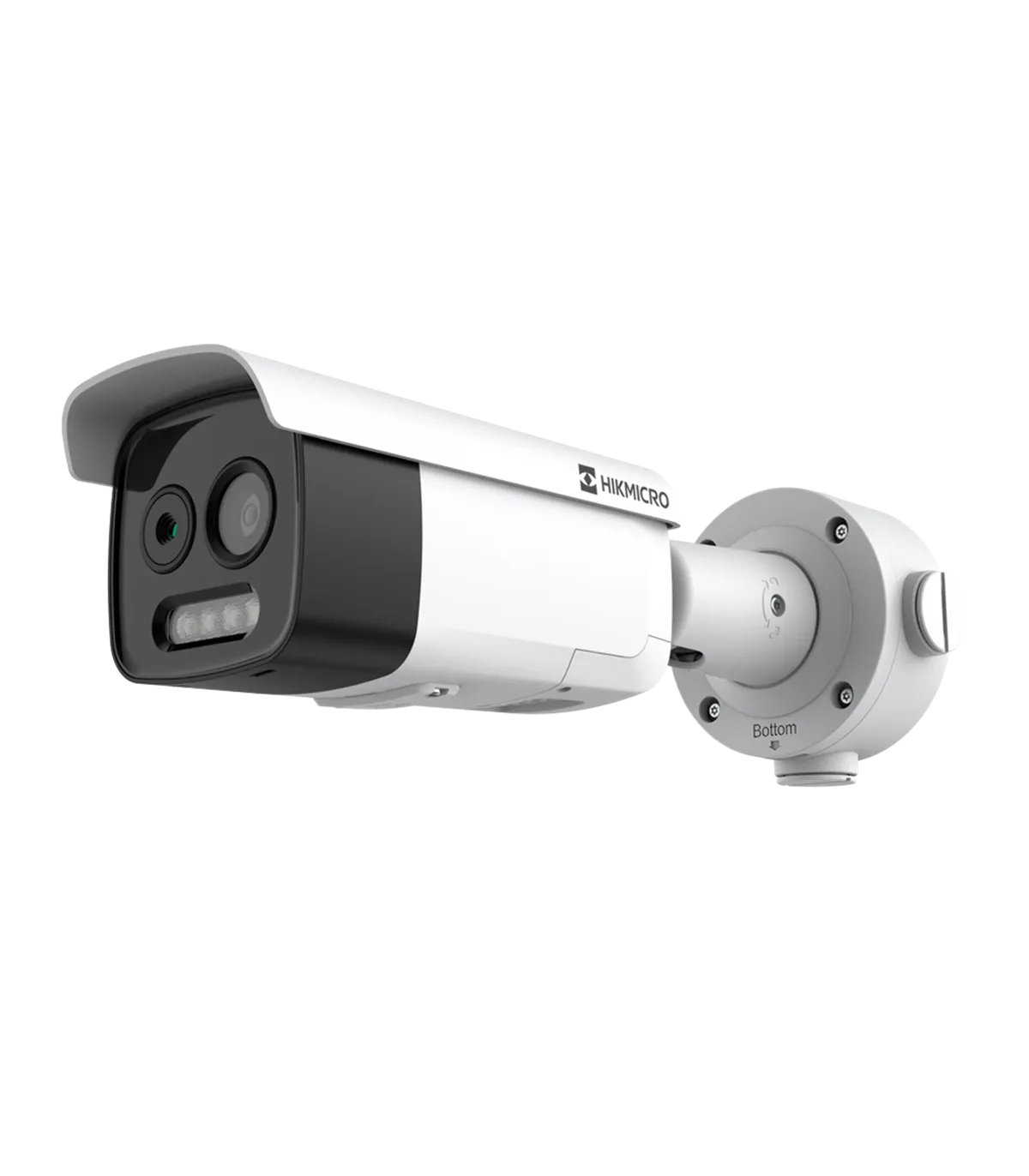

The HM-TD2618-7/G0/T1A is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. This device is ideal for environments requiring both thermal and optical monitoring, providing enhanced security through its temperature measurement capabilities and fire detection features. With its robust design and high-performance specifications, it is well-suited for outdoor installations in various settings, including industrial sites and critical infrastructure.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 160x120 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688x1944, 2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.9mm (Thermal) / 8mm (Visible) |
| DORI | Person: 287m (D), 72m (R), 36m (I) Vehicle: 881m (D), 220m (R), 110m (I) |
| VCA Ranges | Person: 70m Vehicle: 210m Temperature Measurement (Object 0.2x0.2m): 23.3m Temperature Measurement (Object 0.5x0.5m): 58m Fire Detection (Object 0.5x0.5m): 48m Smoker Detection: 10.35m |
| Field of View | Thermal: 24.9º (H), 18.7° (V) Optical: 39.4° (H), 22° (V) |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD Card Slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 1.67A to 2.5A, max. 24W PoE (802.3at, class 4): 42.5V to 57V, 0.56A to 0.42A, max. 24W |
| Operating Temperature | -40ºC ~ +65ºC |
| Protection Grade | IP67 Waterproof, 6000V Surge Protection IK10 Vandal Resistant |
| Dimensions | 349.1mm x 113mm x 105mm |
| Weight | 1710g |
The HM-TD2618-7/G0/T1A is particularly effective in high-security environments such as warehouses, power plants, and critical infrastructure facilities. For instance, in a large industrial site, the camera can be strategically placed to monitor entry points and sensitive areas. The dual functionality of thermal and optical imaging allows for comprehensive surveillance, ensuring that both visible and thermal threats are detected. The temperature measurement feature can alert security personnel to potential fire hazards, while the remote monitoring capabilities enable real-time access to live feeds via a smartphone app or web interface. Additionally, the camera's vandal-resistant design ensures durability in harsh conditions, making it a reliable choice for outdoor installations. With its advanced analytics and alarm integration, the HM-TD2618-7/G0/T1A enhances overall security management, providing peace of mind for facility operators.
