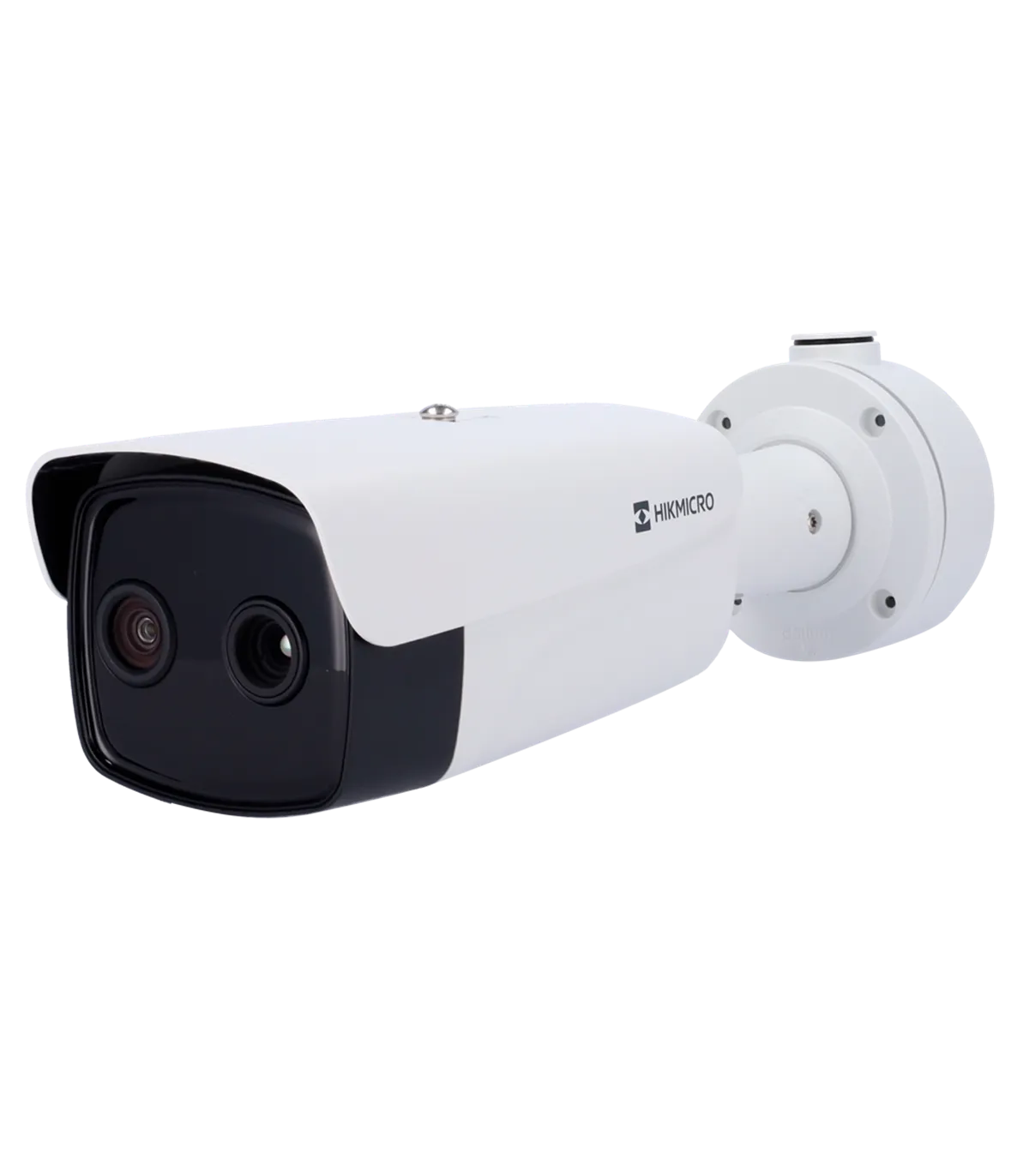

The HM-TD2638-4/G0/T1Y is a cutting-edge dual-spectrum thermal bullet camera designed for advanced security applications. This device excels in fire detection and intrusion prevention, making it ideal for monitoring critical areas such as warehouses, industrial sites, and outdoor perimeters. With its high-resolution thermal and visible sensors, it provides comprehensive surveillance capabilities, ensuring safety and security in various environments.
| Brand | Hikmicro |
| Series | TD2638 |
| Thermal Sensor | Uncooled VOx FPA |
| Thermal Sensor Resolution | 384 x 288 |
| Pixel Pitch | 12μm |
| Thermal Lens | 4.4mm |
| Thermal Sensitivity | ≤25mK |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Spectral Range | LWIR 8~14μm |
| Thermal Field of View | 60.2° (H) x 45° (V) |
| Visible Sensor | 1/2.7" CMOS |
| Visible Sensor Resolution | 2688 x 1520 (4Mpx) |
| Visible Lens | 2.2mm |
| Visible Field of View | 128.3° (H) x 75.4° (V) |
| Infrared Illuminator | Up to 30m |
| Bi-Spectrum Viewing Parameters | Fusion / Picture in picture |
| Main Stream Rate | Thermal: 1280×720, 704x576, 352x288, 384×288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25fps |
| Sub Stream Rate | Thermal: 704x576, 352x288, 384x288 @25fps Visible: 704x576, 352x288 @25fps |
| Compression | H.265 / H.264 |
| VCA | Temperature measurement, intrusion detection |
| Intelligent Analysis | Intrusion, line crossing, area entry, area exit (up to 8 rules) |
| Advanced Intelligent Analysis | Smoke detection, fire detection |
| Temperature Rules | 10 points, 10 areas, and 1 line |
| DRI | Person: 183m (D), 46m (R), 23m (I) Vehicle: 562m (D), 141 (R), 70m (I) |
| Smart Analysis Ranges | Person: 44m Vehicle: 132m Temperature Measurement (object 0.2x0.2m): 13.2m Fire Detection (object 0.2x0.2m): 52.8m Smoke Detection: 6.6m |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Internal Storage | SD card slot up to 256GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote Access | Web Browser, PC VMS Software (HikCentral/iVMS4200) |
| Interoperability | ONVIF, API, SDK |
| Power Supply | DC 12V, max. 12W AC 24V, max. 14W PoE IEEE802.3af, max. 12W |
| Operating Temperature | -40ºC~+70ºC, <95% RH |
| Protection Rating | IP67 waterproof NEMA 4X IK10 |
| Dimensions | 376.1mm ×119.1mm × 118.1mm |
| Weight | 1.82Kg |
The HM-TD2638-4/G0/T1Y is ideally suited for deployment in environments requiring robust security measures, such as industrial facilities and critical infrastructure. For instance, in a large warehouse, this camera can be strategically placed to monitor entry points and sensitive areas. The dual-spectrum technology allows for seamless switching between thermal and visible imaging, ensuring comprehensive surveillance day and night. With features like remote monitoring and intelligent analysis, security personnel can receive real-time alerts for intrusion detection and fire prevention, enhancing overall safety. The camera's IP67 rating ensures durability against harsh weather conditions, making it a reliable choice for outdoor installations. Additionally, the integration with VMS systems allows for easy management and access to recorded footage, streamlining security operations.
