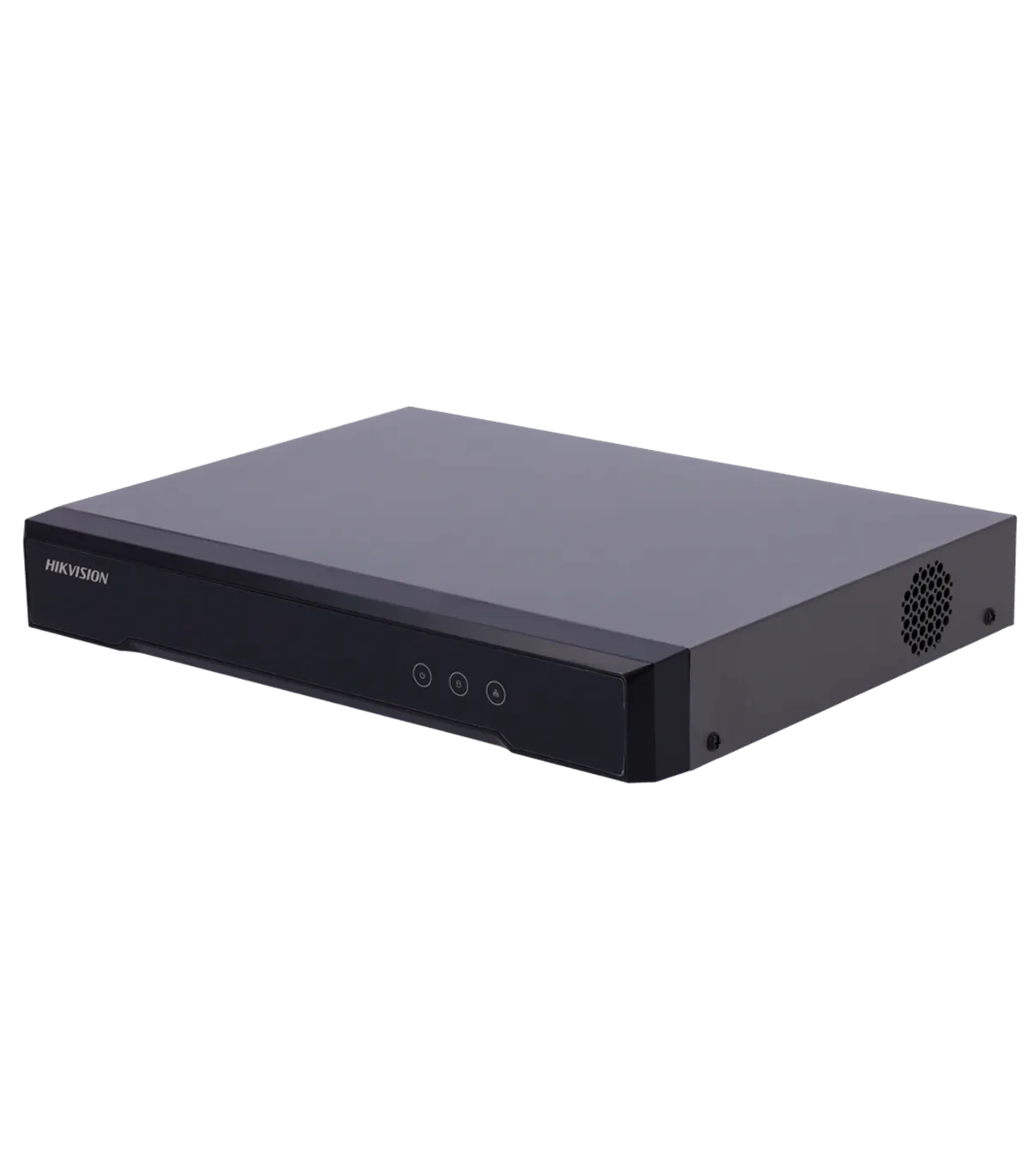

The iDS-6716HUHI-M is a versatile encoder for analog cameras designed to enhance video surveillance systems. It supports up to 16 channels of video input, making it ideal for medium to large installations. This device is particularly effective in environments requiring high-definition video quality and advanced features such as motion detection and AcuSense technology for reducing false alarms. With its ability to handle both analog and IP cameras, the iDS-6716HUHI-M is a perfect fit for modern security setups.
| Brand | HIKVISION |
| Series | PRO |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 8 additional IP CH: Up to 24 IP channels (8 Mpx), replacing all BNC channels |
| Video Outputs | 1 BNC CVBS (1.0 Vp-p 75 Ω) Resolution: PAL: 704 × 576, / NTSC: 704 × 480 |
| Audio Inputs | 4 RCA Channels |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing audio input (Using the first RCA audio input) |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP: H.265+ / H.265 / H.264+ / H.264 |
| Input Resolution | HDTVI: 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p30FPS, 1080p@25FPS, 720p@60FPS, 720p@50FPS, 720p@30FPS, 720p@25FPS AHD: 5Mpx, 4Mpx, 1080p @25FPS, 720p@30FPS, 720p@25FPS HDCVI: 4Mpx, 1080p @30FPS, 720p@30FPS, 720p@25FPS CVBS: PAL/NTSC |
| Main Stream Encoding | 8Mpx@8 FPS; 5Mpx@12 FPS; 4Mpx @15 FPS; 3Mpx@18 FPS; 1080p/720p/WD1/4CIF/VGA/CIF@25 FPS(P) |
| Extra Stream Encoding | WD1 / 4CIF / CIF (25 FPS) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 Inputs / 4 Outputs |
| Motion Detection | Motion Detection 2.0: Deep-learning based motion detection can classify humans and vehicles. Enabled by default on all analog channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Artificial Intelligence | AcuSense: Perimeter protection based on VCA rules with false alarm filtering for human and vehicle detection applied on: Line Crossing and Area Intrusion. Available on up to 4 analog video channels. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 2 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB (Mouse and backup) / Remote control / RJ45 (Ethernet) 10/100/1000M / RS-485 half-duplex |
| Remote Connections | 128 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Network Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Rack Mountable | 1U |
| Power Supply | DC 12 V, ≤ 19 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 384 (W) x 317 (D) x 52 (H) mm |
| Weight | ≤ 2 Kg (without HDD) |
The iDS-6716HUHI-M encoder is ideally suited for a variety of surveillance applications, particularly in commercial settings such as retail stores, warehouses, and office buildings. Installers can easily integrate this device into existing systems, allowing for remote monitoring and management through the Hik-Connect app. With its capability to support both analog and IP cameras, users can upgrade their security infrastructure without replacing all existing equipment. The motion detection 2.0 feature enhances security by accurately identifying human and vehicle movements, significantly reducing false alarms. Additionally, the pentaplex functionality allows simultaneous live viewing, recording, playback, backup, and remote access, providing comprehensive surveillance solutions. This makes the iDS-6716HUHI-M an excellent choice for those looking to enhance their security measures while maintaining flexibility and ease of use.
