- Hikvision Bullet Camera 4-in-1 Value Series
- Resolution 2K (2304x1296)
- Lens 2.8 mm
- Hybrid Light (IR 40 m, white light 40 m)
- Audio over coaxial cable | Integrated microphone
- Waterproof IP67 | Metal and plastic

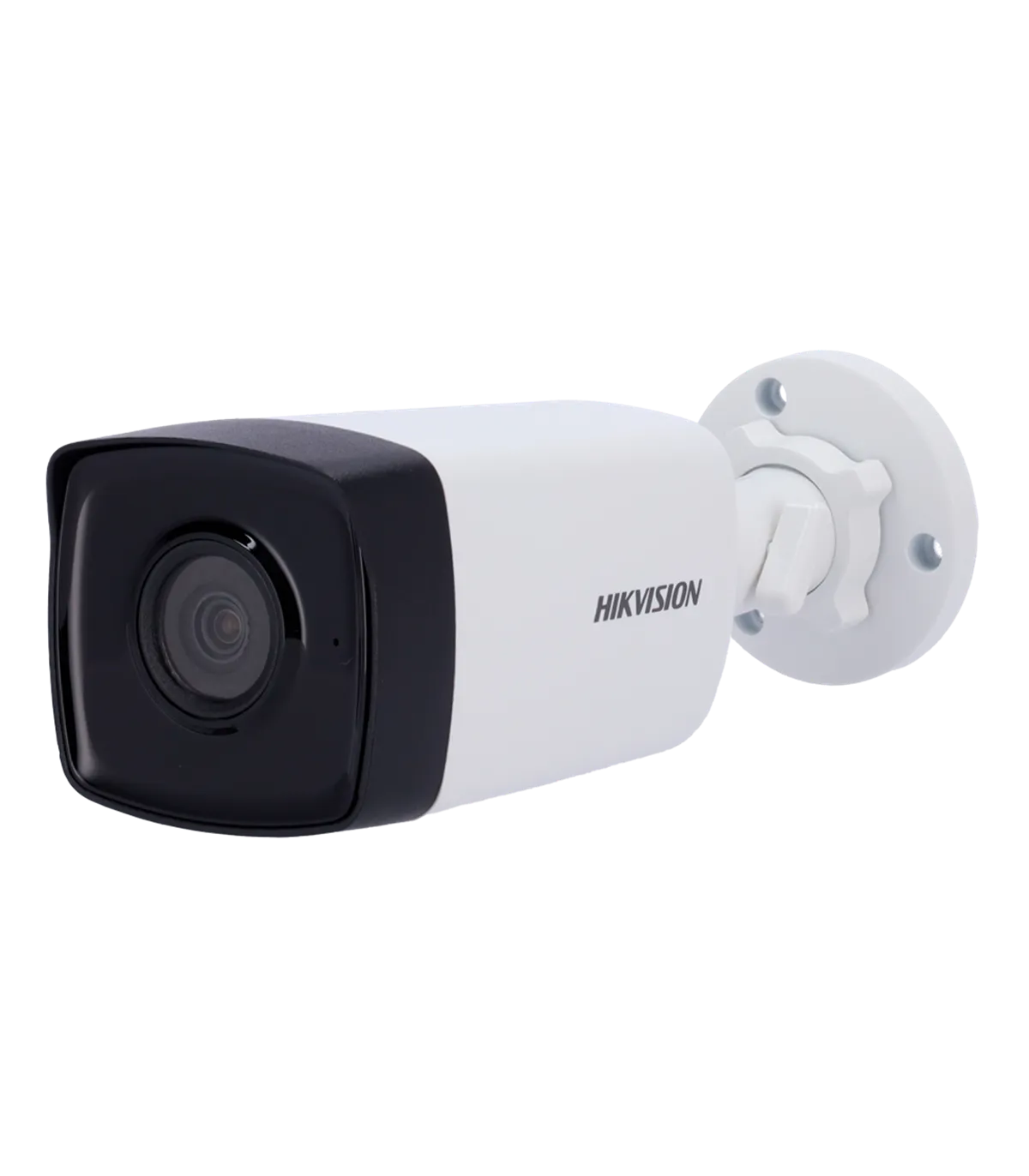

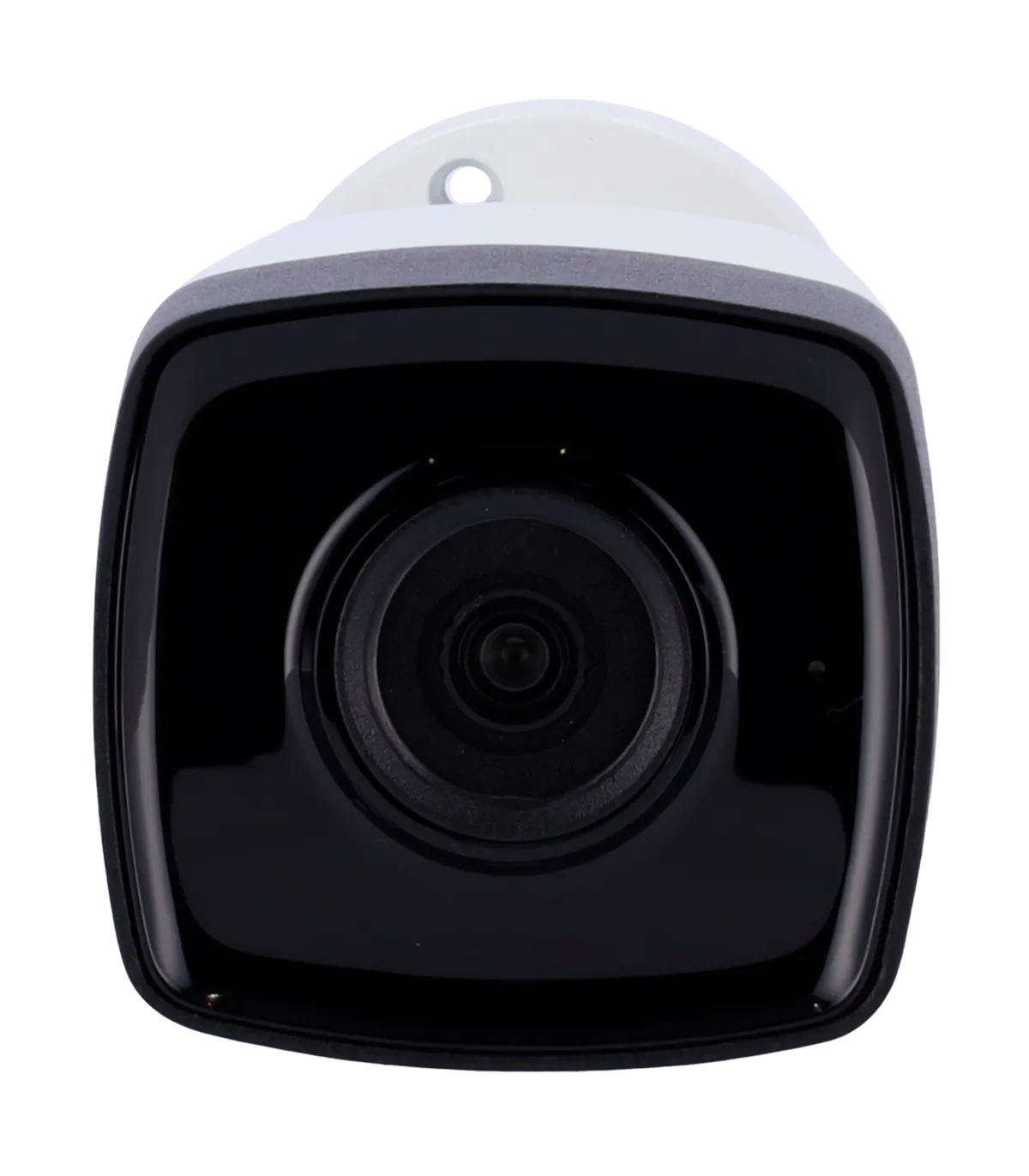

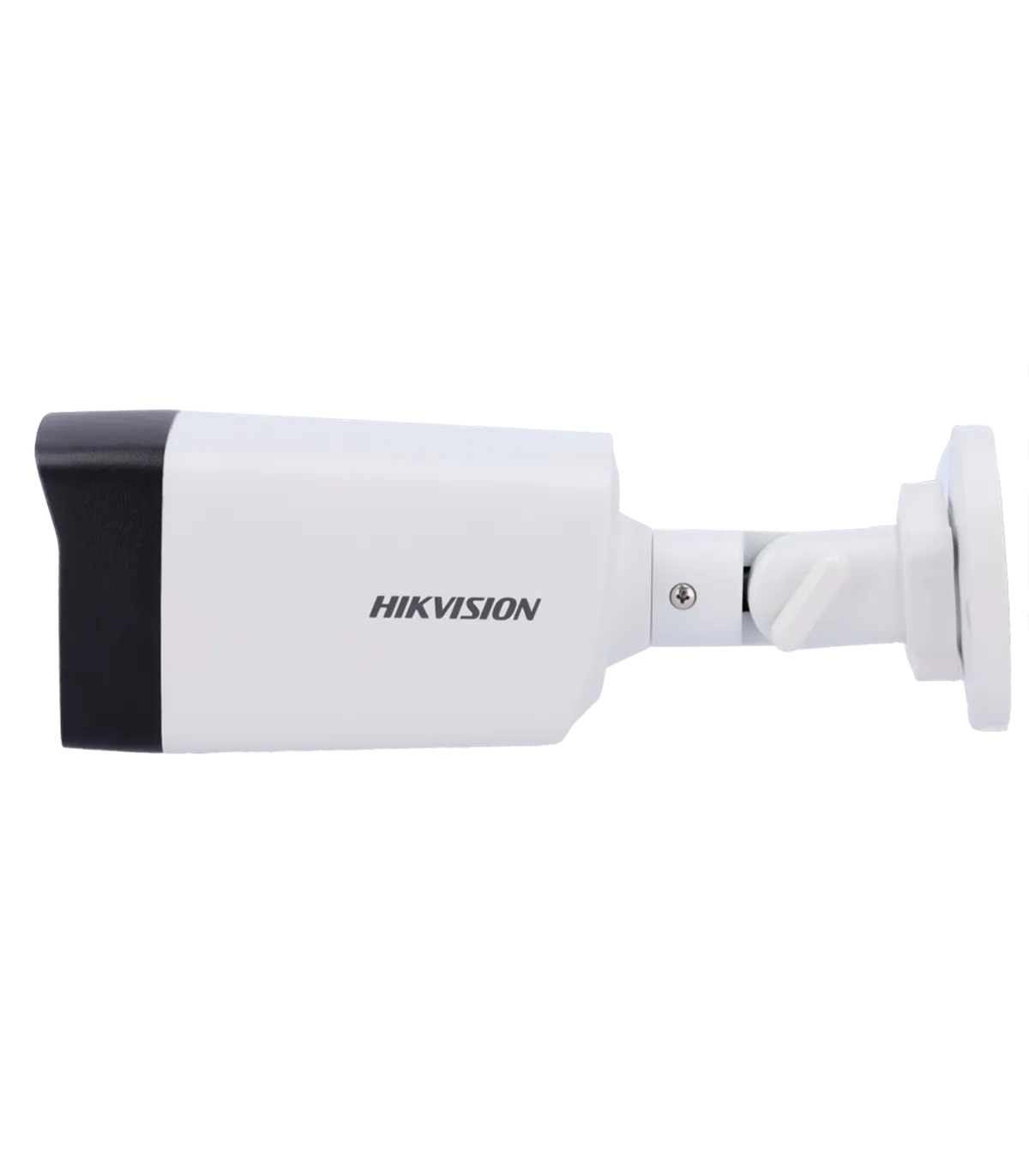

Description & Key Features: DS-2CE17G0T-LFS(2.8mm)
The DS-2CE17G0T-LFS(2.8mm) is a versatile bullet camera designed for high-definition surveillance in various environments. It is ideal for both residential and commercial applications, providing exceptional image quality with a resolution of 2K (2304x1296). This camera supports multiple video output formats, including HDTVI, HDCVI, AHD, and CVBS, making it a flexible choice for different security systems. With its hybrid light feature, it ensures clear visibility in low-light conditions, making it suitable for 24/7 monitoring.
- Hikvision
- Value Series
- Bullet Camera HDTVI, HDCVI, AHD, and CVBS
- High Performance CMOS
- Resolution 2K (2304x1296)
- 4-in-1 Output
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- IR Range 40 m
- White Light Range 40 m
- Audio over Coaxial
- Integrated Microphone
- IR CUT
- Metal and Plastic Construction
- IP67 Waterproof Rating
Specifications: DS-2CE17G0T-LFS(2.8mm)
| Brand | Hikvision |
| Series | Value |
| Image Sensor | High Performance CMOS |
| Maximum Resolution | 2K (2304x1296) |
| Resolution | TVI: 2K (20 fps), 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 105º (H), 60º (V), 129º (D) |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 40 m White light range 40 m |
| Day/Night | Auto / Color / Black and White (ICR) |

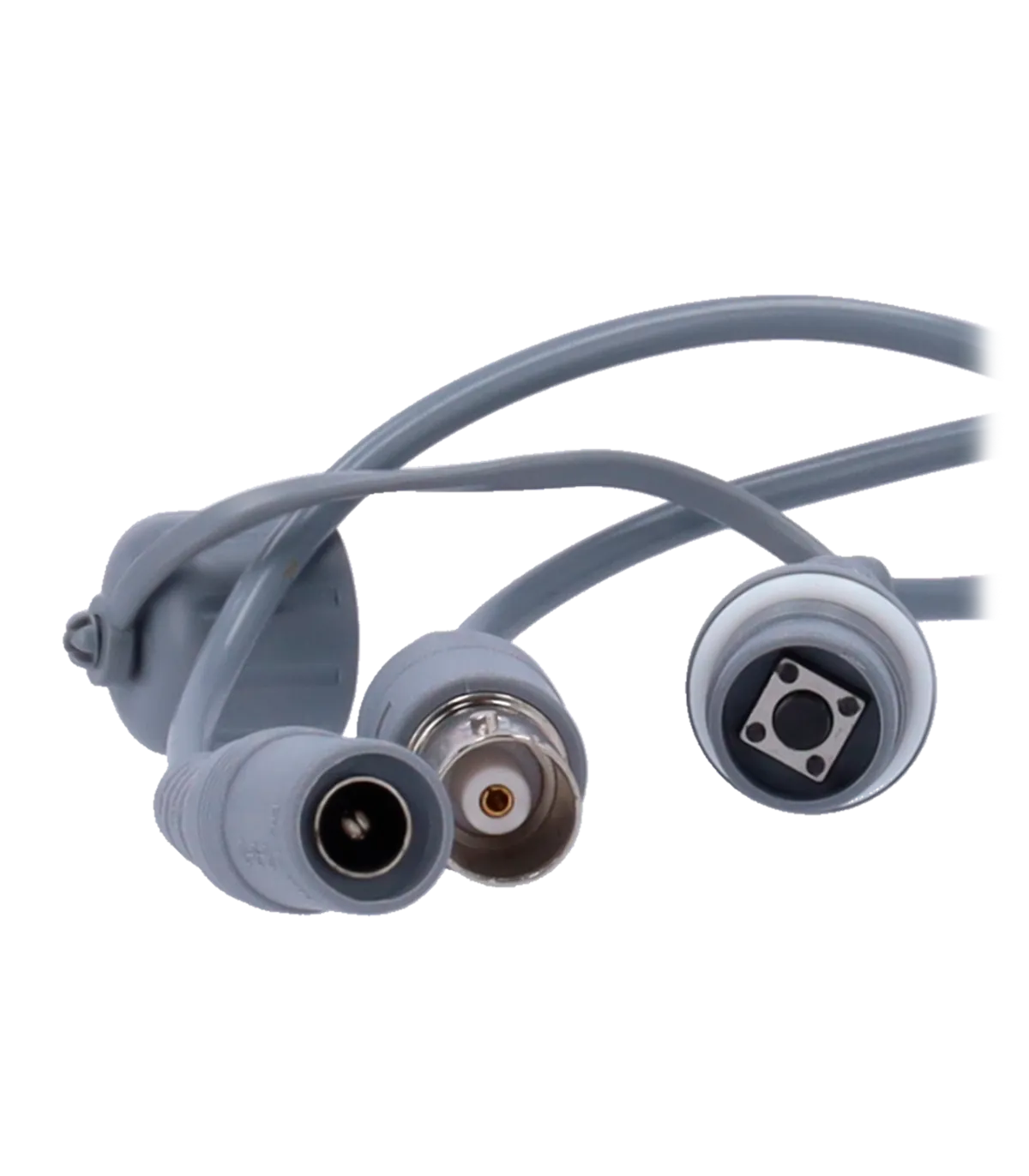

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (Remote) |
| Configurable OSD Functions | DWDR, BLC, HLC, AGC, AWB |
| Communication | HIKVISION-C |
| Audio | Integrated microphone range 5 m (Audio via coaxial cable in TVI technology) |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 4 W max |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Front Cover: Metal Body: Plastic |
| Dimensions | 216.6 (L) x 78.9 (W) x 75.4 (H) mm |

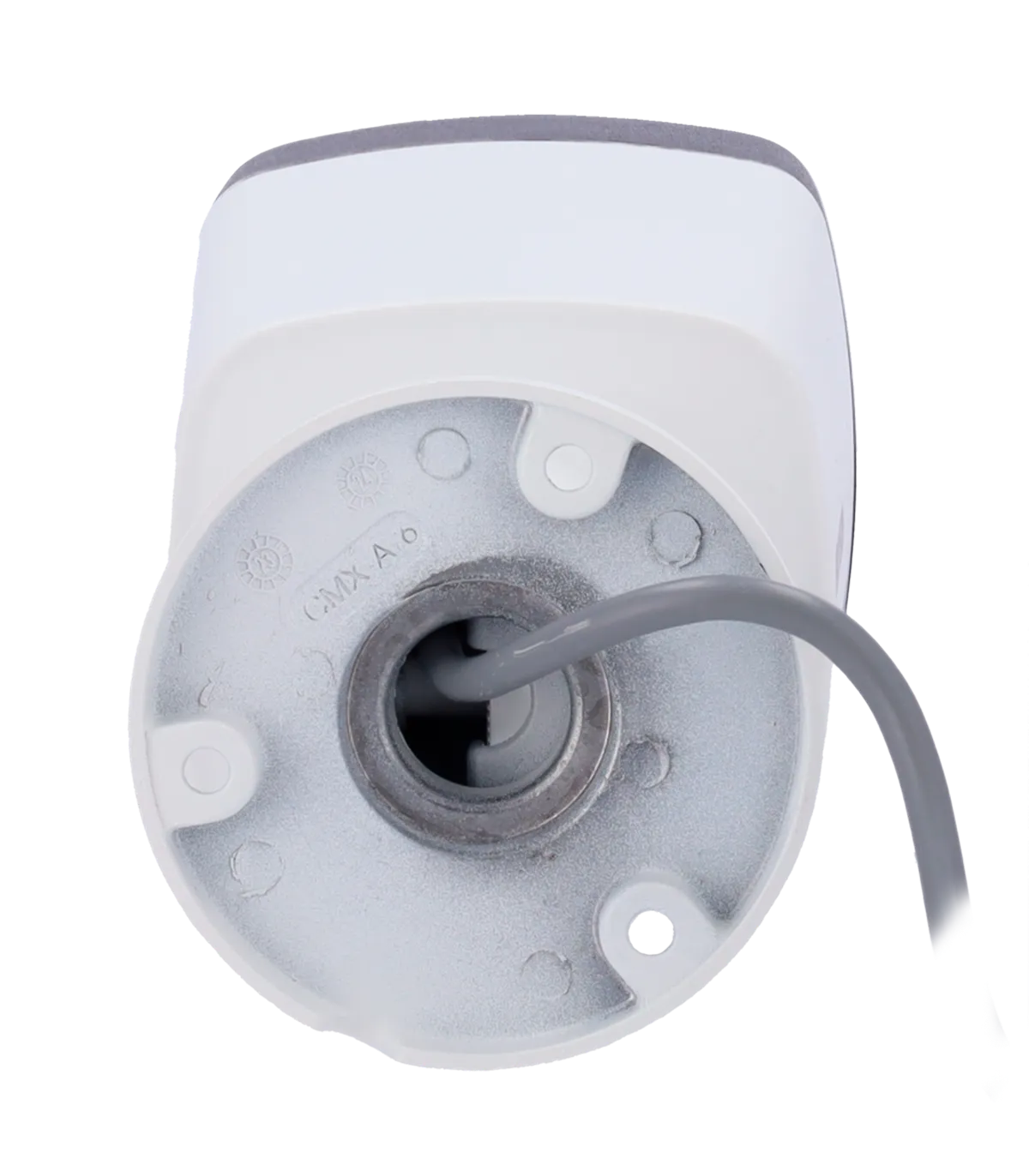

| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 340 g |
Package Contents
- Hikvision Value 4-in-1 Bullet Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE17G0T-LFS(2.8mm) camera is perfect for installation in retail stores, warehouses, and outdoor areas where reliable surveillance is essential. With its high-performance CMOS sensor, it captures clear images even in challenging lighting conditions. The camera's IP67 waterproof rating ensures durability against harsh weather, making it suitable for outdoor use. Installers can benefit from the plug-and-play functionality, allowing for quick setup and integration into existing security systems. The hybrid light feature provides enhanced visibility at night, while the integrated microphone allows for audio monitoring alongside video. This makes the DS-2CE17G0T-LFS(2.8mm) an excellent choice for comprehensive security solutions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 3 Mpx
- Technology
- HD-Coaxial
- WDR
- DWDR
- Audio
- Micrófono integrado
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6936422146252
