| Brand | Hikvision |
| Range | Value |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 106º (H) |
| Minimum illumination | 0.005 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 50 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

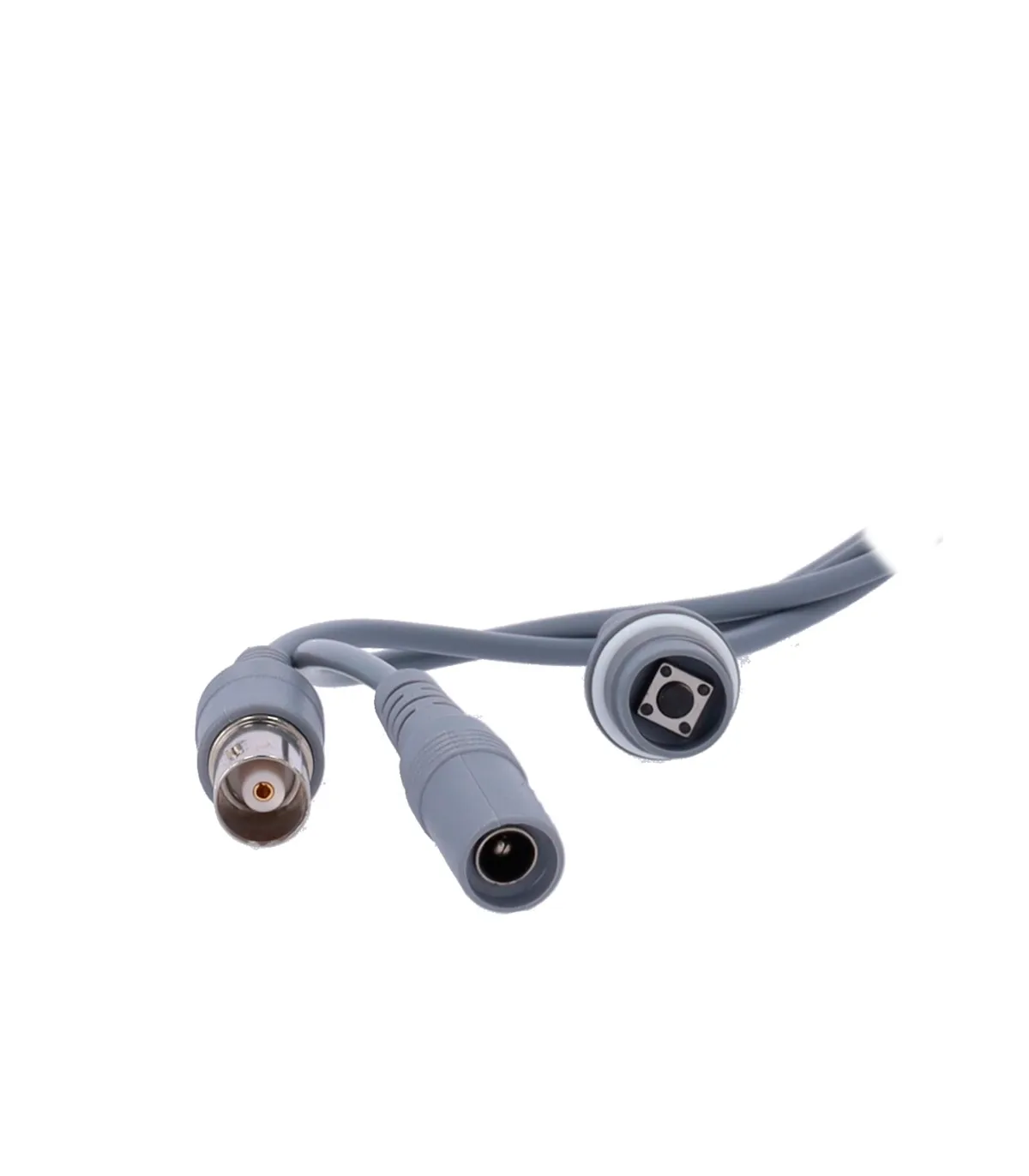

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | WDR (120 dB), BLC, HLC, 2DNR, AGC, AWB, AE, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.6 W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Front cover: Metal Camera body: Plastic |
| Dimensions | 81.9 (H) x 86.7 (W) x 217.9 (Fo) mm |

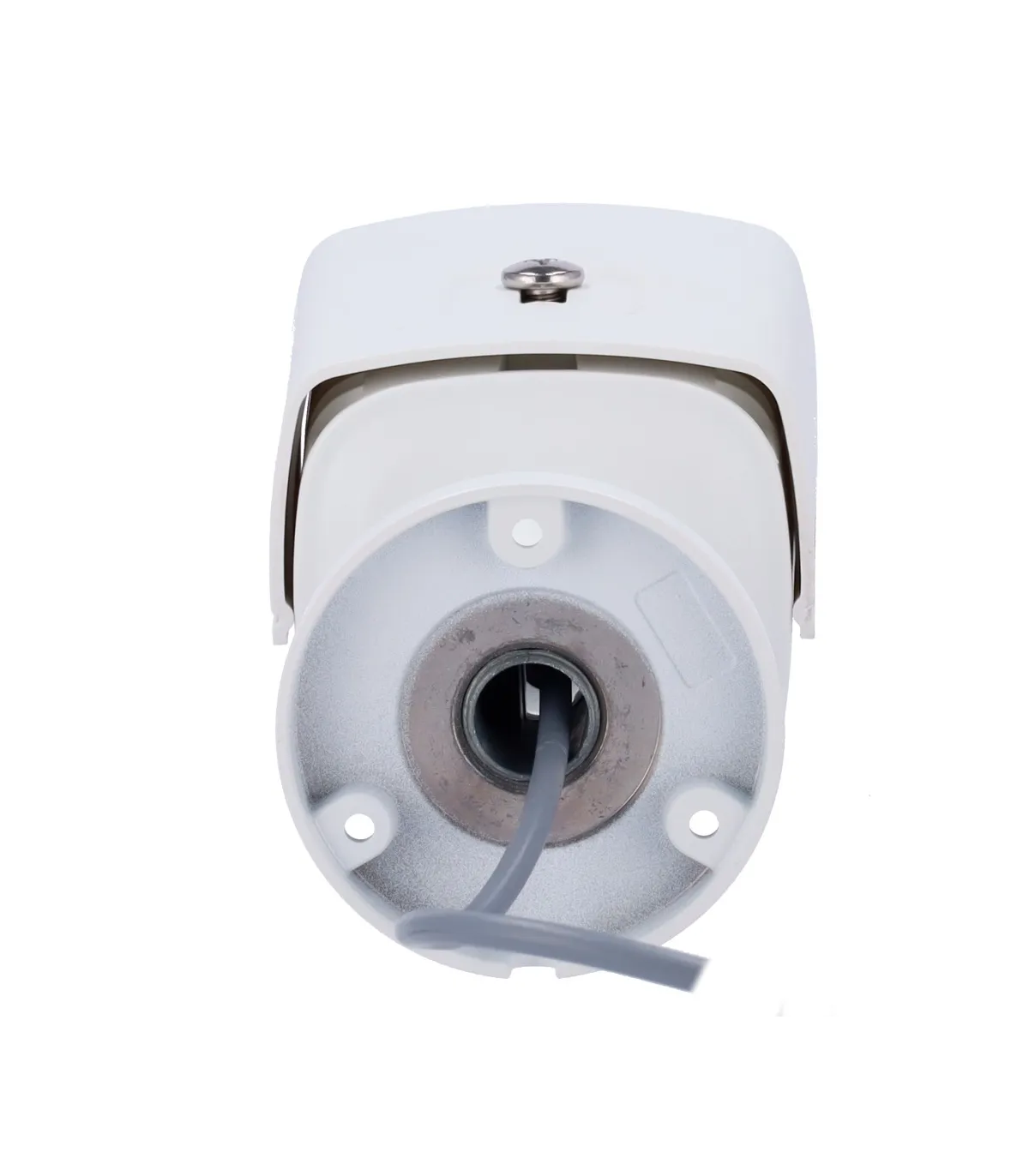

| Base diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 411 g |
