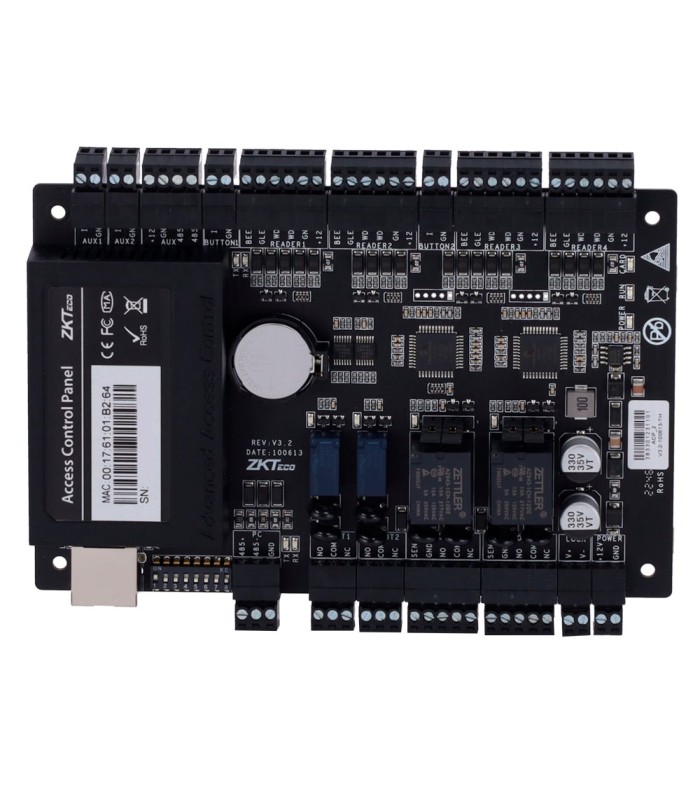

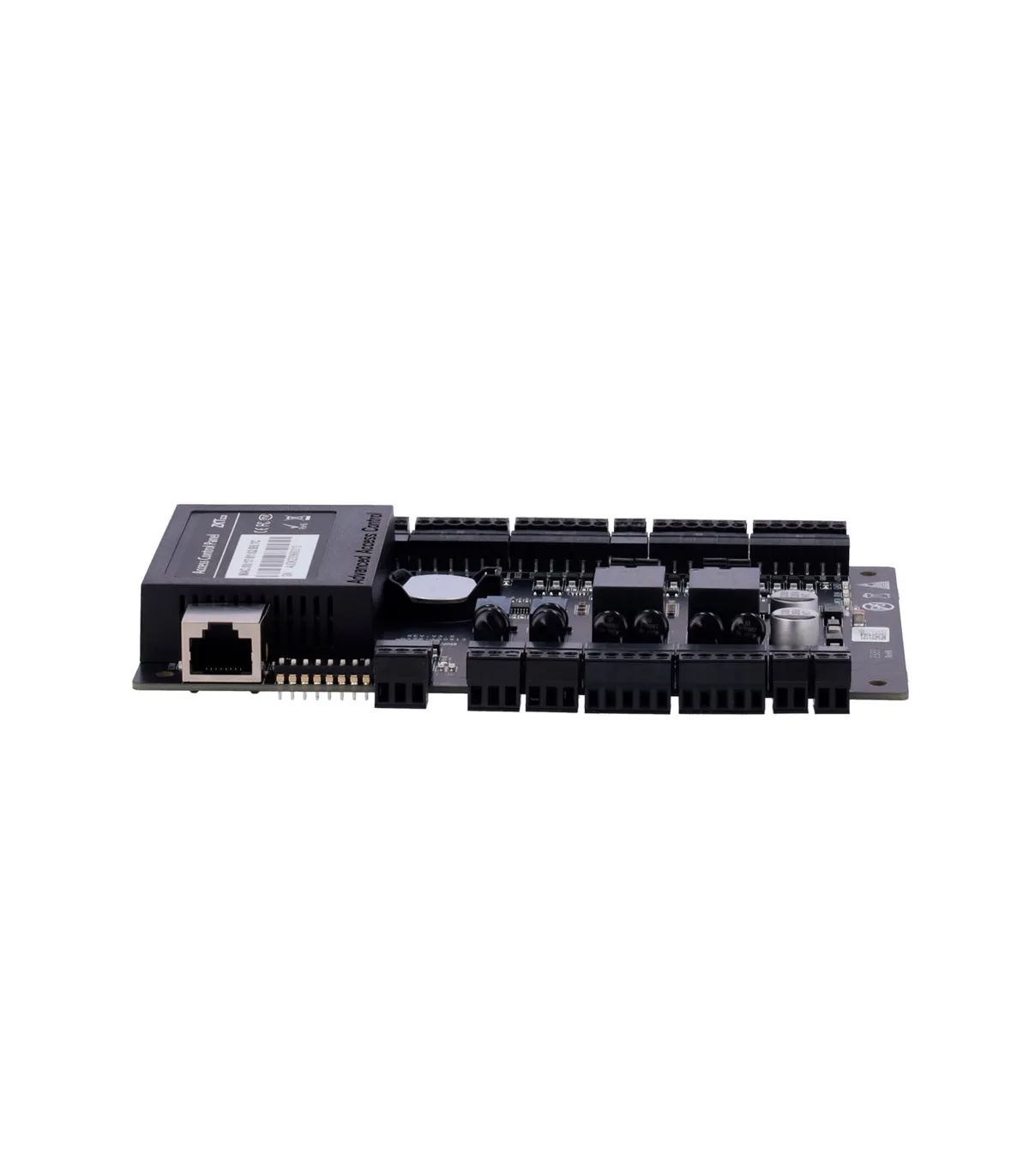

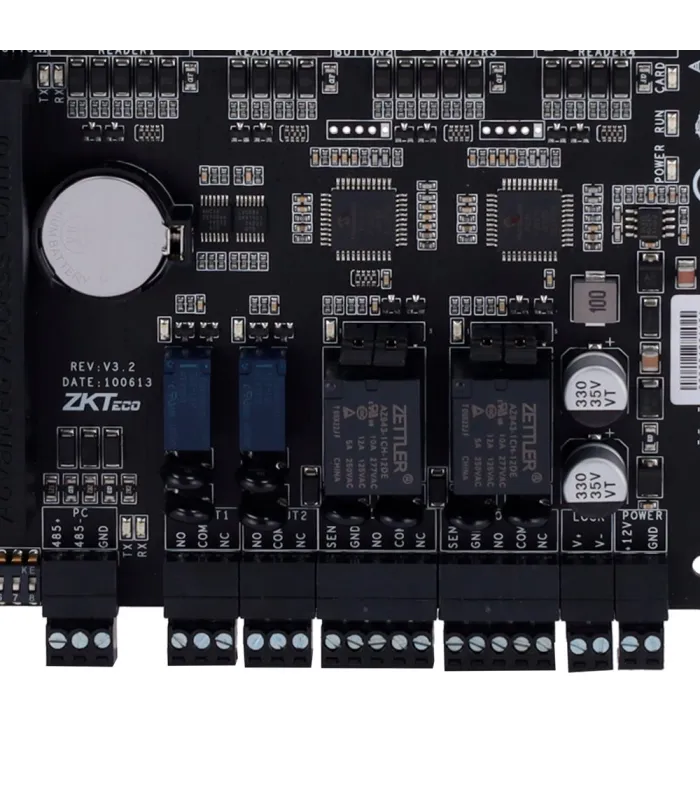

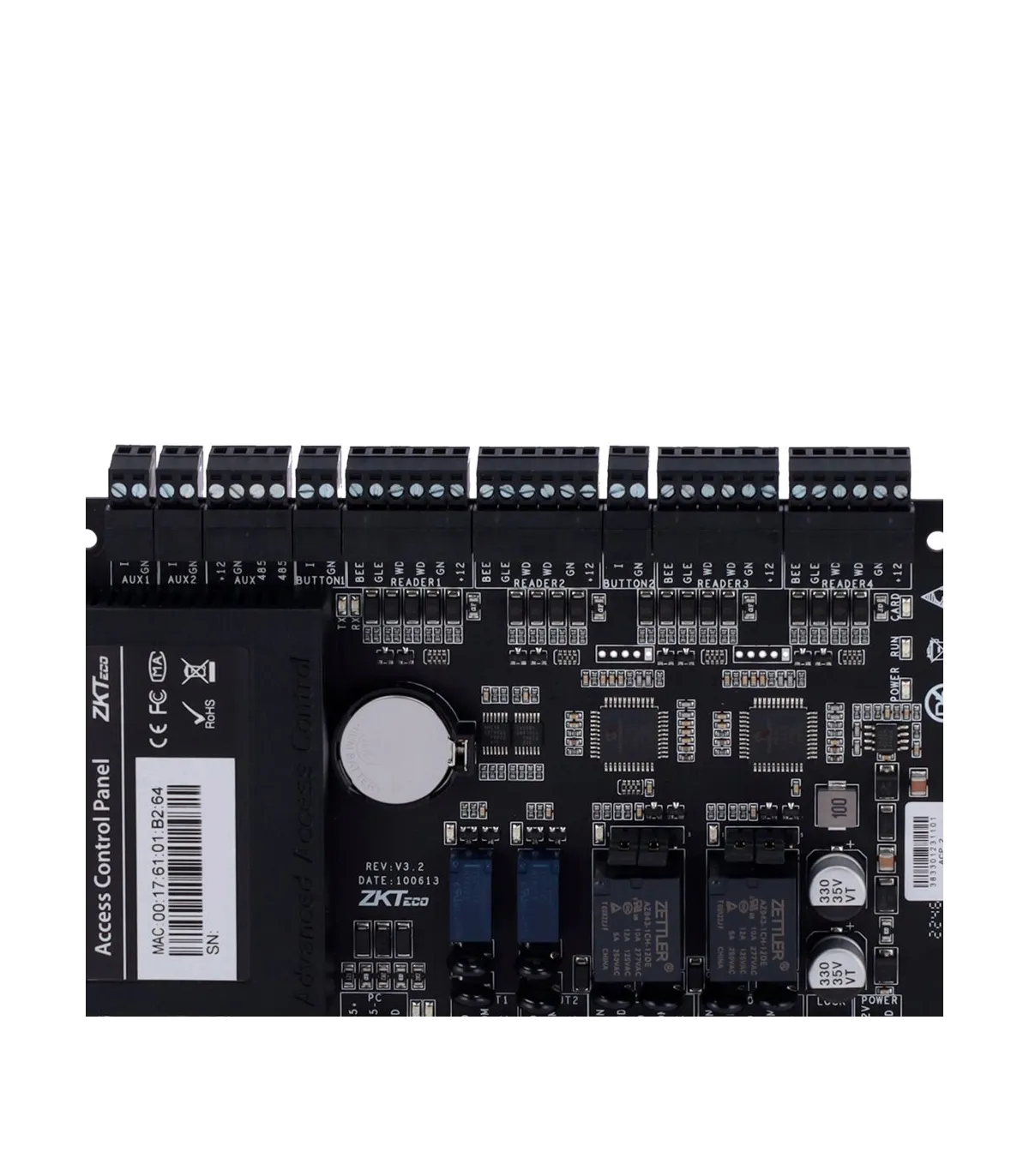

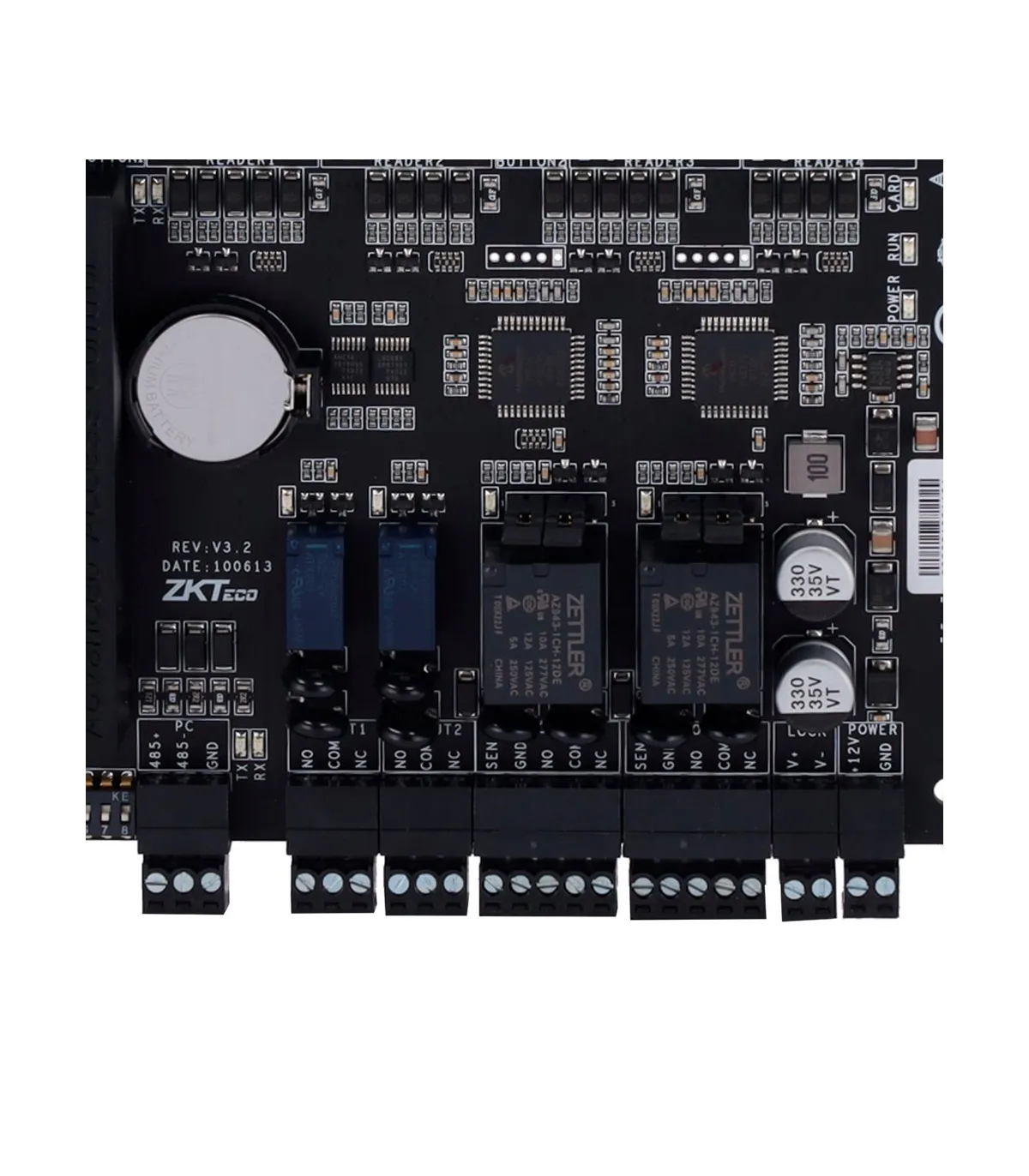

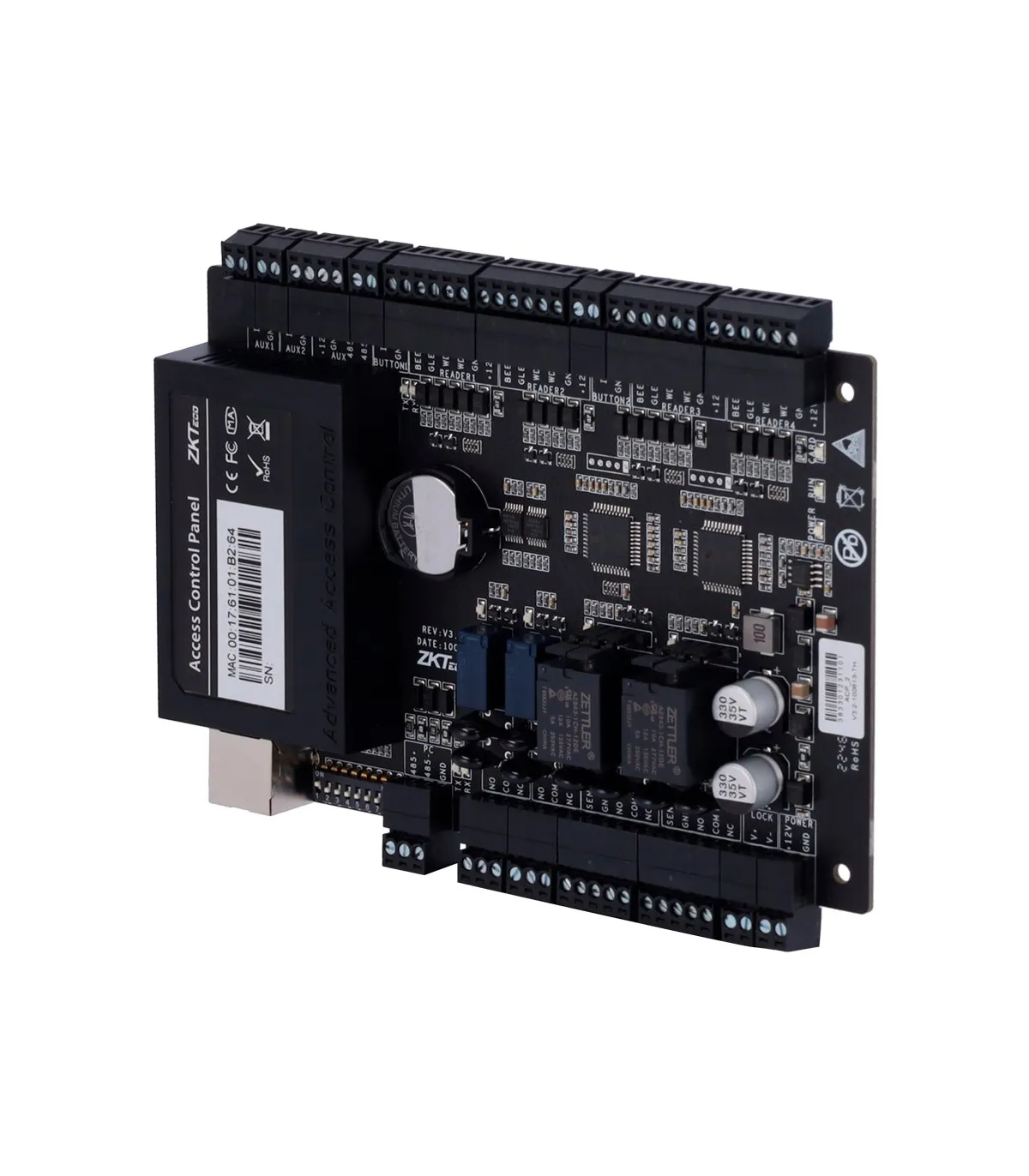

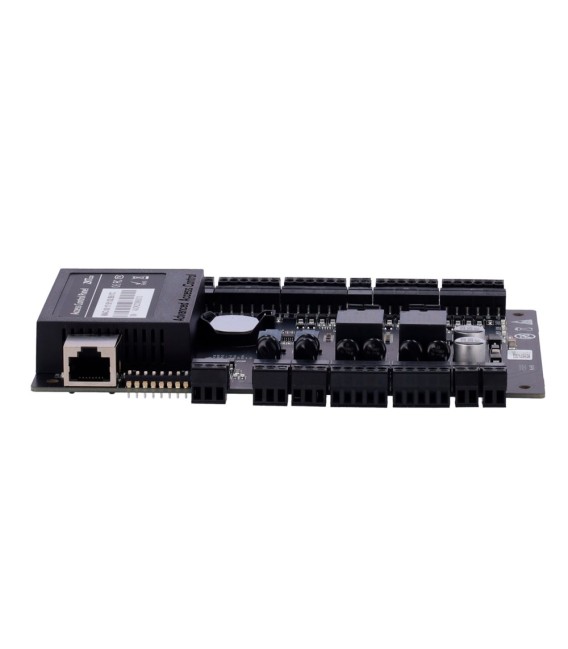

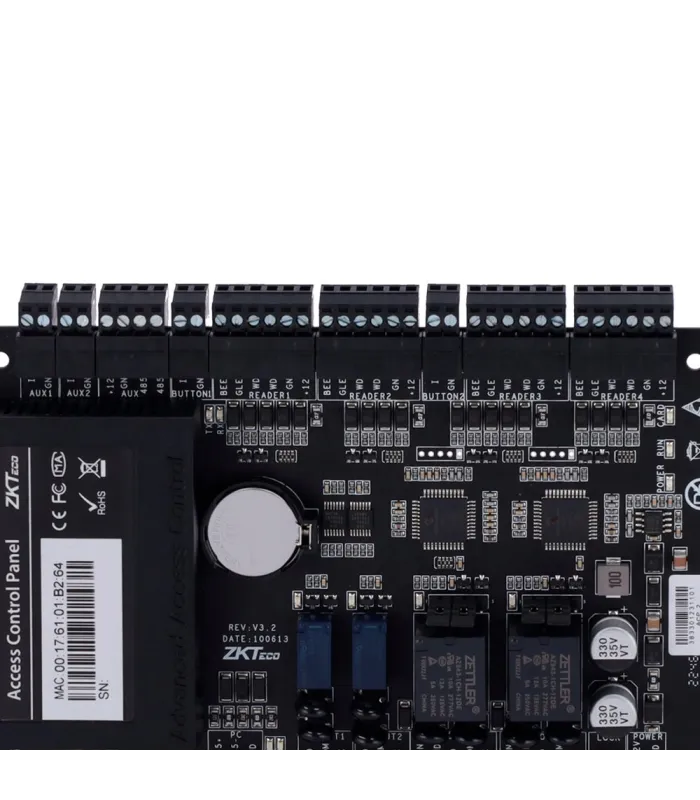

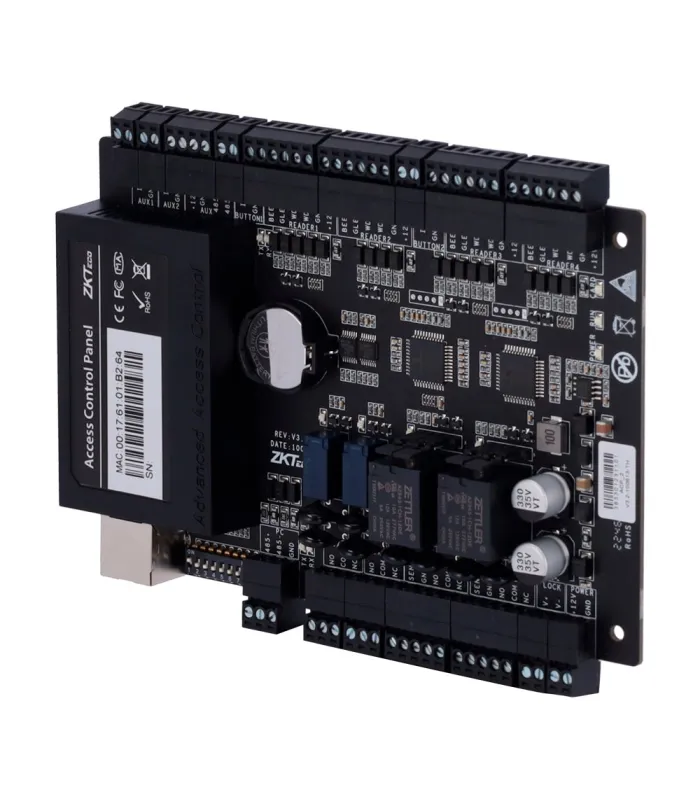

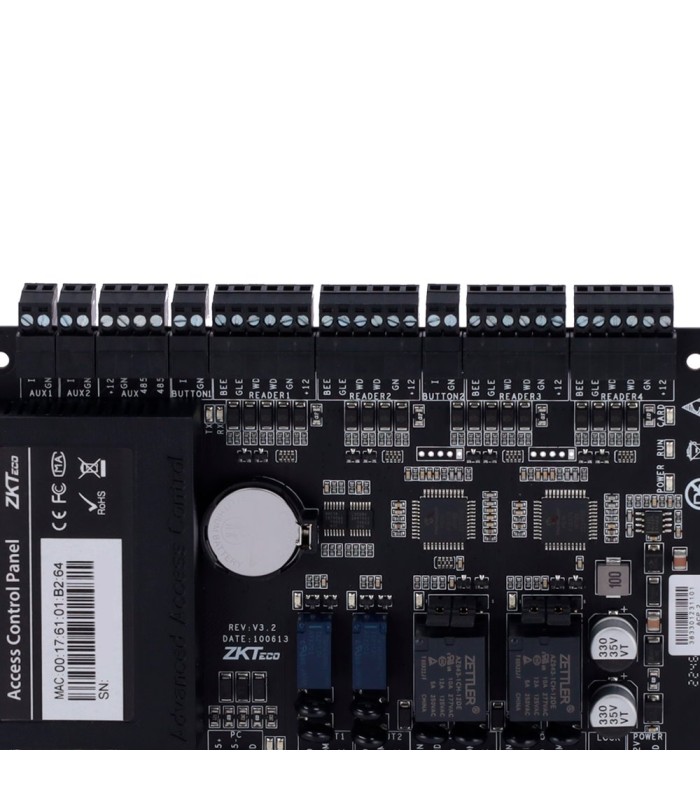

ZK-C3-200PRO Access Controller

  • Access controller
  • Card, QR, or PIN
  • TCP/IP communication
  • 4 Wiegand readers
  • Relay output for 2 doors
  • ZKBioCV software for 5 doors/5 APP included
Read moreShow less
€139.64
In Stock
Reference:
ZK-C3-200PRO
Brand:
Add to wishlist
Description

ZK-C3-200PRO Access Controller

  • ZKTeco
  • Access Controller
  • 2-door Management
  • Capacity of 30,000 users and 100,000 records
  • Supports up to 4 Wiegand readers
  • TCP/IP Communication

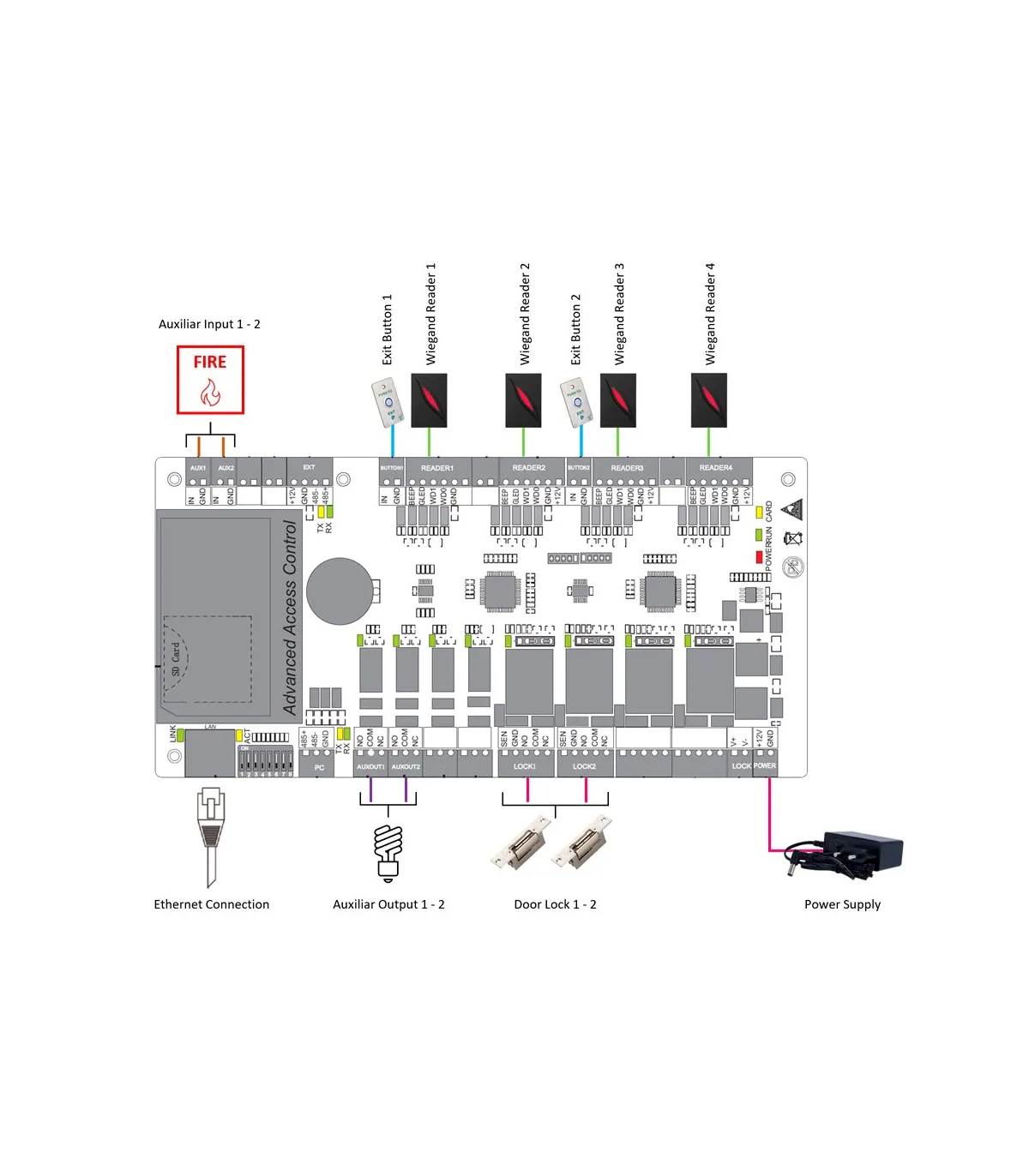

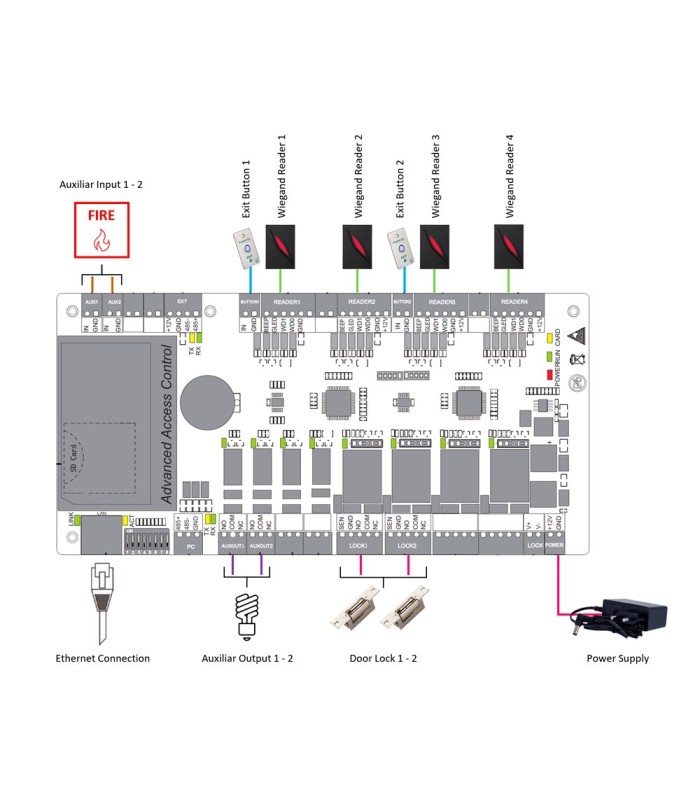

  • 2 push-button inputs, 2 door sensors, and 2 auxiliary inputs
  • 2 relay outputs and 2 auxiliary outputs
  • NO/NC relay configuration
  • Advanced functions: interlock, anti-passback, multi-card, first card opening, and occupancy control
  • Free included ZK-BIOCV-5-5APP-PROMO software (5 doors / 1 admin APP / 5 user APPs)

Technical Specifications

Brand ZKTeco
Model GL-C3-PRO200
Hardware CPU 32bit MIPS CPU
Capacity Up to 30,000 cards
Records 100,000 records
Identification Modes Card, QR, and/or password
Proximity Card RFID EM 125 kHz and MF 13.56 MHz
PC Communication TCP/IP and RS485
Baud rate 9,600 bps, 19,200 bps, 38,400 bps (recommended), and 57,600 bps
Outputs 2 x relay output, 2 x auxiliary outputs, 1 x DC 12 V
Inputs 4 x Wiegand 26/34, 2 x door sensor, 2 x open button, 2 x auxiliary, 1 x RS485
Software ZKBio CVSecurity (up to 5 doors / 1 admin APP / 5 user APPs included for free)
Advanced Functions Multi-door interlock, anti-passback, multi-card, first card opening, and occupancy control
Power Supply DC 12 V / 1.5 A max.
Operating Temp 0 °C ~ +55 °C
Dimensions 160 (W) x 106 (H) mm
Weight 360 g

Contents

  • ZKTeco Access Controller
  • Mounting Material
  • User Manual
Read moreShow less
Product Details
ZK-C3-200PRO

Data sheet

Brand
ZKTECO
PoE powered
Salida 12 VDC

Specific References

EAN13
8435452808577
Reviews
No comments
