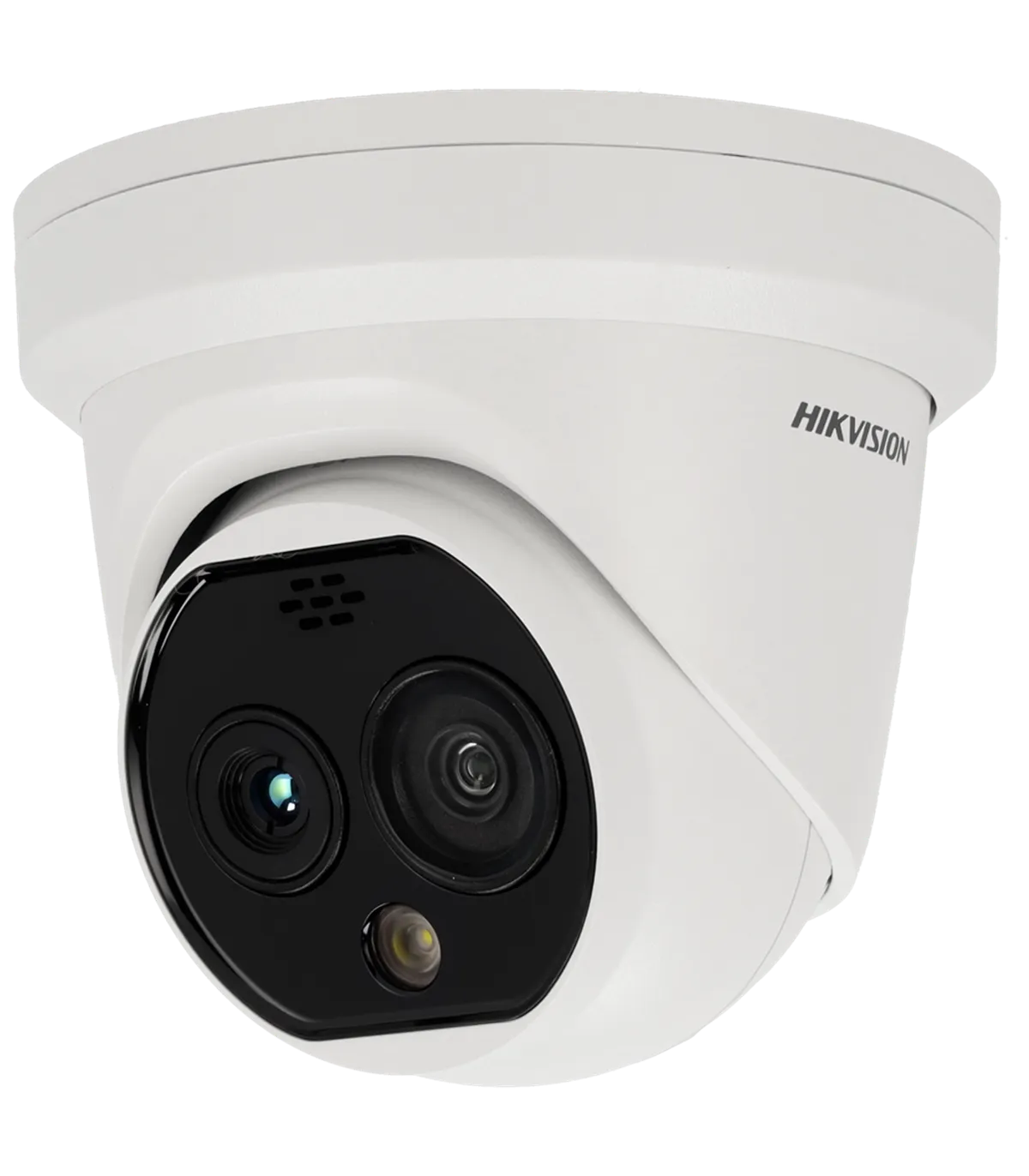

The DS-2TD1228-7/QA is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. Ideal for environments requiring temperature measurement and fire detection, this device integrates a thermal sensor with a high-resolution optical sensor, making it suitable for both day and night monitoring. With features such as remote access and ONVIF compatibility, it ensures seamless integration into existing security systems.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.9 mm (Thermal) / 6.4 mm (Optical) |
| DORI | Person: 287 m (D), 72 m (R), 36 m (I) Vehicle: 881 m (D), 220 m (R), 110 m (I) |
| VCA Ranges | Person: 55.2 m Vehicle: 144.9 m Temperature Measurement (Object 0.2x0.2m): 23.3 m Temperature Measurement (Object 1x1m): 116.7 m Fire Detection (Object 0.2x0.2m): 82.8 m Smoke Detection: 10.35 m |
| Field of View | Thermal: 24.9° (H), 18.7° (V) Optical: 53° (H), 28° (V) |
| Thermal Sensitivity | < 40 mK (0.05 º C) |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and flash in the camera |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V, 0.5 A, 6 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof, Surge Protection 6000 V |
| Dimensions | Ø 138.3 mm x 123.1 (H) |
| Weight | 940 g |
The DS-2TD1228-7/QA is ideally suited for deployment in critical infrastructure settings such as warehouses, power plants, and industrial facilities. In a typical scenario, the camera can be installed at strategic points to monitor for unauthorized access and detect potential fire hazards. With its high-resolution imaging and thermal detection capabilities, security personnel can receive real-time alerts for temperature anomalies, enabling swift action to prevent disasters. The integration of remote monitoring features allows operators to access live feeds and recorded footage from anywhere, enhancing situational awareness. Additionally, the camera's robust design ensures reliable performance in harsh environments, making it a valuable asset for comprehensive security solutions.
