Hikvision DS-KIS901-P video intercom kit
Brand: Hikvision
- Video door phone kit
- IP & WiFi Technology
- Outdoor unit and monitor | Supports up to 16 additional monitors
- Facial recognition, MF card, and QR code | Power over Ethernet (PoE)
- Mobile app with P2P connection | Internal relays in monitor
- Surface mount installation | IP65 rated
Hikvision DS-KIS901-P video intercom kit
- Hikvision
- Video intercom kit
- IP & WiFI technology

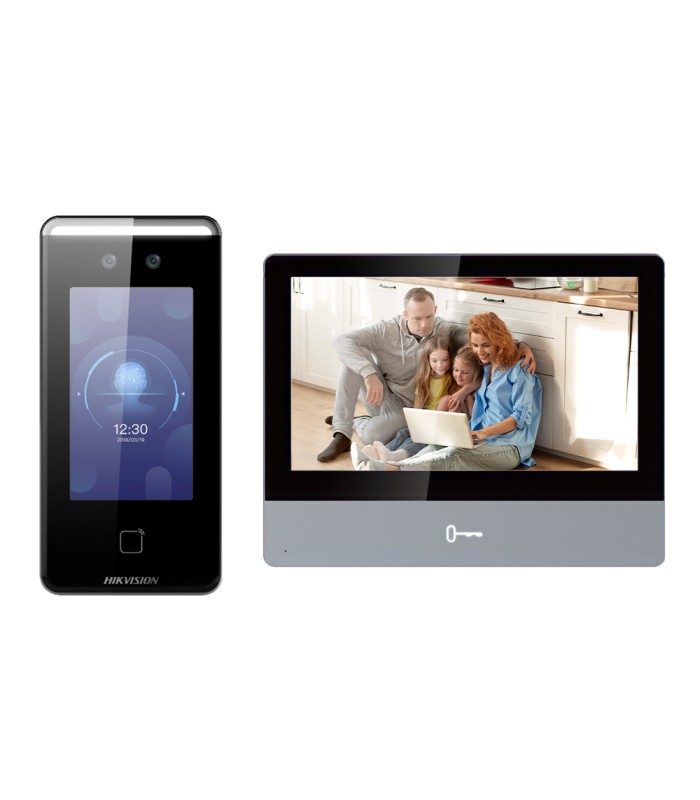

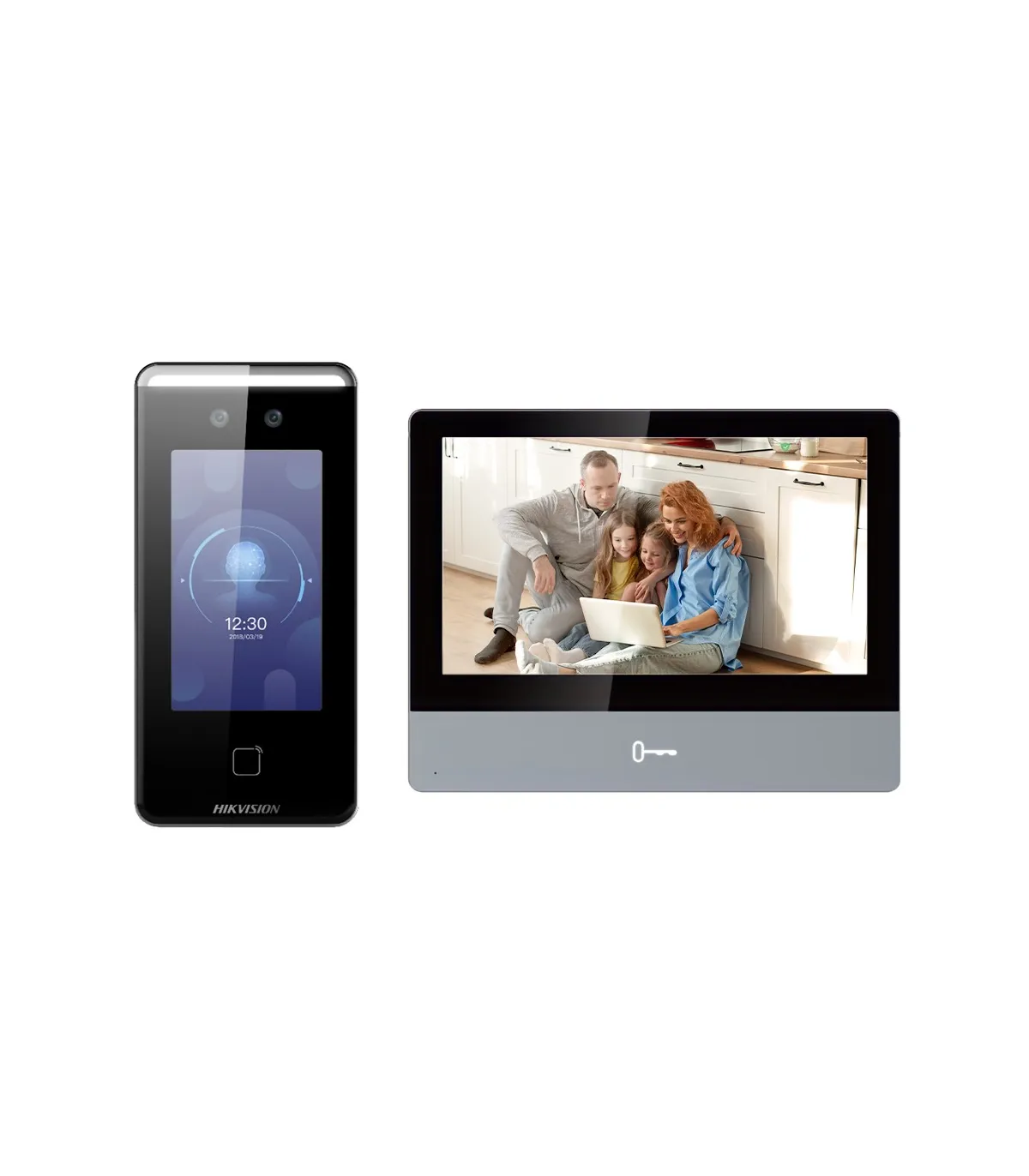

- Kit consisting of: DS-K1T341AM video intercom exterior panel with facial recognition and complete access control and DS-KH8350-WTE1 WiFi indoor monitor with 7" IPS LCD screen
- MF card reader, facial recognition and QR code
- Monitoring through iVMS-4200 software or Hik-Connect mobile app
- Allows you to add up to 16 additional monitors as extensions
Technical specifications
DS-KH8350-WTE1/EU | |
| Brand | Hikvision |
| Model | DS-KH8350-WTE1/EU |
| Operating system | Linux |
| Display type | 7" IPS color touch |
| Screen resolution | 1024 x 600 |
| Operation mode | Additional mechanical button for opening door |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 2 x relay outputs |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | microSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile App |
| Power | DC 12 V / 600 mA max. / PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 140 (H) x 180 (W) x 22.4 (D) mm |
| Weight | 355 g |
DS-K1T341AM | |
| Brand | Hikvision |
| Model | DS-K1T341AM |
| Operating system | Linux |
| Capacity | Up to 1,500 faces and 1,500 cards/passwords/QR |
| Records | 150,000 records |
| Identification modes | Facial recognition, card, PIN, QR and/or combinations |
| Proximity card | MF (13.56 MHz) |
| Display | 4.3" color touch TFT LCD |
| Screen resolution | 272 x 480 |
| Camera | 2 Mpx with dual sensor for facial recognition |
| Facial recognition verification time | < 0.2 sec |
| Recognition accuracy facial | > 99% |
| Facial recognition distance | 0.3 m up to 1.5 m |
| Communication | TCP/IP, USB, RS485 and Wiegand |
| Integrated controller | Wiegand 26/34, door sensor, push button and relay |
| Alarms | Tamper |
| Audio | Two-way audio |
| Special functions | Operation as a video intercom |
| Software | iVMS-4200 / iVMS-4200 AC |
| Mobile application | Hik-Connect |
| Power supply | DC 12V / 2 A max. |
| Protection degree | Suitable for outdoor use IP65 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 83.2 (W) x 172.5 (H) x 22.7 (Fo) mm |
| Weight | 400 g |
Contents
- Hikvision surface-mounted video intercom exterior panel
- Hikvision indoor monitor
- 2 x power supply
