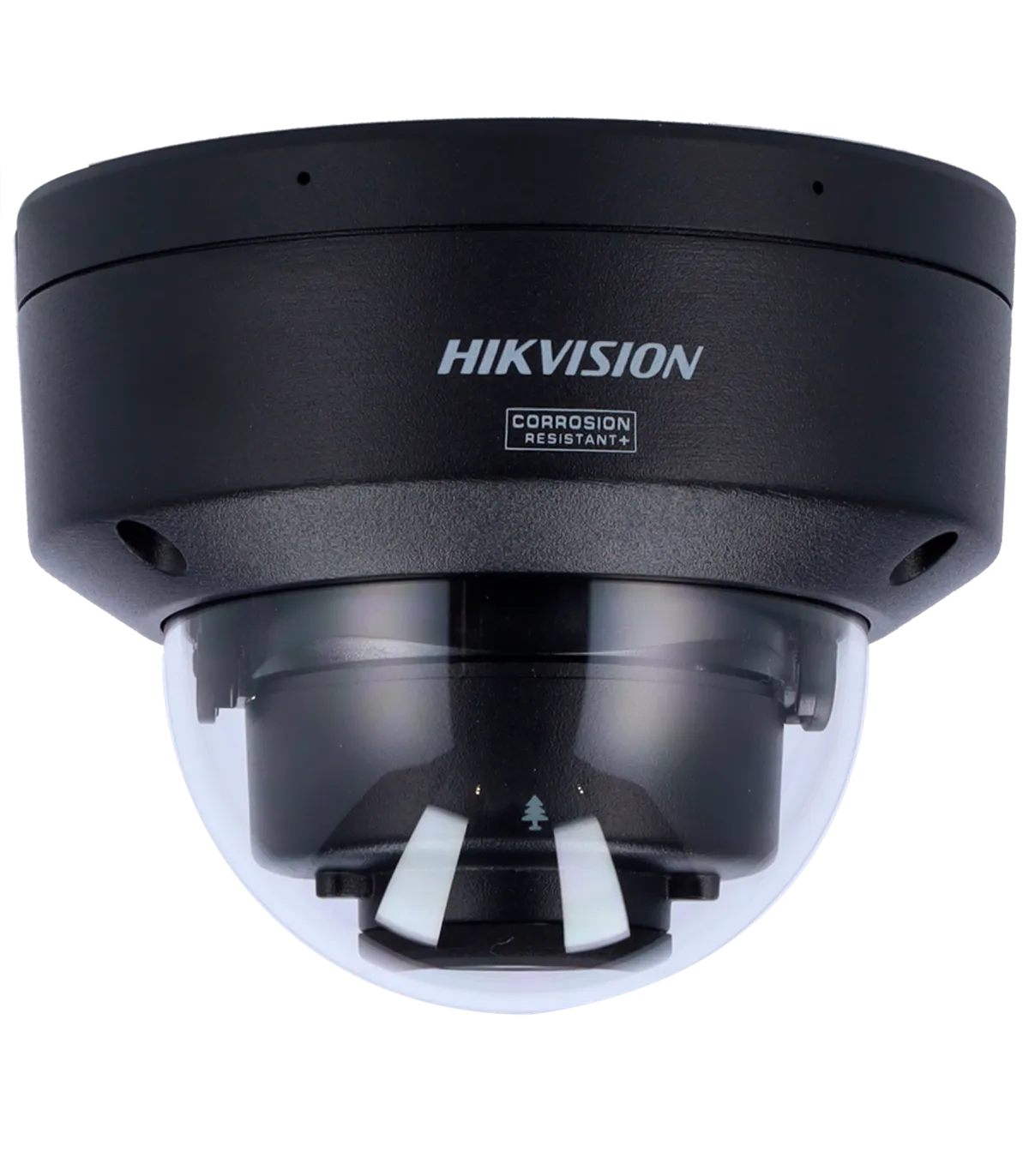

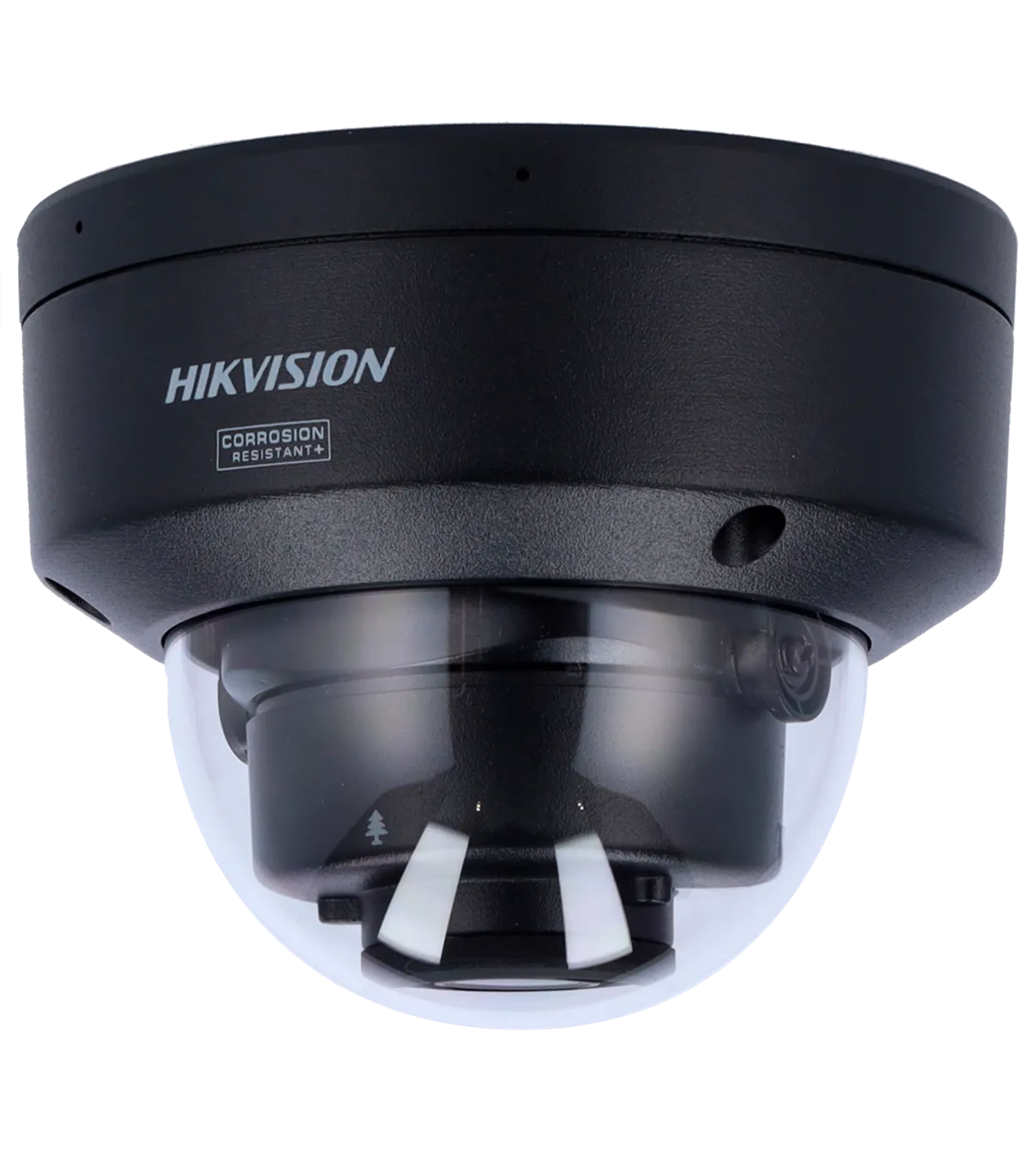

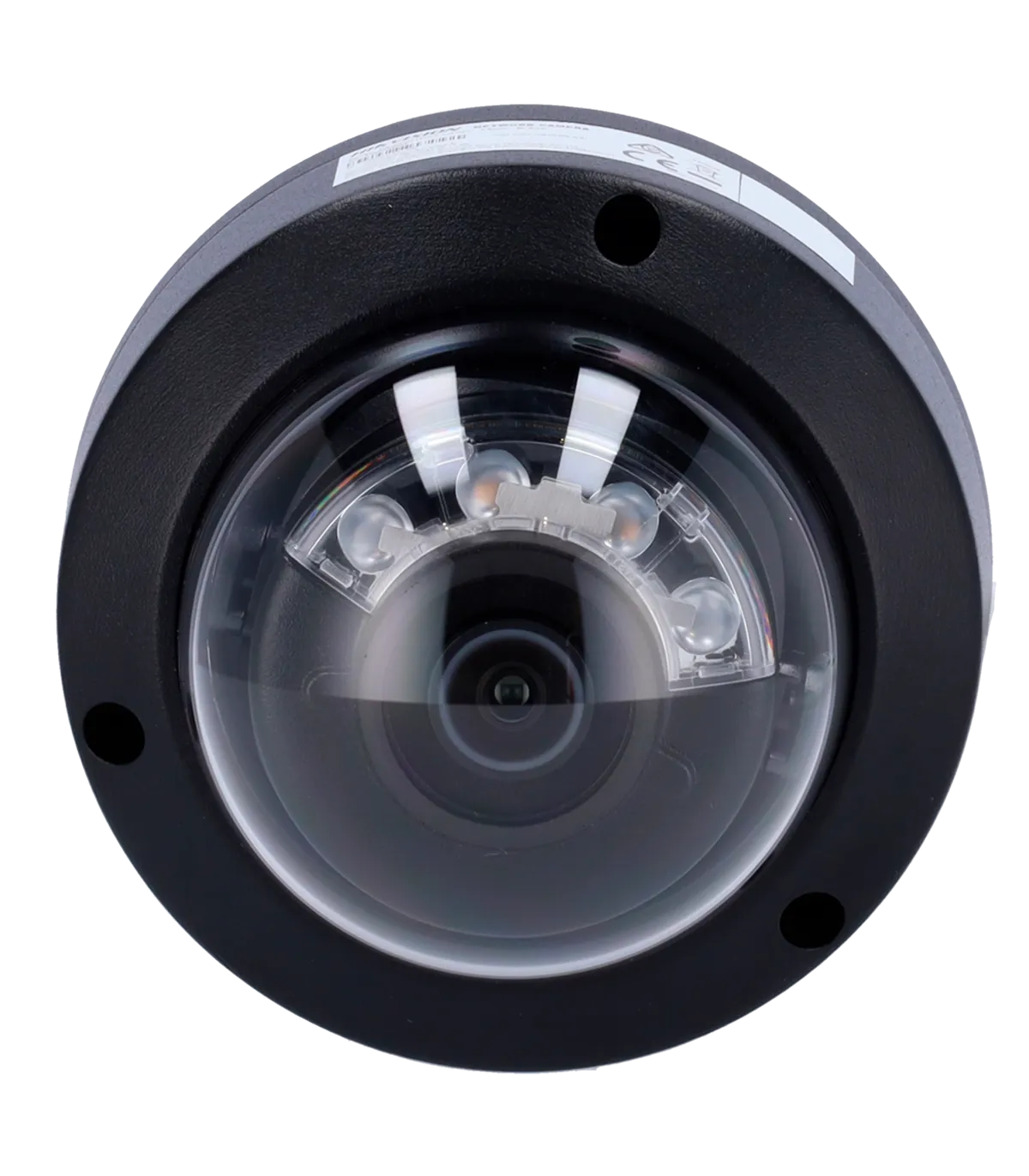

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including commercial security and residential monitoring, thanks to its advanced sensor technology and wide aperture lenses that capture more light for enhanced clarity and detail without the need for additional lighting. It incorporates HikAI-ISP, an intelligent image processor that optimizes visual quality by reducing noise and improving sharpness in challenging conditions.
The intelligence features include AcuSense 3.0, which allows for precise detection of humans and vehicles. Additionally, it features Audio 2.0 for more efficient communication.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Integrated dual microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) 1 Input / 1 Output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent Features | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100M BaseT |
| Alarms | 1 Input / 1 Output |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 600mA / 7.2W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 121.5 mm (Ø) x 97.6 mm (H) |

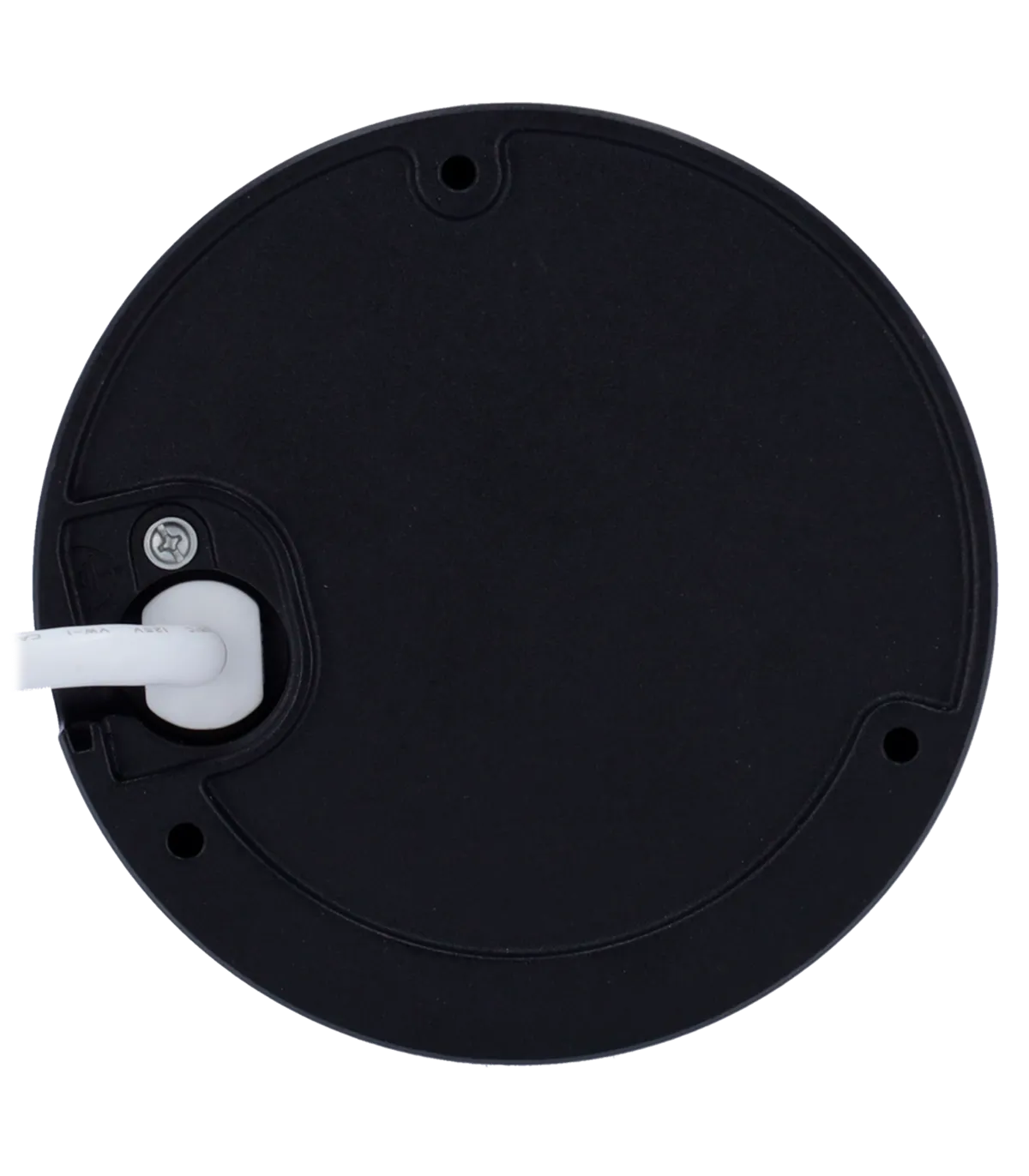

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104 mm / 3 screws |
| Weight | 600 g |
In a typical deployment scenario, the DS-2CD2147G3-LIS2UY(2.8mm)(BLACK) camera can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images even during nighttime, ensuring that all activities are captured in detail. The integrated dual microphone allows for effective audio monitoring, which is crucial for communication in busy retail spaces. The motion detection capabilities, enhanced by AcuSense 3.0, minimize false alarms by accurately distinguishing between humans and vehicles, making it ideal for high-traffic areas. Additionally, the camera's remote access features enable store managers to monitor their premises from anywhere, ensuring peace of mind. The robust IP67 and IK10 ratings guarantee that the camera can withstand harsh weather conditions and vandalism, making it a reliable choice for outdoor installations.
