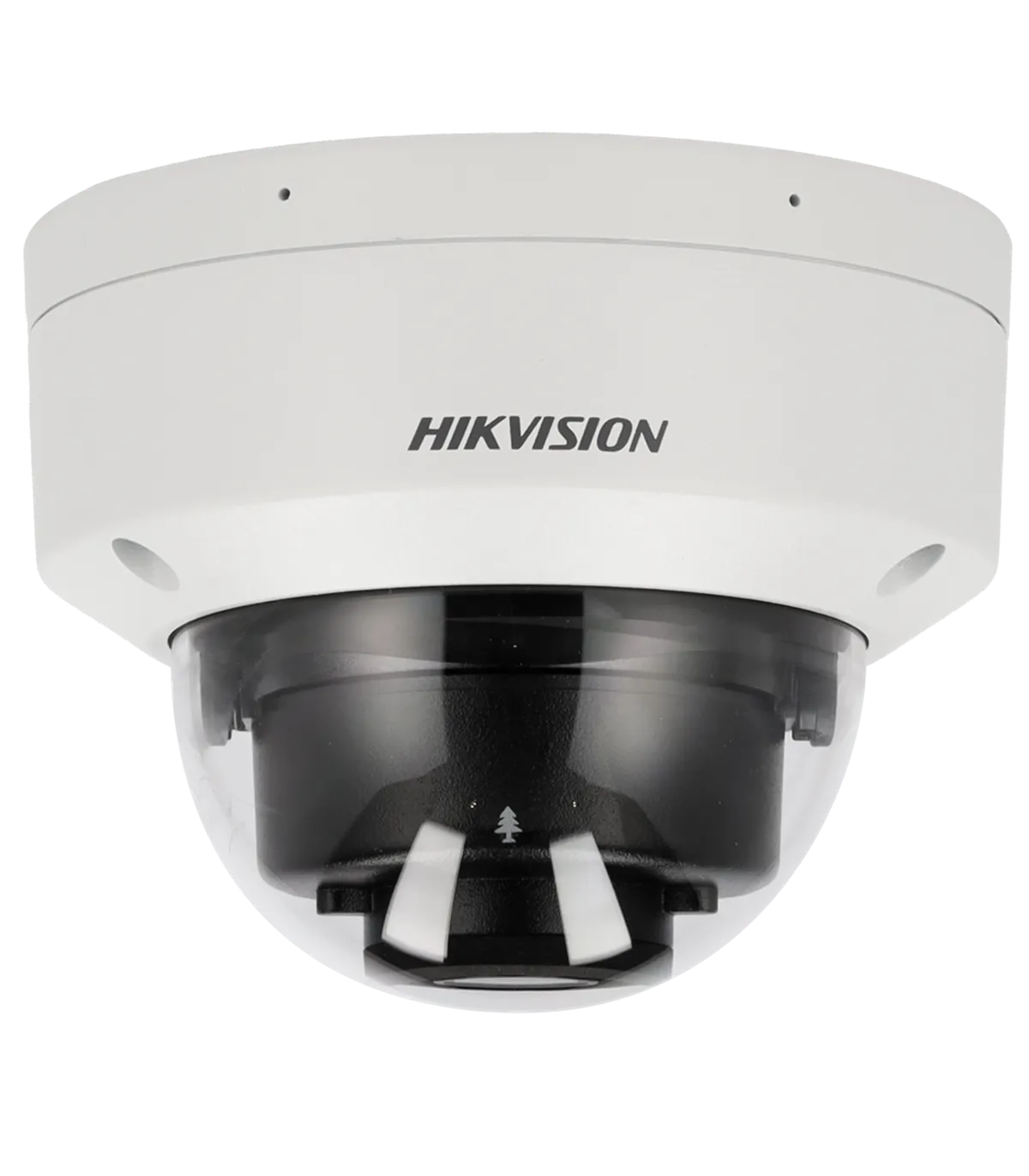

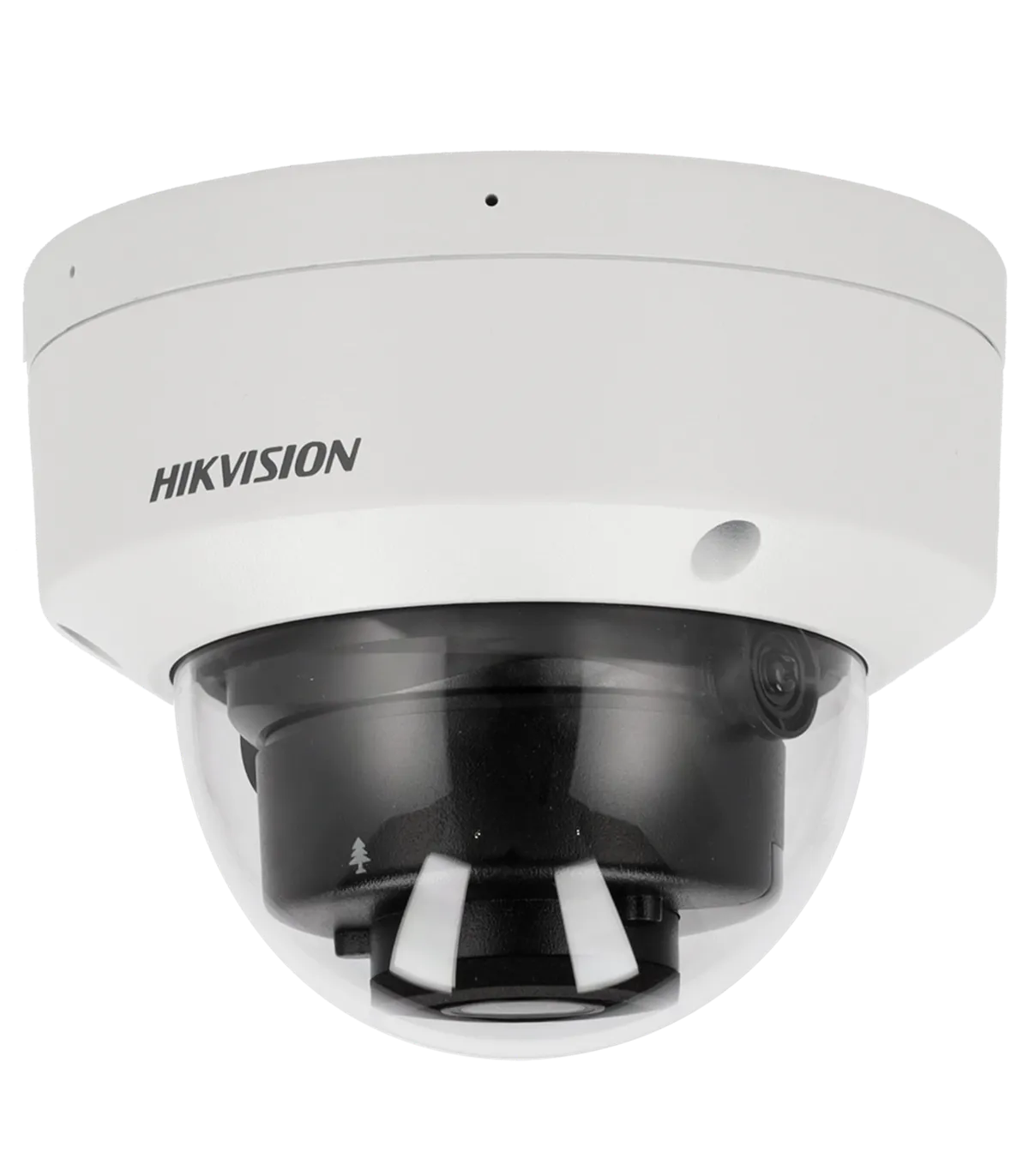

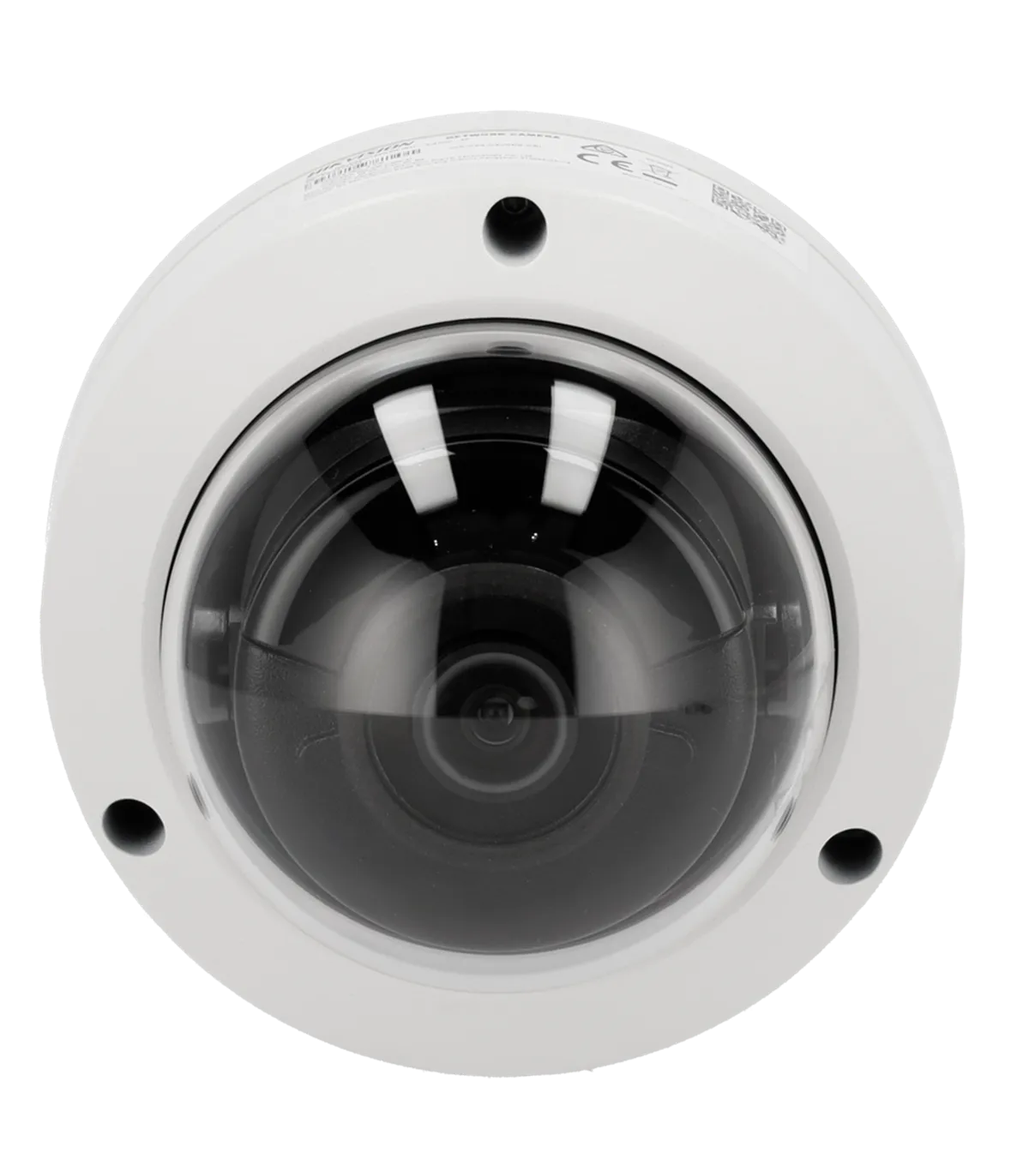

The DS-2CD2186G2H-ISU(2.8mm)(eF) is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in low-light conditions, making it perfect for monitoring areas with varying lighting. With features such as 8 Megapixel resolution and low light performance powered by DarkFighter, it ensures clear and detailed images even in challenging conditions. The device also incorporates smart detection technologies like AcuSense, which significantly reduces false alarms, enhancing overall security effectiveness.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105.1°, V: 54.8°, D: 128.2° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function, Privacy Mask |
| ANR | Yes |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 660 mA / 8 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø screw hole 104.7 mm / 3 screws |
| Weight | 525 g |
The DS-2CD2186G2H-ISU(2.8mm)(eF) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and public spaces. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and enhance security. With its 30 m IR range and 0 Lux capability, it provides clear images even in complete darkness, ensuring that no activity goes unnoticed. The smart detection features such as AcuSense allow for precise monitoring by filtering out false alarms triggered by non-human movements, thus focusing on genuine threats. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from anywhere, enhancing response times to incidents. This combination of features makes the DS-2CD2186G2H-ISU(2.8mm)(eF) an essential tool for effective surveillance and security management.
