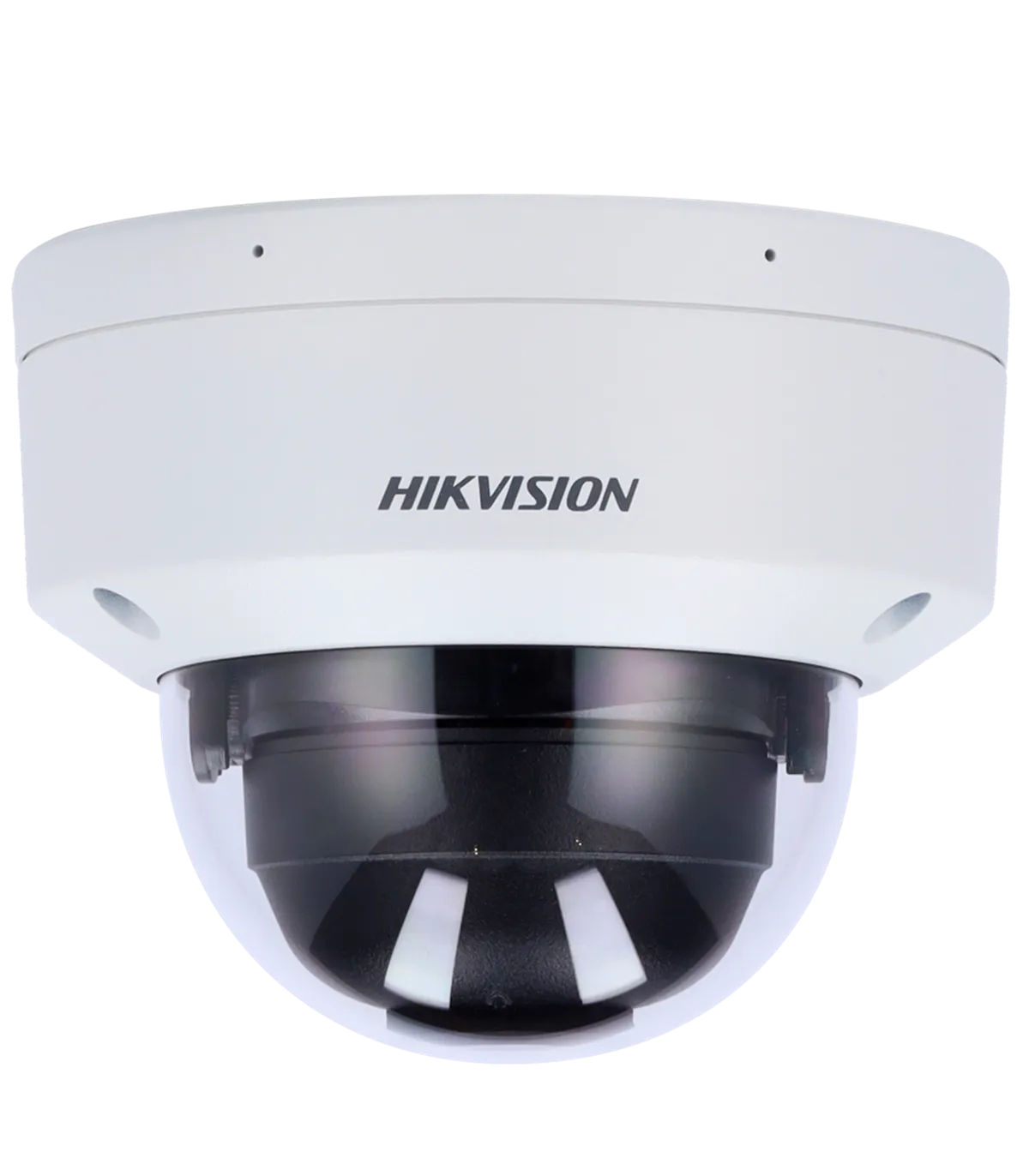

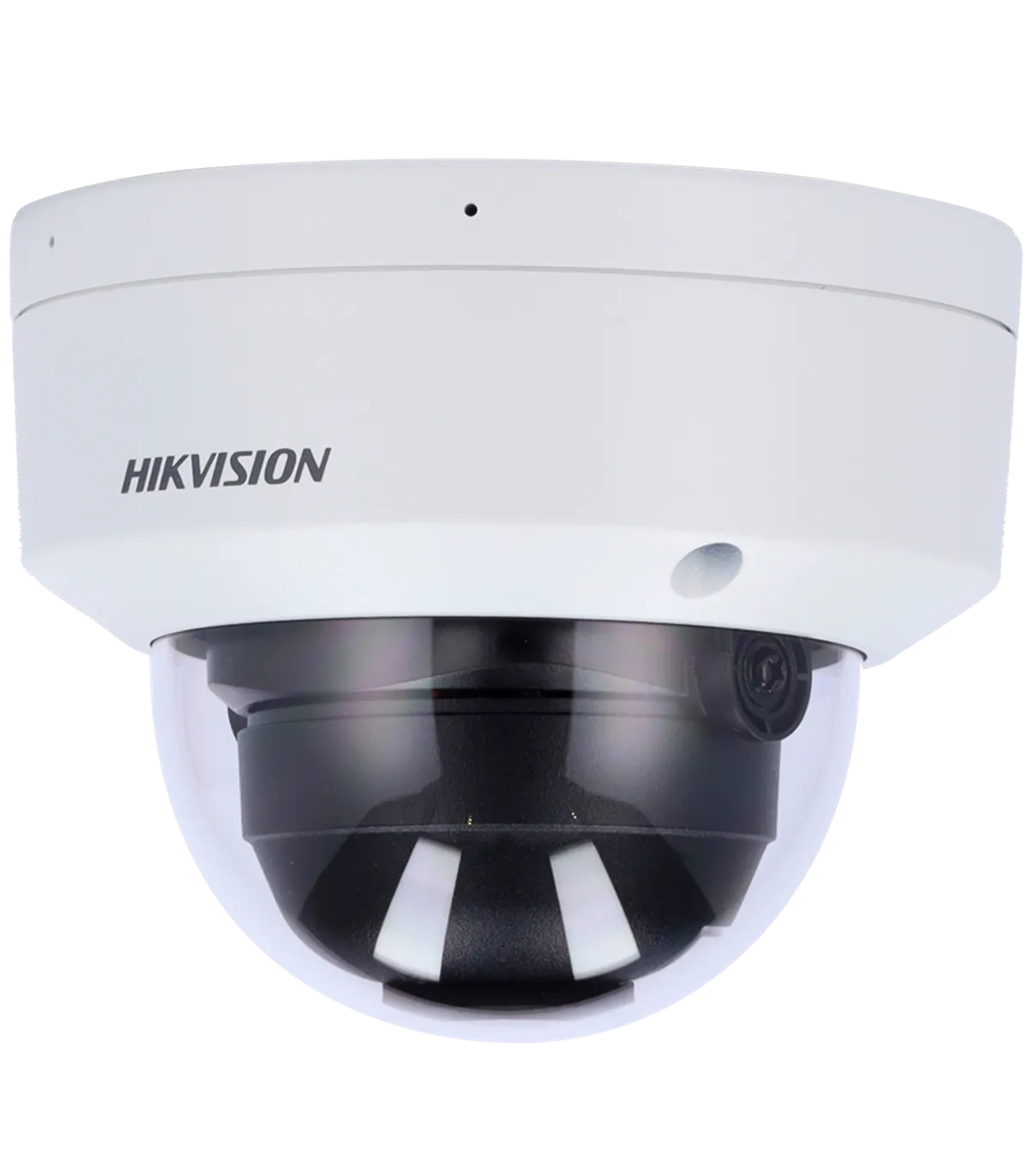

The DS-2CD2183G2-LIS2U(2.8mm) is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution and Progressive Scan CMOS sensor, it delivers exceptional image quality, making it ideal for both indoor and outdoor environments. This camera features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Its hybrid lighting capabilities, including IR and white light, enable effective monitoring even in complete darkness, with a range of up to 30 meters.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108°, V: 59°, D: 127° |
| DORI | 84 m (D), 33 m (O), 16 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI |
| Power Supply | DC 12 V / 700 mA / 8.4 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

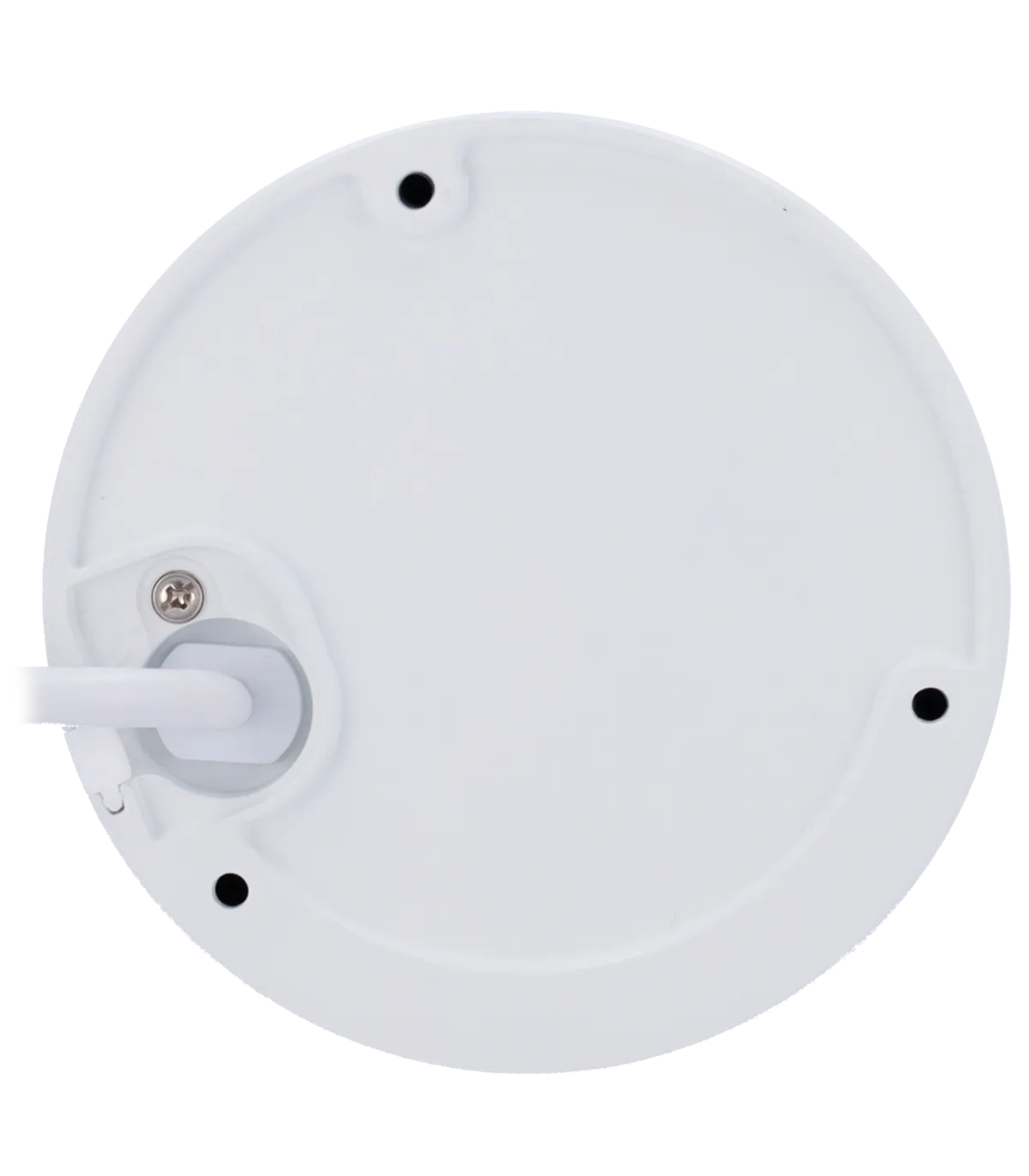

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
The DS-2CD2183G2-LIS2U(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and office buildings. In a retail environment, this camera can be strategically placed to monitor entrances and aisles, providing real-time monitoring and enhancing security. The hybrid lighting feature ensures that the camera captures clear images both day and night, while the motion detection capabilities allow for immediate alerts when suspicious activity is detected. Additionally, the camera's IP67 waterproof rating makes it suitable for outdoor installations, ensuring durability against harsh weather conditions. With its remote access capabilities, users can easily view live feeds and recorded footage from anywhere, making it a versatile solution for comprehensive security management.
