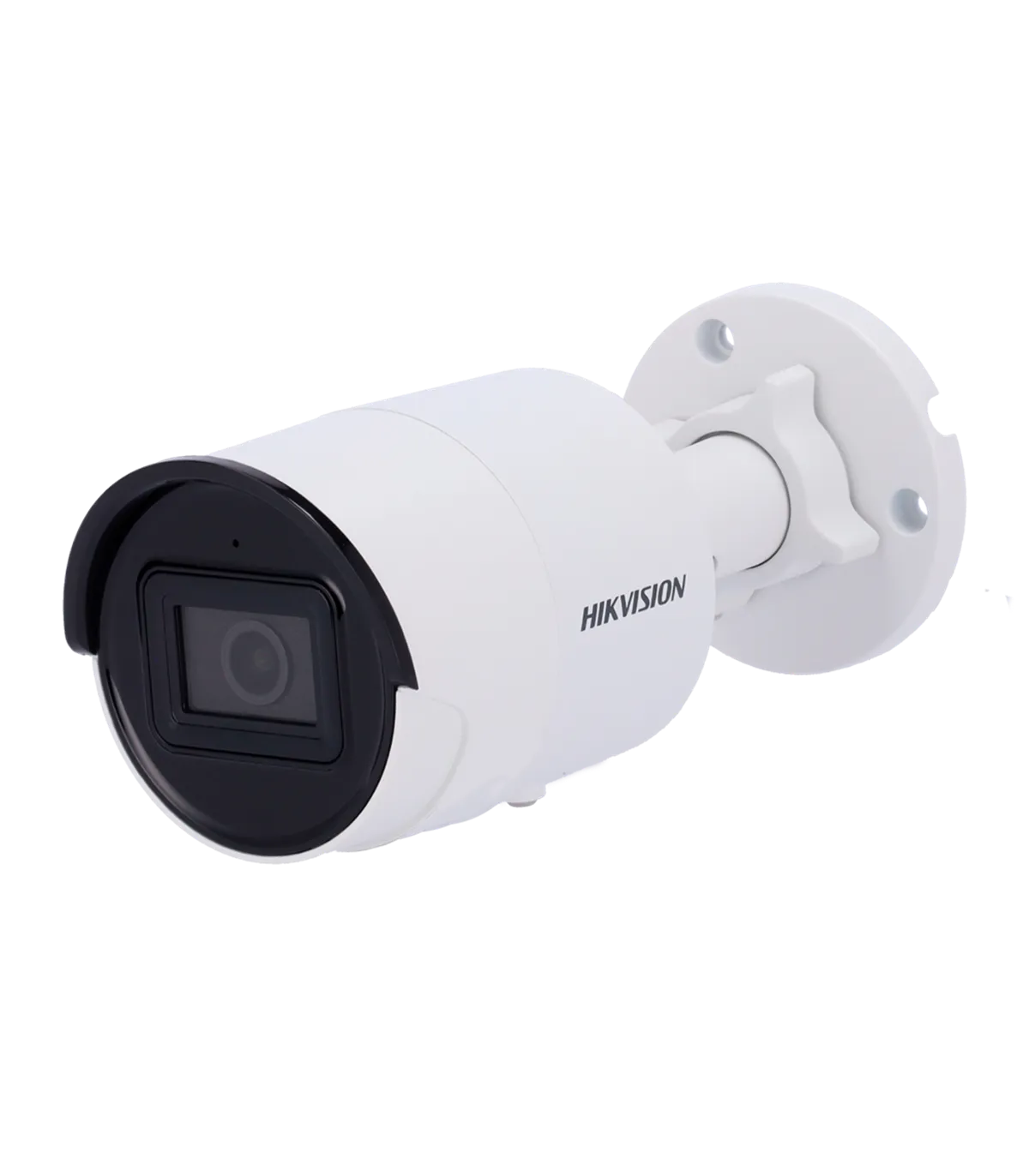

The DS-2CD2063G2-IU(2.8mm) is a high-performance IP bullet camera designed for versatile surveillance applications. With its advanced 6 Megapixel resolution and integrated IR capabilities, this camera excels in low-light conditions, making it ideal for both indoor and outdoor environments. The device features motion detection technology and AcuSense capabilities, ensuring reliable monitoring while minimizing false alarms.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800), 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 107°, V: 57°, D: 128° |
| DORI | 73 m (D), 29 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Body: Aluminum Alloy IR Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 70 mm x 161.7 mm (Fo) |

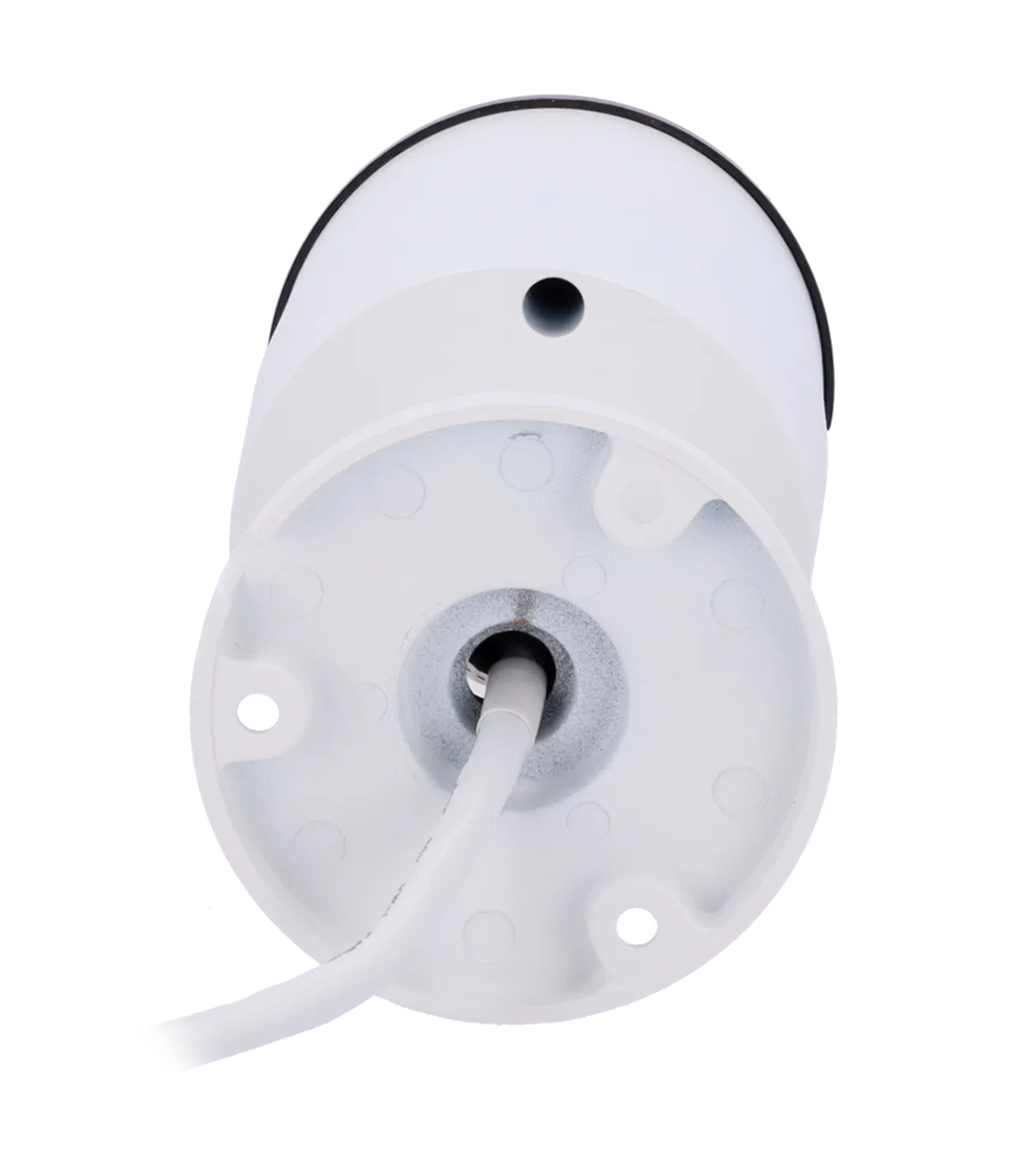

| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 485 g |
The DS-2CD2063G2-IU(2.8mm) is ideally suited for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entry points to provide comprehensive coverage. With its high-resolution imaging and night vision capabilities, it ensures that every detail is captured, even in low-light conditions. The motion detection feature allows for real-time alerts, enhancing security by notifying staff of any suspicious activity. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between humans and vehicles, making it an excellent choice for busy locations. The camera's remote monitoring capabilities via smartphone apps and web interfaces enable users to keep an eye on their premises from anywhere, ensuring peace of mind.
